Model #5KMT2204ABK0 KitchenAid toaster

Here are the diagrams and repair parts for KitchenAid 5KMT2204ABK0 toaster, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 27 parts

Housing

#2F

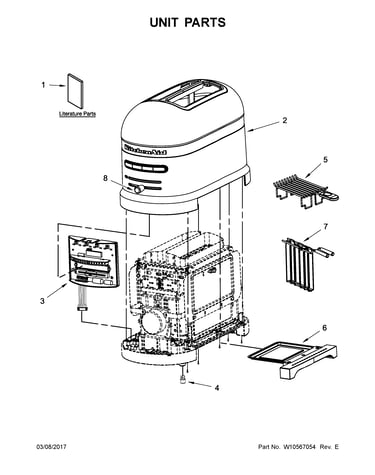

Unit parts Diagram

Housing

Part #W10863003
$343.98

In Stock

Foot

#4

Unit parts Diagram

Foot

Part #W10532148
$22.49

In Stock

Rack

#7

Unit parts Diagram

Rack

Part #W10567062
$84.74

In Stock

Tray

#6F

Unit parts Diagram

Tray

Part #W10863004
$52.89

In Stock

Handle

#8

Unit parts Diagram

Handle

Part #W10567063
$37.89

In Stock

Tray

#6D

Unit parts Diagram

Tray

Part #W10567065
$52.89

In Stock

Board

#3

Unit parts Diagram

Board

Part #WPW10567068
?
Manufacturer substitution
This part replaces W10567068. Substitute parts can look different from the original.
This part replaces W10567068
$54.30

In Stock

Tray

#6C

Unit parts Diagram

Tray

Part #WPW10521159
?
Manufacturer substitution
This part replaces W10521159. Substitute parts can look different from the original.
This part replaces W10521159
$95.34

In Stock

Tray

#6B

Unit parts Diagram

Tray

Part #WPW10521157
?
Manufacturer substitution
This part replaces W10521157. Substitute parts can look different from the original.
This part replaces W10521157
$95.18

In Stock

Tray

#6A

Unit parts Diagram

Tray

Part #WPW10521158
?
Manufacturer substitution
This part replaces W10521158. Substitute parts can look different from the original.
This part replaces W10521158
$95.34

In Stock
