Model # SB-HTB570GN Official Panasonic front speaker

Here are the diagrams and repair parts for Official Panasonic SB-HTB570GN front speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Rr Cabinet RYQ1247-K
#42

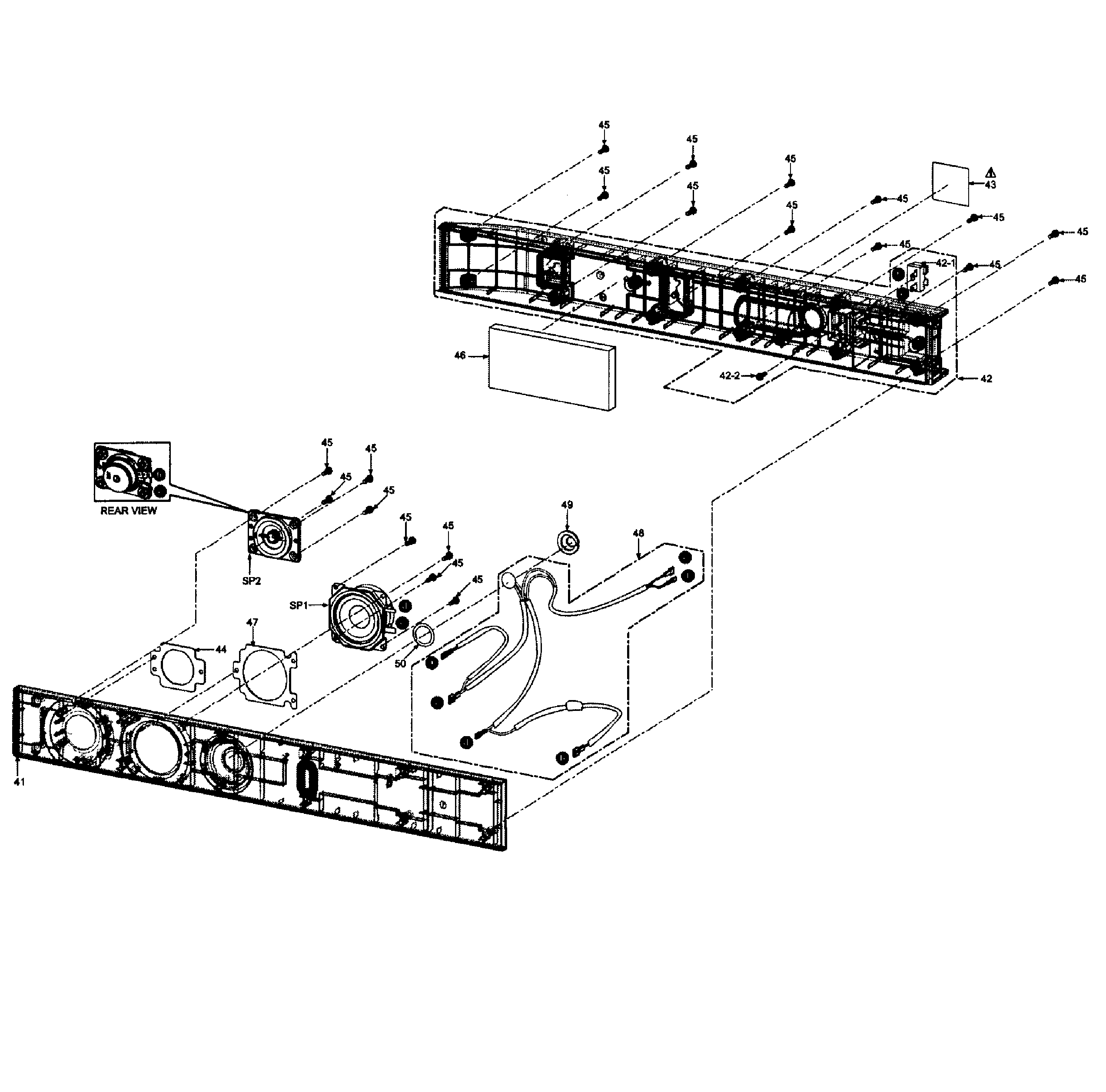

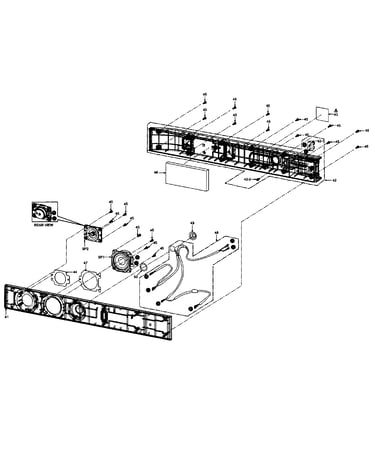

Speaker diagram

Rr cabinet

Part #RYQ1247-K

The manufacturer no longer makes this part, and there's no substitute part

Piezo Cvr RMR2064-H
#49

Speaker diagram

Piezo cvr

Part #RMR2064-H

The manufacturer no longer makes this part, and there's no substitute part

Base Unit RGK2465-K
#A8

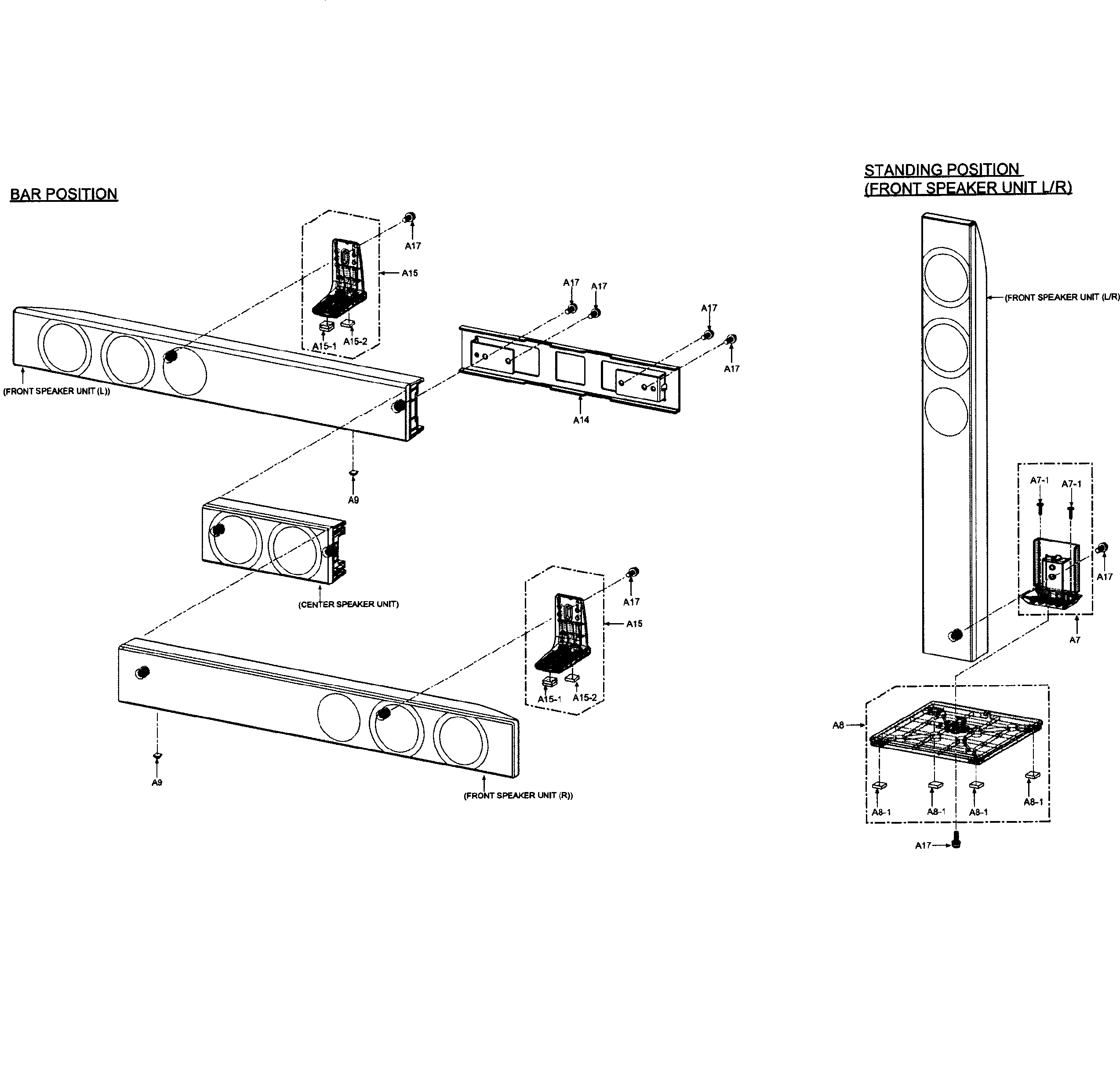

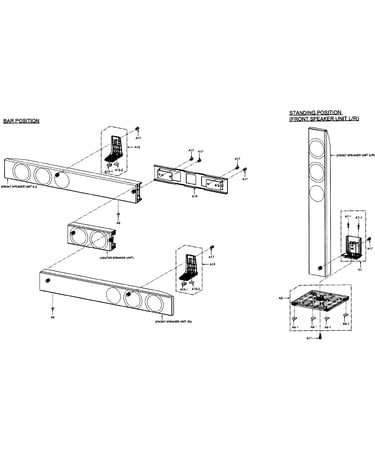

Bar assy diagram

Base unit

Part #RGK2465-K

The manufacturer no longer makes this part, and there's no substitute part

Leg Support RGK2464-K
#A10

Bar assy diagram

Leg support

Part #RGK2464-K

The manufacturer no longer makes this part, and there's no substitute part

Tweeter Sh RMF0458-J
#44

Speaker diagram

Tweeter sh

Part #RMF0458-J

The manufacturer no longer makes this part, and there's no substitute part

Stand Neck RGK2444-K
#A7

Bar assy diagram

Stand neck

Part #RGK2444-K

The manufacturer no longer makes this part, and there's no substitute part

Spk Wire A REX1608-1
#48

Speaker diagram

Spk wire a

Part #REX1608-1

The manufacturer no longer makes this part, and there's no substitute part

Stand Leg RGK2463-K
#A15

Bar assy diagram

Stand leg

Part #RGK2463-K

The manufacturer no longer makes this part, and there's no substitute part

Leg RKA0288-K
#A151

Bar assy diagram

Leg

Part #RKA0288-K

The manufacturer no longer makes this part, and there's no substitute part

Tweeter Sp L0AZ03A00016
#SP1

Speaker diagram

Tweeter sp

Part #L0AZ03A00016

The manufacturer no longer makes this part, and there's no substitute part
