Model # CKJ24-1 Official Goodman condensing unit

Here are the diagrams and repair parts for Official Goodman CKJ24-1 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |

Contactor 25 B13603-21
#16

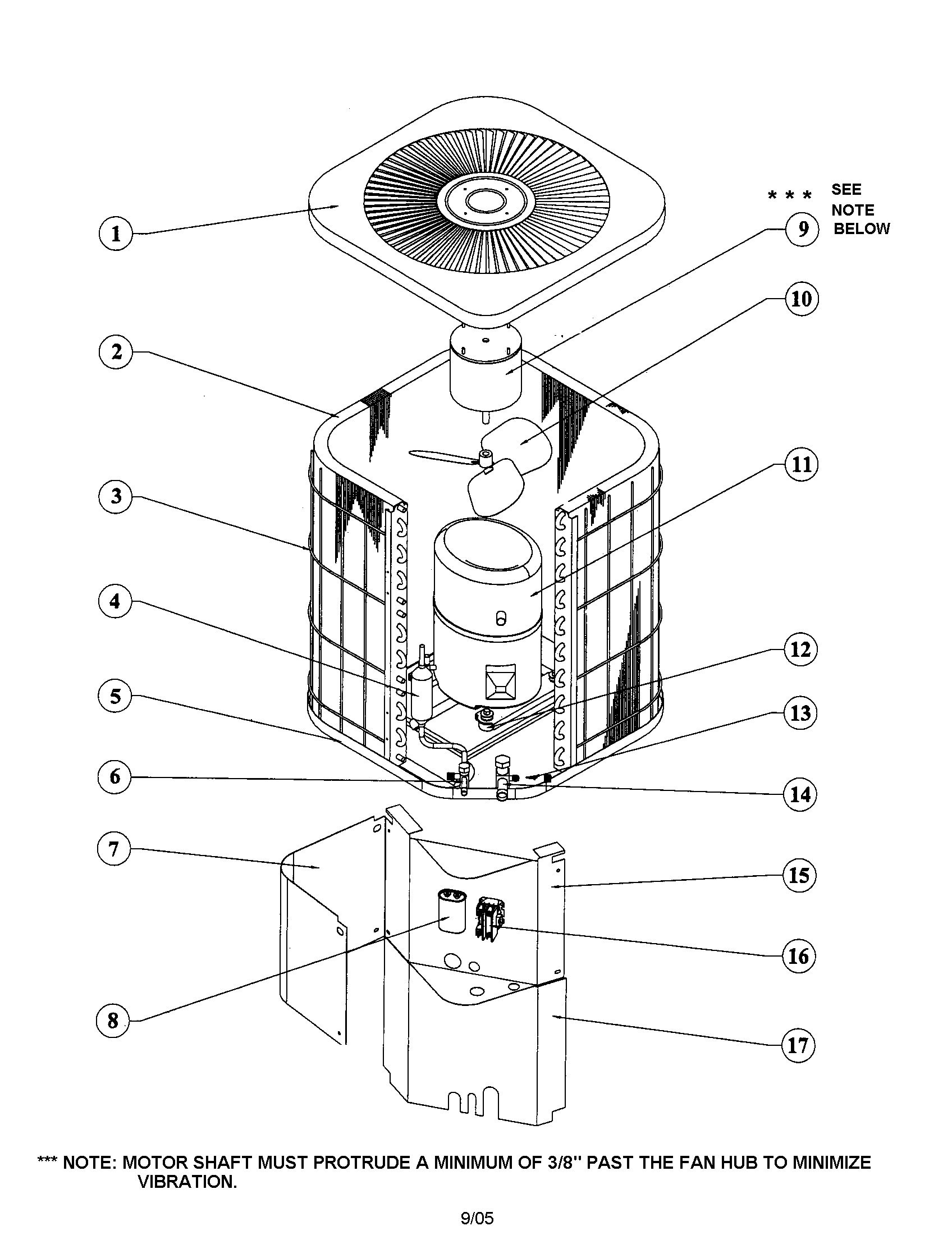

Condensing unit diagram

Contactor 25

Part #B13603-21

Replaced by #94-388

?
Manufacturer substitution
This part replaces B13603-21. Substitute parts can look different from the original.
$33.20
13% OFF Phone Price : $38.20
In Stock
Capacitor 30 B9457-8700
#8A

Condensing unit diagram

Capacitor 30

Part #B9457-8700

Replaced by #CAP050300440RSP

?
Manufacturer substitution
This part replaces B9457-8700. Substitute parts can look different from the original.
This item is not returnable
$34.08
13% OFF Phone Price : $39.08
In Stock
Central Air Conditioner Condenser Fan Motor B13400251S
#10

Condensing unit diagram

Central air conditioner condenser fan motor

Part #B13400251S

$257.07
$10.00 OFF Phone Price : $267.07
In Stock
Appliance Spray Paint (bahama Beige) B260S8291
#18

Condensing unit diagram

Appliance spray paint (bahama beige)

Part #B260S8291

In Stock
Base Valve B12825-65
#6

Condensing unit diagram

Base valve

Part #B12825-65

Replaced by #20163801

?
Manufacturer substitution
This part replaces B12825-65. Substitute parts can look different from the original.
In Stock
Filter Drier B12192-17
#4

Condensing unit diagram

Filter drier

Part #B12192-17

Replaced by #163S

?
Manufacturer substitution
This part replaces B12192-17. Substitute parts can look different from the original.
$48.94
9% OFF Phone Price : $53.94
In Stock
Compressor B9266-607A
#11

Condensing unit diagram

Compressor

Part #B9266-607A

The manufacturer no longer makes this part, and there's no substitute part

Compressor Grommet B13395-30
#12

Condensing unit diagram

Compressor grommet

Part #B13395-30

The manufacturer no longer makes this part, and there's no substitute part

Bottom Pan Assembly 17872-09P
#5

Condensing unit diagram

Bottom pan assembly

Part #17872-09P

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 25 B9457-6000
#8

Condensing unit diagram

Capacitor 25

Part #B9457-6000

The manufacturer no longer makes this part, and there's no substitute part
