GE JBP30GY1AW electric range Parts
Here are the diagrams and repair parts for GE JBP30GY1AW electric range, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for JBP30GY1AW Ranges

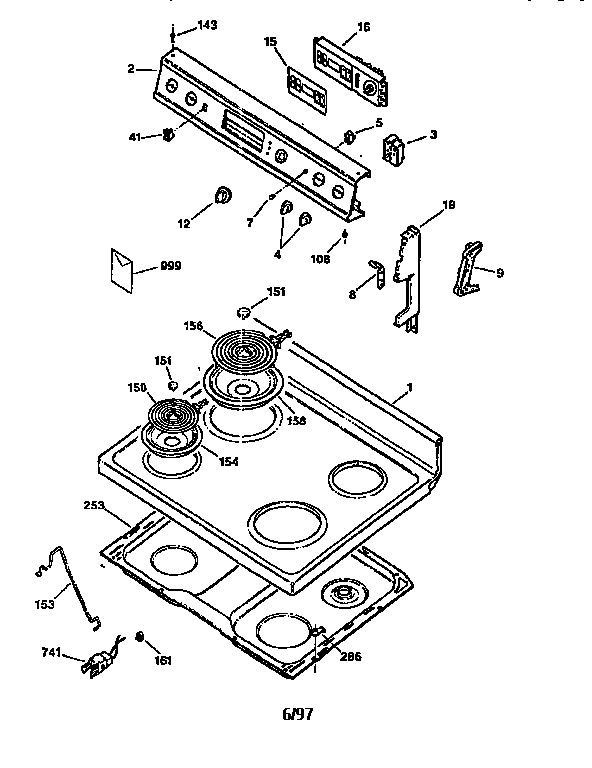

Cooktop and control panel diagram
Brkt Antitip
Part #WB02X7876Replaced by #WB02T10415
Manufacturer substitutionThis part replaces WB02X7876. Substitute parts can look different from the original.In Stock$36.4214% OFF Phone Price : $42.42
Qty

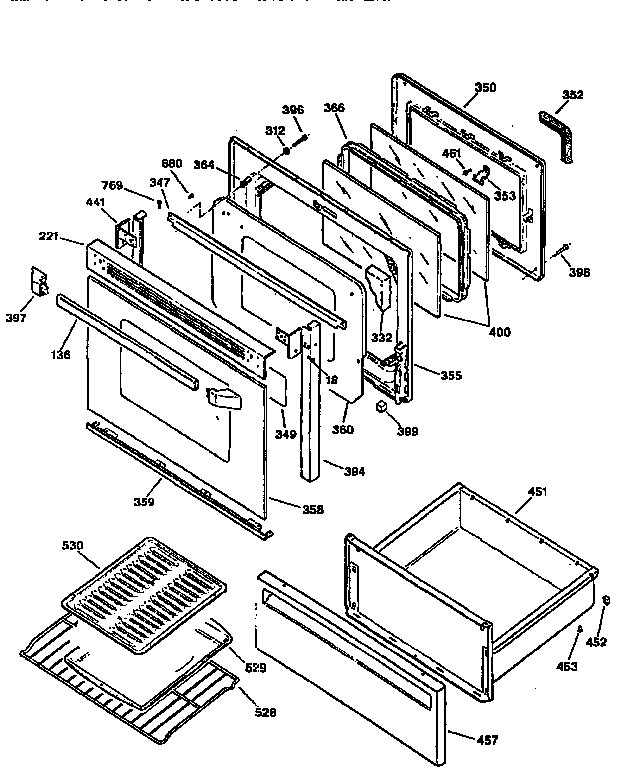

Door and drawer diagram
Window Clip
Part #WB02X8320Replaced by #WB2X8320
Manufacturer substitutionThis part replaces WB02X8320. Substitute parts can look different from the original.In Stock$8.6210% OFF Phone Price : $9.62QtyDoor and drawer diagram
Broiler Pan
Part #WB49X5547Replaced by #WB48X10056
Manufacturer substitutionThis part replaces WB49X5547. Substitute parts can look different from the original.In Stock$36.1114% OFF Phone Price : $42.11QtyCooktop and control panel diagram
Scr 8-18 Ba
Part #WB01X5904Replaced by #WB1X5904
Manufacturer substitutionThis part replaces WB01X5904. Substitute parts can look different from the original.In Stock$9.0110% OFF Phone Price : $10.01QtyDoor and drawer diagram
Washer
Part #WB01X0119Replaced by #WB02X32440
Manufacturer substitutionThis part replaces WB01X0119. Substitute parts can look different from the original.In Stock$34.54QtyBody diagram
Wall Oven Light Lens
Part #WB36X0389Replaced by #WB36X192
Manufacturer substitutionThis part replaces WB36X0389. Substitute parts can look different from the original.This item is not returnableIn Stock$15.3912% OFF Phone Price : $17.39QtyCooktop and control panel diagram
Faceplate
Part #WB27X5564
The manufacturer no longer makes this part, and there's no substitute part

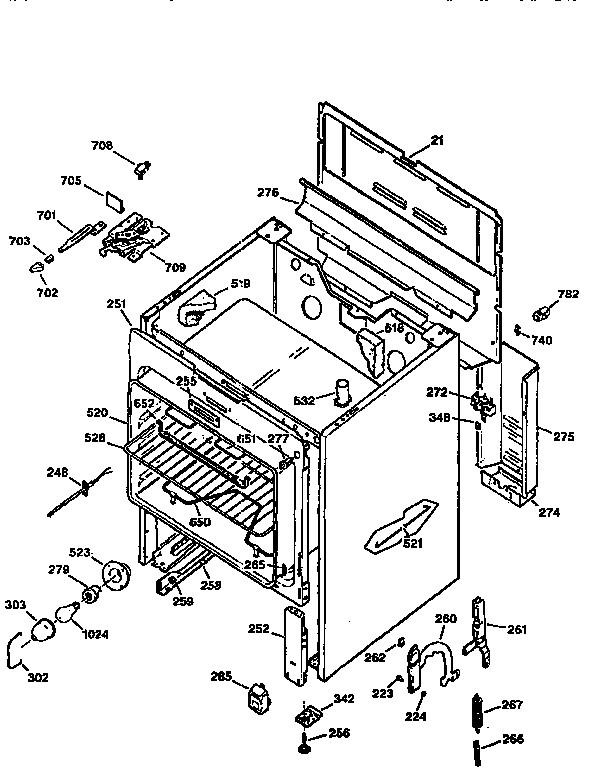

Body diagram
Oven Liner
Part #WB53X5157
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Adjustment Glide
Part #WB02X8248
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Cover Foot
Part #WB02X8106
The manufacturer no longer makes this part, and there's no substitute part
