Craftsman 247370305 20" rear charge rotary lawn mower Parts
Here are the diagrams and repair parts for Craftsman 247370305 20" rear charge rotary lawn mower, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 247370305 Walk-Behind Mowers

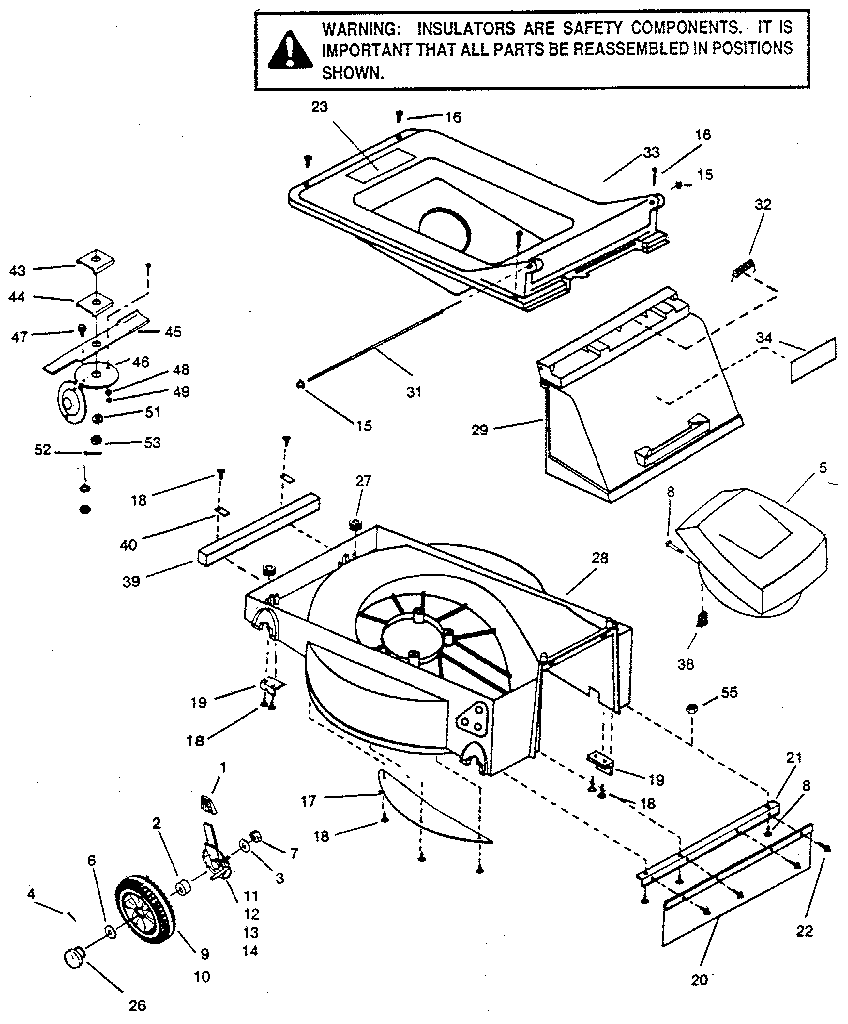

Mower deck diagram
Insulator
Part #706-10091
The manufacturer no longer makes this part, and there's no substitute part

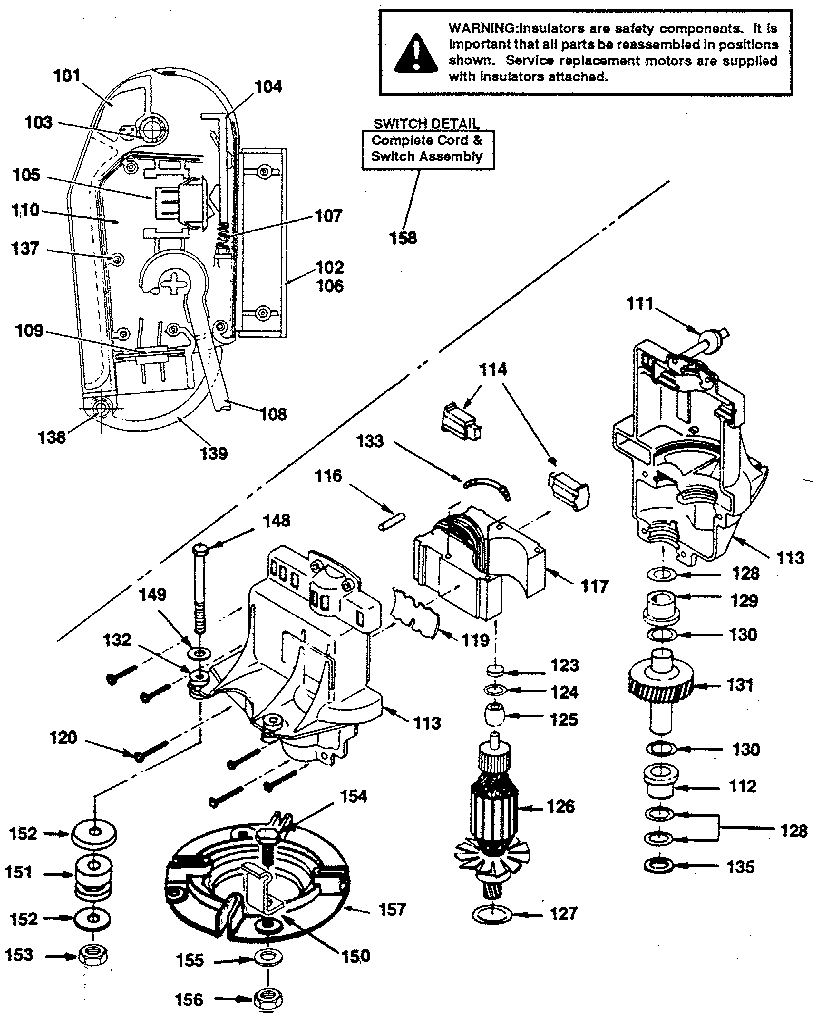

Motor & switch assembly diagram
Oil Wick
Part #706-10030
The manufacturer no longer makes this part, and there's no substitute part
Motor & switch assembly diagram
Switch
Part #706-14518
The manufacturer no longer makes this part, and there's no substitute part
Motor & switch assembly diagram
Hex Bolt 3/8-16 X 1-1/4"
Part #STD523712
The manufacturer no longer makes this part, and there's no substitute part

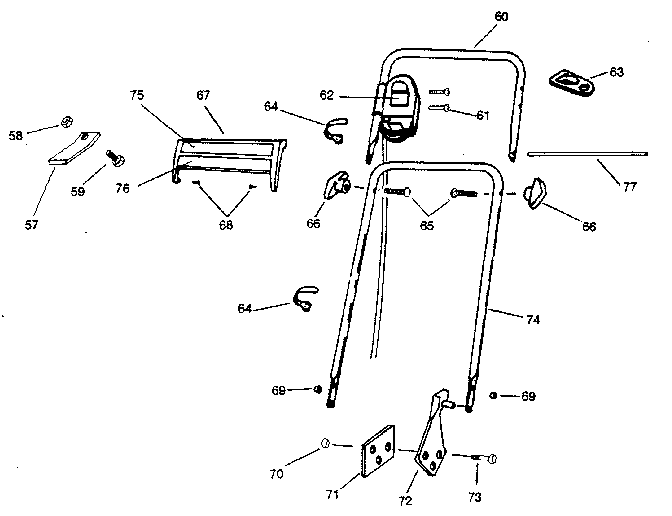

Handle detail diagram
Rod
Part #706-13776-01-90
The manufacturer no longer makes this part, and there's no substitute part
Handle detail diagram
Lock Nut
Part #STD541431
The manufacturer no longer makes this part, and there's no substitute part
Handle detail diagram
Label
Part #706-13190
The manufacturer no longer makes this part, and there's no substitute part
Mower deck diagram
Cotter Pin
Part #STD560907
The manufacturer no longer makes this part, and there's no substitute part

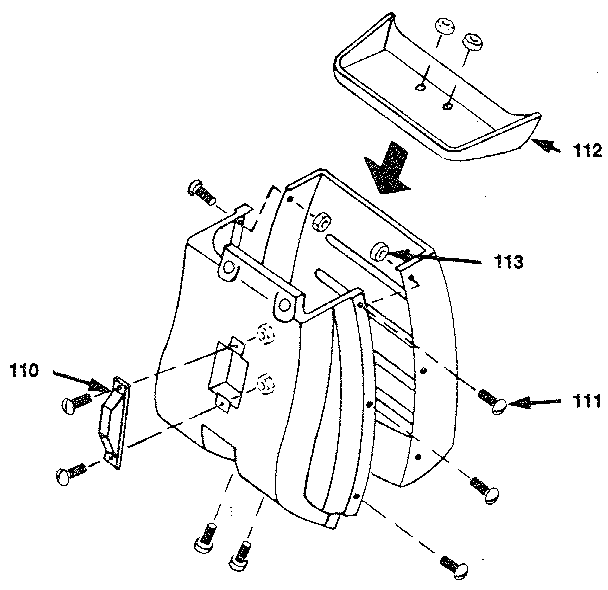

Grass catcher diagram
Baffle Catch
Part #706-14095
The manufacturer no longer makes this part, and there's no substitute part
Grass catcher diagram
Handle
Part #706-10827
The manufacturer no longer makes this part, and there's no substitute part
