Jenn-Air
Downdraft Ventilation System

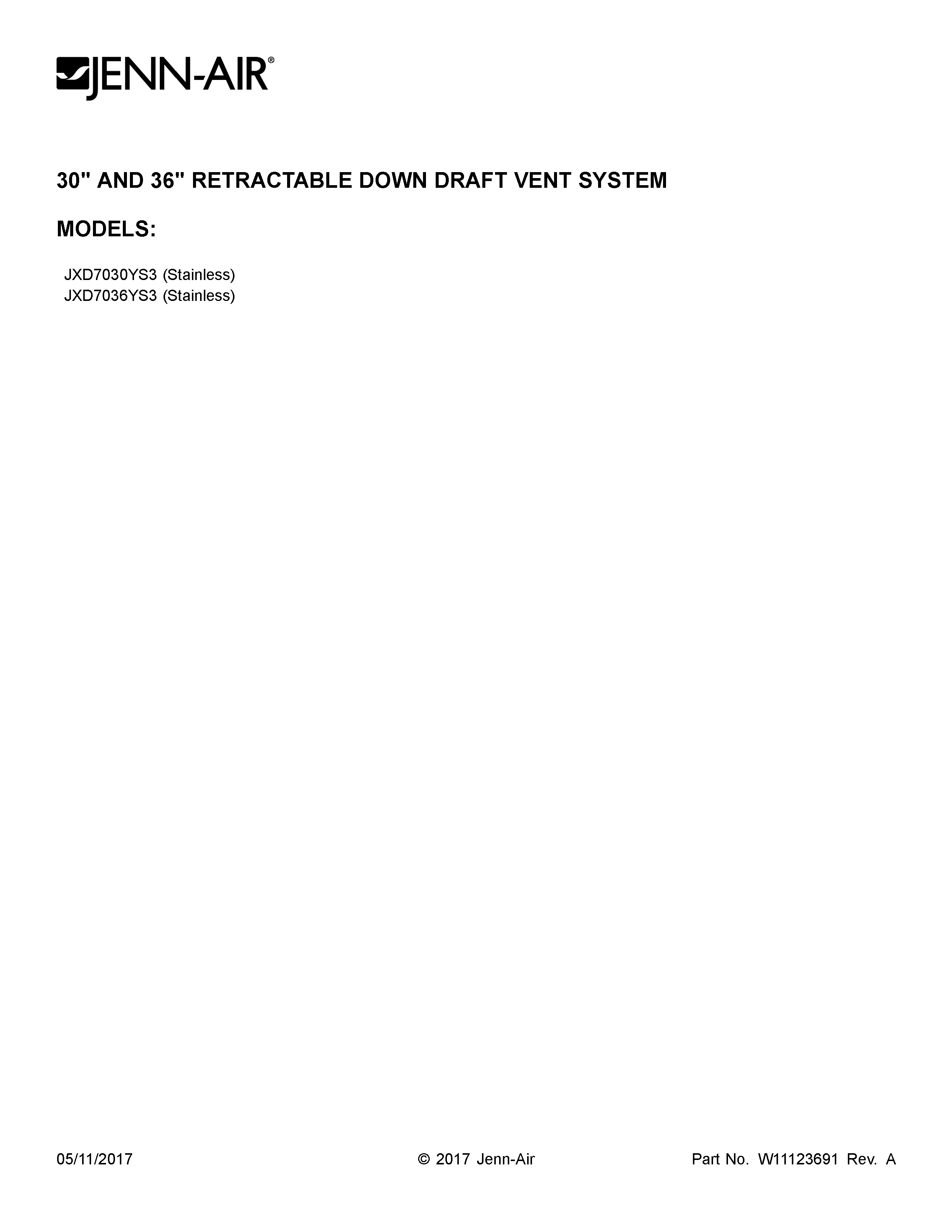

Model # JXD7036YS3 Official Jenn-Air vent system

Here are the diagrams and repair parts for Official Jenn-Air JXD7036YS3 vent system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |

Downdraft Vent Up/down Switch W10899381
#7

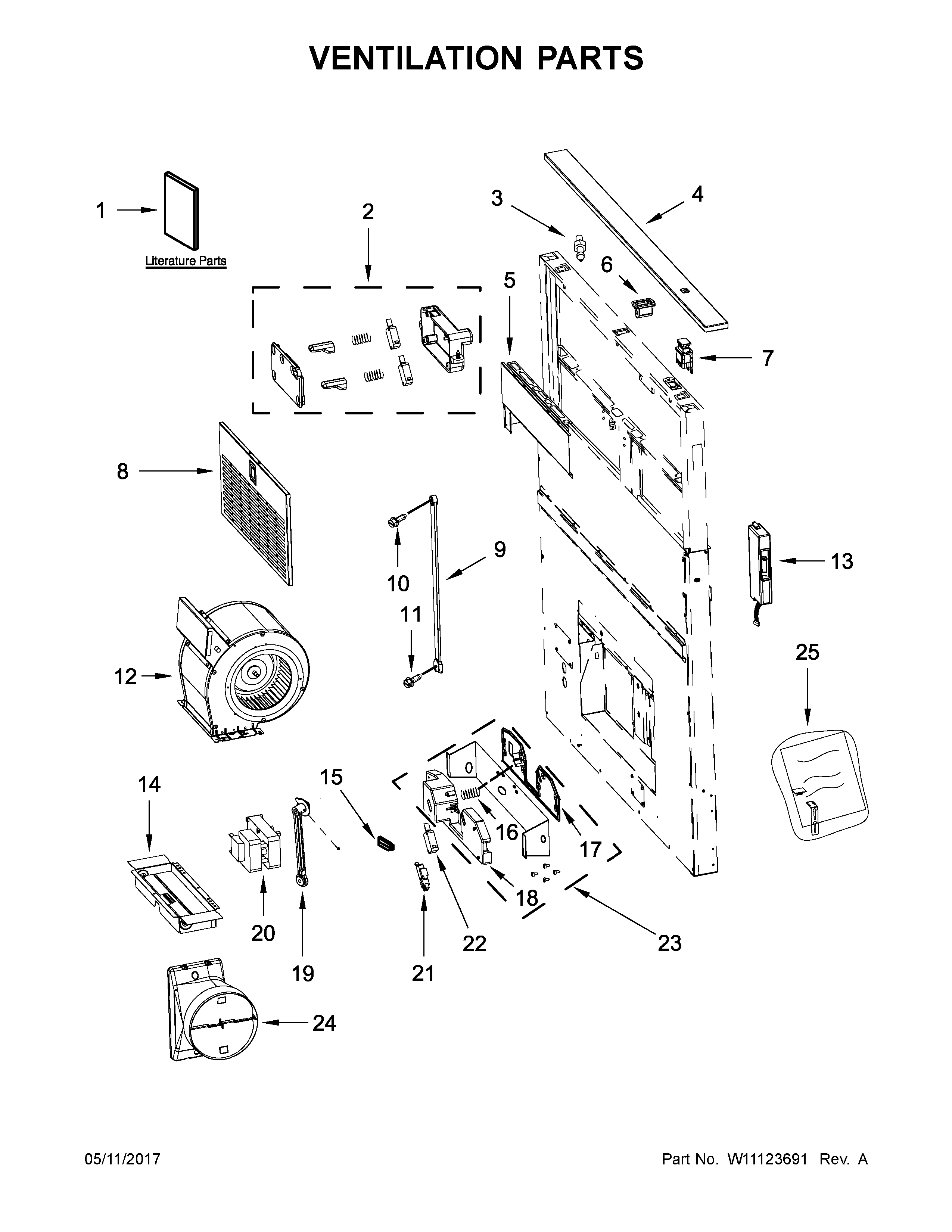

Ventilation parts diagram

Downdraft vent up/down switch

Part #W10899381

Replaced by #W11230930

?
Manufacturer substitution
This part replaces W10899381. Substitute parts can look different from the original.
$57.39
8% OFF Phone Price : $62.39
In Stock
Downdraft Vent Top Trim, 36-in (black) W10387677
#NI

Ventilation parts diagram

Downdraft vent top trim, 36-in (black)

Part #W10387677

$132.19
17% OFF MSRP : $160.00
In Stock
Screw W10422764
#11

Ventilation parts diagram

Screw

Part #W10422764

Replaced by #WPW10422764

?
Manufacturer substitution
This part replaces W10422764. Substitute parts can look different from the original.
$23.79
17% OFF Phone Price : $28.79
In Stock
Downdraft Ventilation System Filter W10422880
#8A

Ventilation parts diagram

Downdraft ventilation system filter

Part #W10422880

In Stock
Kit, Switch Filter W11097349
#2

Ventilation parts diagram

Kit, switch filter

Part #W11097349

In Stock
Downdraft Vent Top Trim (black) W10387676
#NI

Ventilation parts diagram

Downdraft vent top trim (black)

Part #W10387676

In Stock
Downdraft Vent Top Trim, 30-in (stainless) W10422148
#4

Ventilation parts diagram

Downdraft vent top trim, 30-in (stainless)

Part #W10422148

$169.09
11% OFF MSRP : $190.00
In Stock
Downdraft Vent Grease Filter, 30-in W10422879
#8

Ventilation parts diagram

Downdraft vent grease filter, 30-in

Part #W10422879

$148.59
13% OFF MSRP : $170.00
In Stock
Installation Hardware W11123695
#25

Ventilation parts diagram

Installation hardware

Part #W11123695

In Stock
Cover W10798407
#5

Ventilation parts diagram

Cover

Part #W10798407

In Stock

Most common symptoms to help you fix your downdraft ventilation systems

Choose a symptom to see related downdraft vent repairs.

Main causes: lack of electrical power, up/down activation switch failure, bad vent gear motor…

Main causes: electrical power failure, up/down activation switch problems, vent gear motor failure…

Main causes: problems with the vent limit switches, up/down activation switch failure…

Main causes: fan control switch failure, bad blower fan motor, broken blower wheel, wiring failure…

Main causes: clogged grease filters, air duct problems, fan motor failure, broken blower wheel…

Most common repair guides to help fix your downdraft ventilation systems

These step-by-step repair guides will help you safely fix what’s broken on your downdraft vent.

How to replace a downdraft vent up/down switch

How to replace a downdraft vent up/down switch

The up/down switch starts the gear motor to raise and lower the air vent. Replace the up/down switch if defective.…

Repair difficulty
Time required
 15 minutes or less
How to replace a downdraft vent blower motor

How to replace a downdraft vent blower motor

The blower motor spins the fan blade that removes smoke and steam from the cooktop area. Replace the blower motor if it …

Repair difficulty
Time required
 15 minutes or less
How to replace a downdraft vent gear motor

How to replace a downdraft vent gear motor

The gear motor raises and lowers the air vent when you push the activating switch. Replace the gear motor if defective.…

Repair difficulty
Time required
 15 minutes or less

Effective articles & videos to help repair your downdraft ventilation systems

Use the advice and tips in these articles to get the most out of your downdraft vent.

How to repair broken or damaged wires video

How to repair broken or damaged wires video

Learn how to repair broken, frayed or damaged wires in your appliances.…

How to use a multimeter to test electrical parts video

How to use a multimeter to test electrical parts video

Learn how to use a multimeter to check for wiring problems in an appliance that's not working…

Troubleshooting tips for a rectractable downdraft vent

Troubleshooting tips for a rectractable downdraft vent

See what to check if you are having a problem with a retractable downdraft vent.…
