Model # 14356253 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 14356253 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

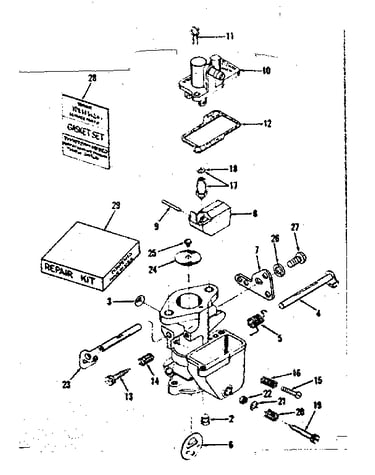

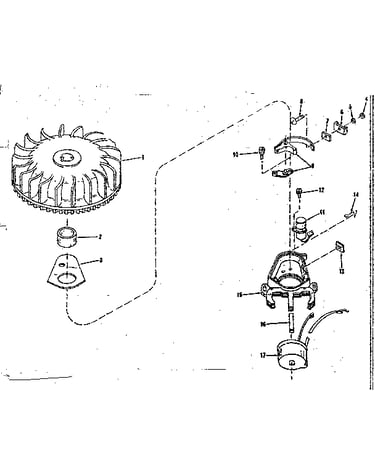

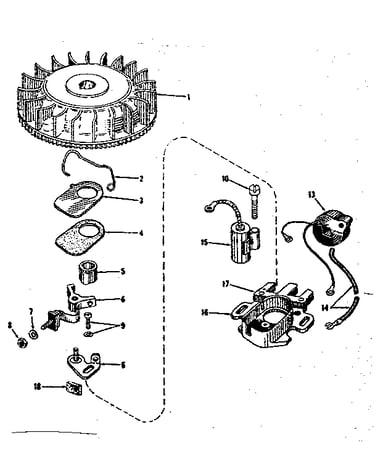

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |

Screw 28820
#83

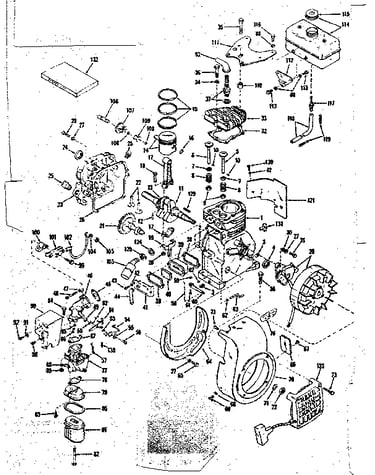

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#44

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Shaft 29194
#106

Basic engine diagram

Shaft

Part #29194

The manufacturer no longer makes this part, and there's no substitute part

Breathr Body 27666
#39

Basic engine diagram

Breathr body

Part #27666

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Cap Screw, 1/4-28 X 7/8-in 6201
#84

Basic engine diagram

Hex head cap screw, 1/4-28 x 7/8-in

Part #6201

The manufacturer no longer makes this part, and there's no substitute part

Cyl Cover 29481
#23

Basic engine diagram

Cyl cover

Part #29481

The manufacturer no longer makes this part, and there's no substitute part

/top Seal 29183
#4

Basic engine diagram

/top seal

Part #29183

The manufacturer no longer makes this part, and there's no substitute part

Washer 28563
#55

Basic engine diagram

Washer

Part #28563

The manufacturer no longer makes this part, and there's no substitute part

Spring 28569
#85

Basic engine diagram

Spring

Part #28569

The manufacturer no longer makes this part, and there's no substitute part

Screw 590275
#6

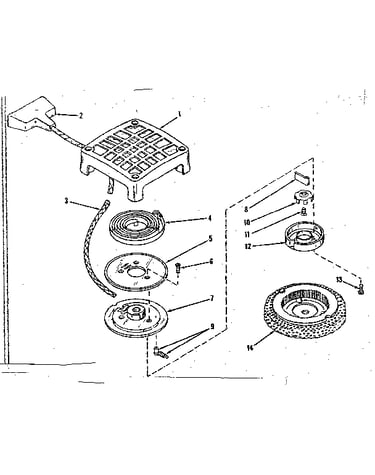

Rewind starter diagram

Screw

Part #590275

The manufacturer no longer makes this part, and there's no substitute part
