Model # KDL-55BX520 Official Sony lcd television

Here are the diagrams and repair parts for Official Sony KDL-55BX520 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Pcb Frc 189509611
#104

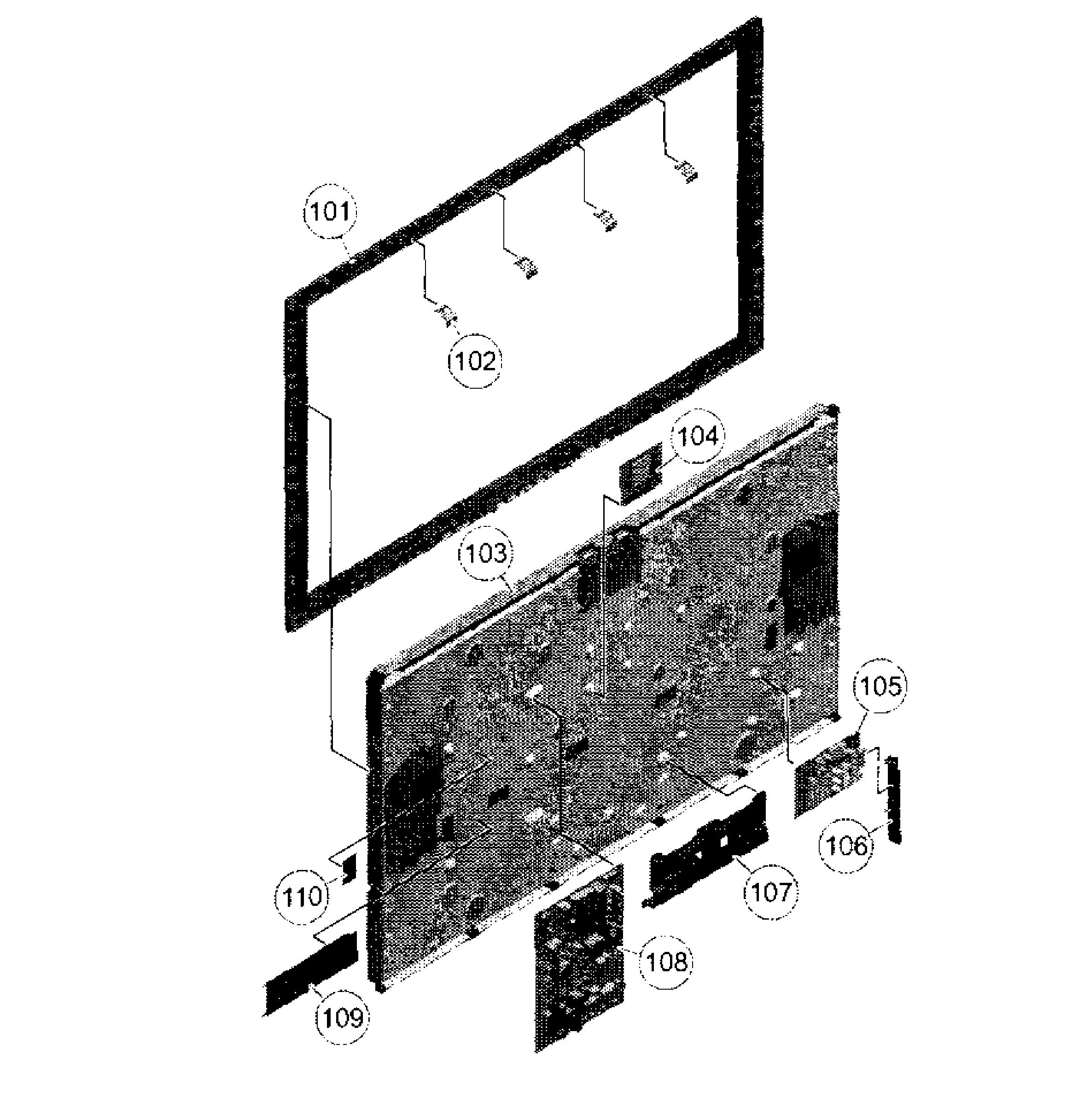

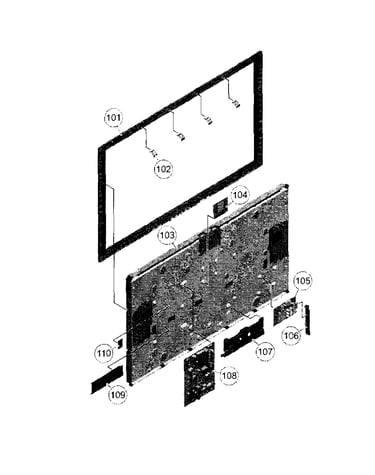

Lcd assy diagram

Pcb frc

Part #189509611

The manufacturer no longer makes this part, and there's no substitute part

Kit Belt X23481403
#NI

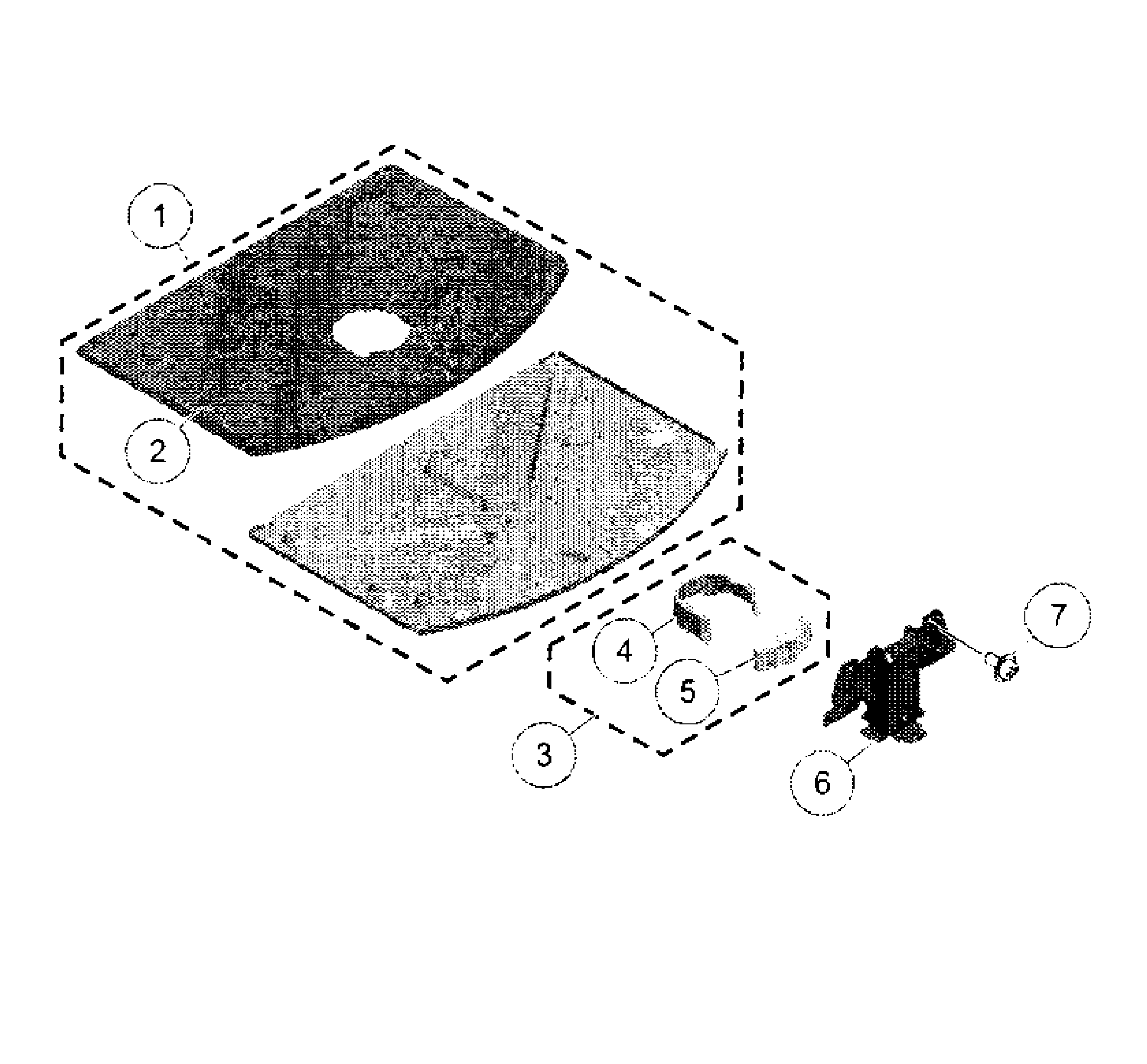

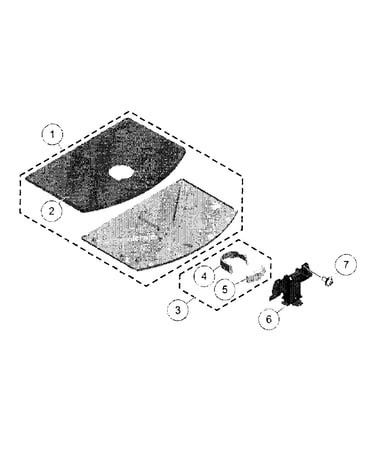

Base assy diagram

Kit belt

Part #X23481403

The manufacturer no longer makes this part, and there's no substitute part

Insulation Sheet 429827901
#109

Lcd assy diagram

Insulation sheet

Part #429827901

Replaced by #429827901

?
Manufacturer substitution
This part replaces 429827901. Substitute parts can look different from the original.
This item is not returnable
$7.19
In Stock
Pcb H 189509511
#59

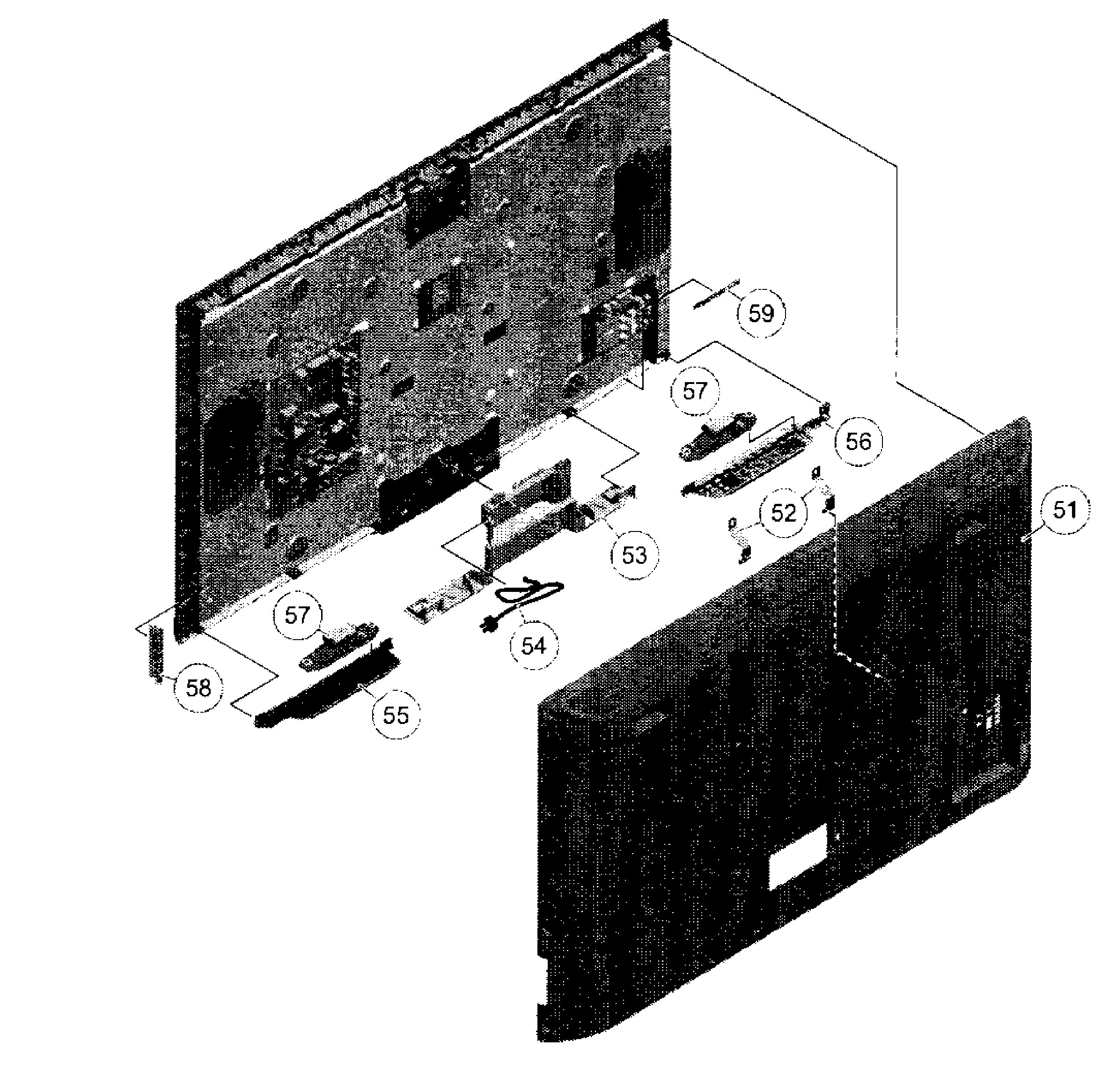

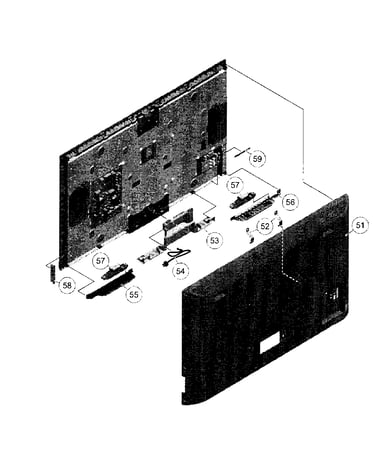

Rear cabinet diagram

Pcb h

Part #189509511

The manufacturer no longer makes this part, and there's no substitute part

Pcb 189509411
#105

Lcd assy diagram

Pcb

Part #189509411

The manufacturer no longer makes this part, and there's no substitute part

Supply Panel 426257201
#102

Lcd assy diagram

Supply panel

Part #426257201

The manufacturer no longer makes this part, and there's no substitute part

Neck Cover 415839701
#4

Base assy diagram

Neck cover

Part #415839701

Replaced by #X25465431

?
Manufacturer substitution
This part replaces 415839701. Substitute parts can look different from the original.
$70.80
In Stock
Neck Cover 415840301
#5

Base assy diagram

Neck cover

Part #415840301

The manufacturer no longer makes this part, and there's no substitute part

Vesa Bracket 429023701
#52

Rear cabinet diagram

Vesa bracket

Part #429023701

Replaced by #429023501

?
Manufacturer substitution
This part replaces 429023701. Substitute parts can look different from the original.
$171.23
In Stock
Brket Side 426431811
#106

Lcd assy diagram

Brket side

Part #426431811

Replaced by #426431811

?
Manufacturer substitution
This part replaces 426431811. Substitute parts can look different from the original.
$11.75
In Stock
