GE FUF20DMARWH freezer - a series

GE FUF20DMARWH freezer - a series Parts

Here are the diagrams and repair parts for GE FUF20DMARWH freezer - a series, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for FUF20DMARWH Freestanding Freezers

  • Refrigerator Filter Dryer for GE FUF20DMARWH - Part WR86X25269

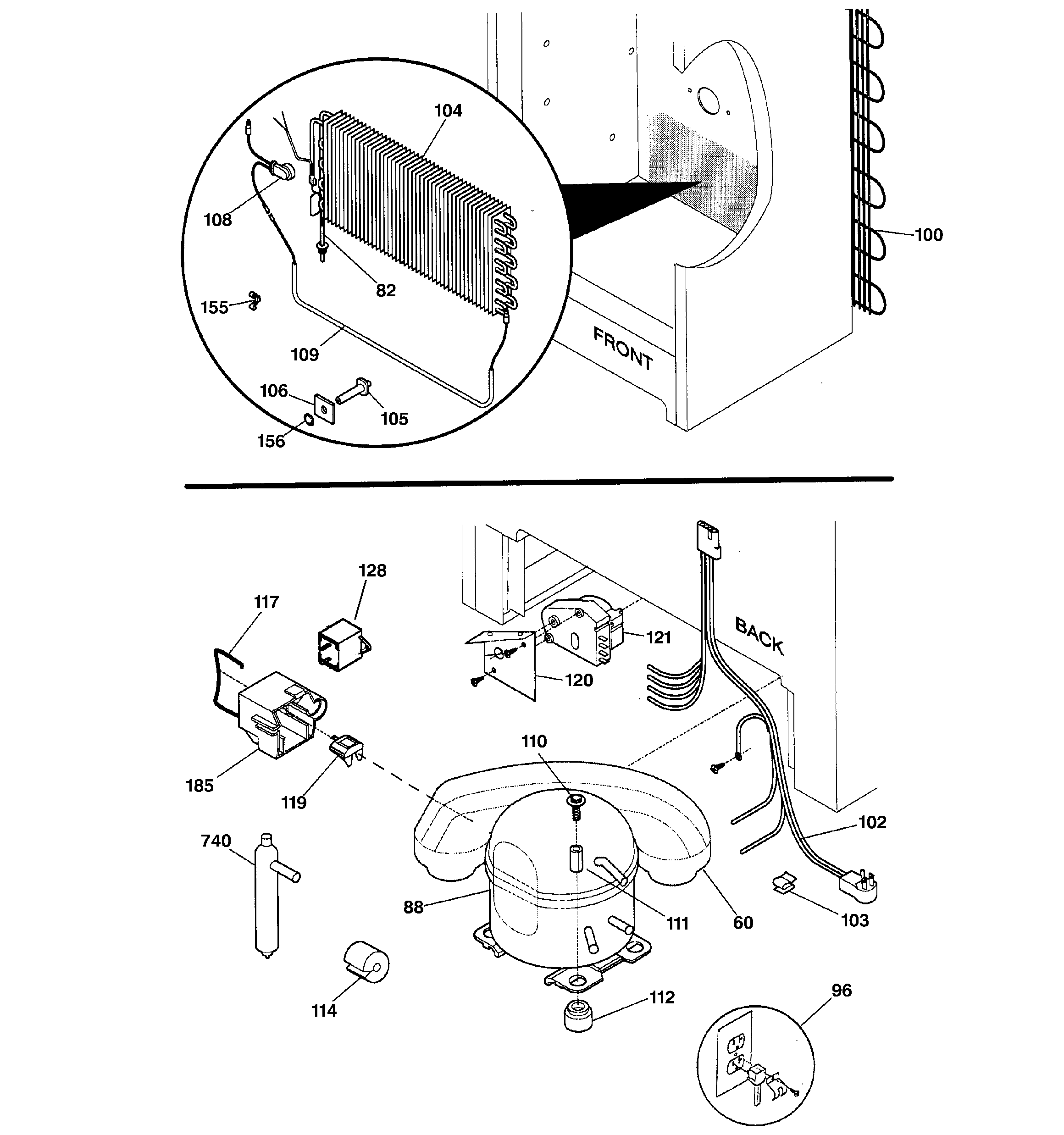

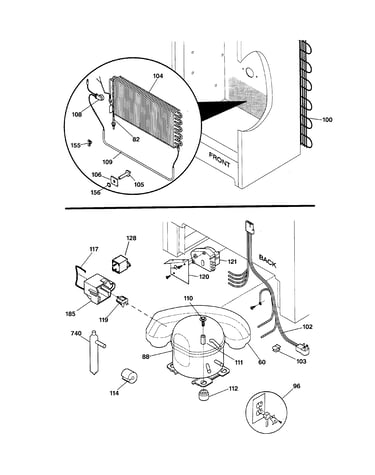

    Unit parts diagram

    Dryer Filter

    Part #WR86X0096

    Replaced by #WR86X25269

    Info Icon
    Manufacturer substitution
    This part replaces WR86X0096. Substitute parts can look different from the original.
    In Stock
    $46.36
    45% OFF Was : $83.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Timer for GE FUF20DMARWH - Part WR9X502

    Unit parts diagram

    Defrost Control

    Part #WR09X0464

    Replaced by #WR9X502

    Info Icon
    Manufacturer substitution
    This part replaces WR09X0464. Substitute parts can look different from the original.
    In Stock
    $90.01
    6% OFF Phone Price : $96.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Power Cord for GE FUF20DMARWH - Part WR23X10300

    Unit parts diagram

    Power Cord

    Part #WR23X0108

    Replaced by #WR23X10300

    Info Icon
    Manufacturer substitution
    This part replaces WR23X0108. Substitute parts can look different from the original.
    In Stock
    $28.25
    18% OFF Phone Price : $34.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for GE FUF20DMARWH - Part WR01X10623

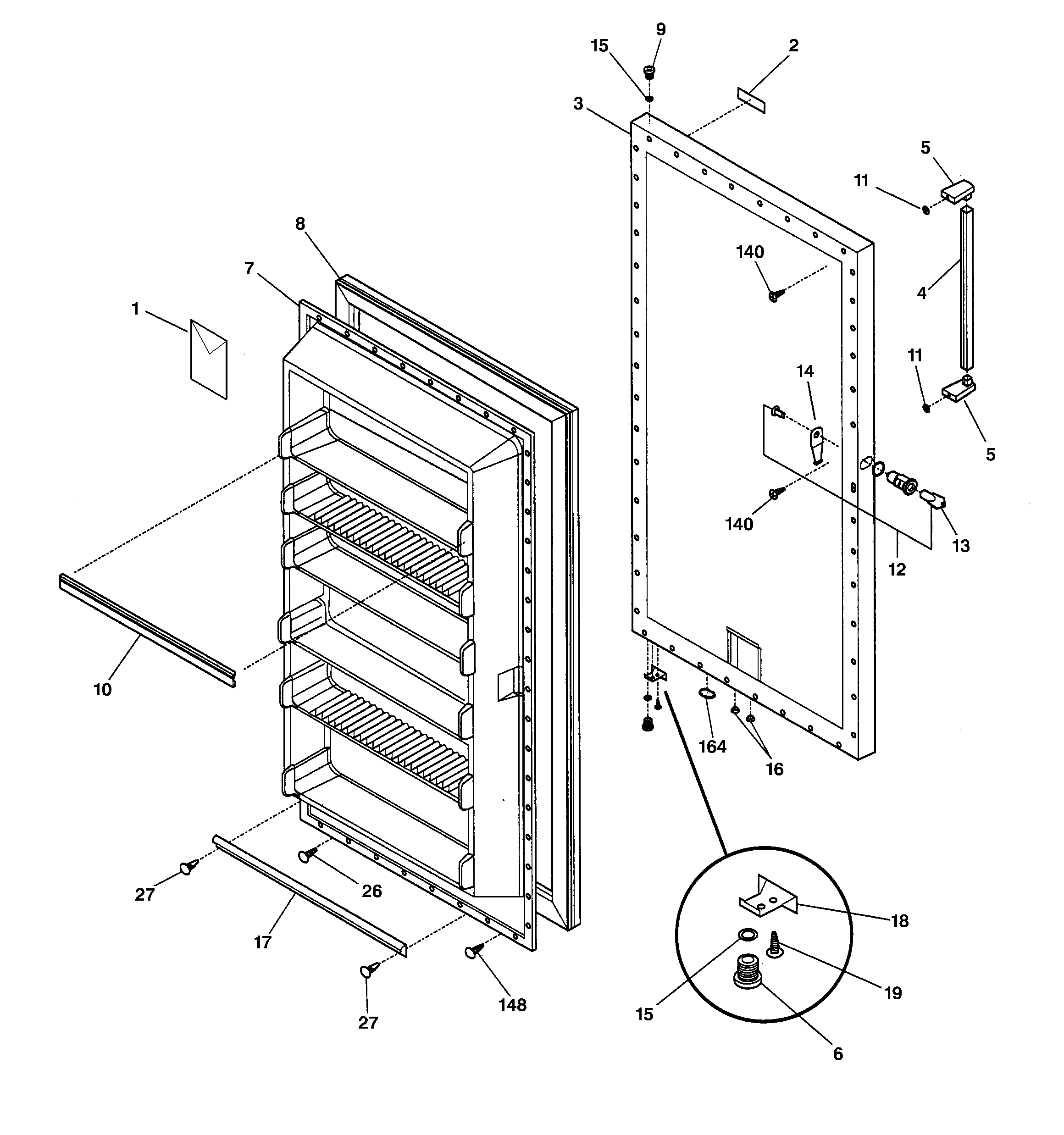

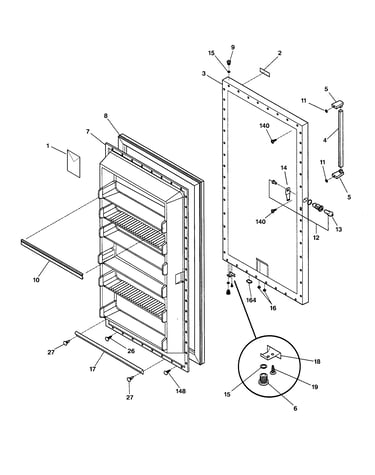

    Door diagram

    Shoulder Screw

    Part #WR01X5405

    Replaced by #WR01X10623

    Info Icon
    Manufacturer substitution
    This part replaces WR01X5405. Substitute parts can look different from the original.
    In Stock
    $32.52
    Minus Item
    Qty
    Plus Item
  • Basket for GE FUF20DMARWH - Part WR21X10002

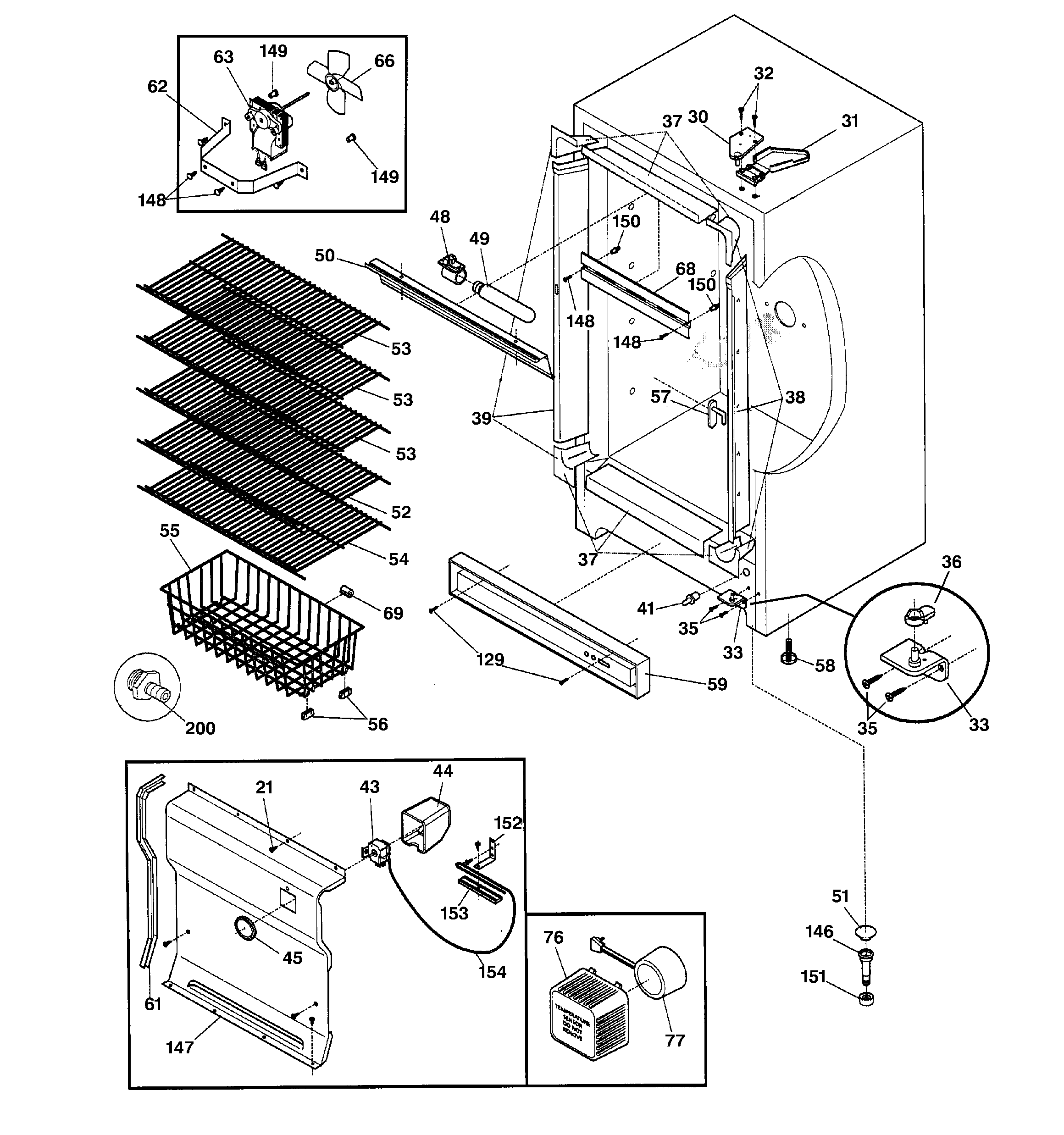

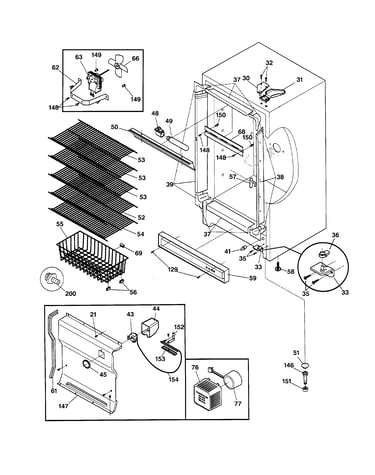

    Cabinet diagram

    Basket

    Part #WR21X10002
    In Stock
    $270.74
    Minus Item
    Qty
    Plus Item
  • Bale Wire for GE FUF20DMARWH - Part WR02X10897

    Unit parts diagram

    Bale Wire

    Part #WR02X10897
    In Stock
    $56.59
    Minus Item
    Qty
    Plus Item
  • Support Evaporator for GE FUF20DMARWH - Part WR02X6206

    Unit parts diagram

    Support Evaporator

    Part #WR02X6206
    This item is not returnable
    In Stock
    $2.99
    Minus Item
    Qty
    Plus Item
  • Button Plug for GE FUF20DMARWH - Part WR02X10087

    Door diagram

    Button Plug

    Part #WR02X10087
    In Stock
    $64.20
    Minus Item
    Qty
    Plus Item
  • G.e. Freezer Door Gasket for GE FUF20DMARWH - Part WR24X10010

    Door diagram

    G.e. Freezer Door Gasket

    Part #WR24X10010
    In Stock
    $252.63
    5% OFF Phone Price : $264.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Drain Trap for GE FUF20DMARWH - Part WR17X4279

    Cabinet diagram

    Drain Trap

    Part #WR17X4279
    In Stock
    $103.18
    Minus Item
    Qty
    Plus Item
