Model # STR-DA6400ES Official Sony receiver

Here are the diagrams and repair parts for Official Sony STR-DA6400ES receiver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

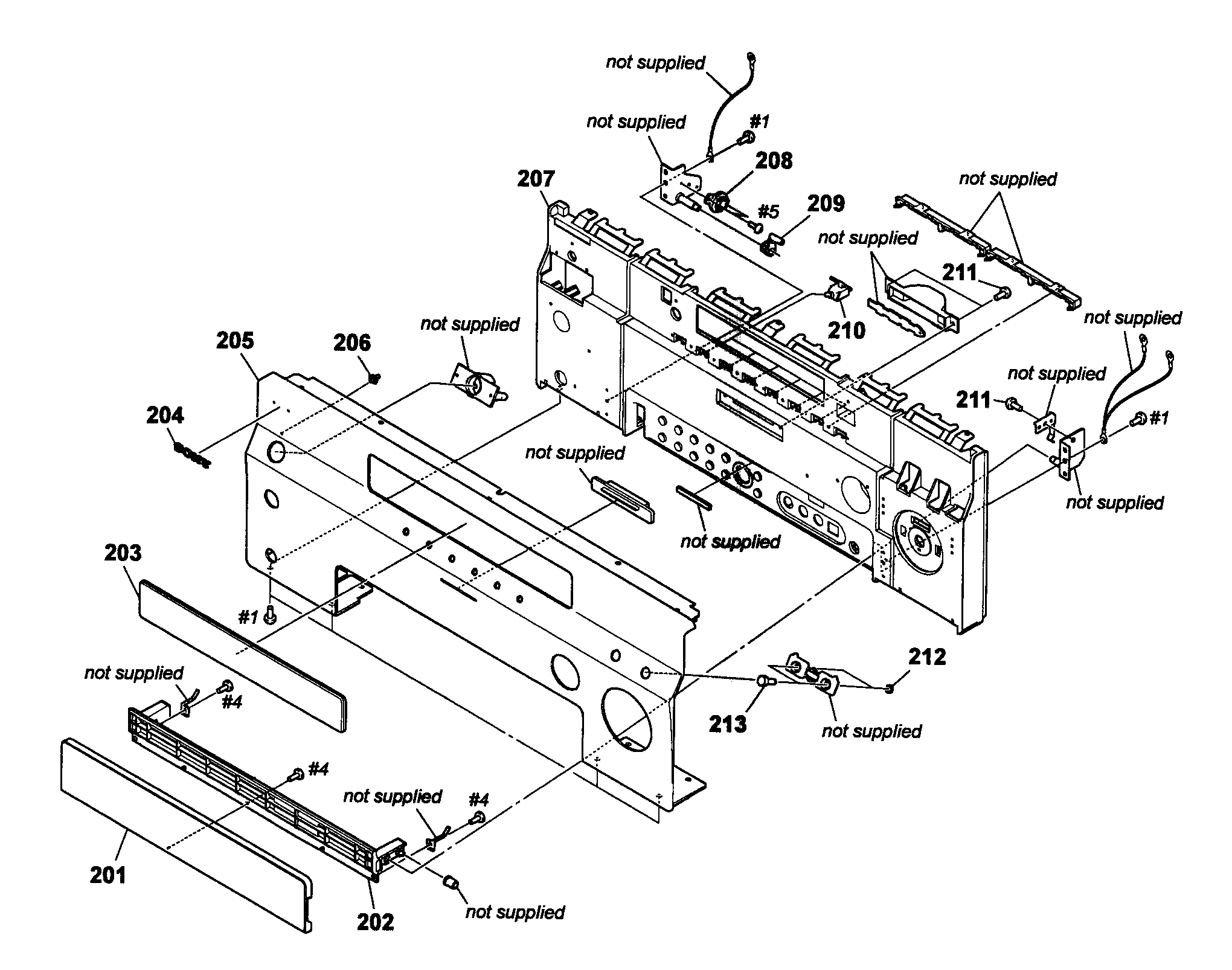

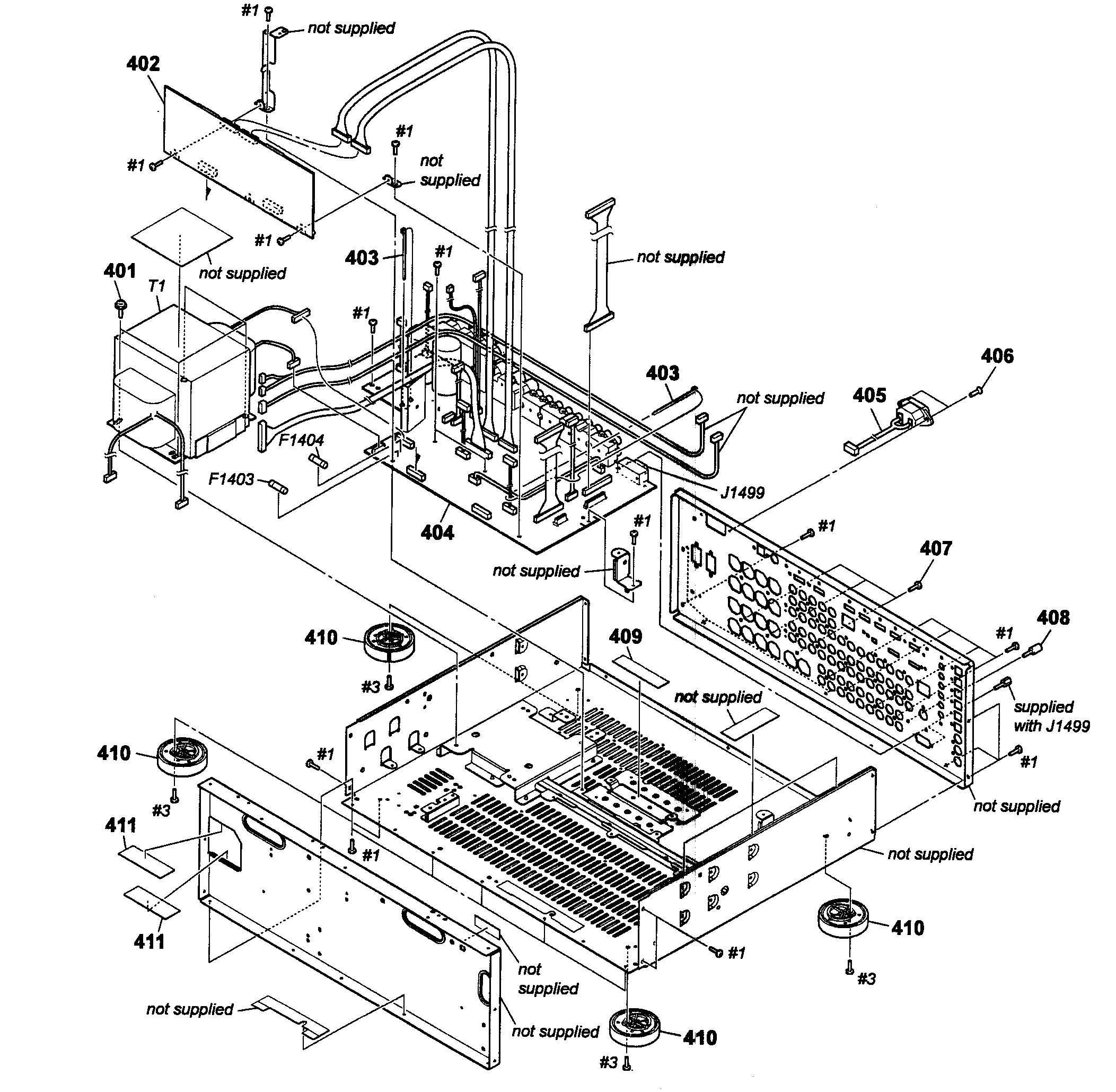

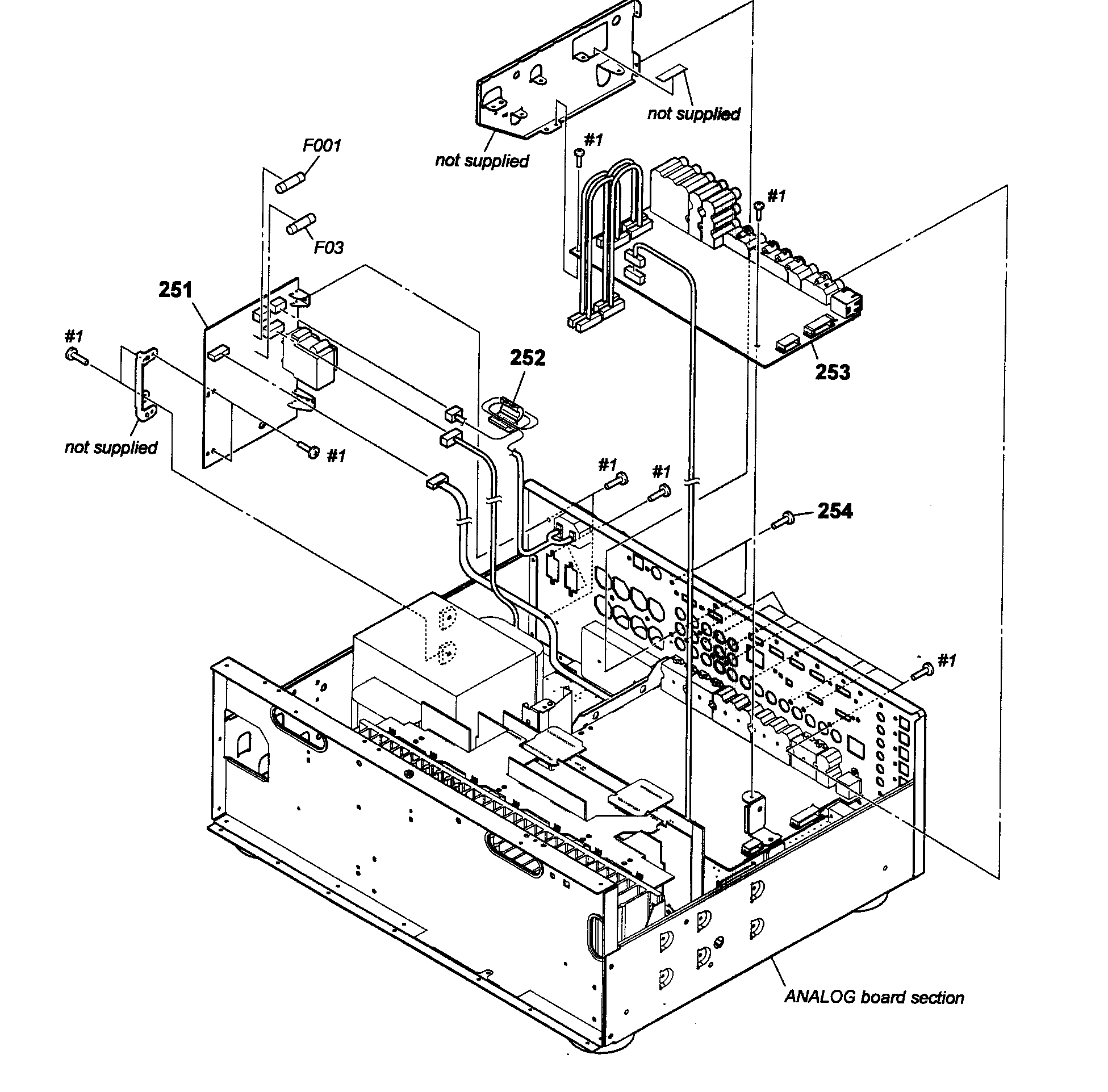

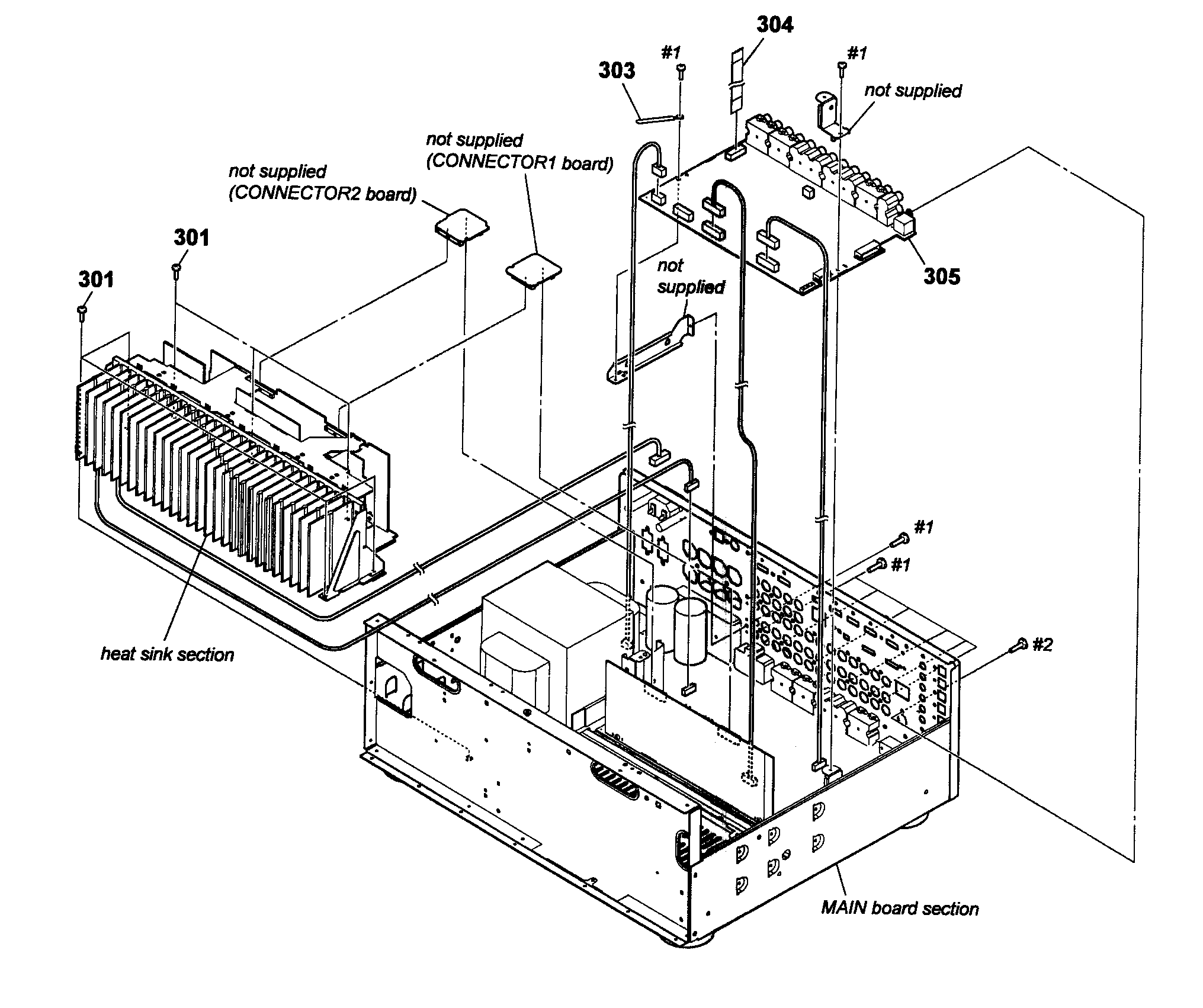

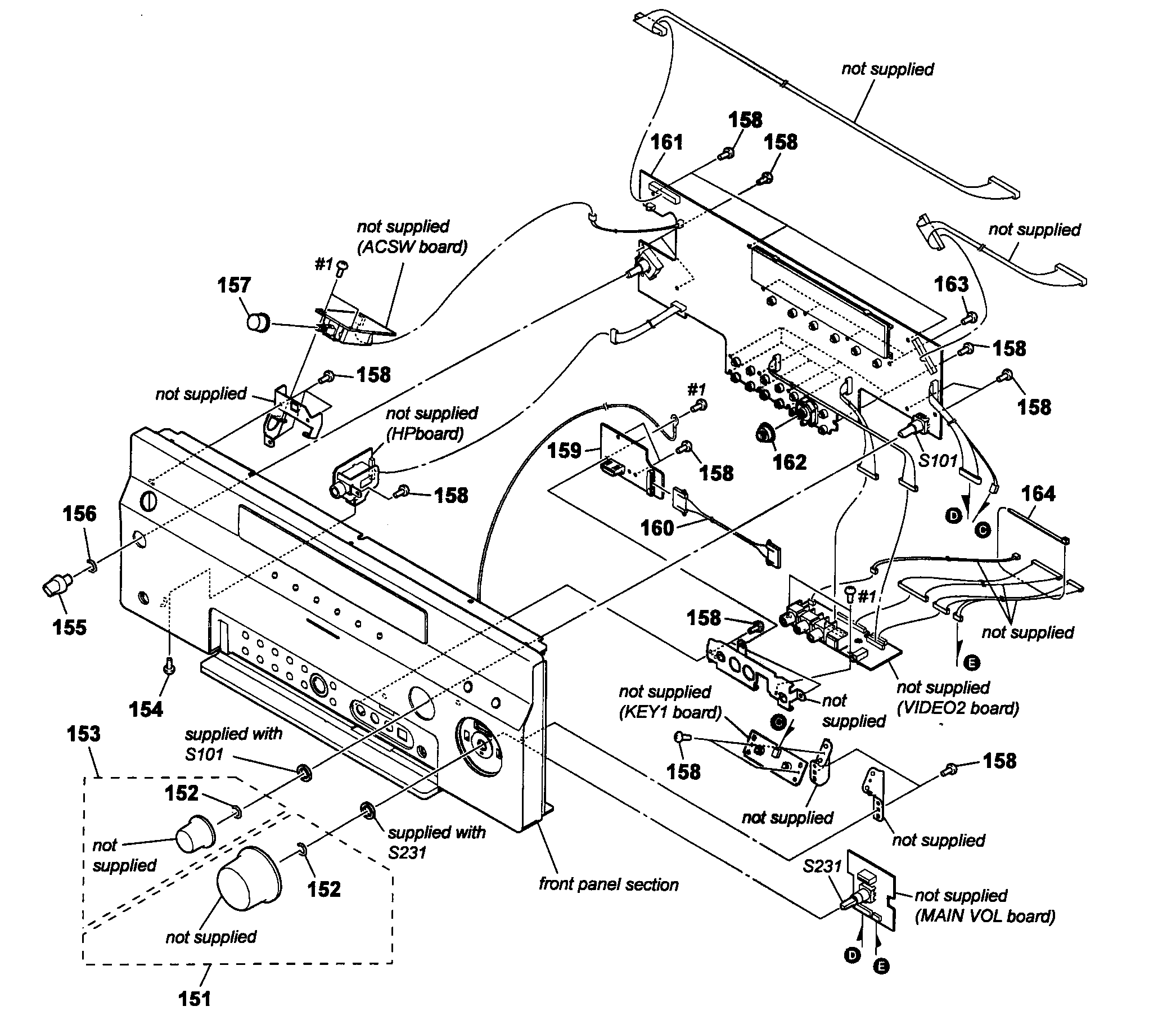

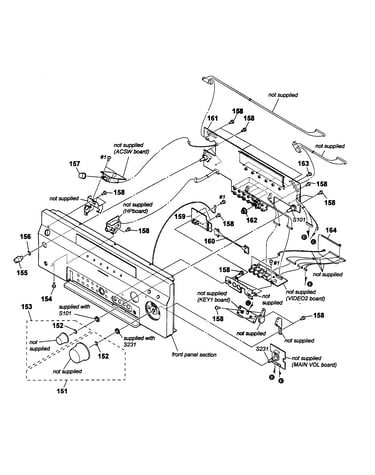

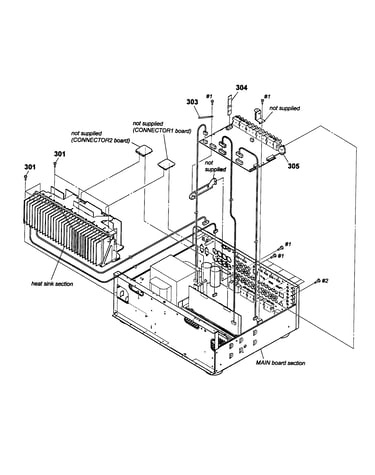

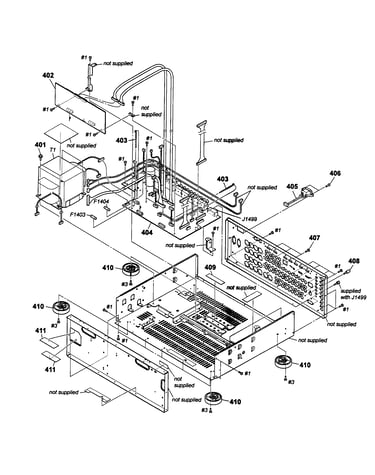

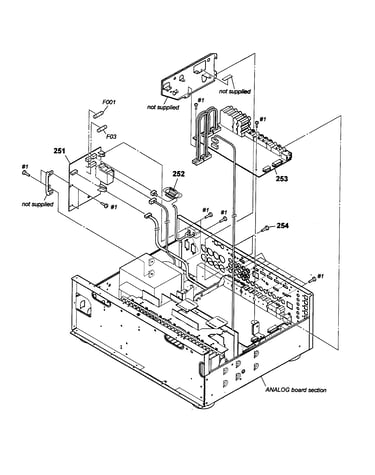

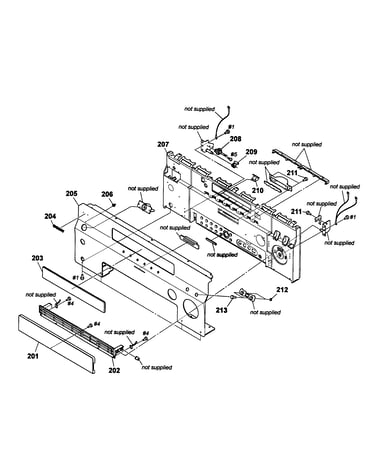

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 224 parts  |
Band(taiton) 365565311
#51

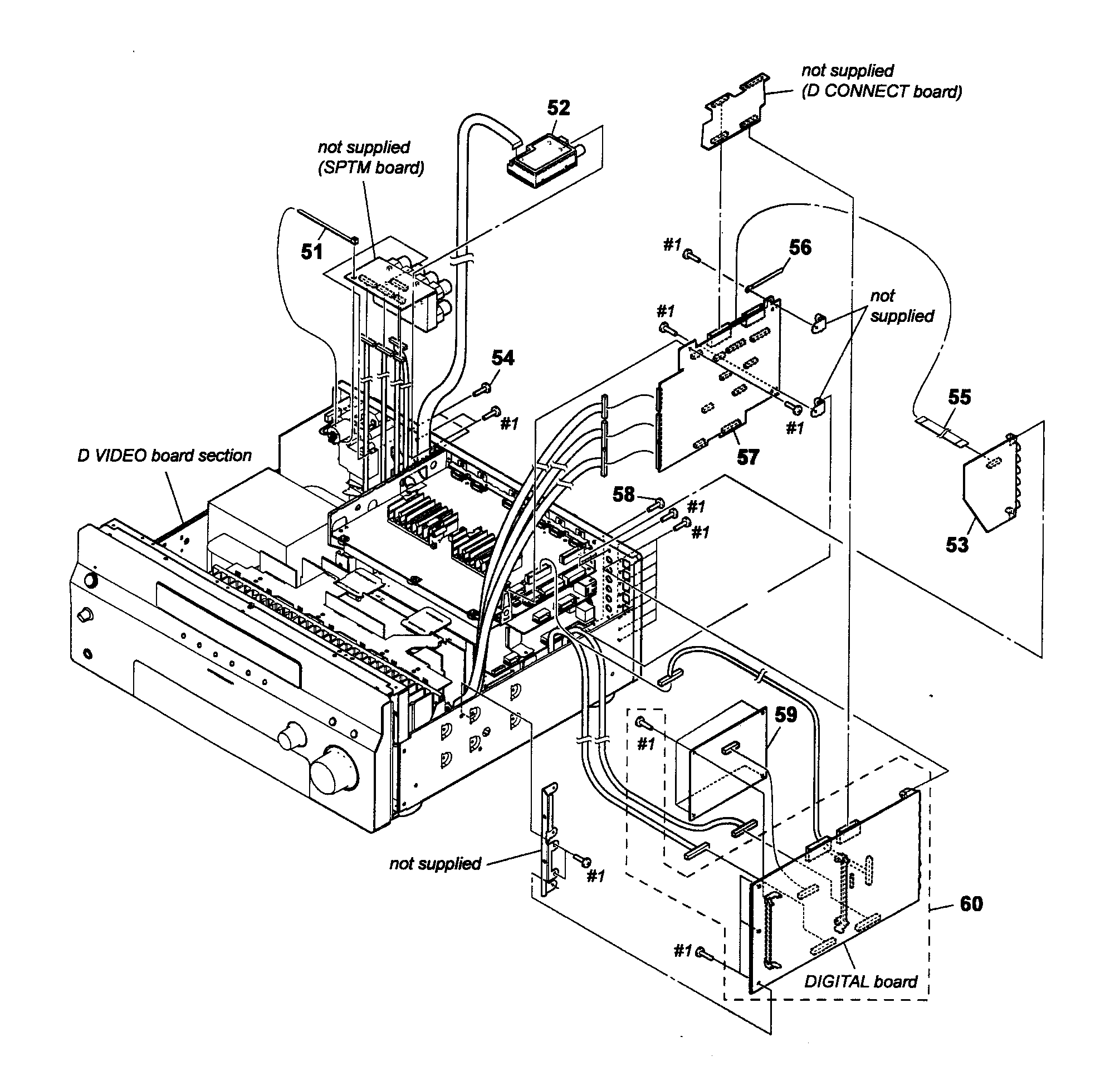

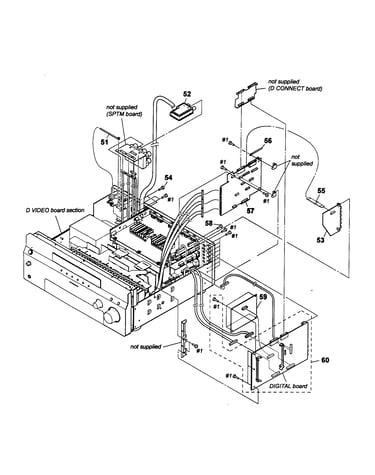

Dig pcb assy diagram

Band(taiton)

Part #365565311

This item is not returnable
$2.16
In Stock
Bushing 03p 485742500
#104

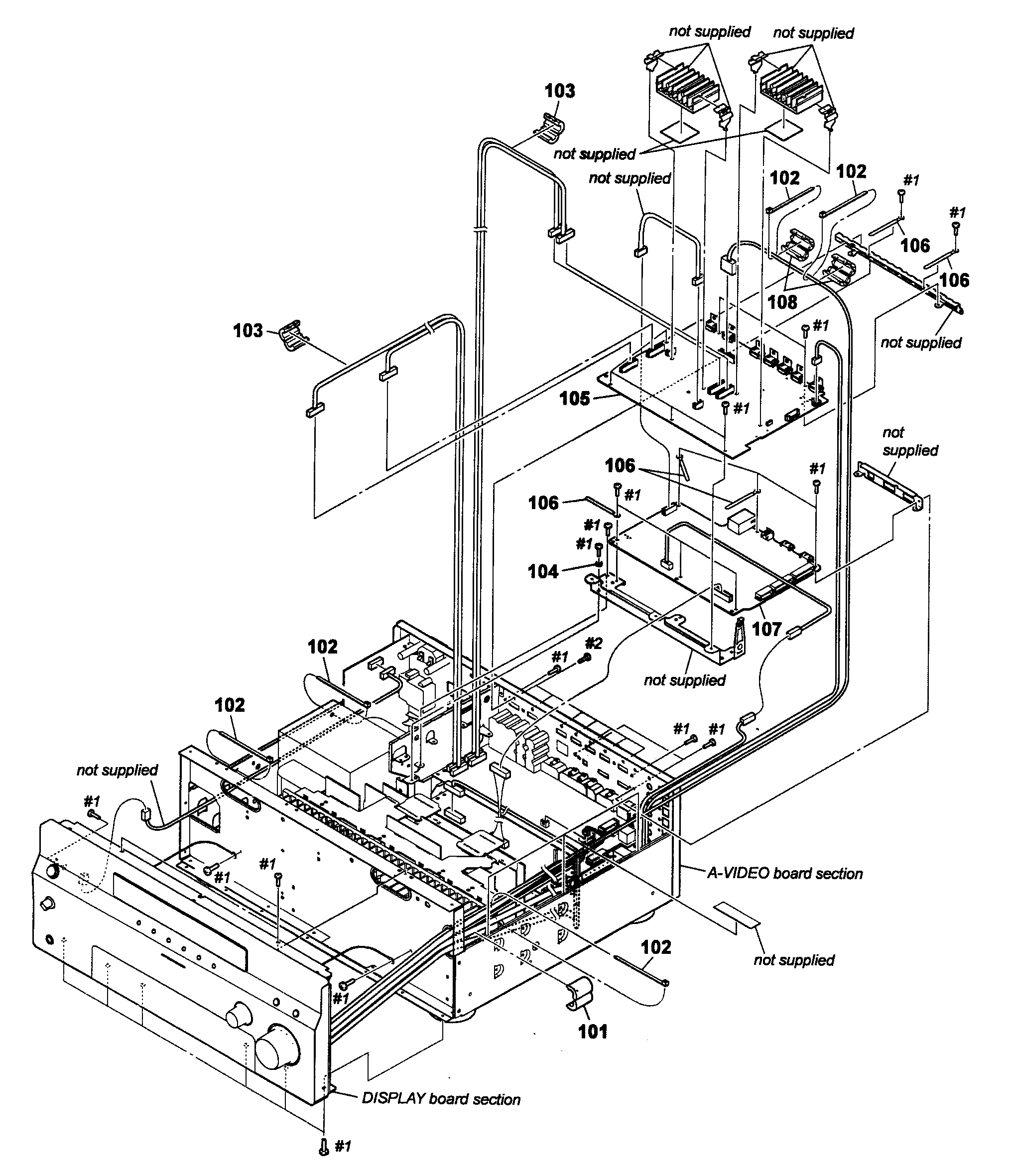

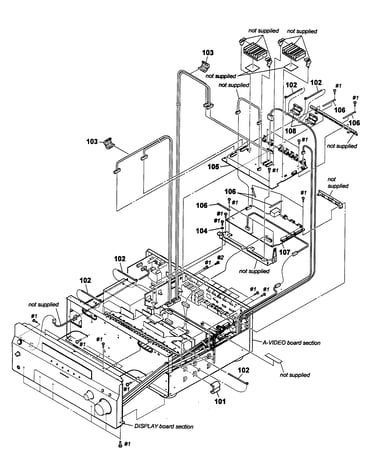

D-video pcb assy diagram

Bushing 03p

Part #485742500

This item is not returnable
$2.16
In Stock
Ic La7213 875982205
#NI

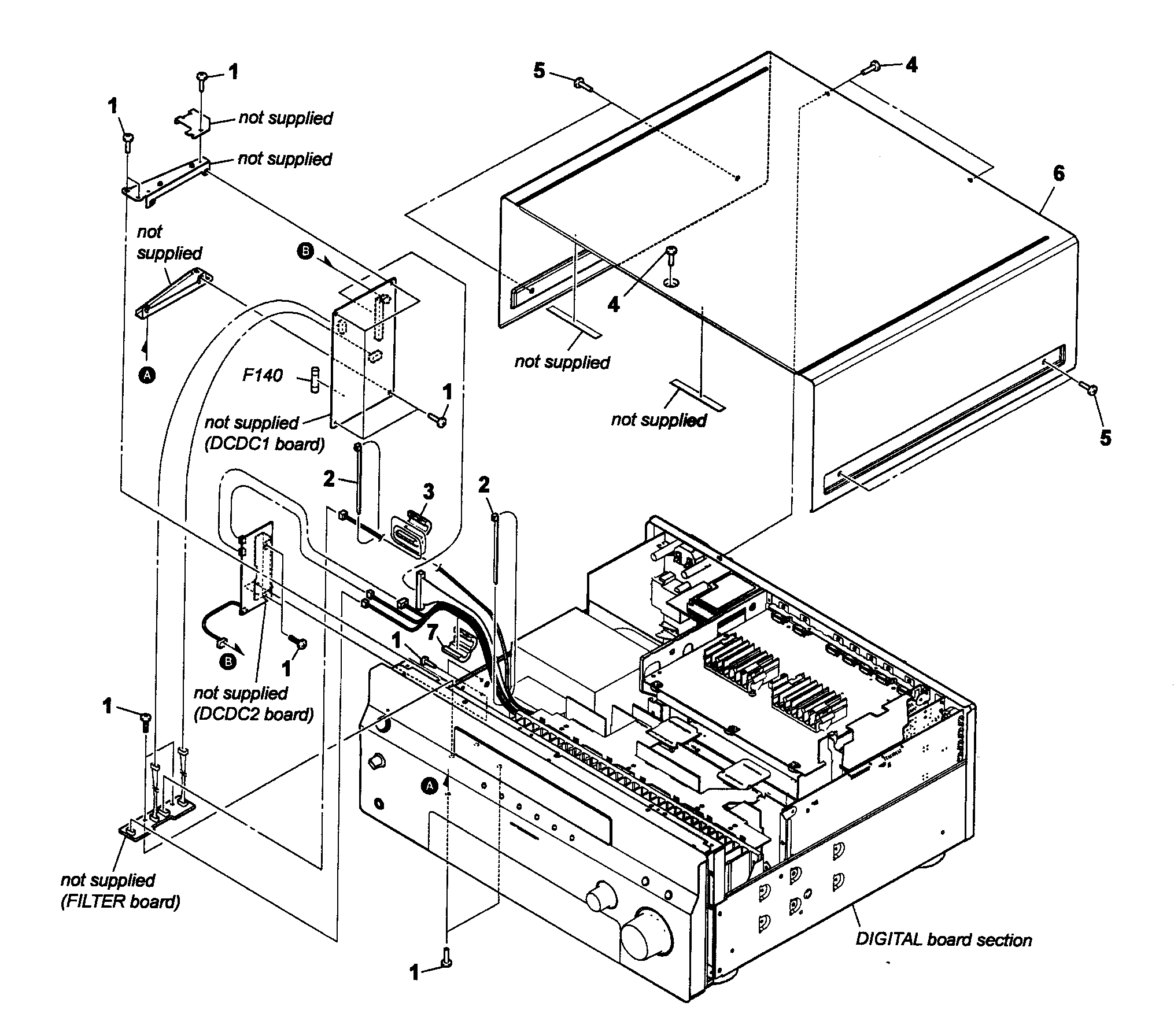

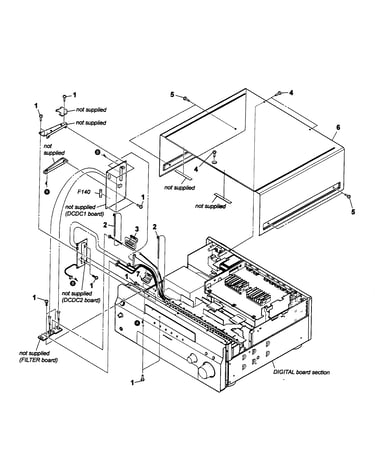

Case section diagram

Ic la7213

Part #875982205

This item is not returnable
$5.65
In Stock
Integrated Circuit 875952409
#NI

Case section diagram

Integrated circuit

Part #875952409

Replaced by #875952409

?
Manufacturer substitution
This part replaces 875952409. Substitute parts can look different from the original.
$57.06
In Stock
Integrated Circuit 671113201
#NI

Case section diagram

Integrated circuit

Part #671113201

Replaced by #671113201

?
Manufacturer substitution
This part replaces 671113201. Substitute parts can look different from the original.
$20.93
In Stock
Ic Upc2910 670101101
#NI

Case section diagram

Ic upc2910

Part #670101101

The manufacturer no longer makes this part, and there's no substitute part

Controller 175958622
#NI

Case section diagram

Controller

Part #175958622

The manufacturer no longer makes this part, and there's no substitute part

Transistor 872902608
#NI

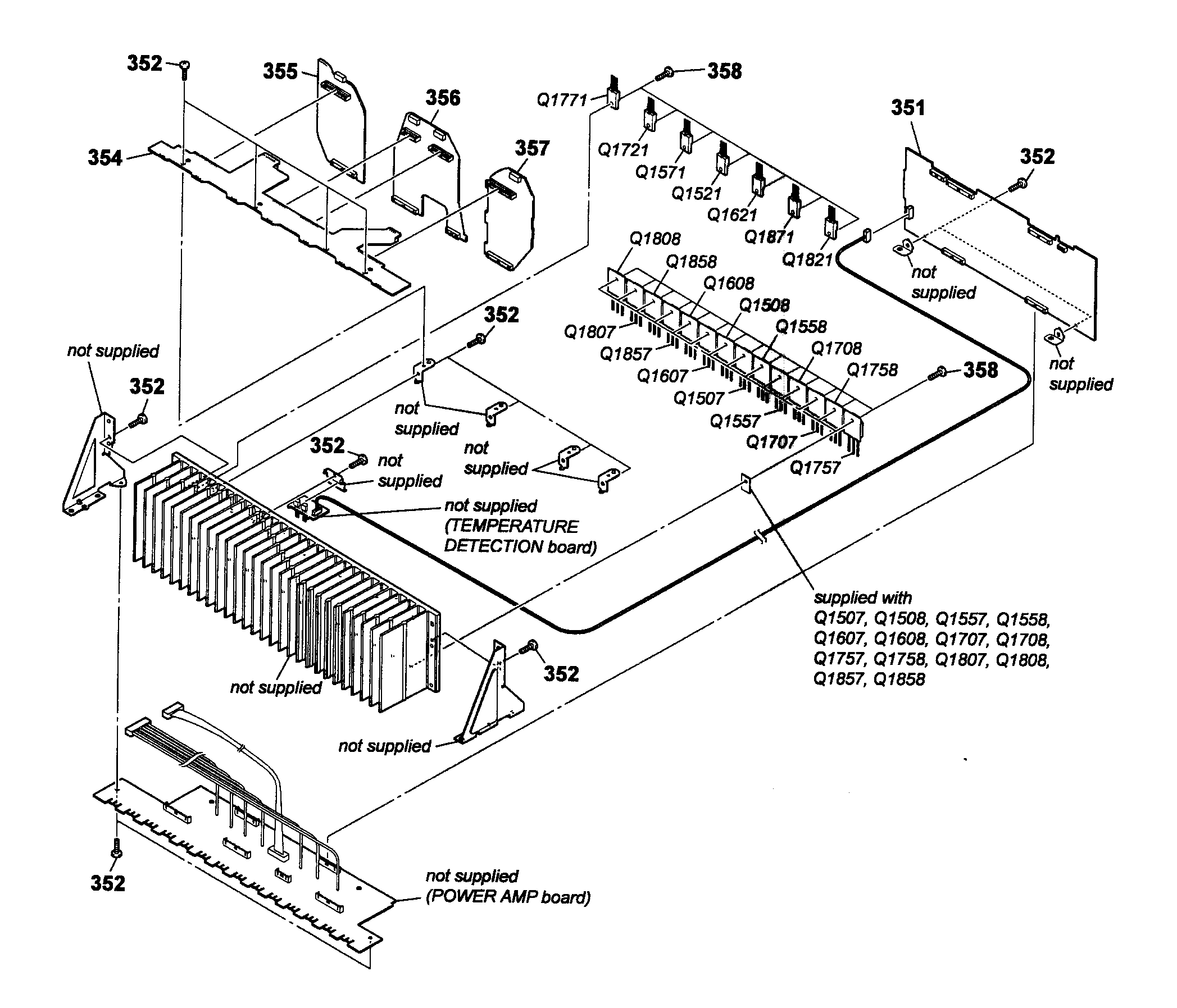

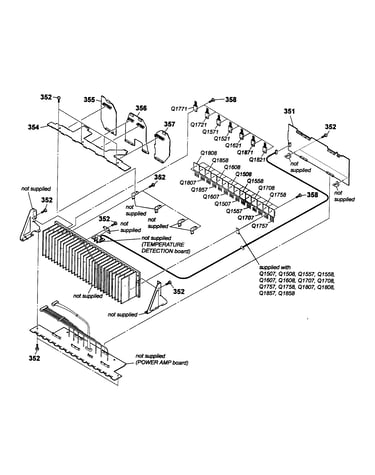

Power pcb assy diagram

Transistor

Part #872902608

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 671276001
#NI

Case section diagram

Integrated circuit

Part #671276001

Replaced by #671276001

?
Manufacturer substitution
This part replaces 671276001. Substitute parts can look different from the original.
$29.89
In Stock
Integrated Circuit 670552501
#NI

Case section diagram

Integrated circuit

Part #670552501

Replaced by #670552501

?
Manufacturer substitution
This part replaces 670552501. Substitute parts can look different from the original.
$20.93
In Stock
