CONFIRM THE PART FITS

Range Oven Door Hinge Kit (replaces 316406910) 5304445529

Part #5304445529

Online Only Price
$137.65 |
8% OFF Phone Price : $149.65
In Stock
For ZIP codes near Edit
60-day return policy

Part Information

Helpful DIY instructions: Installation guide and video.

Special details: Replace the hinges and receptacles included in range oven door hinge kit 5304445529 together for the hinges to work properly.

This oven door hinge kit (part number 5304445529) is for ranges.

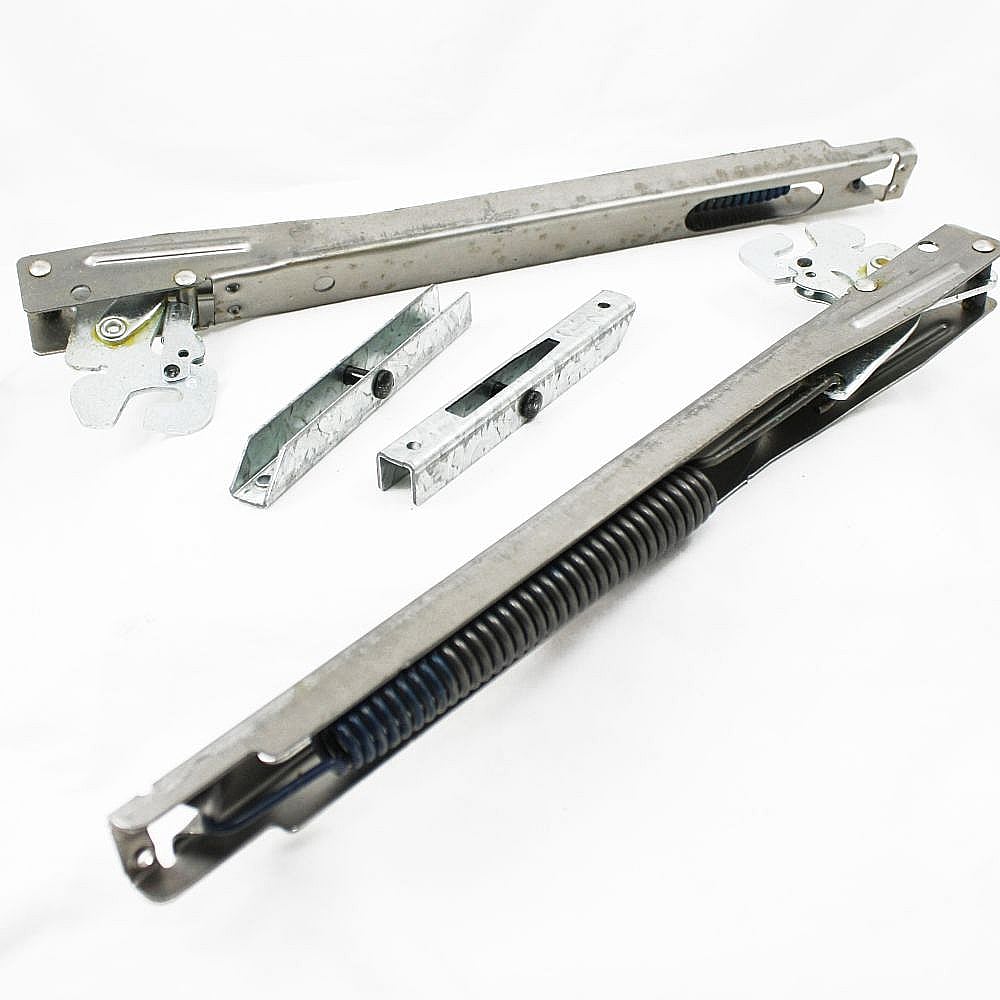

Oven door hinge kit 5304445529 includes both door hinges that connect the oven door to the range cabinet on each side. The hinges control the rate at which the door opens and allow the door to stay open at an angle. The kit includes 2 hinges and 2 hinge receptacles.

Wear work gloves to protect your hands when installing this part.

Reviews

EASY TO INSTALL YES INDEED
August 16, 2021

IT WAS VERY EASY TO INSTALL. 25 MINUTES. WAS MY HUSBAND 1ST OVEN HINDGE RELPACEMENT

OVEN D H 2, CHESTERFIELD VIRGINIA

Did you find this review helpful?

Ease of Installation
Very Difficult
Duration of Installation
More than 2 hours
Easy to install
January 09, 2021

The part was an exact fit. The door closes tight now. The installation was easy. The cleaning took longer than anything else.

BusboyR3, Fayette. Mo.

Did you find this review helpful?

Ease of Installation
Moderate
Duration of Installation
30 minutes - 1 hour

Yes, I would recommend this to a friend

Wrong part. Did not fit!!!
December 14, 2020

Had to change out receivers as well as the hinges. Would have been nice to know that up front

Bill, Cumming, Ga

Did you find this review helpful?

Ease of Installation
Very Easy
Duration of Installation
Less than 30 minutes

Yes, I would recommend this to a friend

Very easy to install
August 27, 2019

Took about 25 minutes from start to finish including clean up

Acjr, Pa

Did you find this review helpful?

Ease of Installation
Very Easy
Duration of Installation
Less than 30 minutes
Door closes properly now
January 29, 2019

Oven door was not closing (gap at the top edge) so we decided to try replacing the hinges and that did the trick! Closes tightly now.

JenniH, Hawaii

Did you find this review helpful?

Ease of Installation
Moderate
Duration of Installation
30 minutes - 1 hour
Easy to install and solved the problem
September 09, 2018

Very easy to install and solved the problem!!! Thanks for sending it so quickly, too.

Mrjbtx, Poconos, PA

Did you find this review helpful?

Ease of Installation
Very Difficult
Duration of Installation
Less than 30 minutes
Worked well, but screw holes were not threaded.
August 09, 2018

I purchased this kit because the oven door was no longer closing all of the way. I found the "pockets" into which the door hooks were slightly bent where the hinge pressed into them. Replacing the hinge and pockets fixed the problem and the door once again closes completely. To replace the hinge itself it is necessary to disassemble the door. Not too hard, but took some time and was a good opportunity to clean in between the panes of glass. The big issue I had was the new "pockets" that came with the kit into which the doors hook. The kit came with machine screws, but the pockets did not have tapped threads (two holes in each pocket). Since I didn't have the correct tap I had to manually cut the threads using the machine screws. FYI, the screws are a combination phillips and square drive. To cut the threads using the provided screws I found that using a square drive driver instead of phillips was much easier. It would be great if the screw holes were either pre-tapped for the threads, or the screws they provided were the thread tapping type. It seemed odd that the holes were not tapped. Maybe I just received a bad part the slipped past QA?

bmcq, Livonia, MI

Did you find this review helpful?

Ease of Installation
Moderate
Duration of Installation
30 minutes - 1 hour
No help for returning product
July 17, 2018

I used the online help to order oven door hinge. The part is incorrect and does not fit.

Carol60, WI

Did you find this review helpful?

Ease of Installation
Very Difficult
Duration of Installation
More than 2 hours
