GE
Water & Ice System

Model # WR30X209 Official GE ice maker

Here are the diagrams and repair parts for Official GE WR30X209 ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Refrigerator Permagum Sealer WR97X140
#48B

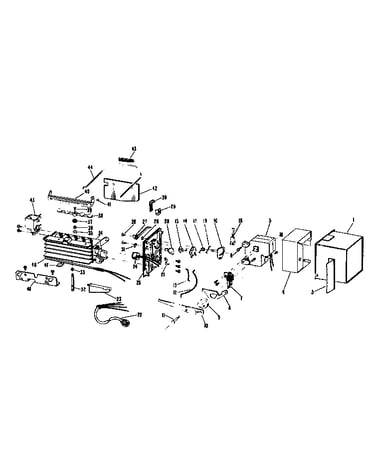

Icemaker diagram

Refrigerator permagum sealer

Part #WR97X140

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Retainer WR1X1338
#44

Icemaker diagram

Refrigerator retainer

Part #WR1X1338

Replaced by #WR29X98

?
Manufacturer substitution
This part replaces WR1X1338. Substitute parts can look different from the original.
$7.51
In Stock
Refrigerator Screw, 2-pack WR1X1221
#28

Icemaker diagram

Refrigerator screw, 2-pack

Part #WR1X1221

Replaced by #WZ2X45D

?
Manufacturer substitution
This part replaces WR1X1221. Substitute parts can look different from the original.
$16.57
In Stock
Refrigerator Power Cord WR23X171
#22

Icemaker diagram

Refrigerator power cord

Part #WR23X171

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Clamp WR2X3653
#47

Icemaker diagram

Refrigerator clamp

Part #WR2X3653

The manufacturer no longer makes this part, and there's no substitute part

Link Im Vert WR29X69
#13

Icemaker diagram

Link im vert

Part #WR29X69

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Motor WR29X97
#5

Icemaker diagram

Refrigerator motor

Part #WR29X97

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Leaf Switch WR23X103
#7

Icemaker diagram

Refrigerator leaf switch

Part #WR23X103

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Clip WR1X1332

#NI

All parts diagram

Refrigerator clip

Part #WR1X1332

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Switch WR29X73
#14

Icemaker diagram

Refrigerator switch

Part #WR29X73

The manufacturer no longer makes this part, and there's no substitute part
