LG
Countertop Microwave

Model # LRM1250B01 Official LG microwave

Here are the diagrams and repair parts for Official LG LRM1250B01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

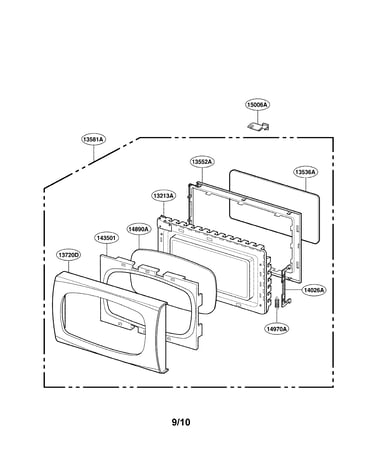

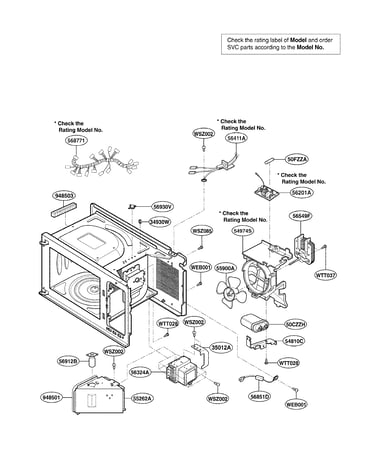

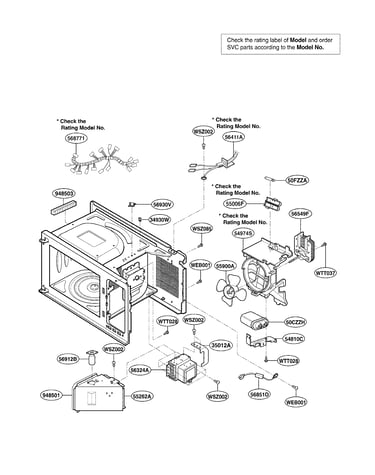

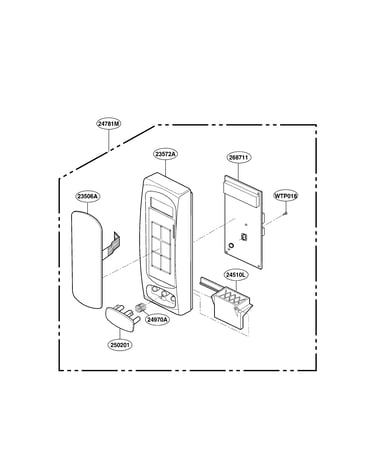

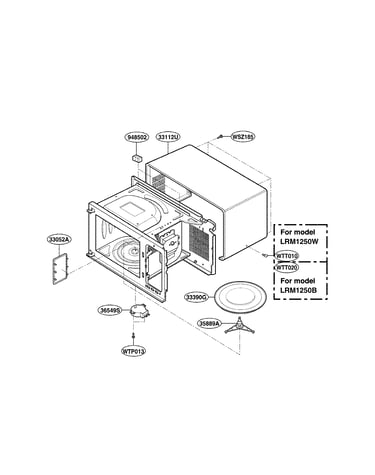

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L
Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$91.94 |
5% OFF Phone Price : $96.94
In Stock
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4660A

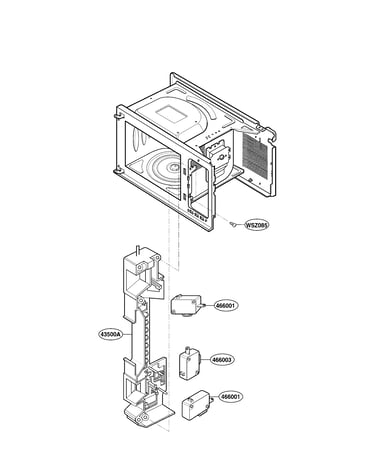

Latch board parts diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4660

Latch board parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave High-voltage Capacitor 0CZZW1H004P
Microwave high-voltage capacitor

Part #0CZZW1H004P

Replaced by #0CZZW1H004B

?
Manufacturer substitution
This part replaces 0CZZW1H004P. Substitute parts can look different from the original.
BEST SELLER
$28.54 |
15% OFF Phone Price : $33.54
In Stock
Microwave Diode 6851W1A002A
Microwave diode

Part #6851W1A002A

This item is not returnable
$10.03 |
17% OFF Phone Price : $12.03
In Stock
Microwave Screw 4B70188C
Microwave screw

Part #4B70188C

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Screw 1TTL0402418
#WTT0

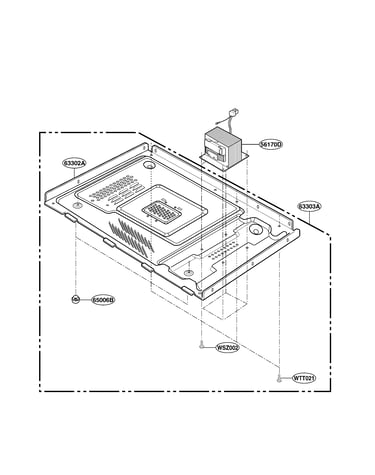

Base plate parts diagram

Screw

Part #1TTL0402418

Replaced by #1TTG0402422

?
Manufacturer substitution
This part replaces 1TTL0402418. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Screw 1TTL0402818
Microwave screw

Part #1TTL0402818

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Thermostat 6930WRT002F
Microwave thermostat

Part #6930WRT002F

Replaced by #6930W1A003A

?
Manufacturer substitution
This part replaces 6930WRT002F. Substitute parts can look different from the original.
This item is not returnable
$10.03 |
17% OFF Phone Price : $12.03
In Stock
Cushion 3B72244G
Cushion

Part #3B72244G

$7.89
In Stock
