Model # 143632456 Official Craftsman carburetor

Here are the diagrams and repair parts for Official Craftsman 143632456 carburetor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Lawn & Garden Equipment Engine Carburetor Adjustment Screw Spring 27114
#20

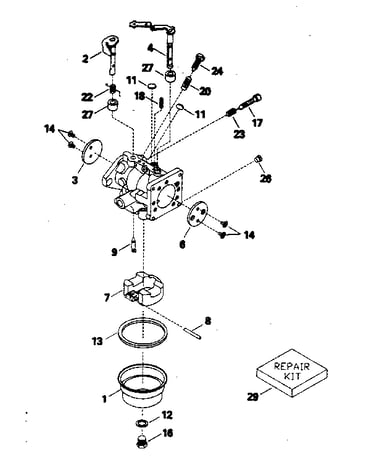

Replacement parts diagram

Lawn & garden equipment engine carburetor adjustment screw spring

Part #27114

This item is not returnable
In Stock
Lawn & Garden Equipment Engine Screw 650506
#14

Replacement parts diagram

Lawn & garden equipment engine screw

Part #650506

This item is not returnable
In Stock
Float Shaft 632443
#8

Replacement parts diagram

Float shaft

Part #632443

This item is not returnable
In Stock
Lawn & Garden Equipment Engine Carburetor Idle Adjustment Screw 27112
#24

Replacement parts diagram

Lawn & garden equipment engine carburetor idle adjustment screw

Part #27112

This item is not returnable
In Stock
Fuel Jet 632457
#26

Replacement parts diagram

Fuel jet

Part #632457

In Stock
Adjustment Spring 632452
#23

Replacement parts diagram

Adjustment spring

Part #632452

This item is not returnable
In Stock
Screw 632449
#16

Replacement parts diagram

Screw

Part #632449

This item is not returnable
In Stock
Shutter 631682
#3

Replacement parts diagram

Shutter

Part #631682

In Stock
Gasket 632448
#13

Replacement parts diagram

Gasket

Part #632448

This item is not returnable
In Stock
Gasket 632447
#12

Replacement parts diagram

Gasket

Part #632447

This item is not returnable
In Stock
