Model # SA-WST7 Official Sony audio speakers

Here are the diagrams and repair parts for Official Sony SA-WST7 audio speakers, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Screw (1) 487461412
#1

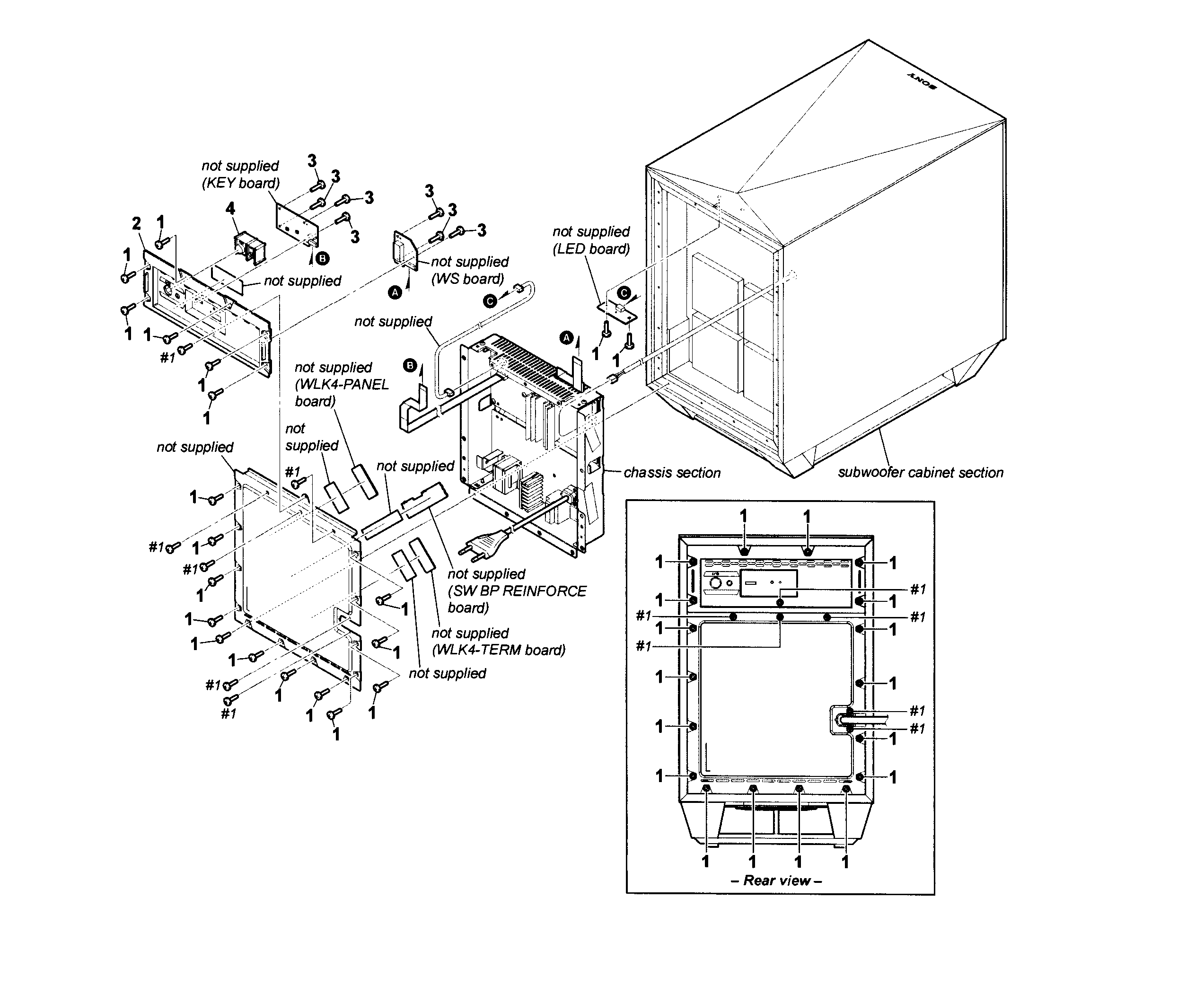

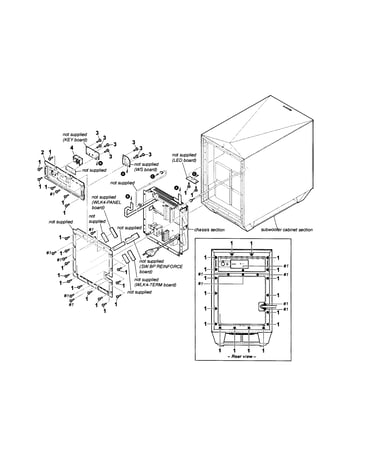

Top plate diagram

Screw (1)

Part #487461412

The manufacturer no longer makes this part, and there's no substitute part

Wire Kit 983360599
#FFC1

Chassis diagram

Wire kit

Part #983360599

The manufacturer no longer makes this part, and there's no substitute part

Foot 445615401
#104

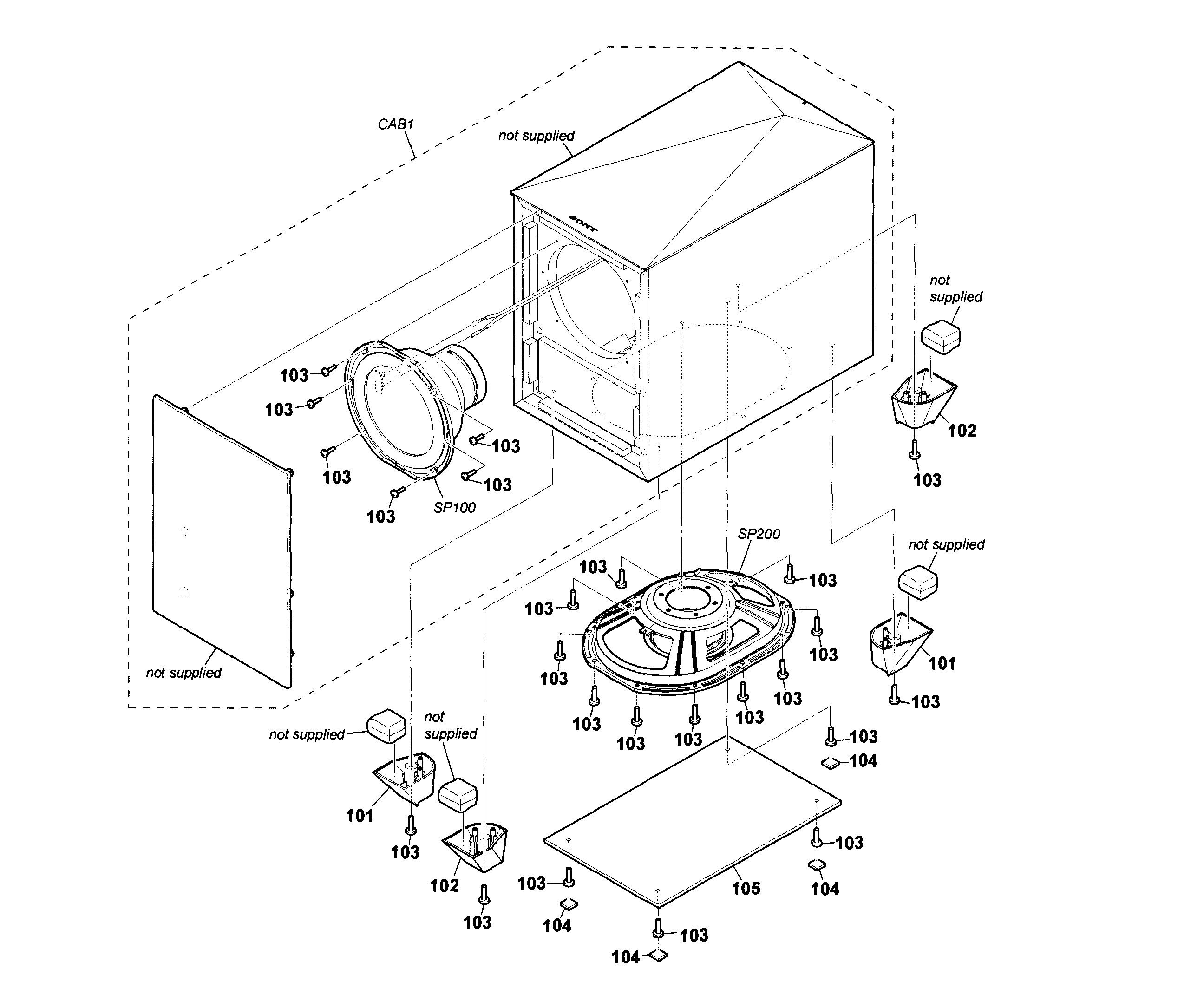

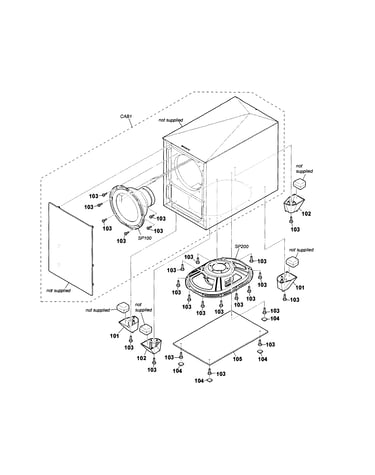

Subwoofer diagram

Foot

Part #445615401

The manufacturer no longer makes this part, and there's no substitute part

Leg A 445760301
#101

Subwoofer diagram

Leg a

Part #445760301

The manufacturer no longer makes this part, and there's no substitute part

Power Pcb A1937108A
#52

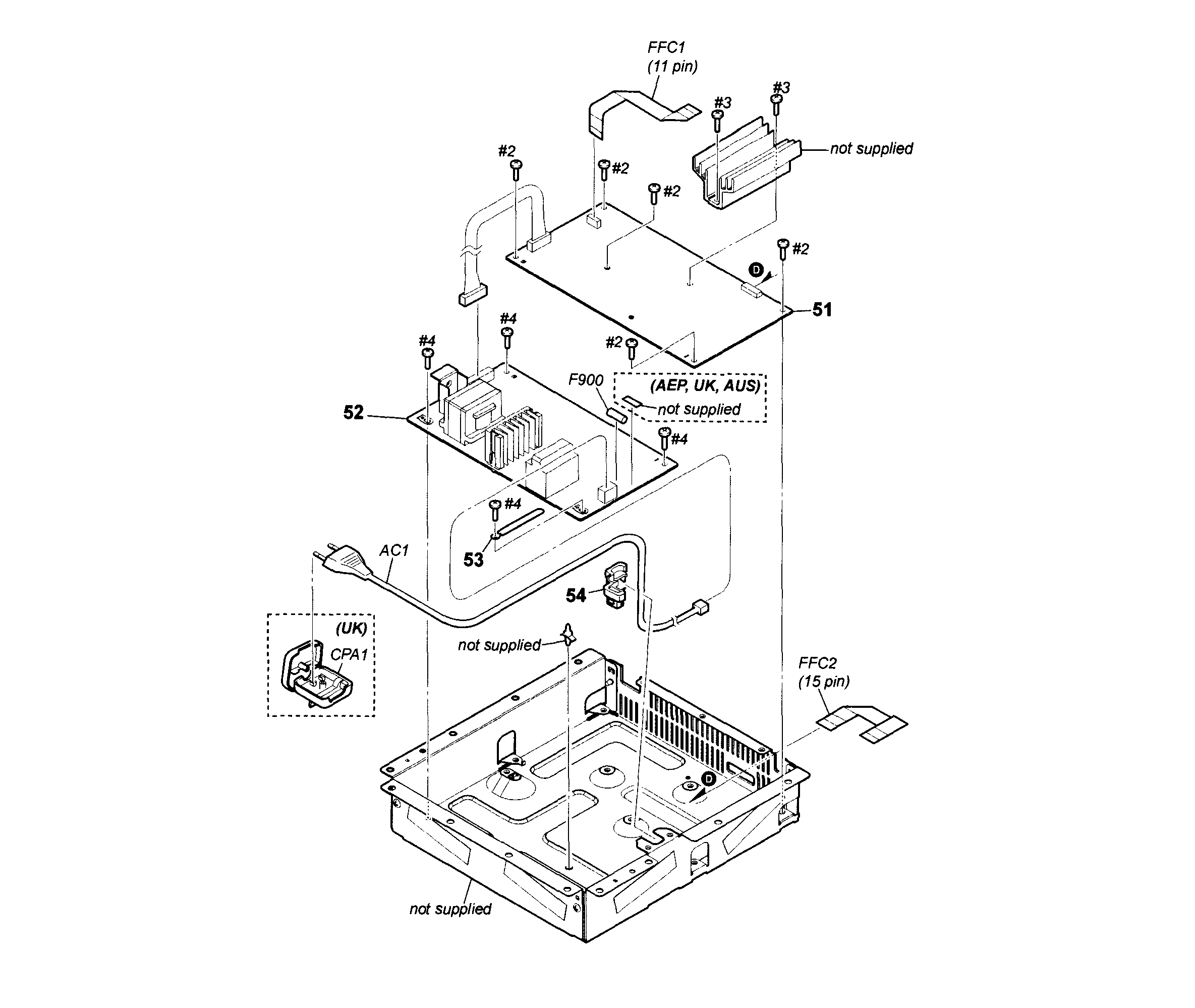

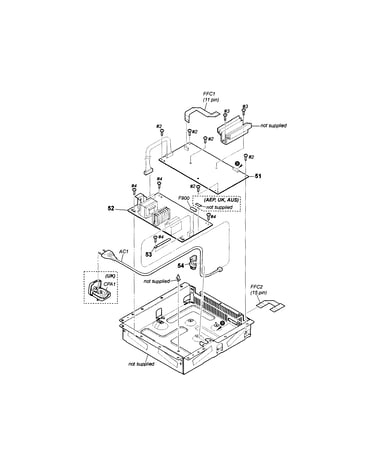

Chassis diagram

Power pcb

Part #A1937108A

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 183730811
#AC1

Chassis diagram

Power cord

Part #183730811

The manufacturer no longer makes this part, and there's no substitute part

Cabinet A1968812A
#CAB1

Subwoofer diagram

Cabinet

Part #A1968812A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 670634701
#NI

Top plate diagram

Integrated circuit

Part #670634701

The manufacturer no longer makes this part, and there's no substitute part

Leg B 445760401
#102

Subwoofer diagram

Leg b

Part #445760401

The manufacturer no longer makes this part, and there's no substitute part

Pcb S-main A1968243A
#51

Chassis diagram

Pcb s-main

Part #A1968243A

The manufacturer no longer makes this part, and there's no substitute part
