Model # FFRH1222R21 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFRH1222R21 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

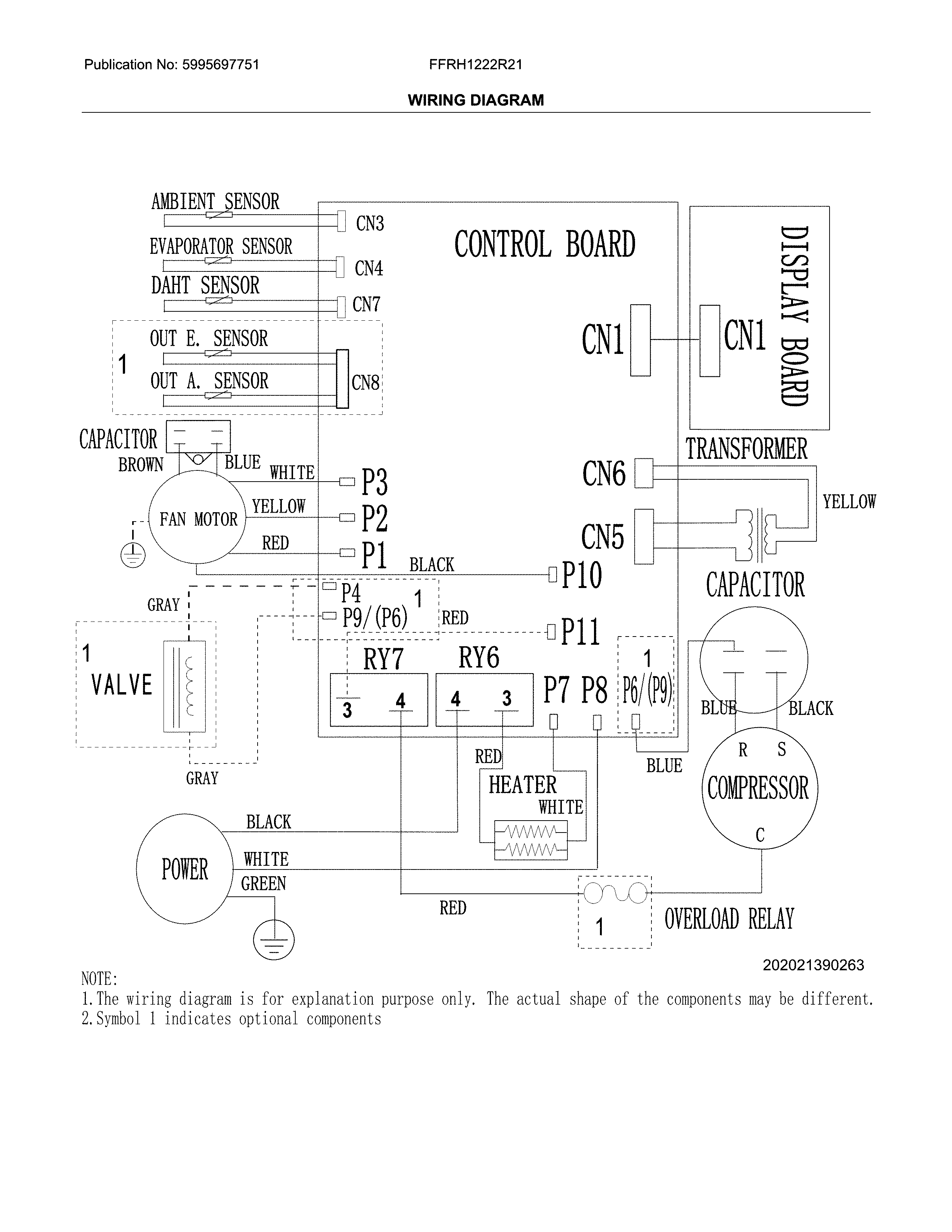

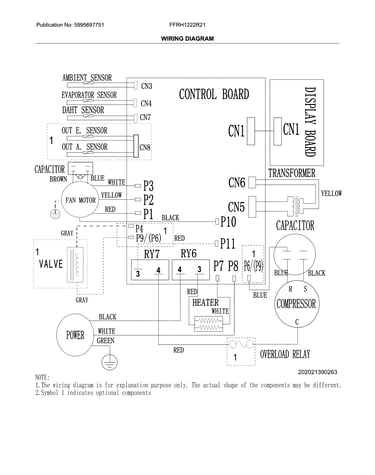

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Room Air Conditioner Evaporator Thermistor 5304471383
#24

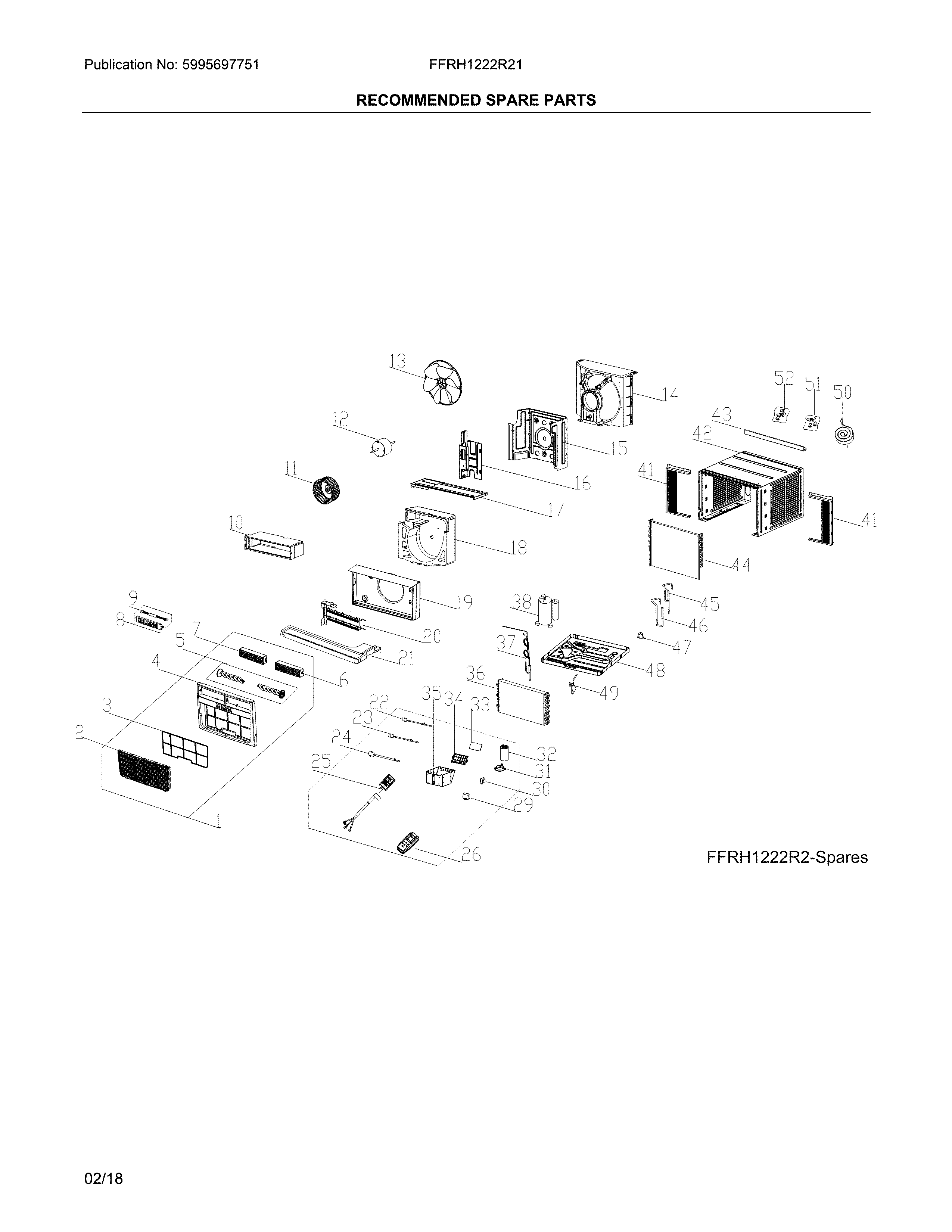

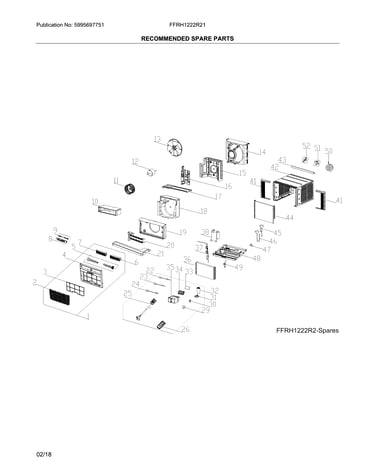

Recommended spare parts diagram

Room air conditioner evaporator thermistor

Part #5304471383

$33.49
13% OFF Phone Price : $38.49
In Stock
Bulkhead 5304501064
#16

Recommended spare parts diagram

Bulkhead

Part #5304501064

In Stock
Wire 5304495009
#9

Recommended spare parts diagram

Wire

Part #5304495009

In Stock
Louver 5304483209
#7

Recommended spare parts diagram

Louver

Part #5304483209

In Stock
Scroll 5304501066
#18

Recommended spare parts diagram

Scroll

Part #5304501066

In Stock
Room Air Conditioner Heater Assembly 5304476390
#20

Recommended spare parts diagram

Room air conditioner heater assembly

Part #5304476390

$238.09
$10.00 OFF Phone Price : $248.09
In Stock
Room Air Conditioner Power Cord 5304500875
#25

Recommended spare parts diagram

Room air conditioner power cord

Part #5304500875

In Stock
Room Air Conditioner Remote Control 5304482937
#26

Recommended spare parts diagram

Room air conditioner remote control

Part #5304482937

In Stock
Compressor Capacitor 5304512431
#32

Recommended spare parts diagram

Compressor capacitor

Part #5304512431

In Stock
Capacitor Clamp 5304512422
#31

Recommended spare parts diagram

Capacitor clamp

Part #5304512422

This item is not returnable
In Stock
