GE JBS160DM4BB electric range Parts

For your GE electric range model JBS160DM4BB, we recommend ordering replacement parts directly from the parts list for this model so you get the correct fit and electrical rating; you can also search by model number on Sears PartsDirect if you need a part that is not shown in the list.

How we recommend ordering parts for model JBS160DM4BB

1. Confirm the full model number: JBS160DM4BB.
2. Identify the symptom or the part you need (surface burner not heating, oven light out, door not sealing, etc.).
3. Match the part by description and ID, then order the exact replacement.

Common parts customers order for this range

• Surface burner not heating or stuck on high: control switch options such as GE range surface element control switch WB24T10025 or range surface element control switch, 1,250-watt WB24T10022
• Burner element not heating: range surface element, 8-in WB31X46066 or range coil element, 6-in WB31X46067
• Oven light not working: 40a15bulb 40A15 and, if needed, range light socket WB08T10026
• Door heat leaking or poor temperature control: range oven door gasket WB35X29720

Quick checks before you place the order

These steps help prevent ordering the wrong part and can confirm the failure.

• Verify which burner position is affected (front/rear, left/right) and whether it is a 6-inch or 8-inch element.
• If a surface element cycles incorrectly, inspect the receptacle and wiring for heat damage; the related part is kit surface terminal WB17T10006.
• If the oven light is out, replace the bulb first; if it still will not light, replace the socket.
• If the oven door does not seal, check for a torn, flattened, or hardened gasket.

Part selection guide (what to choose)

What you are fixing	Most likely part type	Example part on this model
Surface burner will not regulate heat	Surface element control switch	WB24T10025 or WB24T10022
Burner will not heat at all	Surface element	WB31X46066 (8-in) or WB31X46067 (6-in)
Oven light out	Bulb, then socket	40A15, then WB08T10026
Heat leaking around door	Door gasket	WB35X29720

Why it matters

Using the exact part ID for JBS160DM4BB helps ensure proper fit, safe electrical connection, and correct heating performance. Ordering a “close match” switch, element, or terminal block can cause poor temperature control or repeat failures.

Last updated: February 2026

For a GE electric range like model JBS160DM4BB, replacing the oven control board typically runs $150 to $450 for the part and $300 to $800 total if you pay for diagnosis and labor. The exact price depends on the board version used in your range and service rates in your area.

Typical cost breakdown

These ranges cover most GE freestanding electric ranges with an electronic oven control (EOC).

• Control board (part only): $150 to $450
• Service call/diagnosis: $100 to $200
• Labor (install and test): $150 to $300
• Total installed cost: $300 to $800

Scenario	What you pay for	Typical total
DIY replacement	Part only	$150 to $450
Technician replacement	Part + diagnosis + labor	$300 to $800
“Chasing a problem”	Extra parts/testing time	Often adds $50 to $200

What changes the price the most

A control board price can swing a lot even within the same brand and product type.

• Exact board used in JBS160DM4BB (different revisions can cost more)
• Whether the failure is the board or a related part (wiring, sensor, element)
• Burned connections at the terminal block (can require additional repair)
• Local labor rates and minimum trip charges
• Whether you replace related wear items at the same time

Before you buy a control board

We recommend ruling out common “looks like the board” problems first, because they can mimic control failure.

• Reset power: turn the range breaker OFF for 1 minute, then back ON.
• If the oven will not heat, check for a failed heating circuit; see oven wont heat troubleshooting electric range problems video.
• If you see error codes, match them to GE range diagnostics; use GE freestanding range error codes.
• Inspect the power connection area for heat damage; a failing block terminal asm WB27X31509 can cause intermittent power issues.

Why it matters

The control board is one of the highest-cost electrical parts on an electric range. Confirming the symptom path first helps you avoid replacing an expensive board when the real issue is a terminal connection, element circuit, or a simpler electrical fault.

Ordering the right part

We list replacement parts for GE JBS160DM4BB on this page; for broader model-based part searches and ordering, use Sears PartsDirect.

Last updated: February 2026

A GE electric oven typically lasts 13 to 15 years with normal household use and basic maintenance. For your GE JBS160DM4BB electric range, lifespan depends most on heat exposure to controls, how often you run high-heat cycles, and how quickly you fix small heating or burner issues.

Typical lifespan and what affects it

Most electric ovens fall into a predictable range; the biggest difference is how hard the oven and cooktop components are worked over time.

• Usage frequency: daily baking and long preheats shorten life faster than occasional use
• Heat stress: repeated high-heat cooking accelerates wear on wiring and switches
• Cleaning habits: heavy, frequent high-heat cleaning cycles shorten component life
• Power quality: loose connections or overheating terminals can damage wiring
• Repairs done early: replacing a failing part prevents secondary damage

Quick “repair vs. replace” guide

If your range is near the end of its expected life, we use these practical checkpoints.

What you’re seeing	Most common meaning	Usual next step
One surface burner won’t heat or overheats	Burner control or receptacle issue	Test/replace the control switch or terminal kit
Oven heats unevenly or struggles to maintain temp	Heating circuit or element issue	Troubleshoot heating and wiring connections
Lights out but range works	Bulb or socket issue	Replace bulb or socket
Burning smell or intermittent power	Loose/overheated terminal connection	Inspect and repair terminal block and wiring

Parts that commonly extend the life of this range

When a small part fails, replacing it promptly often keeps a GE range running for years.

• Surface burner control problems: GE range surface element control switch WB24T10025
• Cooktop receptacle/terminal wear: kit surface terminal WB17T10006
• Power connection issues at the back: block terminal asm WB27X31509
• Oven light not working: 40a15bulb 40A15 and range light socket WB08T10026

Why it matters

Running an electric range with a failing switch, overheated terminal, or worn receptacle can create extra heat at the wiring and cause repeat failures. Fixing the first weak link helps protect higher-cost components and keeps cooking performance consistent.

Ordering the right parts

We list replacement parts for GE JBS160DM4BB by section so you can match the exact item to your range. If you are shopping across multiple appliances or models, we also support model searches on Sears PartsDirect.

Last updated: February 2026

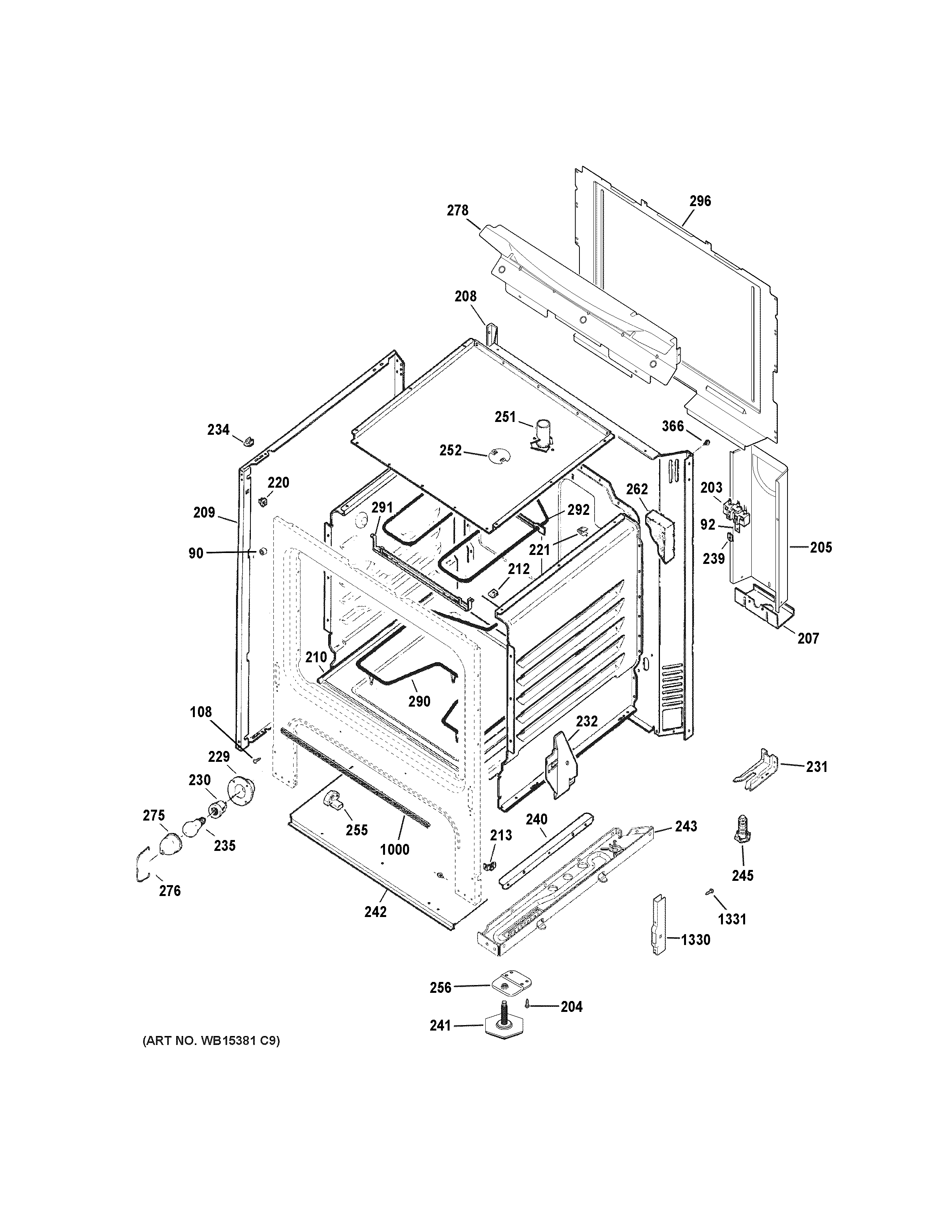

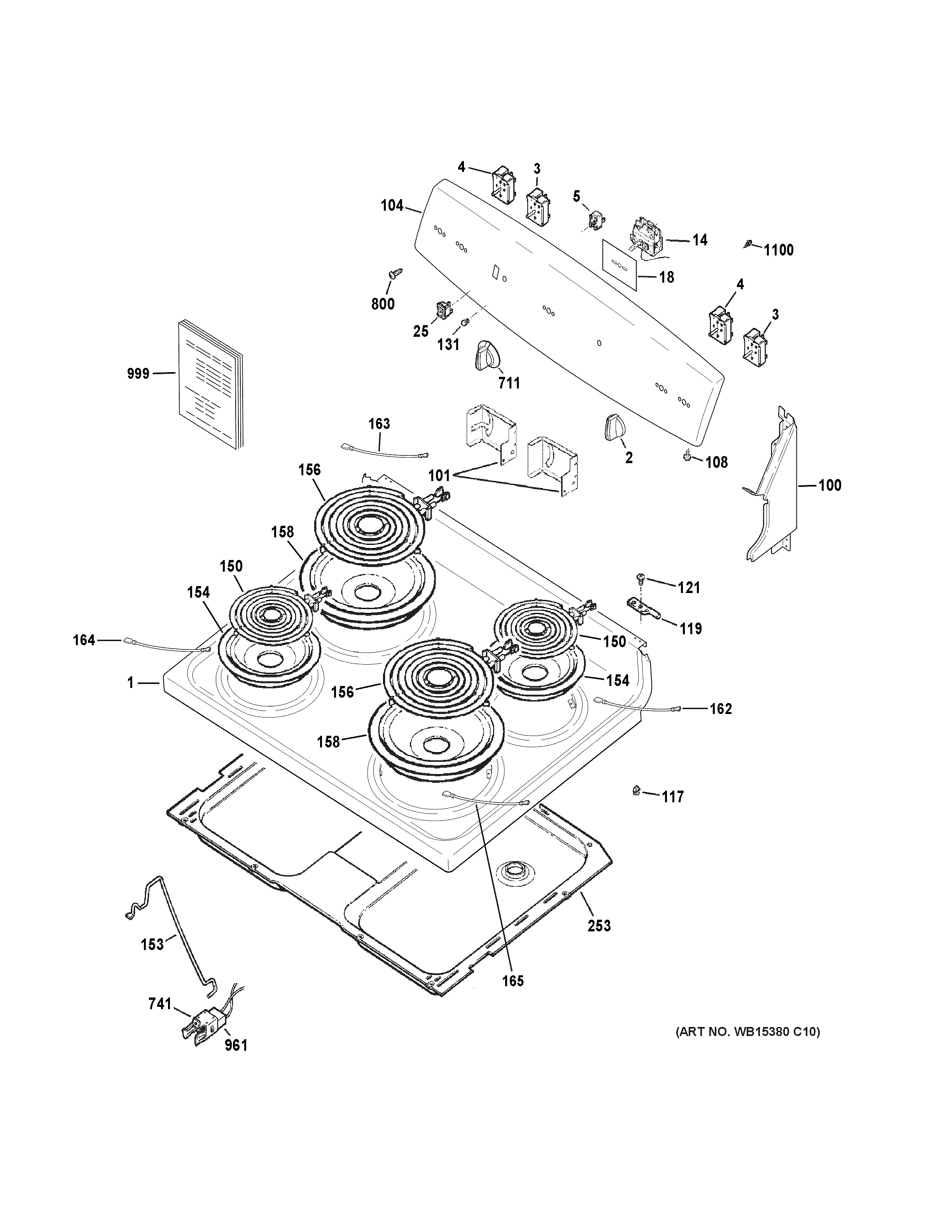

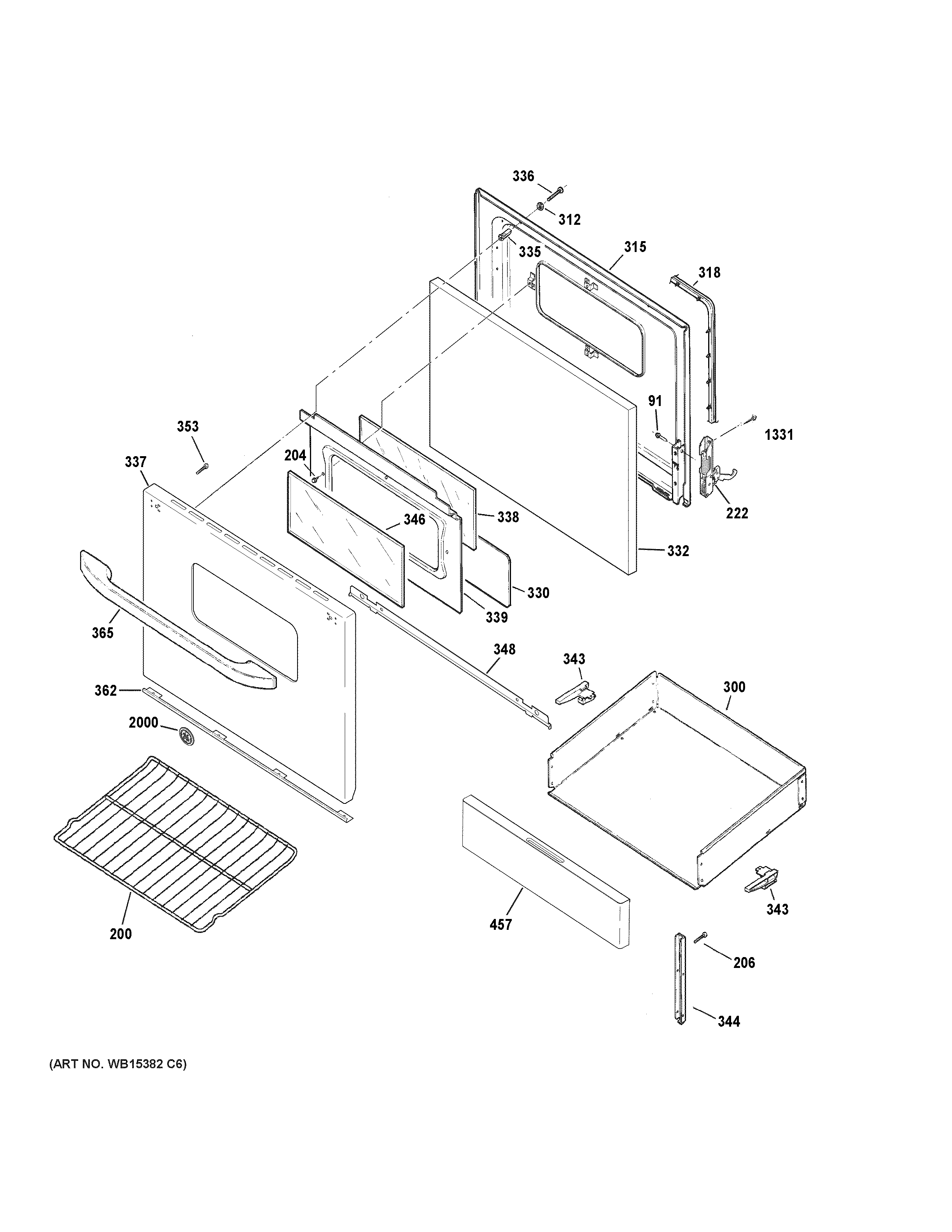

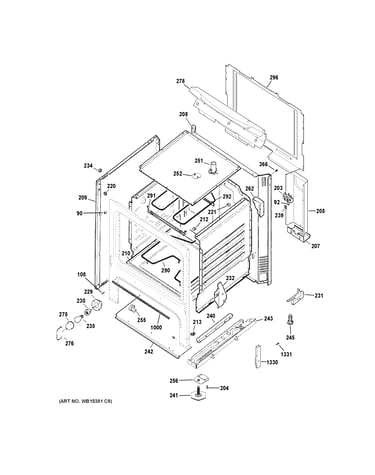

For your GE electric range model JBS160DM4BB, the right part number comes from matching the model number first, then using the parts list and diagrams to identify the exact component name and its GE part number (for example, a surface element switch or drip pan). You can also search by the part ID once you have it.

Step-by-step: find the correct part number for JBS160DM4BB

• Locate the model tag and confirm the model is JBS160DM4BB (letter and number order matters).
• Identify the system you are repairing: surface burner, oven door, oven light, or wiring.
• Use the parts list for this model to match the part by name and location.
• Compare your old part to the listing (mounting points, terminals, and shape).
• If multiple similar parts exist, match by wattage/size when stated (example: 6-in vs 8-in surface element).

Common JBS160DM4BB parts customers look up (examples)

These are model-matched parts that help you confirm you are pulling the correct GE part number:

What you are fixing	Part to look for	Example part ID
Burner won’t heat or won’t regulate	Surface element control switch	GE range surface element control switch WB24T10025
Coil element not heating	Coil element (size matters)	Range coil element, 6-in WB31X46067
Messy or rusted burner bowls	Drip pan	Range drip pan WB31T10015
Oven light not working	Bulb or socket	Range light socket WB08T10026

Why it matters

GE ranges often use similar-looking parts across different models, but terminal styles, element sizes, and switch ratings can differ. Matching the part to JBS160DM4BB prevents ordering a part that fits physically but does not connect correctly or heat properly.

Ordering tip

Once you confirm the correct part number or part ID, order directly from the parts list for JBS160DM4BB, or search by model number on Sears PartsDirect to find additional diagrams and replacement parts.

Last updated: February 2026
