Model # ACQ102XD2 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACQ102XD2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

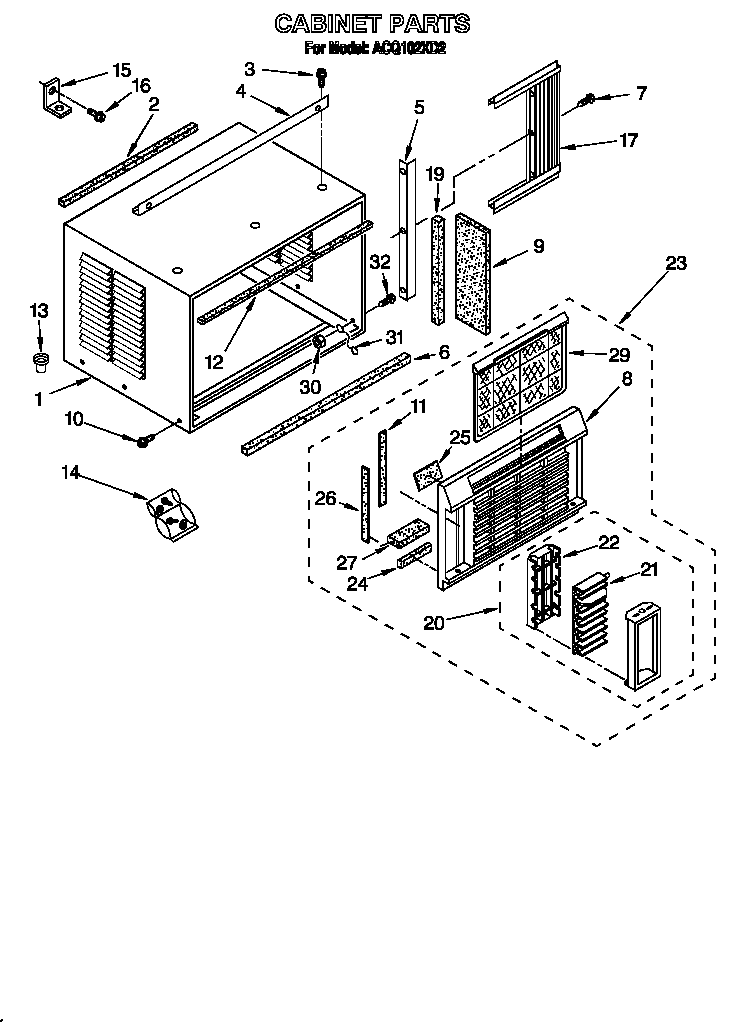

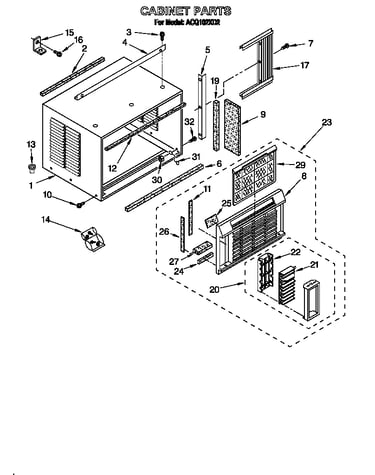

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |

Cement 279368
#10

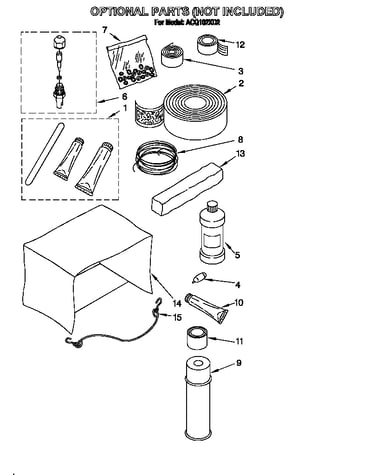

Optional parts (not included) diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
$42.72
36% OFF MSRP : $67.00
In Stock
Mounting Clip 1157015
#39

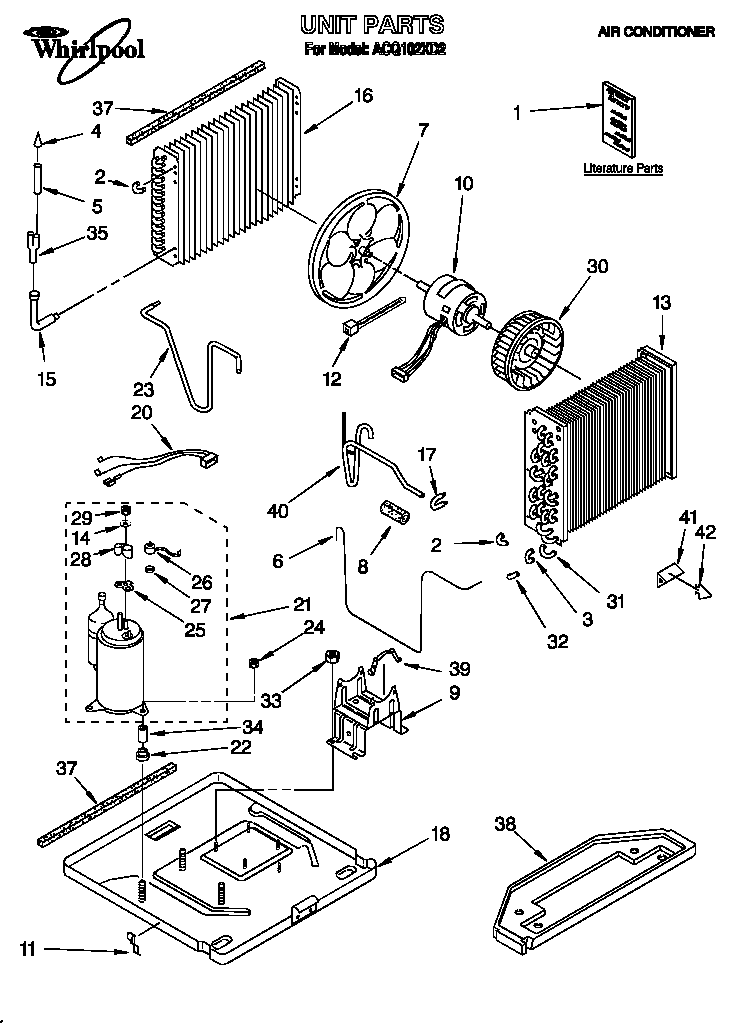

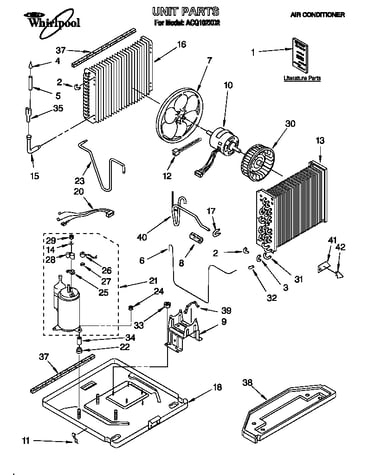

Unit diagram

Mounting clip

Part #1157015

Replaced by #WPY015825

?
Manufacturer substitution
This part replaces 1157015. Substitute parts can look different from the original.
This item is not returnable
$16.09
11% OFF Phone Price : $18.09
In Stock
Valve 876764
#6A

Optional parts (not included) diagram

Valve

Part #876764

Replaced by #876764

?
Manufacturer substitution
This part replaces 876764. Substitute parts can look different from the original.
$22.39
52% OFF MSRP : $47.00
In Stock
Valve Kit 978027
#6D

Optional parts (not included) diagram

Valve kit

Part #978027

Replaced by #978027

?
Manufacturer substitution
This part replaces 978027. Substitute parts can look different from the original.
$38.69
11% OFF Phone Price : $43.69
In Stock
Clip, Shroud 1164511
#29

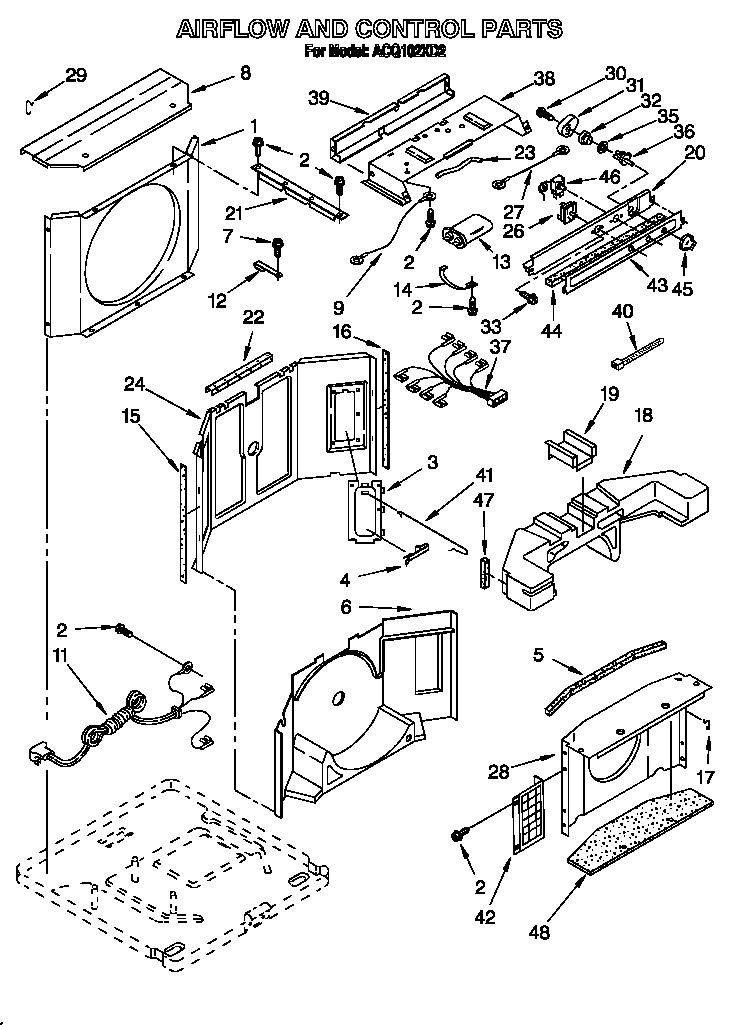

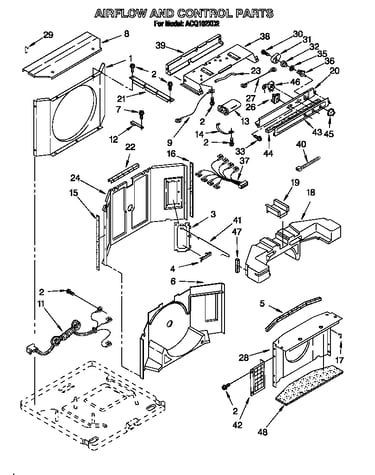

Airflow and control diagram

Clip, shroud

Part #1164511

This item is not returnable
In Stock
Room Air Conditioner Outdoor Cover 484184
#14D

Optional parts (not included) diagram

Room air conditioner outdoor cover

Part #484184

$54.49
8% OFF Phone Price : $59.49
In Stock
Wire Tie 1159130
#40

Airflow and control diagram

Wire tie

Part #1159130

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 1159130. Substitute parts can look different from the original.
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Washer 120393
#3

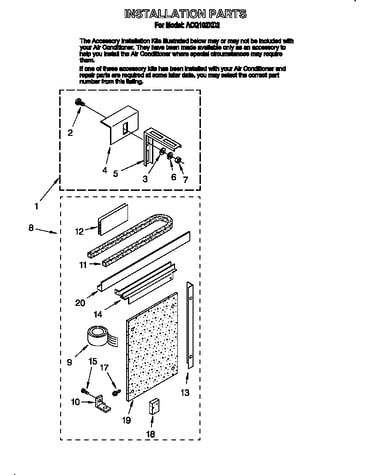

Installation diagram

Washer

Part #120393

The manufacturer no longer makes this part, and there's no substitute part

Ground Wire 856094
Ground wire

Part #856094

Replaced by #857078

?
Manufacturer substitution
This part replaces 856094. Substitute parts can look different from the original.
$10.49
16% OFF Phone Price : $12.49
In Stock
Valve Kit 978025
#6B

Optional parts (not included) diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$18.97
64% OFF MSRP : $53.00
In Stock
