GE
Room Air Conditioner

Model # ASQ18DLS1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE ASQ18DLS1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
U&c/iis Room 49-7582
#9999

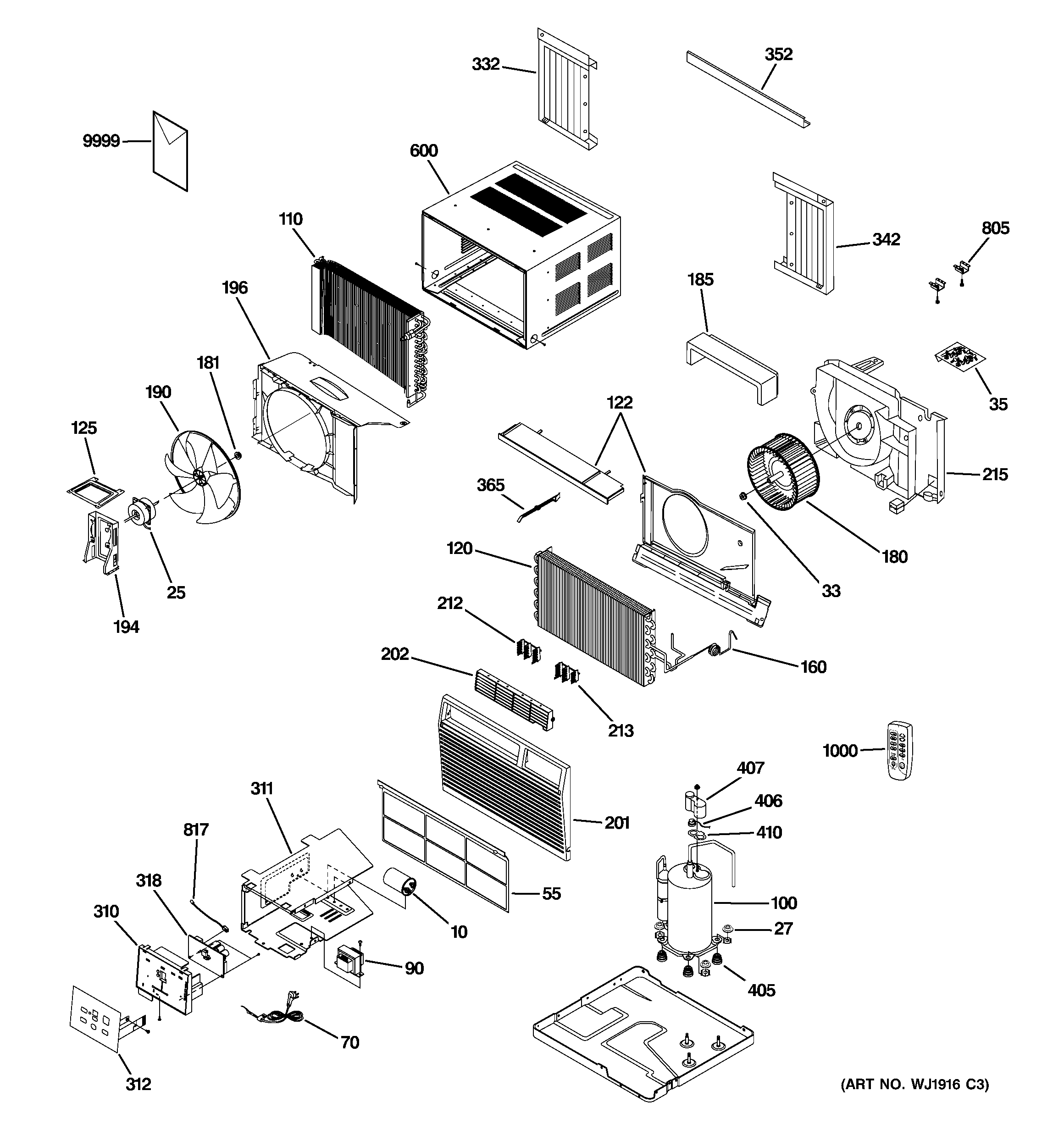

Room air conditioner diagram

U&c/iis room

Part #49-7582

$17.99
In Stock
Tube Cap WJ53X10172
#160

Room air conditioner diagram

Tube cap

Part #WJ53X10172

The manufacturer no longer makes this part, and there's no substitute part

Grommet Isolator WJ01X10306
#405

Room air conditioner diagram

Grommet isolator

Part #WJ01X10306

The manufacturer no longer makes this part, and there's no substitute part

Case Evaporator WJ73X10164
#185

Room air conditioner diagram

Case evaporator

Part #WJ73X10164

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor WJ94X10282
#25

Room air conditioner diagram

Fan motor

Part #WJ94X10282

The manufacturer no longer makes this part, and there's no substitute part

Shutter, Left WJ86X10046
#332

Room air conditioner diagram

Shutter, left

Part #WJ86X10046

The manufacturer no longer makes this part, and there's no substitute part

Nut WJ01X10299
#27

Room air conditioner diagram

Nut

Part #WJ01X10299

The manufacturer no longer makes this part, and there's no substitute part

Blade V WJ71X10561
#213

Room air conditioner diagram

Blade v

Part #WJ71X10561

The manufacturer no longer makes this part, and there's no substitute part

Rotary Compressor:20 WJ98X10233
#100

Room air conditioner diagram

Rotary compressor:20

Part #WJ98X10233

The manufacturer no longer makes this part, and there's no substitute part

Air Filter WJ85X10152
#55

Room air conditioner diagram

Air filter

Part #WJ85X10152

The manufacturer no longer makes this part, and there's no substitute part
