Model # WESY24530 Official Weider weight system - 1150

Here are the diagrams and repair parts for Official Weider WESY24530 weight system - 1150, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

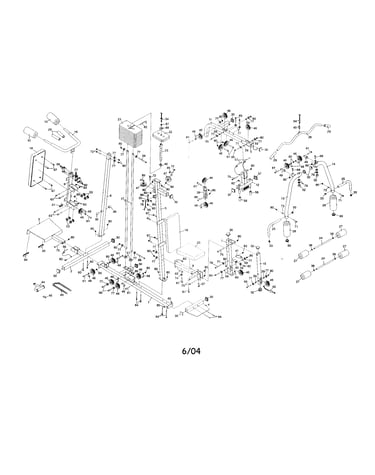

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |

Weight System Weight, 12-1/2-lb (replaces 115312, 127505, 135786, 155872, Bb-0318, Bb-0325) 120294
#21

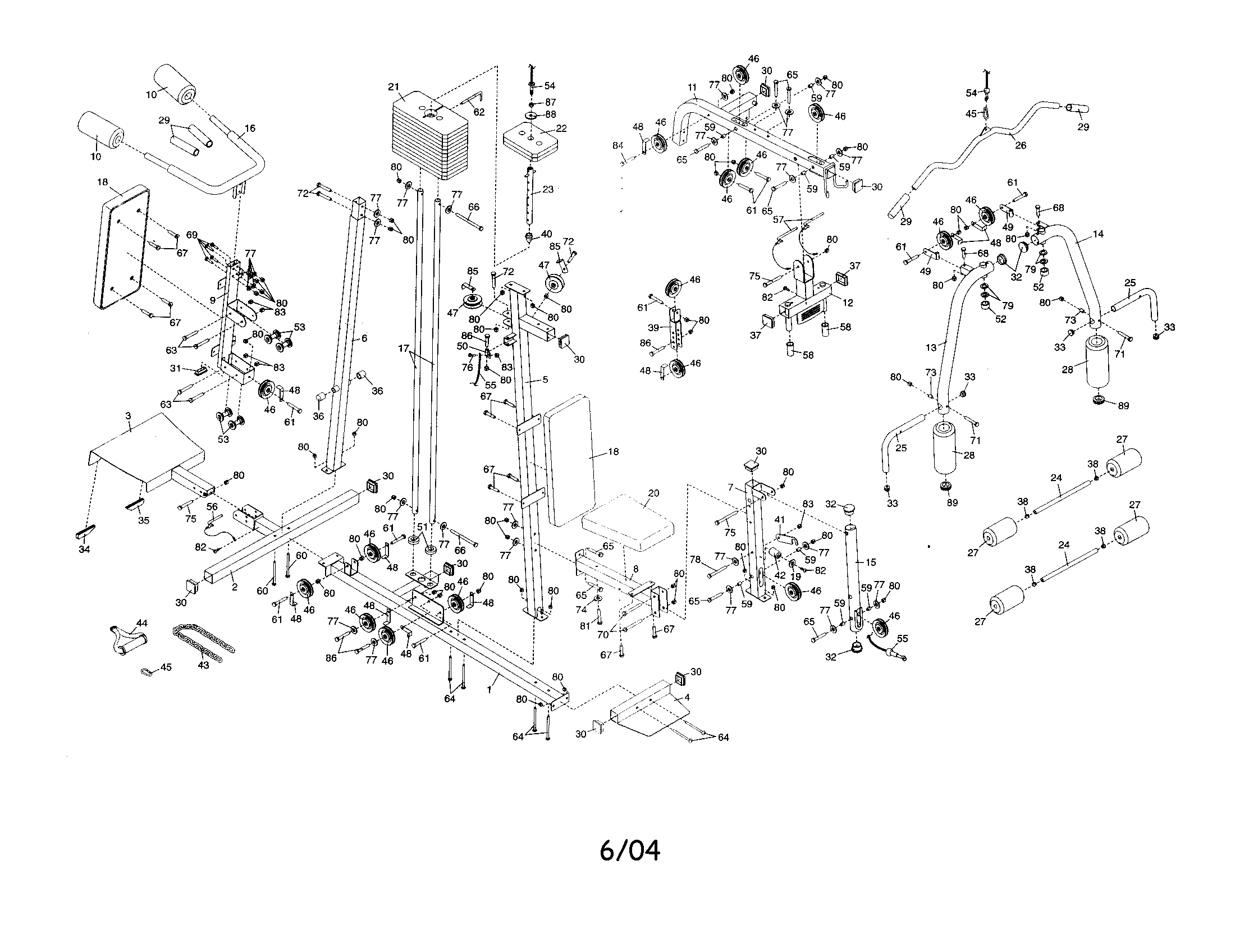

Weight system diagram

Weight system weight, 12-1/2-lb (replaces 115312, 127505, 135786, 155872, bb-0318, bb-0325)

Part #120294

BEST SELLER
$8.78
10% OFF Phone Price : $9.78
In Stock
Weight System Weight Bumper 194795
#51

Weight system diagram

Weight system weight bumper

Part #194795

This item is not returnable
$14.29
12% OFF Phone Price : $16.29
In Stock
Elliptical Nut 148710
#80

Weight system diagram

Elliptical nut

Part #148710

This item is not returnable
In Stock
Treadmill Washer 014063
#74

Weight system diagram

Treadmill washer

Part #014063

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Weight System Ankle Strap 115177
#44

Weight system diagram

Weight system ankle strap

Part #115177

This item is not returnable
In Stock
Internal Round End Cap, 3/4-in 115366
#38

Weight system diagram

Internal round end cap, 3/4-in

Part #115366

This item is not returnable
In Stock
Weight System Cable Pulley 155878
#47

Weight system diagram

Weight system cable pulley

Part #155878

$35.79
12% OFF Phone Price : $40.79
In Stock
Steel Spacer 194792
#59

Weight system diagram

Steel spacer

Part #194792

This item is not returnable
In Stock
Exercise Equipment Screw 144781
#65

Weight system diagram

Exercise equipment screw

Part #144781

This item is not returnable
In Stock
Warning Decal 166909

#NI03

All parts diagram

Warning decal

Part #166909

This item is not returnable
In Stock
