Model # FGS397XW0 Official Roper gas freestanding range

Here are the diagrams and repair parts for Official Roper FGS397XW0 gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

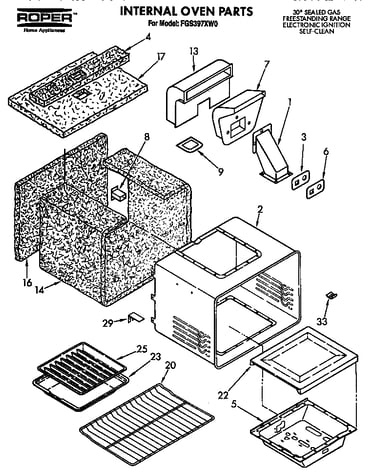

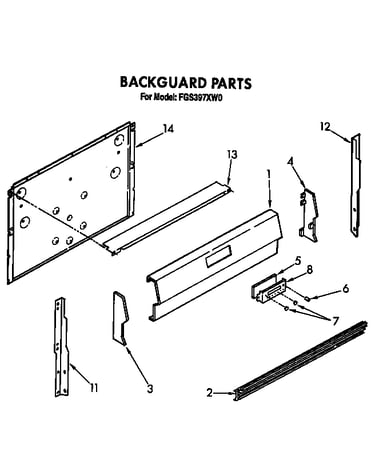

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |

Insulator, Switch 786380
#17

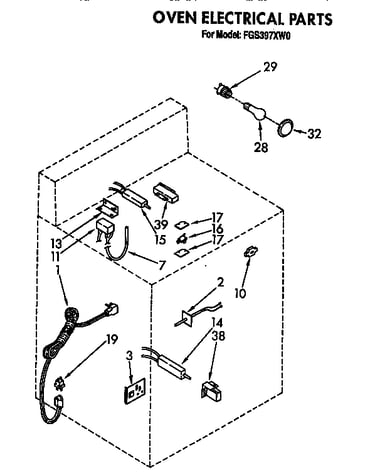

Oven electrical diagram

Insulator, switch

Part #786380

The manufacturer no longer makes this part, and there's no substitute part

Almond 4321097
#11B

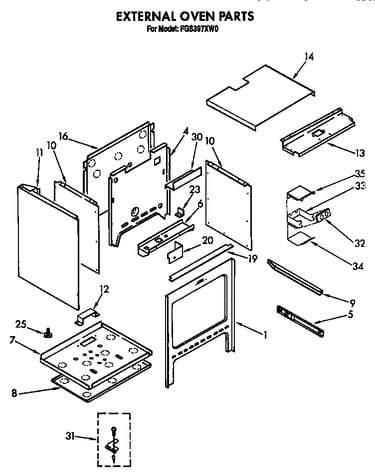

External oven diagram

Almond

Part #4321097

The manufacturer no longer makes this part, and there's no substitute part

Switch, Top Burner Actuator (4) 4362566
#10

Oven electrical diagram

Switch, top burner actuator (4)

Part #4362566

The manufacturer no longer makes this part, and there's no substitute part

R.h 4315768
#5A

External oven diagram

R.h

Part #4315768

The manufacturer no longer makes this part, and there's no substitute part

Liner, Oven Door, Screw, 8a X 3/8 (6) 786756
#2C

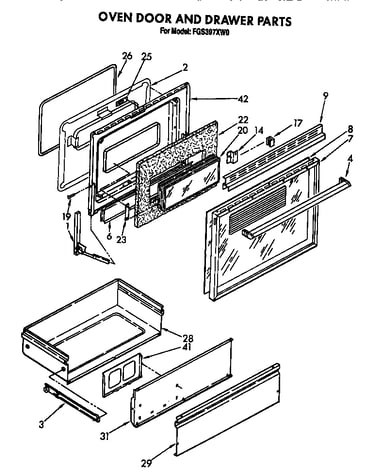

Oven door and drawer diagram

Liner, oven door, screw, 8a x 3/8 (6)

Part #786756

The manufacturer no longer makes this part, and there's no substitute part

Support, Burner Mounting 4320888
#4

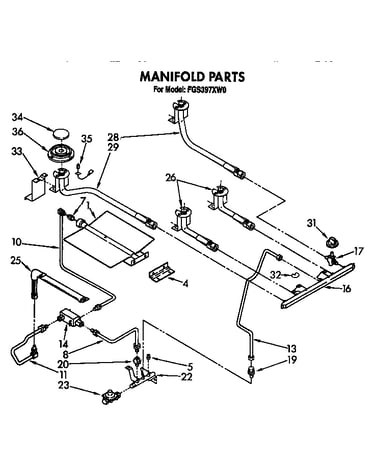

Manifold diagram

Support, burner mounting

Part #4320888

The manufacturer no longer makes this part, and there's no substitute part

Burner Assembly, Large (2) 4363226
#36A

Manifold diagram

Burner assembly, large (2)

Part #4363226

The manufacturer no longer makes this part, and there's no substitute part

Frame, Filler Front 4320801
#19

External oven diagram

Frame, filler front

Part #4320801

The manufacturer no longer makes this part, and there's no substitute part

Switch Bracket 4362570
#16

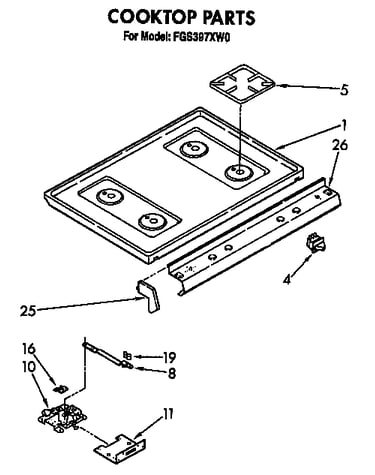

Cooktop diagram

Switch bracket

Part #4362570

The manufacturer no longer makes this part, and there's no substitute part

Plug, Male 786570
#19

Oven electrical diagram

Plug, male

Part #786570

The manufacturer no longer makes this part, and there's no substitute part
