Bosch WAP24200UC/11 washer Parts

Here are the diagrams and repair parts for Bosch WAP24200UC/11 washer, as well as links to manuals and error code tables, if available.

Bosch WAP24200UC/11 washer
By Schematic
By Part

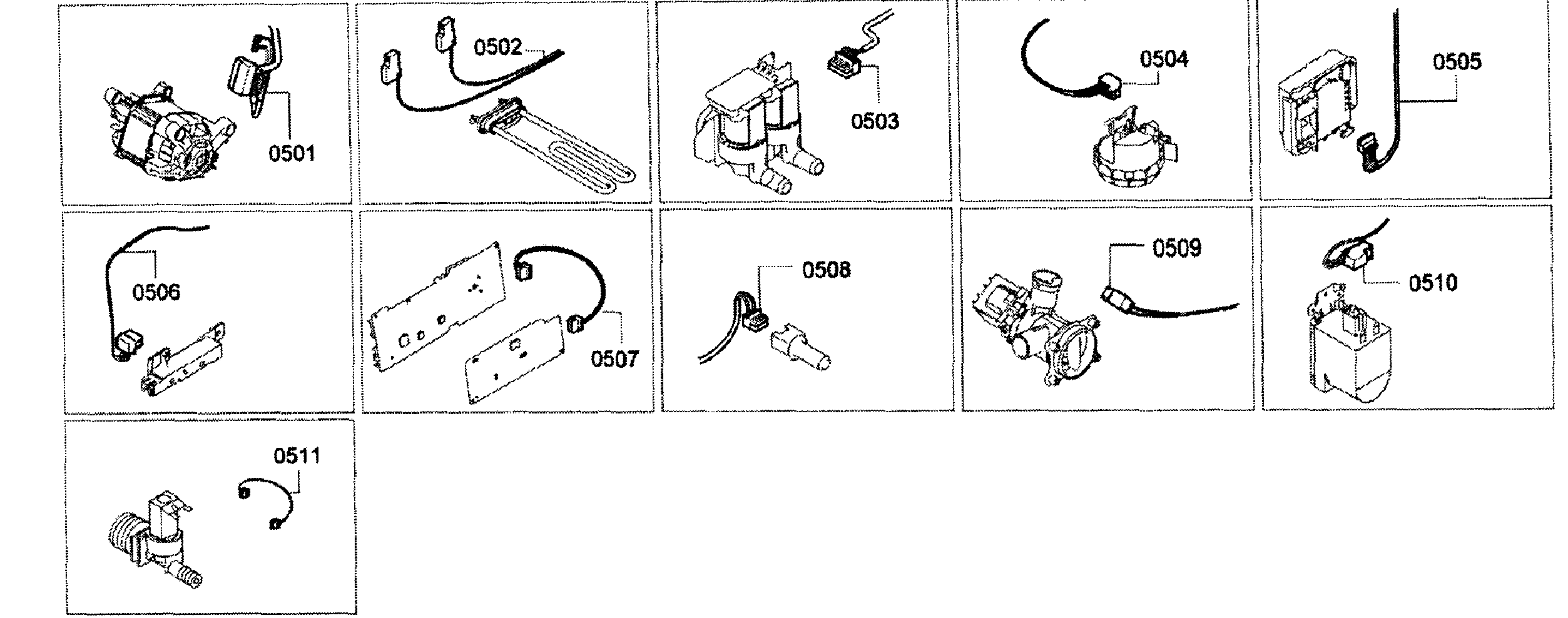

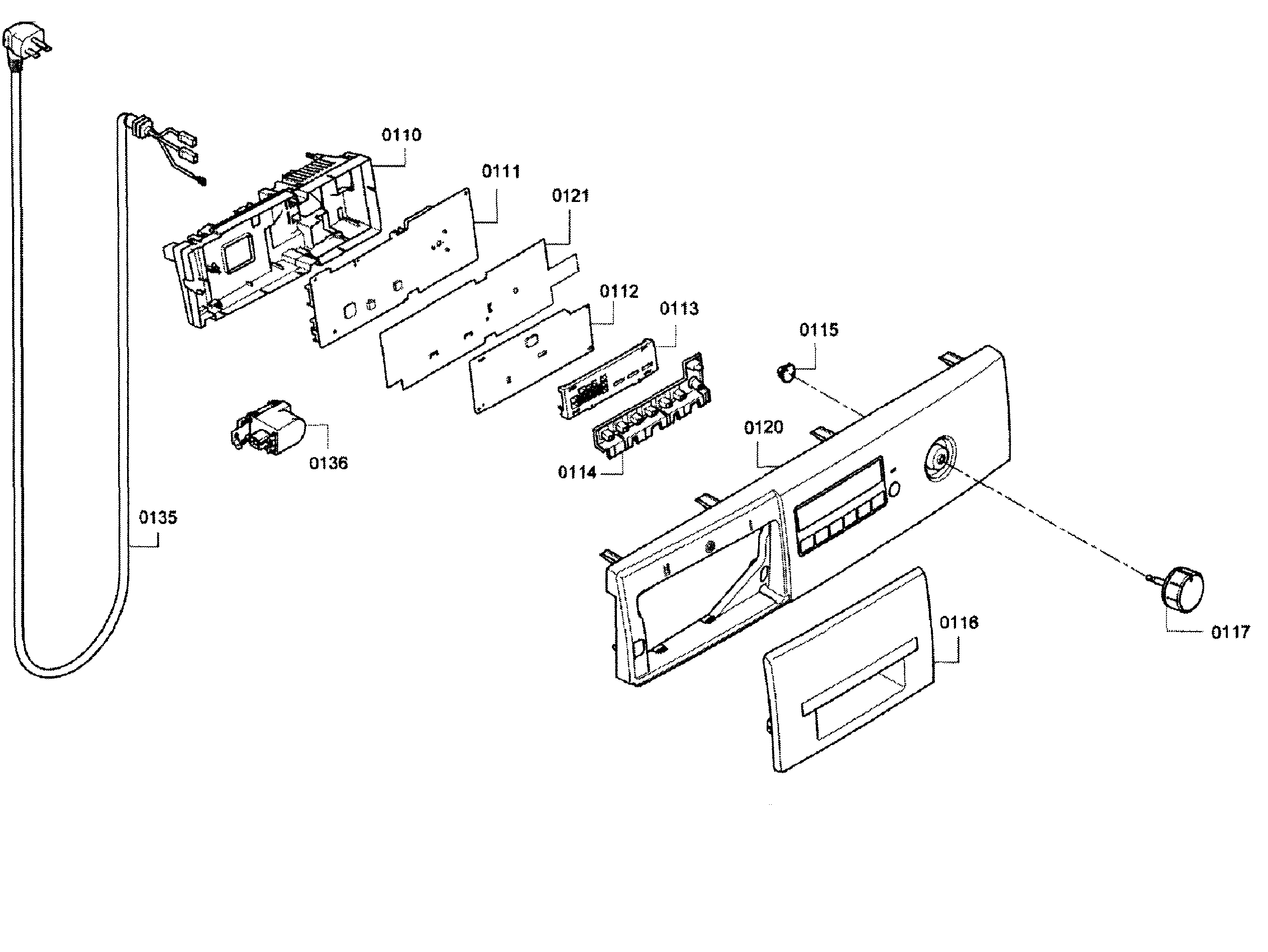

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WAP24200UC/11 Washer

  • Washer Fill Hose Seal And Screen for Bosch WAP24200UC/11 - Part 00027780

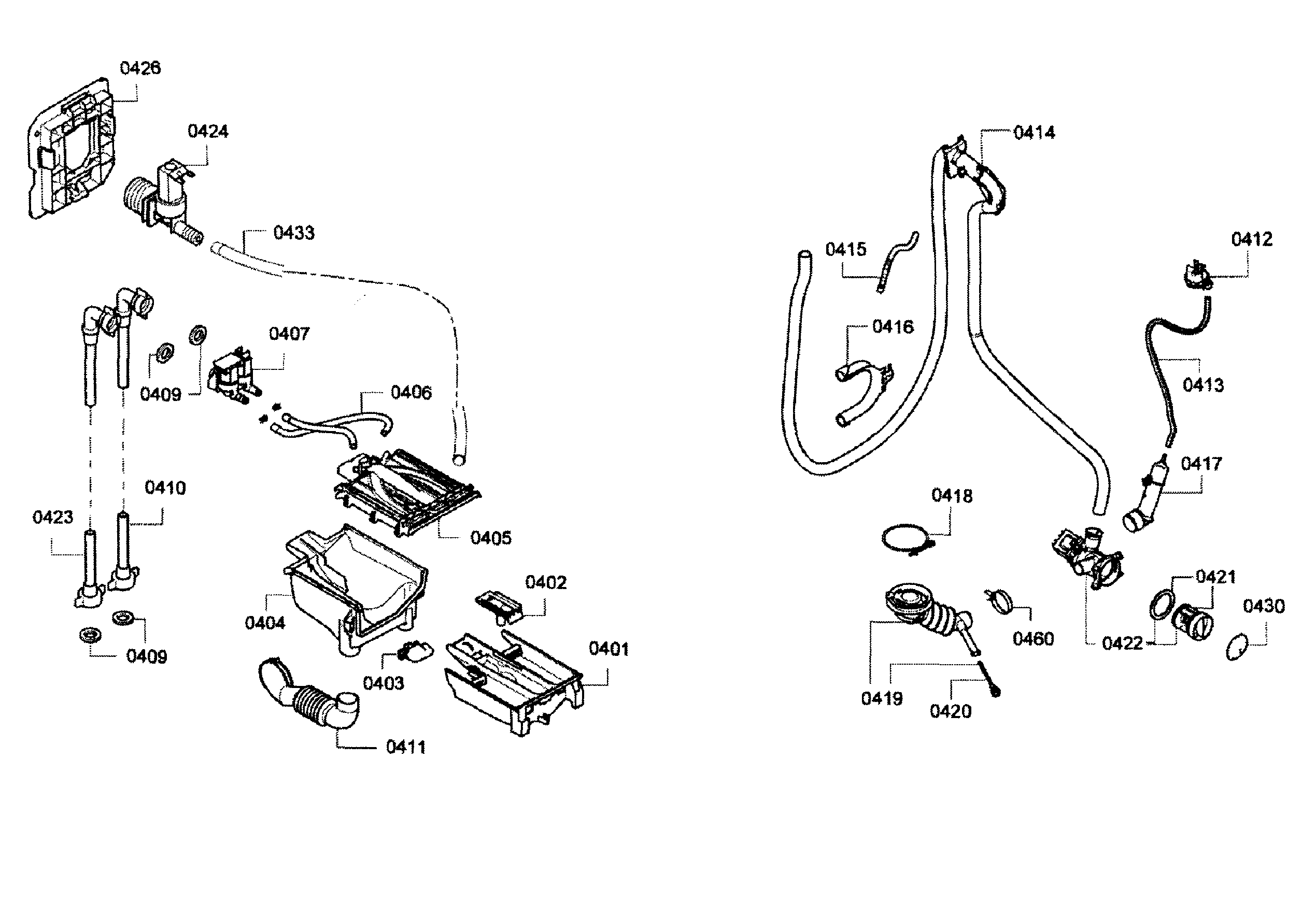

    Dispenser assy diagram

    Washer Water Inlet Filter

    Part #027780

    Replaced by #00027780

    Info Icon
    Manufacturer substitution
    This part replaces 027780. Substitute parts can look different from the original.
    In Stock
    $22.70
    21% OFF Phone Price : $28.70Info Icon
    Minus Item
    Qty
    Plus Item
  • Boot Gaskt for Bosch WAP24200UC/11 - Part 20007273

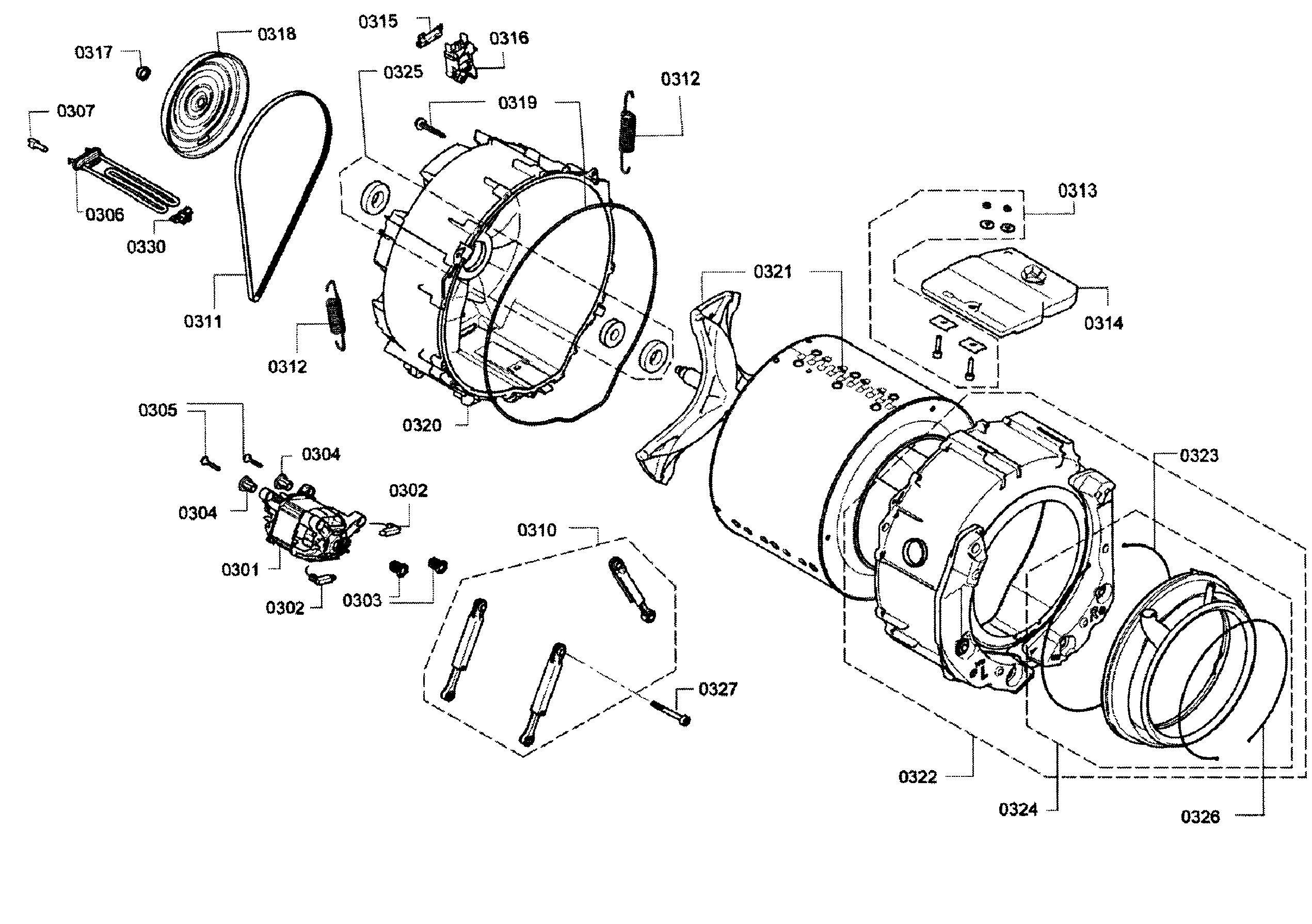

    Drum assy diagram

    Washer Door Boot Kit

    Part #680768

    Replaced by #20007273

    Info Icon
    Manufacturer substitution
    This part replaces 680768. Substitute parts can look different from the original.
    In Stock
    $104.73
    Minus Item
    Qty
    Plus Item
  • Washer Door Hinge for Bosch WAP24200UC/11 - Part 00627049

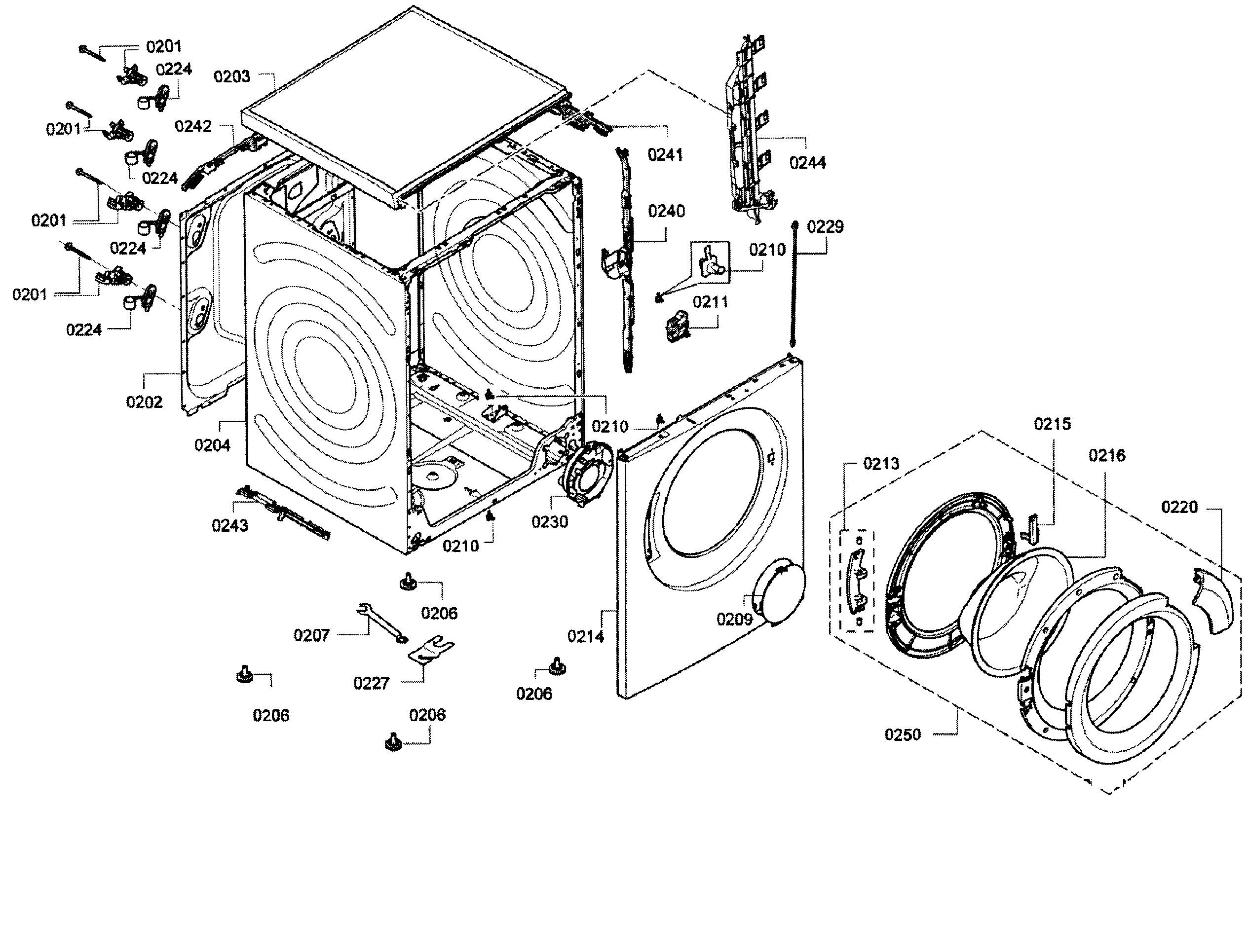

    Base assy diagram

    Hinge

    Part #627049

    Replaced by #00627049

    Info Icon
    Manufacturer substitution
    This part replaces 627049. Substitute parts can look different from the original.
    In Stock
    $20.43
    Minus Item
    Qty
    Plus Item
  • Absorber for Bosch WAP24200UC/11 - Part 11051551

    Drum assy diagram

    Absorber

    Part #673541

    Replaced by #11051551

    Info Icon
    Manufacturer substitution
    This part replaces 673541. Substitute parts can look different from the original.
    In Stock
    $119.11
    Minus Item
    Qty
    Plus Item
  • Bosch Washer Water Inlet Valve for Bosch WAP24200UC/11 - Part 00611702

    Dispenser assy diagram

    Washer Water Inlet Valve

    Part #611702

    Replaced by #00611702

    Info Icon
    Manufacturer substitution
    This part replaces 611702. Substitute parts can look different from the original.
    In Stock
    $72.56
    8% OFF Phone Price : $78.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Heat Element for Bosch WAP24200UC/11 - Part 00649360

    Drum assy diagram

    Heater Element

    Part #649360

    Replaced by #00649360

    Info Icon
    Manufacturer substitution
    This part replaces 649360. Substitute parts can look different from the original.
    In Stock
    $96.66
    11% OFF Phone Price : $108.66Info Icon
    Minus Item
    Qty
    Plus Item
  • Bosch Washer Motor Brush for Bosch WAP24200UC/11 - Part 00605694

    Drum assy diagram

    Carbon Brush

    Part #605694

    Replaced by #00605694

    Info Icon
    Manufacturer substitution
    This part replaces 605694. Substitute parts can look different from the original.
    In Stock
    $62.77
    9% OFF Phone Price : $68.77Info Icon
    Minus Item
    Qty
    Plus Item
  • Bosch Washer Water Inlet Valve for Bosch WAP24200UC/11 - Part 00611703

    Dispenser assy diagram

    Washer Water Inlet Valve

    Part #611703

    Replaced by #00611703

    Info Icon
    Manufacturer substitution
    This part replaces 611703. Substitute parts can look different from the original.
    In Stock
    $90.56
    6% OFF Phone Price : $96.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Electric Loc for Bosch WAP24200UC/11 - Part 10031405

    Base assy diagram

    Lock Washer

    Part #627046

    Replaced by #10031405

    Info Icon
    Manufacturer substitution
    This part replaces 627046. Substitute parts can look different from the original.
    In Stock
    $59.23
    Minus Item
    Qty
    Plus Item
  • Washer Outer Front Tub for Bosch WAP24200UC/11 - Part 00248667

    Drum assy diagram

    Tub

    Part #248664

    Replaced by #00248667

    Info Icon
    Manufacturer substitution
    This part replaces 248664. Substitute parts can look different from the original.
    In Stock
    $491.07
    Minus Item
    Qty
    Plus Item
