Whirlpool
Room Air Conditioner

Model # ACQ294XD1 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACQ294XD1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |

Cement 279368
#10

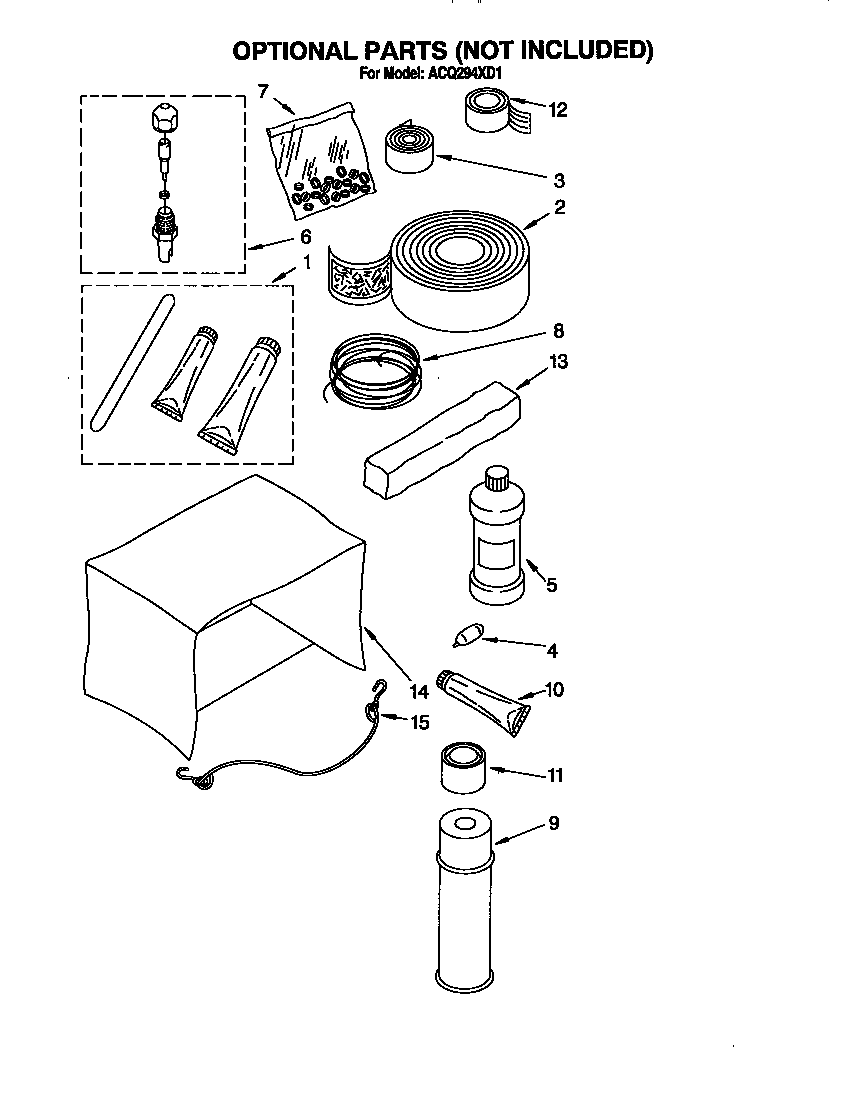

Optional parts (not included) diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
$42.72
36% OFF MSRP : $67.00
In Stock
Valve 876764
#6A

Optional parts (not included) diagram

Valve

Part #876764

Replaced by #876764

?
Manufacturer substitution
This part replaces 876764. Substitute parts can look different from the original.
$22.39
52% OFF MSRP : $47.00
In Stock
Mounting Clip 1157015
#39

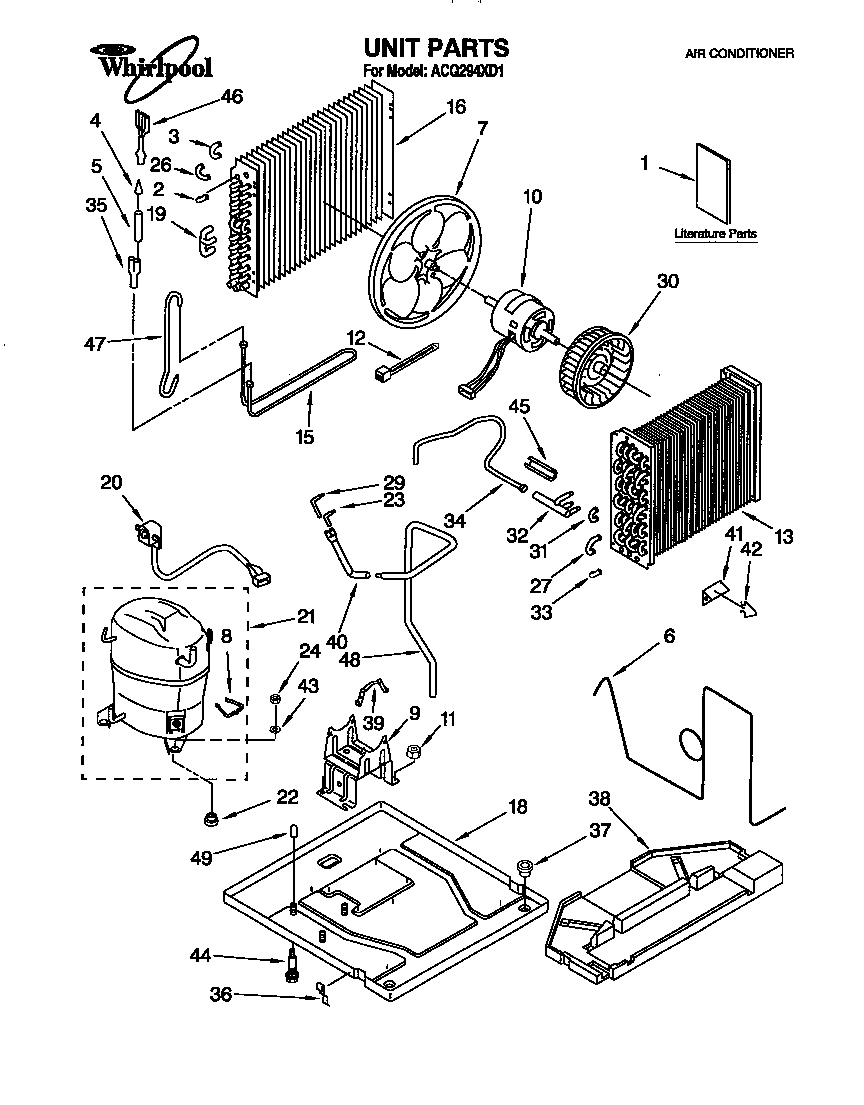

Unit diagram

Mounting clip

Part #1157015

Replaced by #WPY015825

?
Manufacturer substitution
This part replaces 1157015. Substitute parts can look different from the original.
This item is not returnable
$16.09
11% OFF Phone Price : $18.09
In Stock
Valve Kit 978027
#6D

Optional parts (not included) diagram

Valve kit

Part #978027

Replaced by #978027

?
Manufacturer substitution
This part replaces 978027. Substitute parts can look different from the original.
$38.69
11% OFF Phone Price : $43.69
In Stock
Shroud Clip 1161248
#27

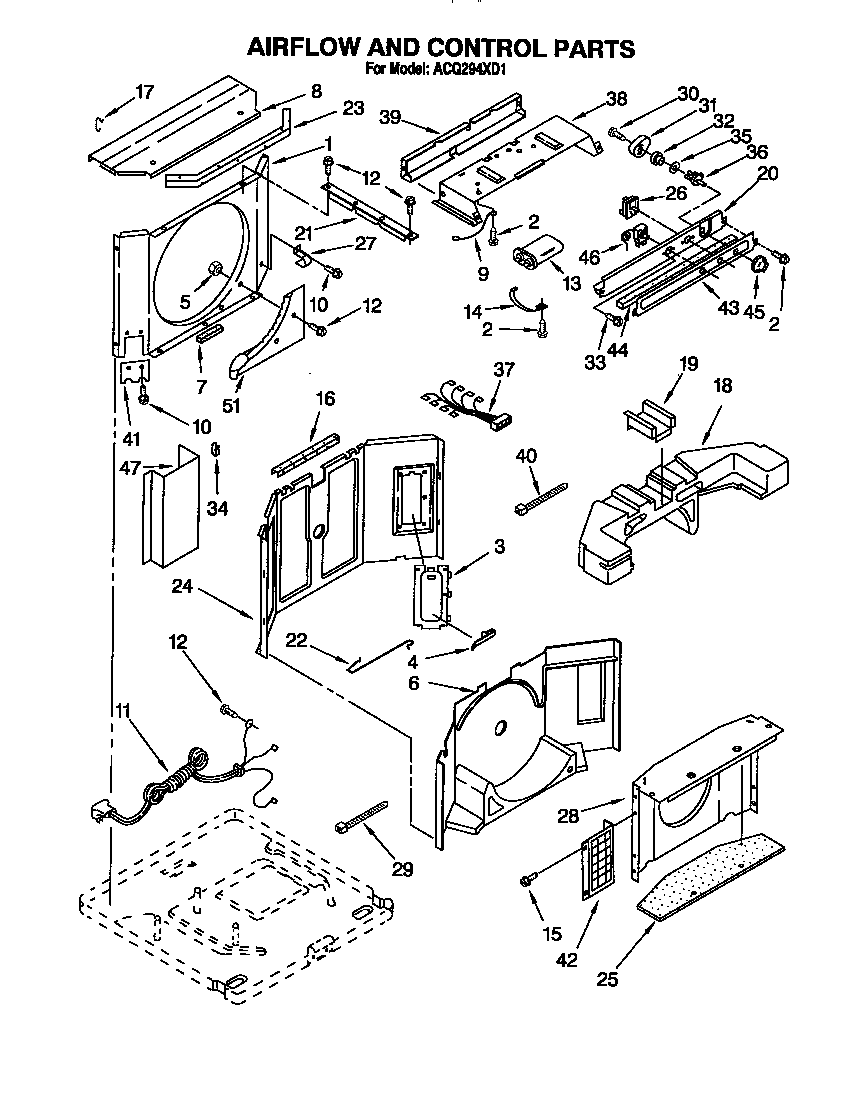

Airflow and control diagram

Shroud clip

Part #1161248

This item is not returnable
In Stock
Bracket Support 644281
#24

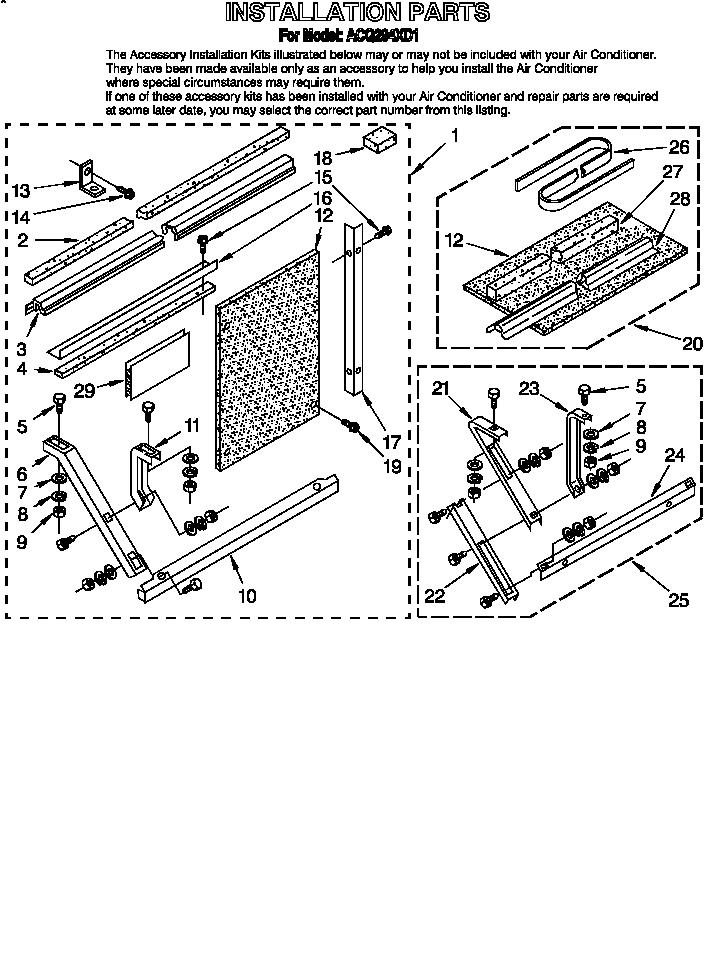

Installation diagram

Bracket support

Part #644281

In Stock
Room Air Conditioner Outdoor Cover 484184
#14D

Optional parts (not included) diagram

Room air conditioner outdoor cover

Part #484184

$54.49
8% OFF Phone Price : $59.49
In Stock
Clip, Shroud 1164511
#17

Airflow and control diagram

Clip, shroud

Part #1164511

This item is not returnable
In Stock
Sealer 99344
#13

Optional parts (not included) diagram

Sealer

Part #99344

Replaced by #4318168

?
Manufacturer substitution
This part replaces 99344. Substitute parts can look different from the original.
In Stock
Valve Kit 978026
#6C

Optional parts (not included) diagram

Valve kit

Part #978026

Replaced by #978026

?
Manufacturer substitution
This part replaces 978026. Substitute parts can look different from the original.
$34.19
13% OFF Phone Price : $39.19
In Stock
