GE A3B789DJAL1Y room air conditioner Parts

Here are the diagrams and repair parts for GE A3B789DJAL1Y room air conditioner, as well as links to manuals and error code tables, if available.

GE A3B789DJAL1Y room air conditioner
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

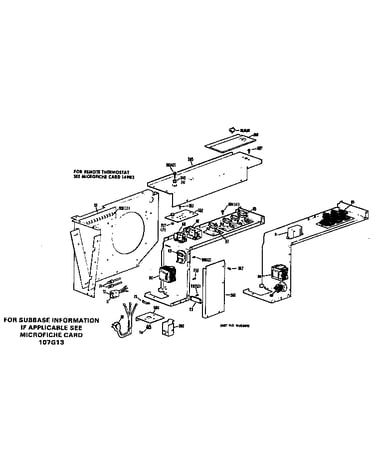

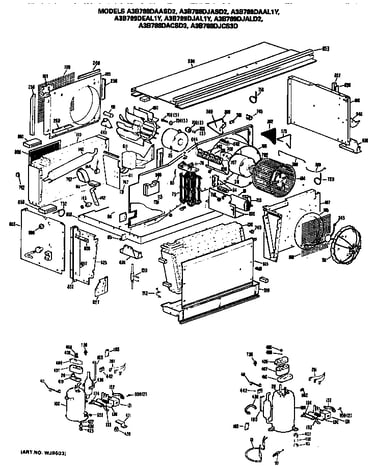

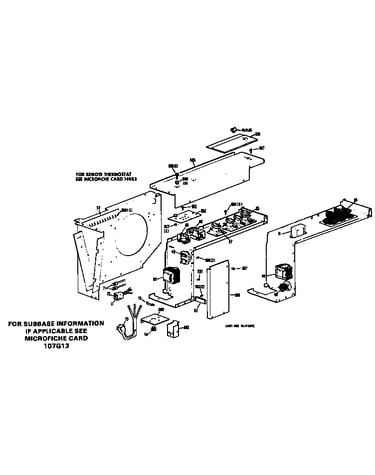

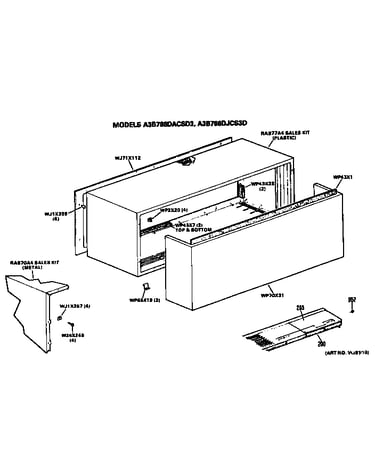

Browse Parts for A3B789DJAL1Y Room Air Conditioner

  • Condenser Kit for GE A3B789DJAL1Y - Part WJ88X226

    #110

    All parts diagram

    Condenser Kit

    Part #WJ88X226

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for GE A3B789DJAL1Y - Part WZ2X529

    #NI

    All parts diagram

    Screw

    Part #WZ2X529

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for GE A3B789DJAL1Y - Part WZ6X100

    #386

    All parts diagram

    Screw

    Part #WZ6X100

    The manufacturer no longer makes this part, and there's no substitute part

  • Clip Sensor Barrier Top for GE A3B789DJAL1Y - Part WP2X18

    #745

    All parts diagram

    Clip Sensor Barrier Top

    Part #WP2X18

    The manufacturer no longer makes this part, and there's no substitute part

  • Clamp for GE A3B789DJAL1Y - Part WJ3X172

    #132

    All parts diagram

    Clamp

    Part #WJ3X172

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor Clamp for GE A3B789DJAL1Y - Part WJ3X279

    #713

    All parts diagram

    Capacitor Clamp

    Part #WJ3X279

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 6-32 X 3/8 Hex for GE A3B789DJAL1Y - Part WZ5X122

    #946

    All parts diagram

    Screw 6-32 X 3/8 Hex

    Part #WZ5X122

    The manufacturer no longer makes this part, and there's no substitute part

  • Base Pan Assembly for GE A3B789DJAL1Y - Part WP79X28

    #603

    All parts diagram

    Base Pan Assembly

    Part #WP79X28

    The manufacturer no longer makes this part, and there's no substitute part

  • Id Blower for GE A3B789DJAL1Y - Part WJ74X136

    #180

    All parts diagram

    Id Blower

    Part #WJ74X136

    The manufacturer no longer makes this part, and there's no substitute part

  • Top Cover for GE A3B789DJAL1Y - Part WP79X06

    #NI

    All parts diagram

    Top Cover

    Part #WP79X06

    The manufacturer no longer makes this part, and there's no substitute part
