Craftsman
Electric Line Trimmer

Model # 13899026 Official Craftsman cordless line trimmer

Here are the diagrams and repair parts for Official Craftsman 13899026 cordless line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |

Upper Handle 31106884
#3

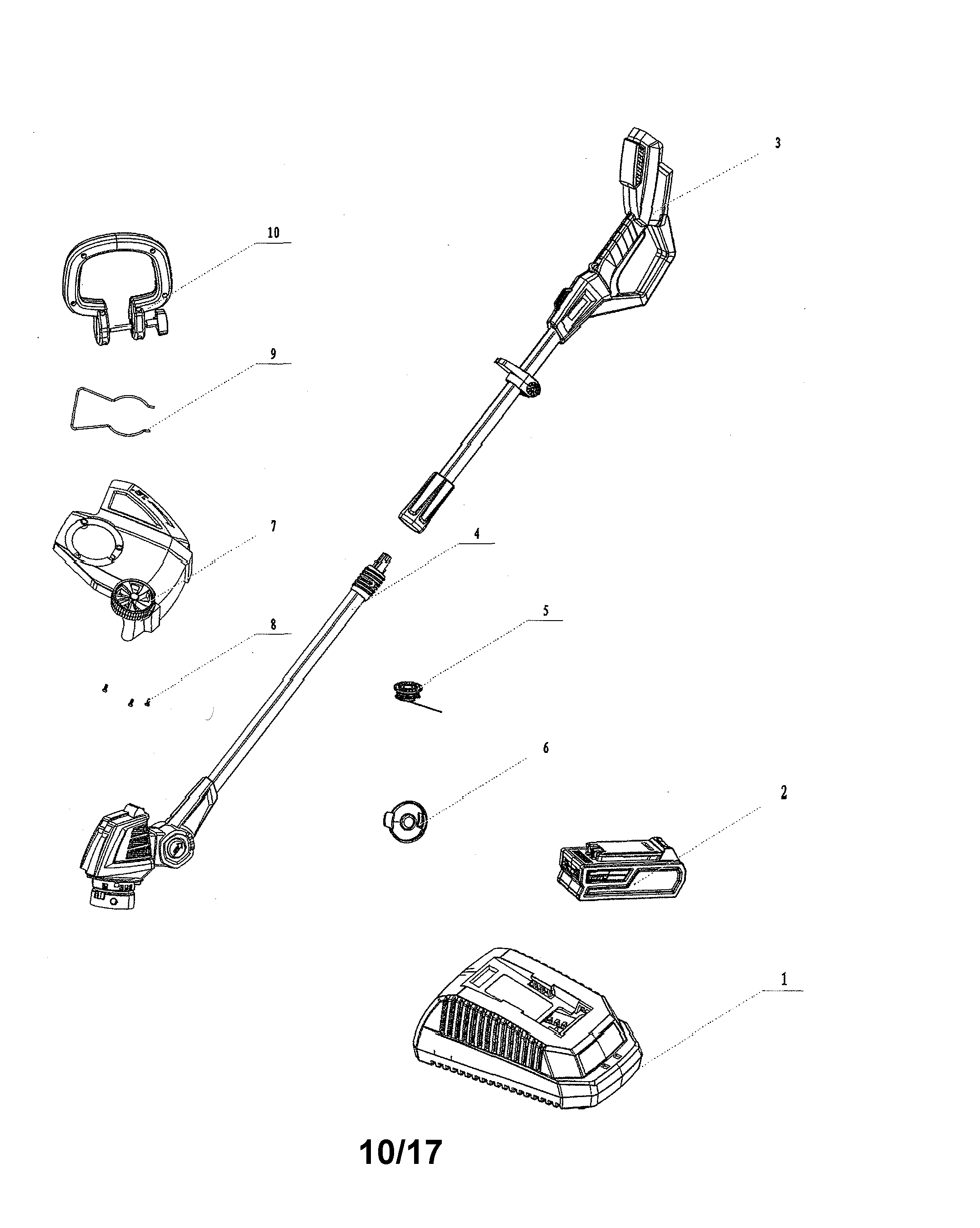

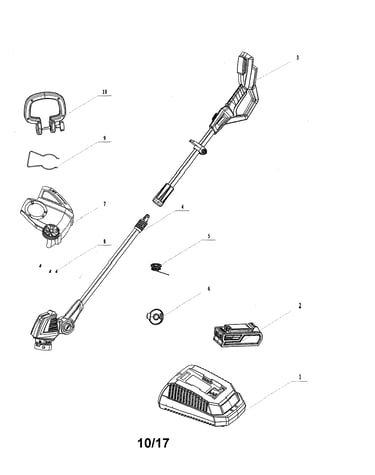

Cordless trimmer diagram

Upper handle

Part #31106884

The manufacturer no longer makes this part, and there's no substitute part

Handle 31107884
#10

Cordless trimmer diagram

Handle

Part #31107884

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing Handle 31105884
#4

Cordless trimmer diagram

Motor housing handle

Part #31105884

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Spool Assembly 31105710
#5

Cordless trimmer diagram

Line trimmer spool assembly

Part #31105710

The manufacturer no longer makes this part, and there's no substitute part

Screw (10) 3220905
#8

Cordless trimmer diagram

Screw (10)

Part #3220905

The manufacturer no longer makes this part, and there's no substitute part

Edge Guide 33301708
#9

Cordless trimmer diagram

Edge guide

Part #33301708

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Rechargeable Battery, 40-volt 31103996
#2

Cordless trimmer diagram

Lawn mower rechargeable battery, 40-volt

Part #31103996

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Battery Charger 31101998
#1

Cordless trimmer diagram

Power tool battery charger

Part #31101998

The manufacturer no longer makes this part, and there's no substitute part

Guard 31103884
#7

Cordless trimmer diagram

Guard

Part #31103884

The manufacturer no longer makes this part, and there's no substitute part

Spool Cover 3411546A-12
#6

Cordless trimmer diagram

Spool cover

Part #3411546A-12

The manufacturer no longer makes this part, and there's no substitute part
