Craftsman
Gas Walk-Behind Mower

Model # 917383000 Official Craftsman 20" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917383000 20" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Lock Nut 83923
#34

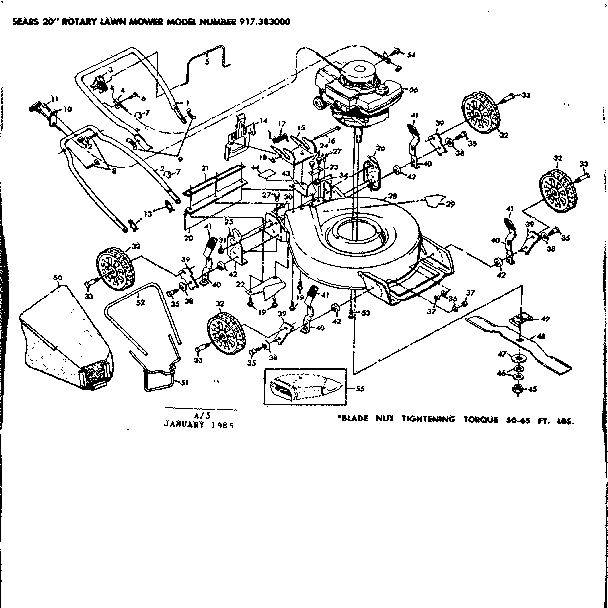

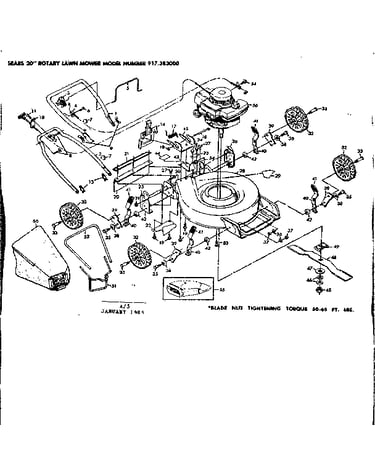

Replacement parts diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Blade 69229
Blade

Part #69229

Replaced by #145106

?
Manufacturer substitution
This part replaces 69229. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$13.39 |
13% OFF Phone Price : $15.39
In Stock
Shoulder Bolt 84921
#35

Replacement parts diagram

Shoulder bolt

Part #84921

Replaced by #532174719

?
Manufacturer substitution
This part replaces 84921. Substitute parts can look different from the original.
This item is not returnable
$4.19
Back Order
Lock Nut, 1/4-20 STD541425
Lock nut, 1/4-20

Part #STD541425

The manufacturer no longer makes this part, and there's no substitute part

Washer 61537
#36

Replacement parts diagram

Washer

Part #61537

Replaced by #596134901

?
Manufacturer substitution
This part replaces 61537. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Spacer 84920
#42

Replacement parts diagram

Spacer

Part #84920

Replaced by #532401629

?
Manufacturer substitution
This part replaces 84920. Substitute parts can look different from the original.
This item is not returnable
$3.09 |
24% OFF Phone Price : $4.09
In Stock
Nut 8282J
#9

Replacement parts diagram

Nut

Part #8282J

Replaced by #532128638

?
Manufacturer substitution
This part replaces 8282J. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Decal 85463
#29

Replacement parts diagram

Decal

Part #85463

Replaced by #539913010

?
Manufacturer substitution
This part replaces 85463. Substitute parts can look different from the original.
This item is not returnable
$3.13
In Stock
Hinge Bracket 84739
#15

Replacement parts diagram

Hinge bracket

Part #84739

The manufacturer no longer makes this part, and there's no substitute part

Screw STD601003
#24

Replacement parts diagram

Screw

Part #STD601003

The manufacturer no longer makes this part, and there's no substitute part
