Model # 51774119 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 51774119 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Housing 06538-1
#45

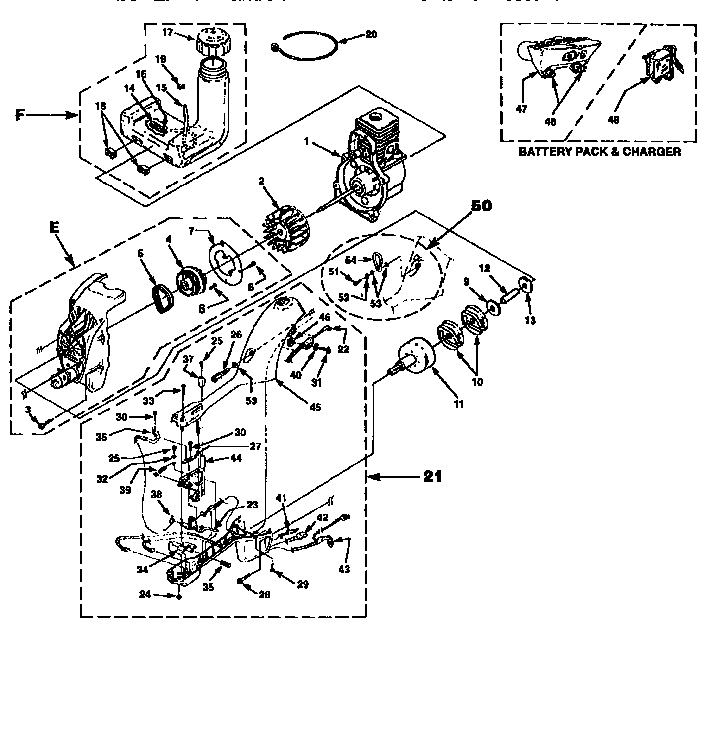

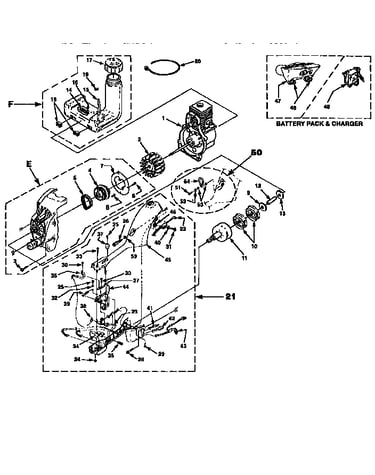

Starter assembly diagram

Housing

Part #06538-1

The manufacturer no longer makes this part, and there's no substitute part

Knob 06913
#37

Starter assembly diagram

Knob

Part #06913

The manufacturer no longer makes this part, and there's no substitute part

Washer 04168-A
#11

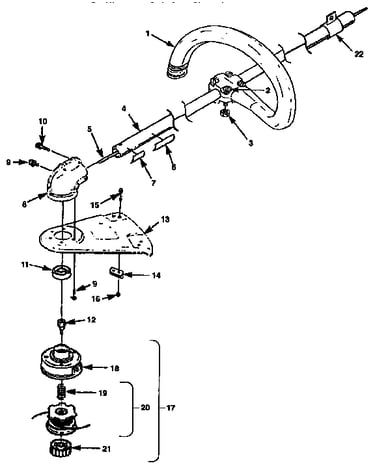

Handle and stringhead assembly diagram

Washer

Part #04168-A

The manufacturer no longer makes this part, and there's no substitute part

Crvd Hd Gear A-04836-C
#8

Handle and stringhead assembly diagram

Crvd hd gear

Part #A-04836-C

The manufacturer no longer makes this part, and there's no substitute part

Screw (d63 82605
#2

Handle and stringhead assembly diagram

Screw (d63

Part #82605

The manufacturer no longer makes this part, and there's no substitute part

Screw 82563
Screw

Part #82563

The manufacturer no longer makes this part, and there's no substitute part

Muffler Kit A-07142
#A

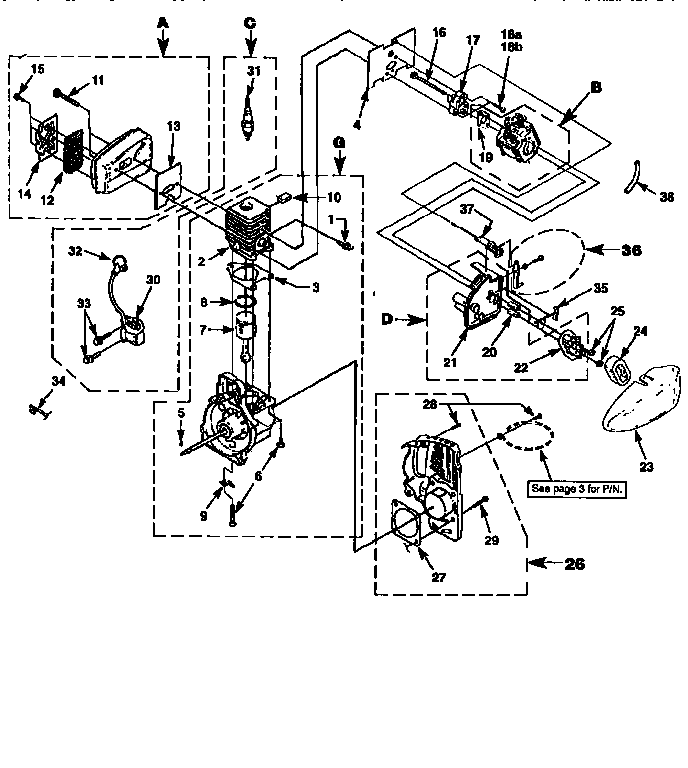

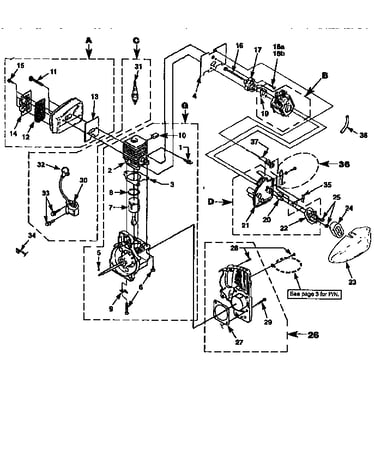

Cylinder assembly diagram

Muffler kit

Part #A-07142

The manufacturer no longer makes this part, and there's no substitute part

Retainer DA-98866-A
#21

Handle and stringhead assembly diagram

Retainer

Part #DA-98866-A

The manufacturer no longer makes this part, and there's no substitute part

Washer 98929-A
#9

Starter assembly diagram

Washer

Part #98929-A

The manufacturer no longer makes this part, and there's no substitute part

Screw 82538
#3

Starter assembly diagram

Screw

Part #82538

The manufacturer no longer makes this part, and there's no substitute part
