Microwave/Hood Combo

Model # JNM1541DM6BB Official GE microwave

Here are the diagrams and repair parts for Official GE JNM1541DM6BB microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

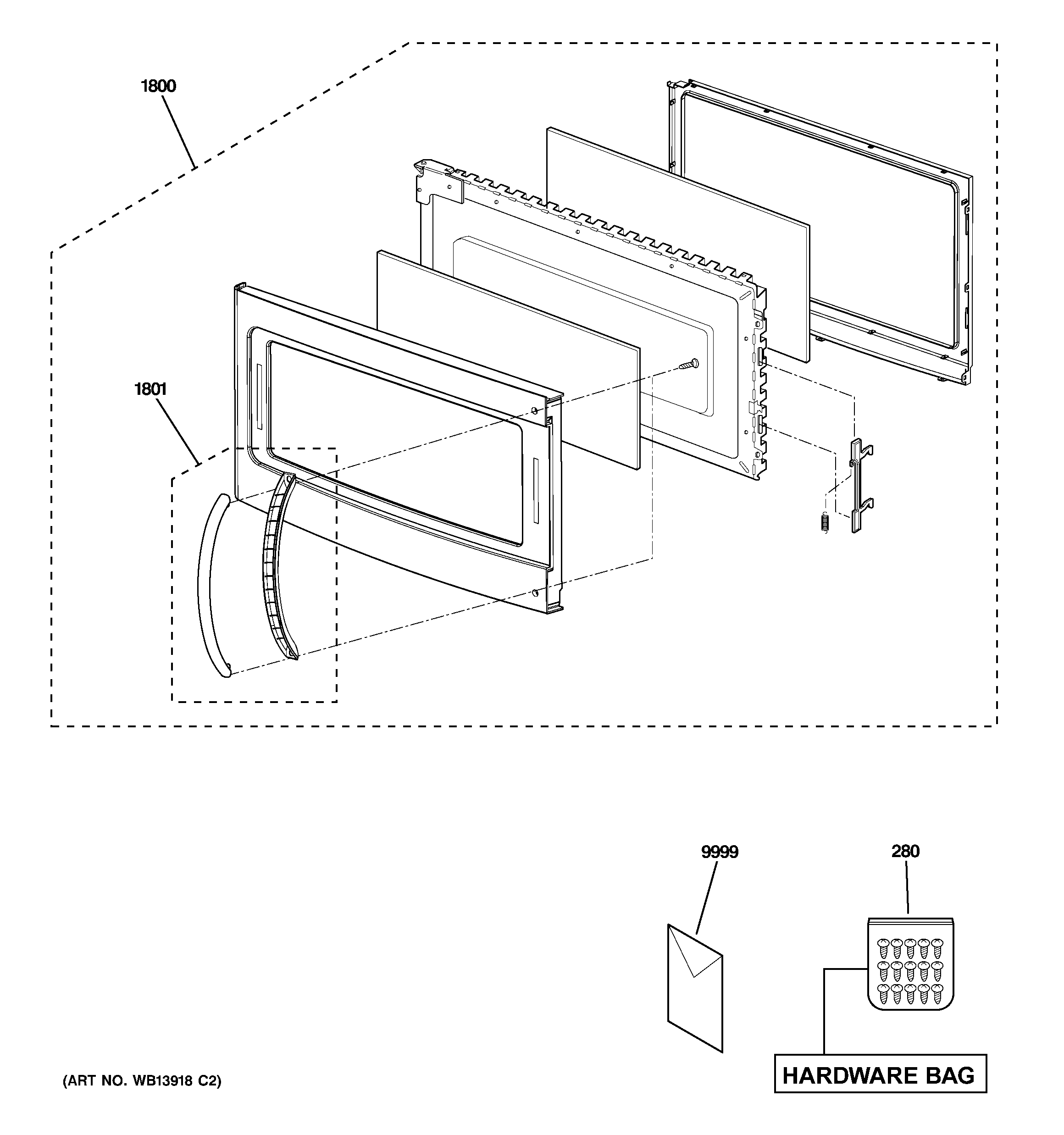

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Microwave Fuse (replaces Wb27x10388) WB27X10928
#47

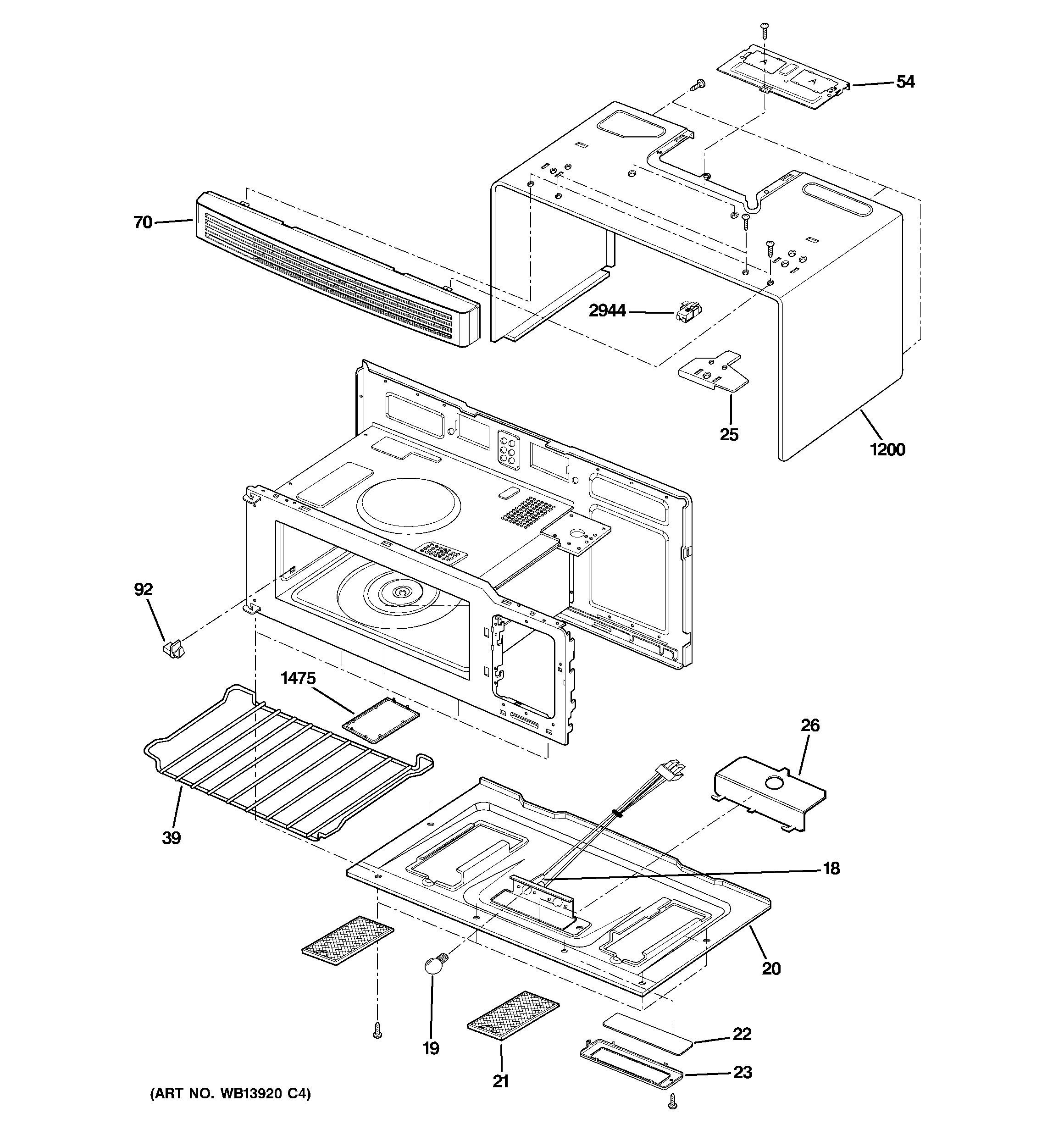

Interior parts (2) diagram

Microwave fuse (replaces wb27x10388)

Part #WB27X10928

BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave High-voltage Diode (replaces Wb27x10892, Wb27x10965, Wb27x11035) WB27X10930
#50

Interior parts (1) diagram

Microwave high-voltage diode (replaces wb27x10892, wb27x10965, wb27x11035)

Part #WB27X10930

Replaced by #WB27X35382

?
Manufacturer substitution
This part replaces WB27X10930. Substitute parts can look different from the original.
BEST SELLER
$19.87
In Stock
Microwave High-voltage Diode WB18X10449
#50

Interior parts (1) diagram

Microwave high-voltage diode

Part #WB18X10449

Replaced by #WB27X35382

?
Manufacturer substitution
This part replaces WB18X10449. Substitute parts can look different from the original.
BEST SELLER
$19.87
In Stock
Drive Capacitor WB27X10701
#1438

Interior parts (1) diagram

Drive capacitor

Part #WB27X10701

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10701. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
11% OFF Phone Price : $46.91
In Stock
Monitor Switch WB24X0817
#1445

Latch board parts diagram

Monitor switch

Part #WB24X0817

Replaced by #WB24X25397

?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
BEST SELLER
$22.56 |
18% OFF Phone Price : $27.56
In Stock
Microwave Mounting Plate (replaces Wb56x10204) WB56X10669
#9001

Installation parts diagram

Microwave mounting plate (replaces wb56x10204)

Part #WB56X10669

Replaced by #WB56X35363

?
Manufacturer substitution
This part replaces WB56X10669. Substitute parts can look different from the original.
This item is not returnable
$20.80 |
19% OFF Phone Price : $25.80
In Stock
Microwave Thermal Cut-off WB27X11100
#110

Interior parts (1) diagram

Microwave thermal cut-off

Part #WB27X11100

This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
Microwave High-voltage Capacitor WB27X11096
#1438

Interior parts (1) diagram

Microwave high-voltage capacitor

Part #WB27X11096

$23.80
In Stock
Microwave Stirrer Fan Cover WB06X10712
#37

Interior parts (1) diagram

Microwave stirrer fan cover

Part #WB06X10712

This item is not returnable
$23.67 |
17% OFF Phone Price : $28.67
In Stock
Microwave Vent Damper WB06X10686
#53

Installation parts diagram

Microwave vent damper

Part #WB06X10686

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
