Model # 72163352300 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72163352300 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

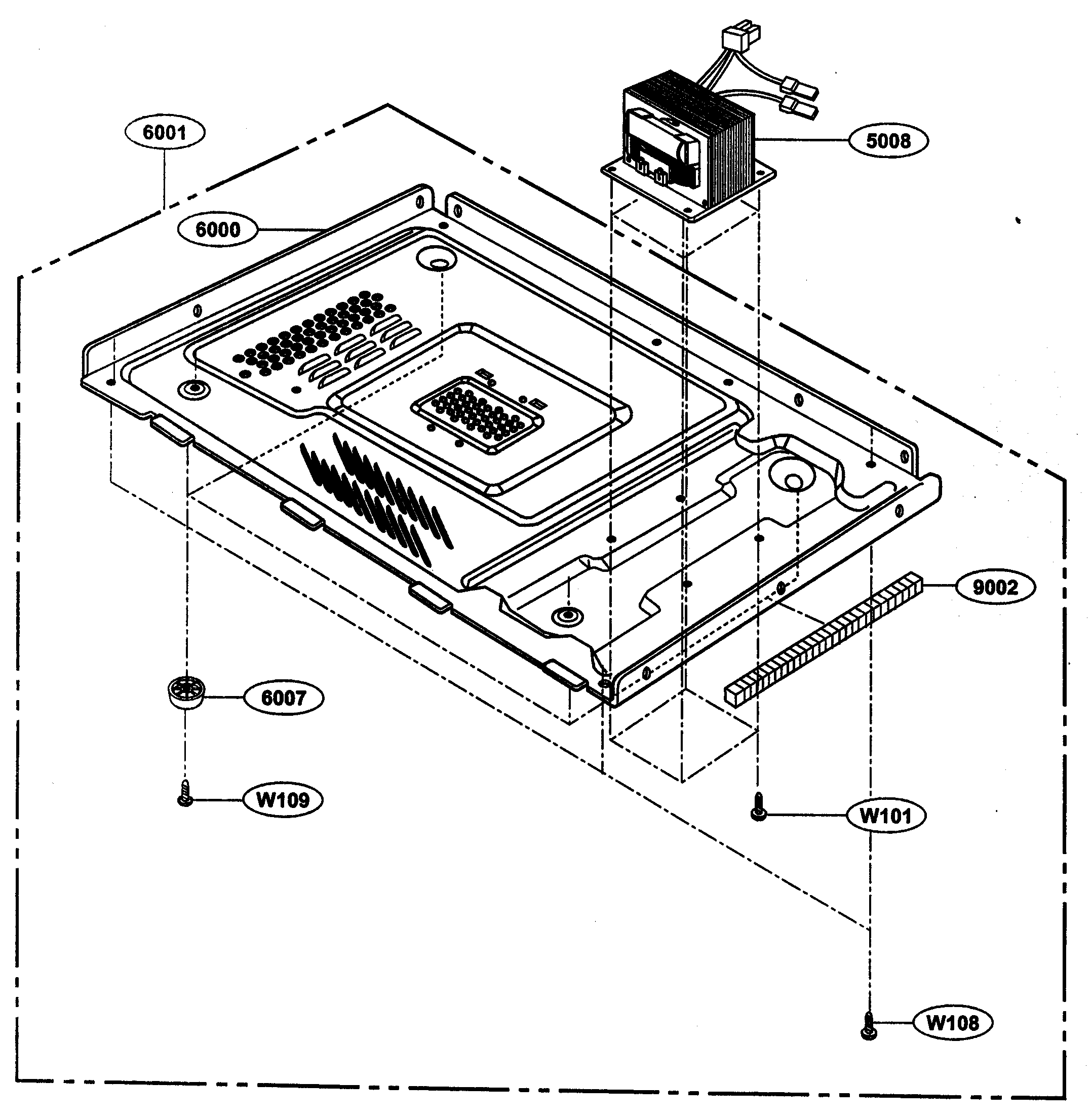

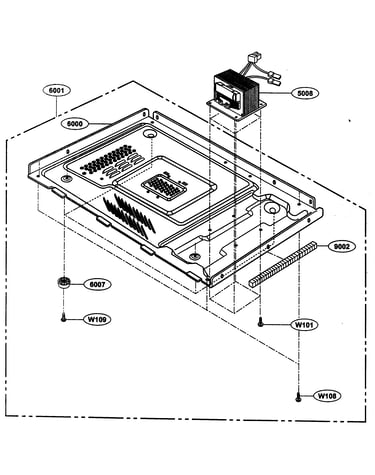

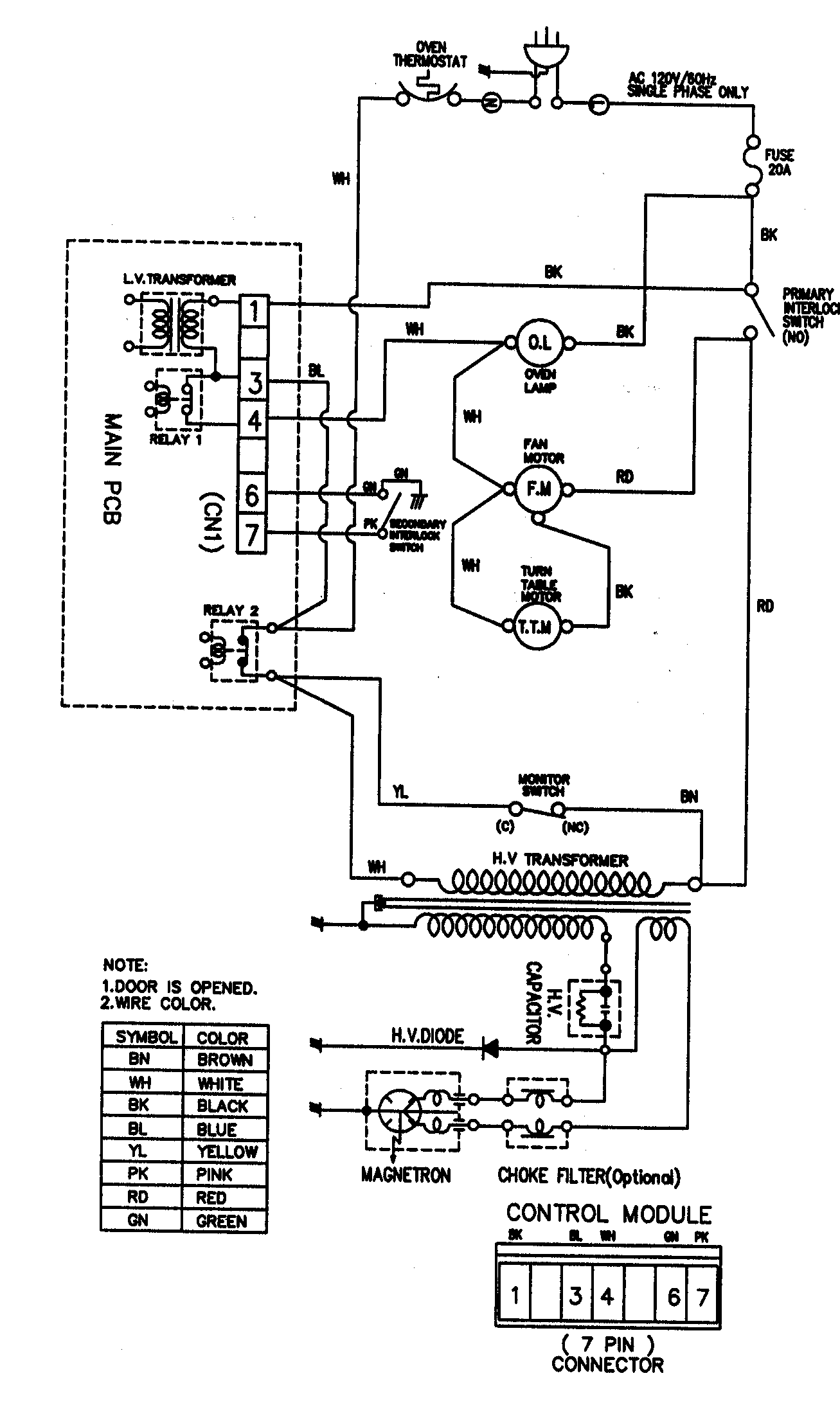

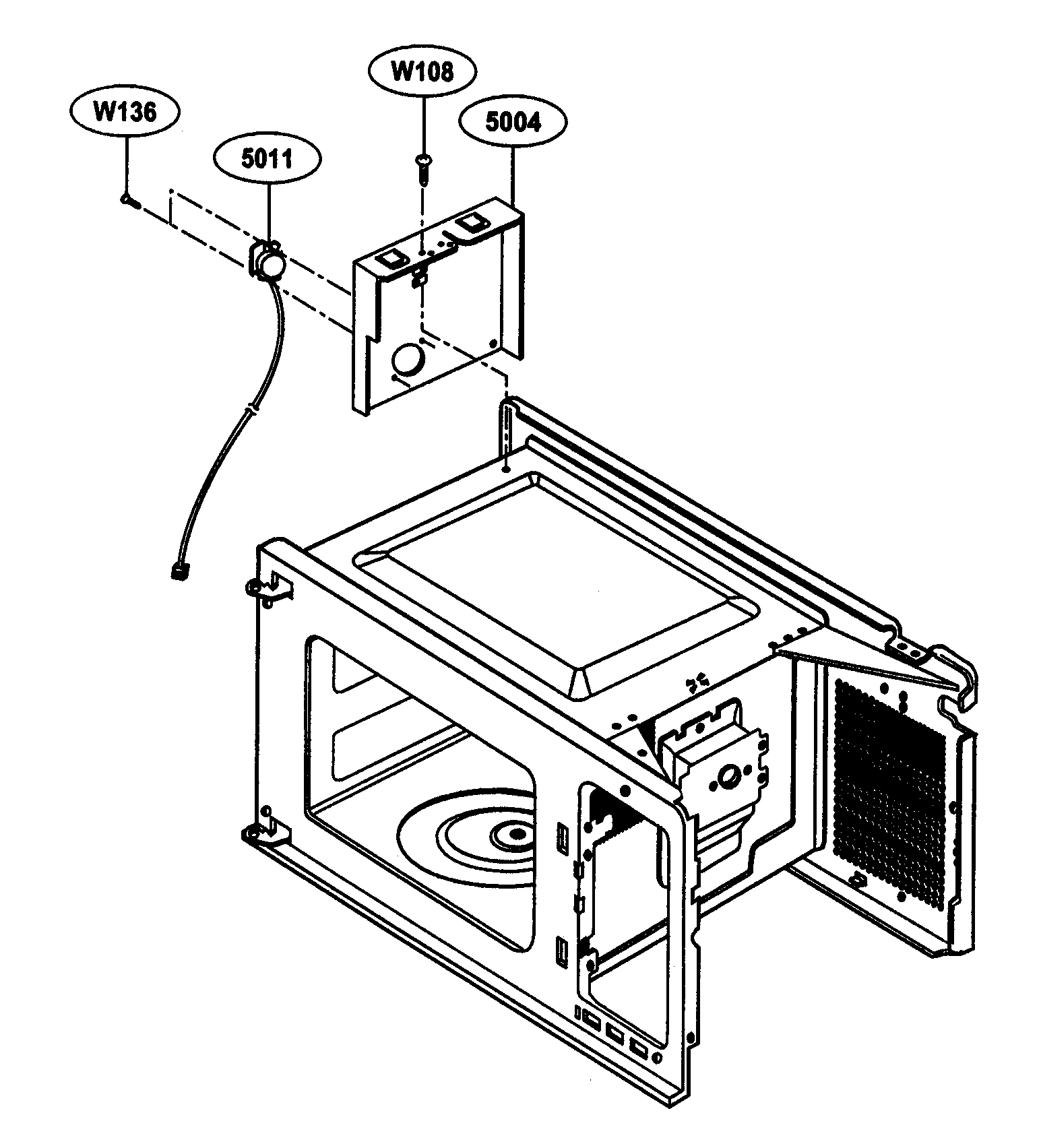

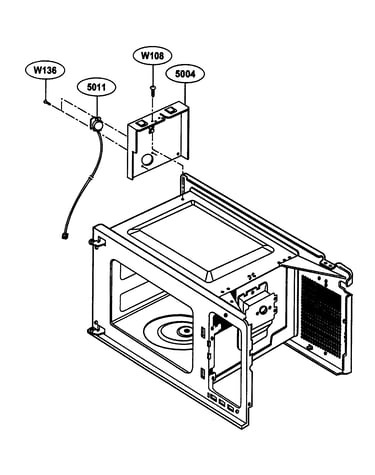

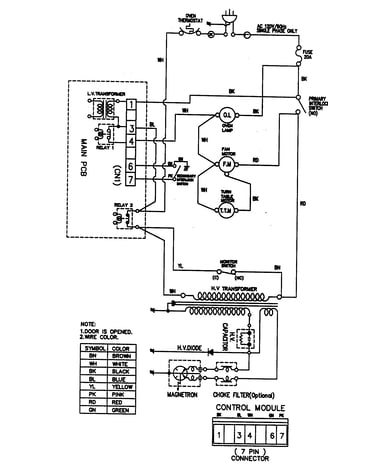

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

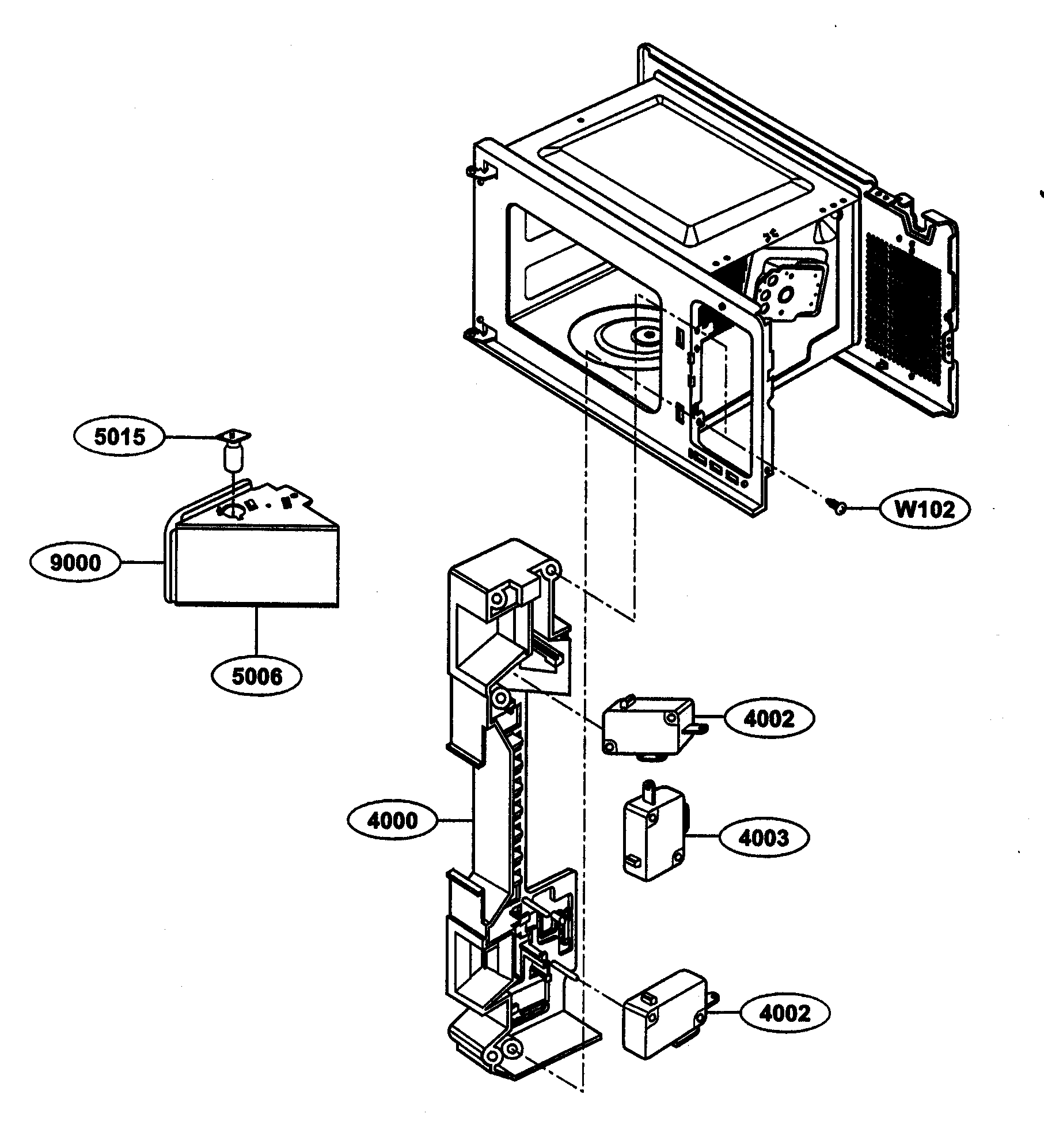

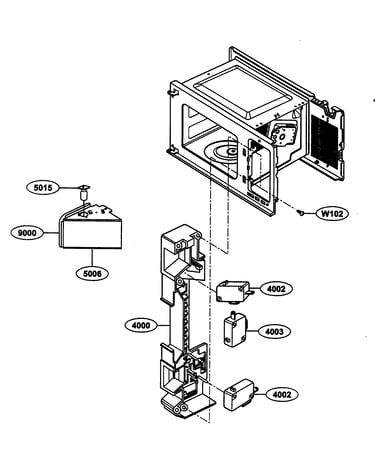

Latch board diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$9.76
9% OFF Phone Price : $10.76
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
#5015

Latch board diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$9.62
9% OFF Phone Price : $10.62
In Stock
Microwave Turntable Motor (replaces 6549w1s011c, 6549w1s017a) 6549W1S011B
#3009

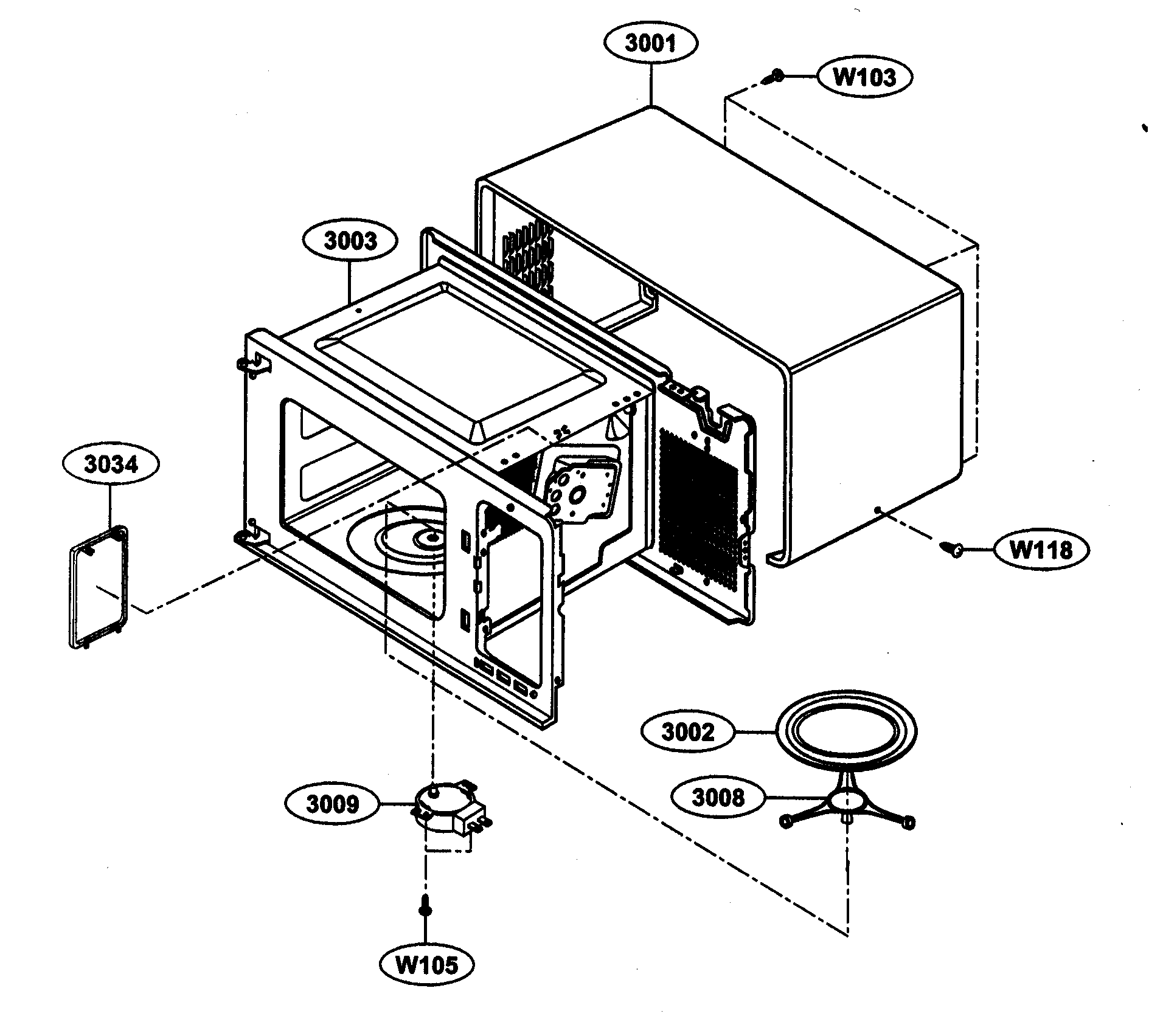

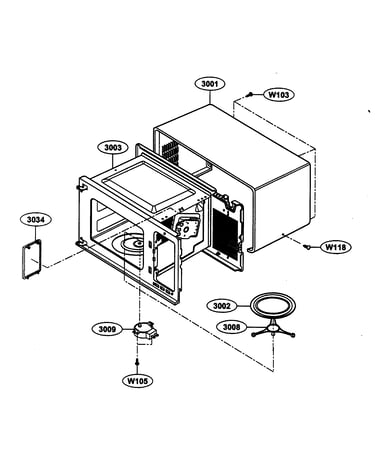

Oven cavity diagram

Microwave turntable motor (replaces 6549w1s011c, 6549w1s017a)

Part #6549W1S011B

BEST SELLER
This item is not returnable
$20.53
20% OFF Phone Price : $25.53
In Stock
Magnetron 6324W1A001B
#5009

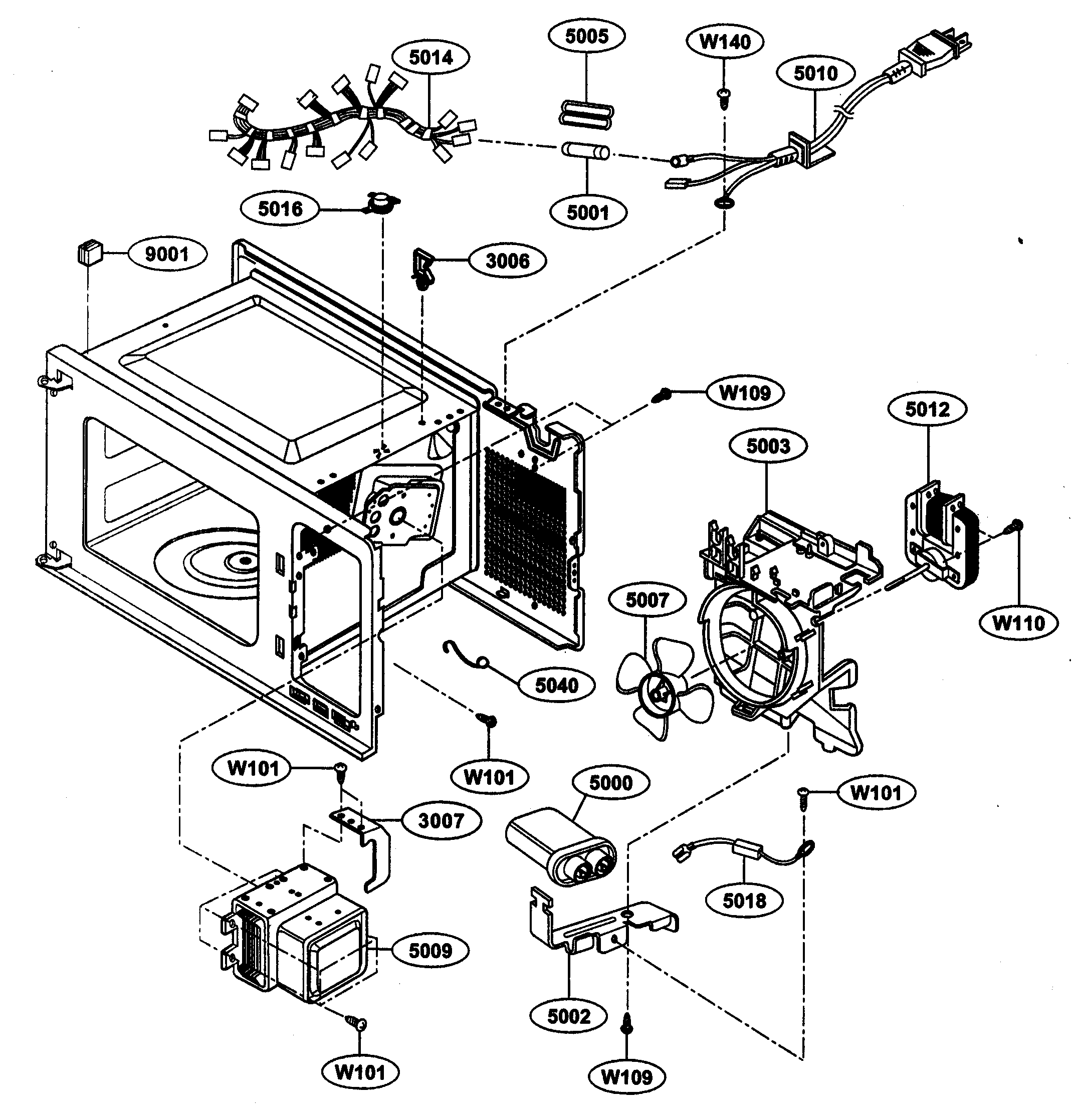

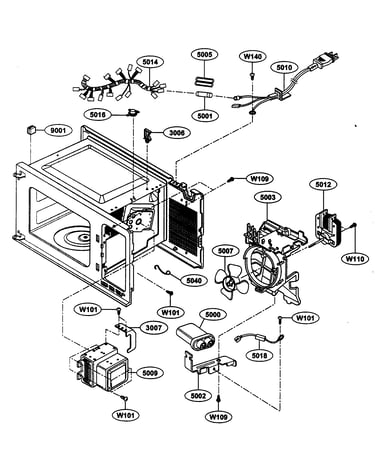

Oven interior diagram

Magnetron

Part #6324W1A001B

The manufacturer no longer makes this part, and there's no substitute part

Microwave High-voltage Diode 6021W3B001N
#5018

Oven interior diagram

Microwave high-voltage diode

Part #6021W3B001N

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001N. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.92
13% OFF Phone Price : $7.92
In Stock
Microwave Door Latch Hook (replaces 4026w2a012a) 4026W2A016A
#1006

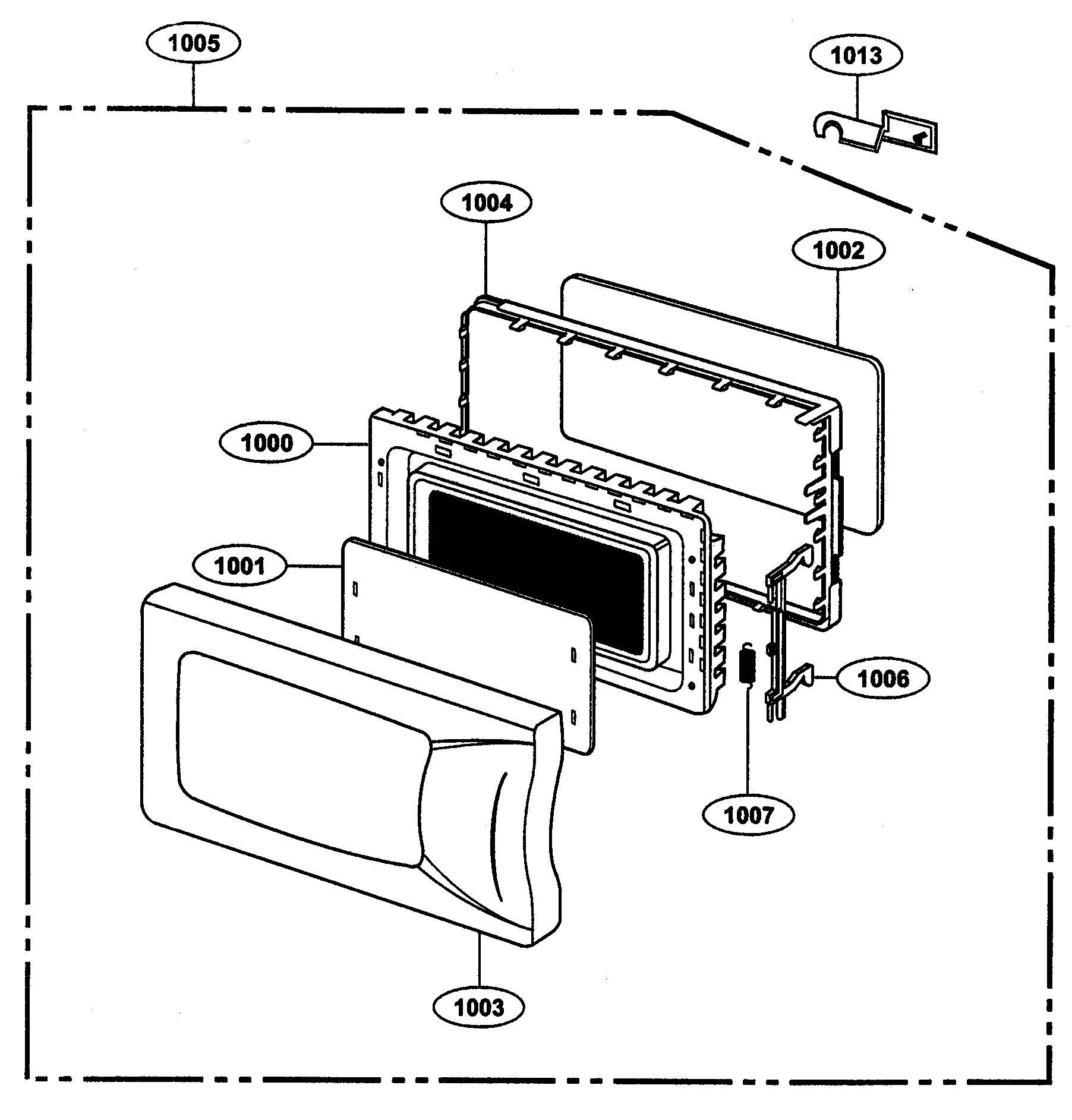

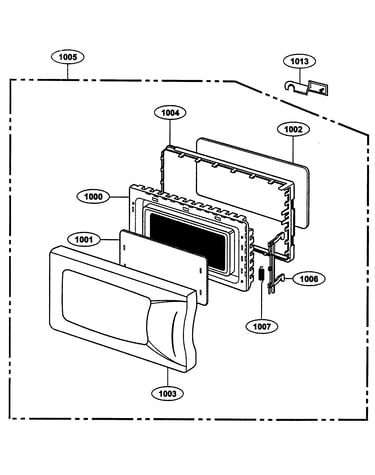

Door diagram

Microwave door latch hook (replaces 4026w2a012a)

Part #4026W2A016A

BEST SELLER
This item is not returnable
$5.48
15% OFF Phone Price : $6.48
In Stock
Microwave Glass Turntable Tray 3390W1G004A
#3002

Oven cavity diagram

Microwave glass turntable tray

Part #3390W1G004A

Replaced by #3390W1A044B

?
Manufacturer substitution
This part replaces 3390W1G004A. Substitute parts can look different from the original.
BEST SELLER
$23.92
17% OFF Phone Price : $28.92
In Stock
Microwave Turntable Tray Support (replaces 5888w2a014d, 5889w2a011) 5889W1A005B
#3008

Oven cavity diagram

Microwave turntable tray support (replaces 5888w2a014d, 5889w2a011)

Part #5889W1A005B

BEST SELLER
This item is not returnable
$14.26
12% OFF Phone Price : $16.26
In Stock
Microwave Door Latch Lever (replaces 4510w3l002a) 4510W3L003A
#2003

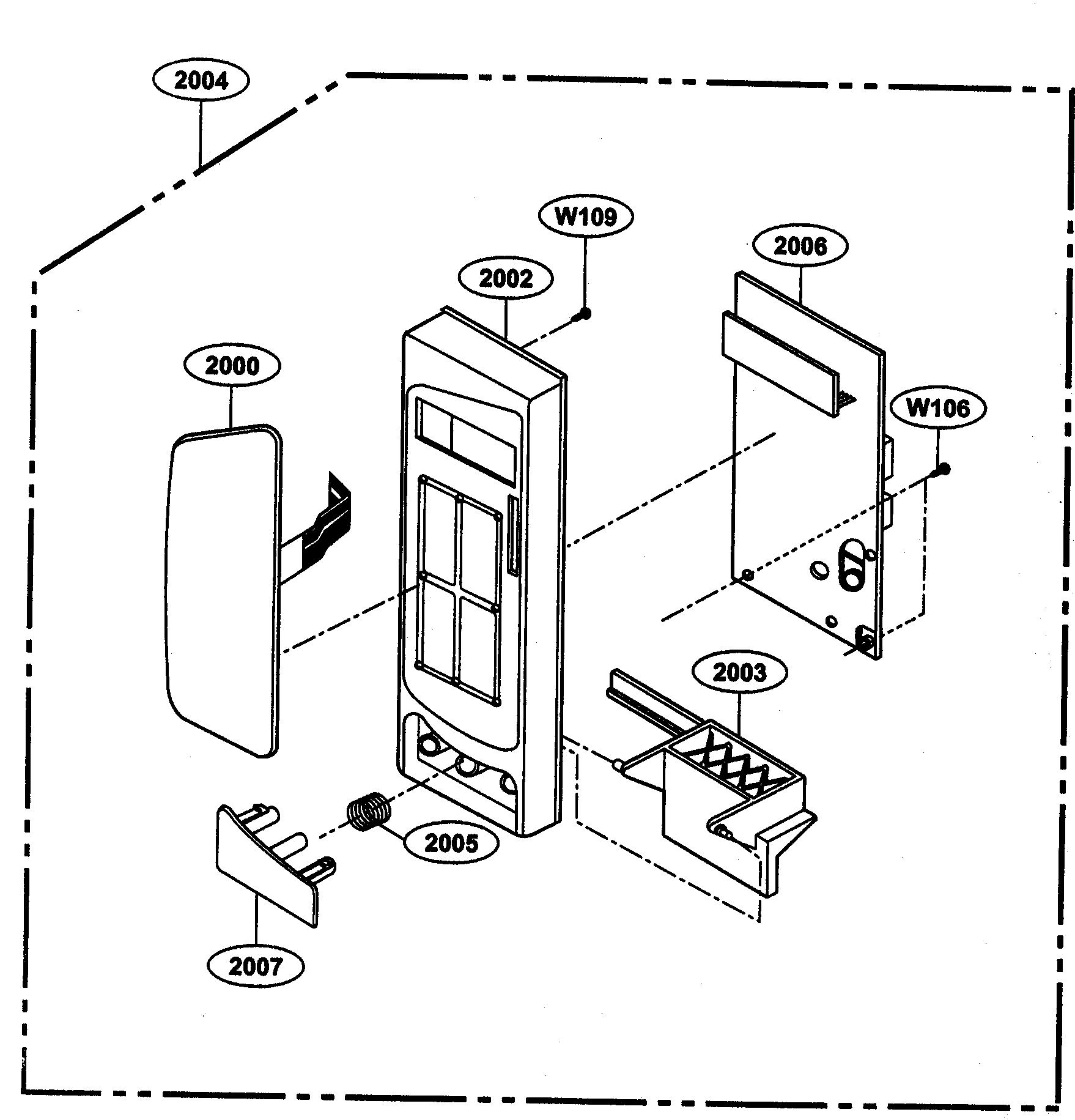

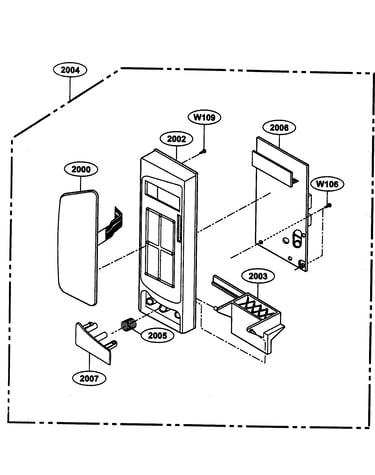

Controller diagram

Microwave door latch lever (replaces 4510w3l002a)

Part #4510W3L003A

This item is not returnable
In Stock
Microwave Door Release Button Spring 4B72023B
#2005

Controller diagram

Microwave door release button spring

Part #4B72023B

This item is not returnable
$5.76
15% OFF Phone Price : $6.76
In Stock
