KitchenAid
Electric Cooktop

Model # KECT025YBL0 Official KitchenAid electric cooktop

Here are the diagrams and repair parts for Official KitchenAid KECT025YBL0 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Cooktop Bracket 3183401
#15A

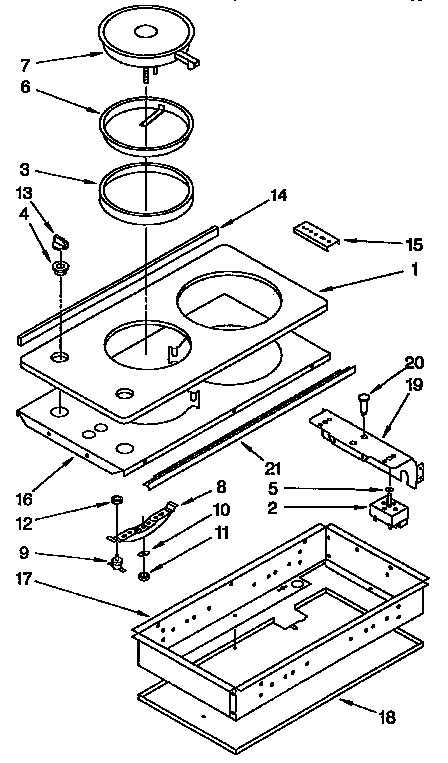

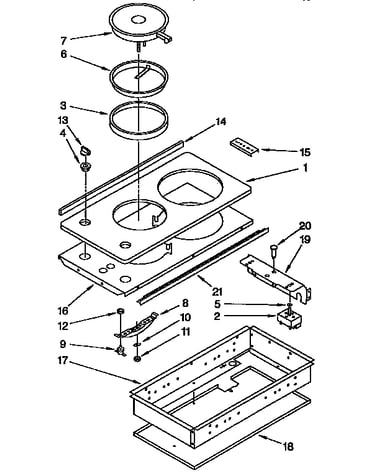

Cooktop diagram

Cooktop bracket

Part #3183401

Replaced by #8186533

?
Manufacturer substitution
This part replaces 3183401. Substitute parts can look different from the original.
$32.89 |
13% OFF Phone Price : $37.89
In Stock
Wire Harness 3183511
#1

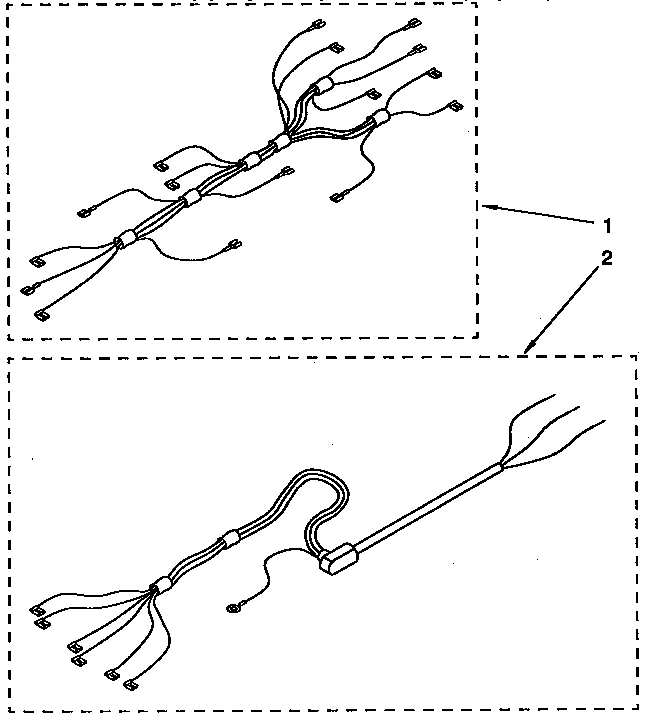

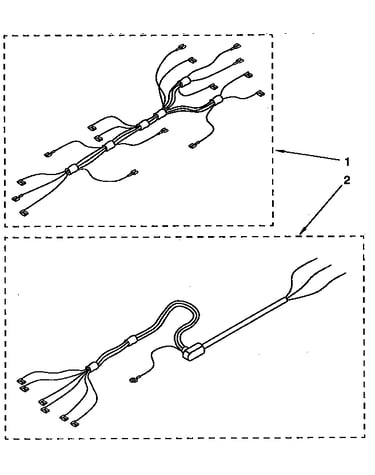

Wiring harness diagram

Wire harness

Part #3183511

The manufacturer no longer makes this part, and there's no substitute part

Cktop-bl 3182648
#1A

Cooktop diagram

Cktop-bl

Part #3182648

The manufacturer no longer makes this part, and there's no substitute part

Screw 3179557
#15C

Cooktop diagram

Screw

Part #3179557

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Trim (almond) 3182438
#21B

Cooktop diagram

Cooktop trim (almond)

Part #3182438

The manufacturer no longer makes this part, and there's no substitute part

Surface Knob (almond) 3182572
#13C

Cooktop diagram

Surface knob (almond)

Part #3182572

The manufacturer no longer makes this part, and there's no substitute part

Range Surface Element Control Switch 3148950
#2A

Cooktop diagram

Range surface element control switch

Part #3148950

The manufacturer no longer makes this part, and there's no substitute part

Surface Knob (white) 3182571
#13B

Cooktop diagram

Surface knob (white)

Part #3182571

The manufacturer no longer makes this part, and there's no substitute part

Surface Element 3182762
#7B

Cooktop diagram

Surface element

Part #3182762

The manufacturer no longer makes this part, and there's no substitute part

Spring 3147191
#10

Cooktop diagram

Spring

Part #3147191

The manufacturer no longer makes this part, and there's no substitute part
