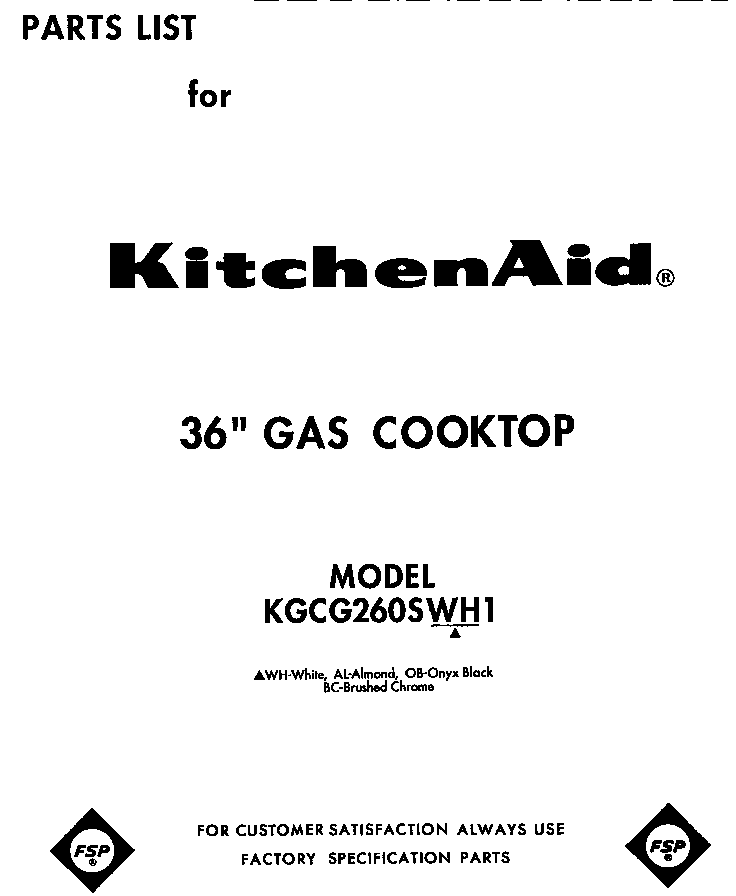

Model # KGCG260SOB1 Official KitchenAid 36" gas cooktop
Here are the diagrams and repair parts for Official KitchenAid KGCG260SOB1 36" gas cooktop, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

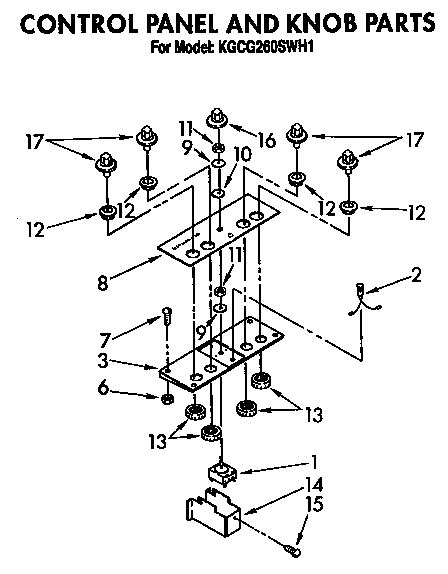

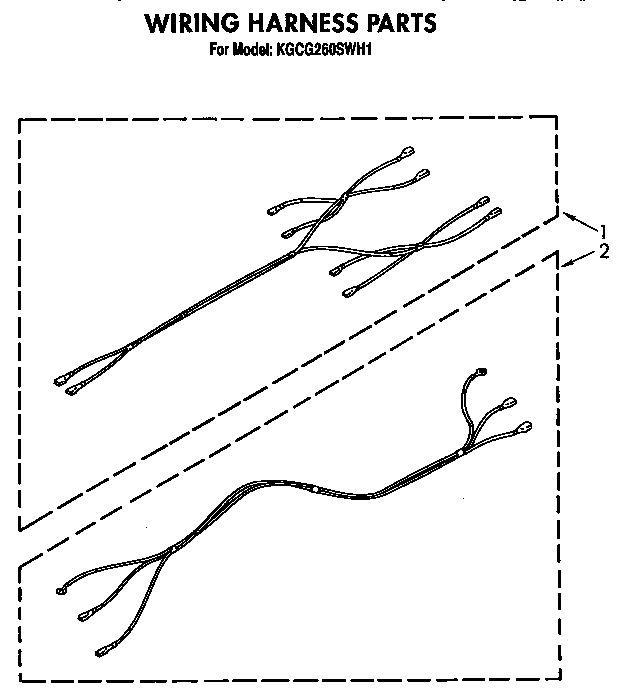

SELECT DIAGRAM
Browse Parts forKGCG260SOB1 Ranges
- Washer
Part #4166436
Replaced by #WP3188425
?Manufacturer substitutionThis part replaces 4166436. Substitute parts can look different from the original.$39.06 |13% OFF Phone Price : $45.06In Stock - #30

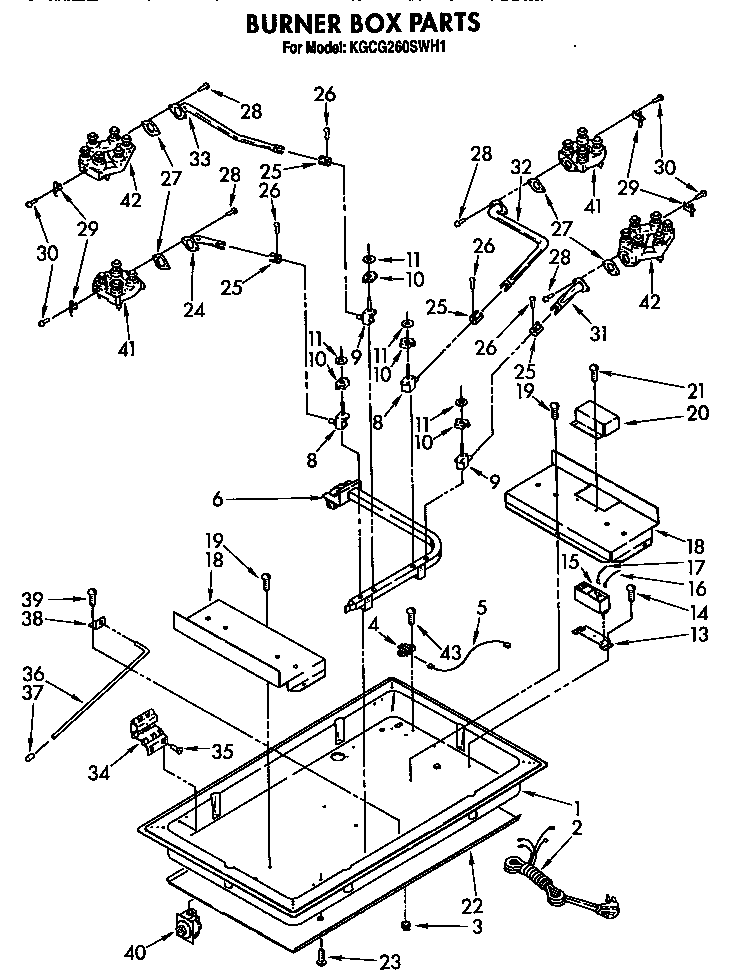

Burner box diagram
ScrewPart #4159457
Replaced by #WP313808
?Manufacturer substitutionThis part replaces 4159457. Substitute parts can look different from the original.This item is not returnable$4.46 |18% OFF Phone Price : $5.46In Stock - #1

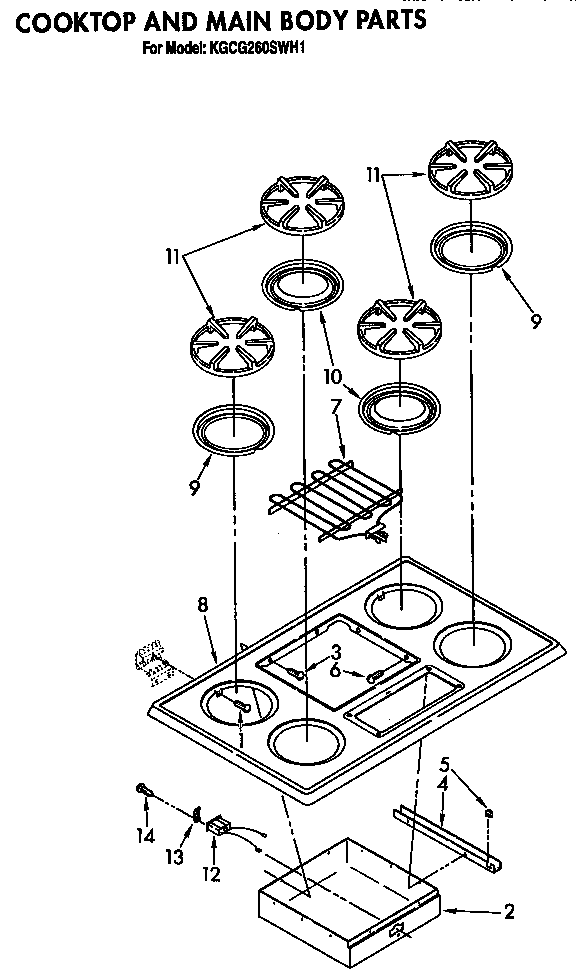

Cooktop and main body diagram
ScrewPart #4159431
Replaced by #WPW10068250
?Manufacturer substitutionThis part replaces 4159431. Substitute parts can look different from the original.This item is not returnable$5.19 |16% OFF Phone Price : $6.19In Stock - #29
Burner box diagram
IgniterPart #3178505
Replaced by #4175453
?Manufacturer substitutionThis part replaces 3178505. Substitute parts can look different from the original.$213.32 |5% OFF Phone Price : $225.32In Stock - #32
Burner box diagram
VenturiPart #4173121
The manufacturer no longer makes this part, and there's no substitute part
- #6
Grill and griddle unit diagram
HandlePart #4164376
The manufacturer no longer makes this part, and there's no substitute part
- Screw
Part #4159386
The manufacturer no longer makes this part, and there's no substitute part
- #4

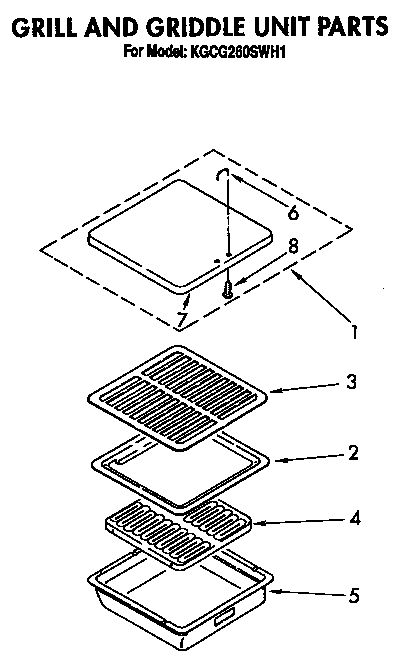

Grill and griddle unit diagram
PanPart #4164306
The manufacturer no longer makes this part, and there's no substitute part
- #5
Grill and griddle unit diagram
Grill panPart #3178709
The manufacturer no longer makes this part, and there's no substitute part
- #26
Burner box diagram
ScrewPart #4159460
The manufacturer no longer makes this part, and there's no substitute part
