Kenmore
Upright Vacuum

Model #1163379491 Kenmore upright vacuum

Here are the diagrams and repair parts for Kenmore 1163379491 upright vacuum, as well as links to manuals and error code tables, if available.


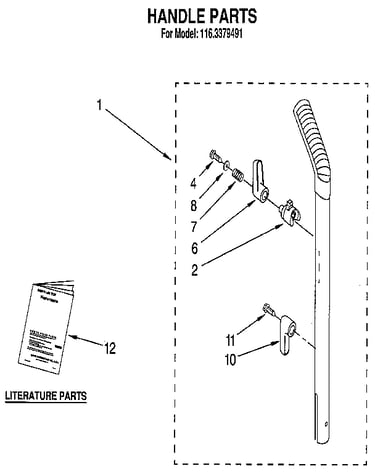

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 106 parts

Suppressor

#22

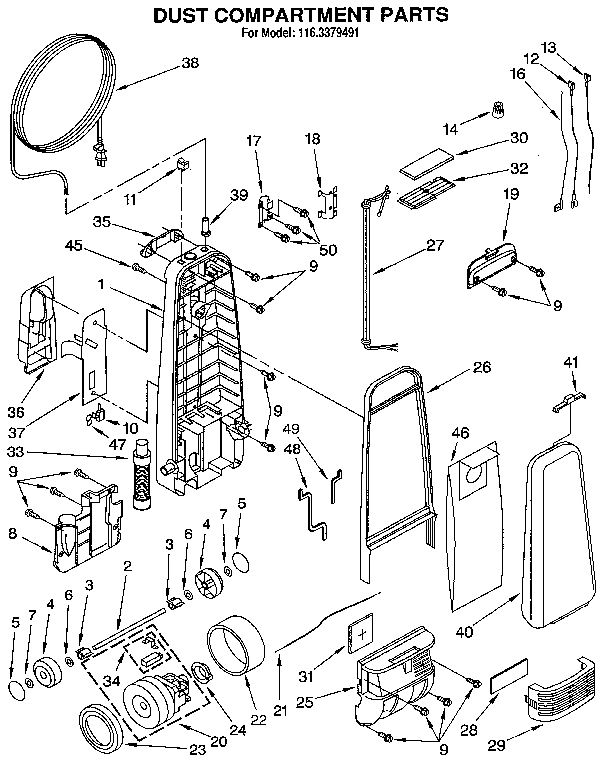

Dust compartment Diagram

Suppressor

Part #4368663
This item is not returnable
$2.99

In Stock

Vacuum Light Bulb

#26

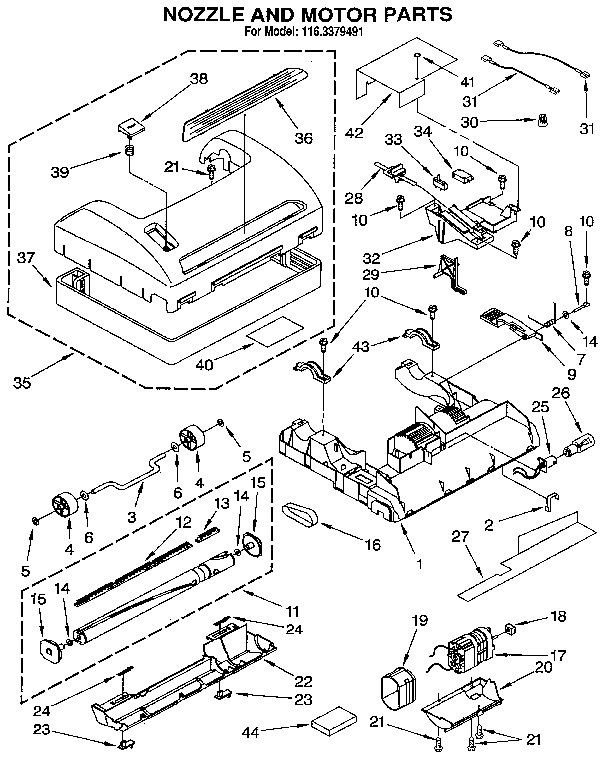

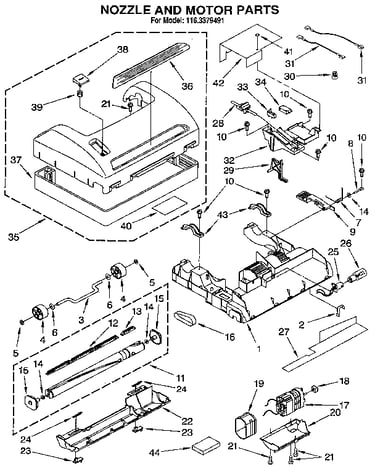

Nozzle and motor Diagram

Vacuum light bulb

Part #5240
?
Manufacturer substitution
This part replaces 4368834. Substitute parts can look different from the original.
This part replaces 4368834
$9.15

In Stock

Vacuum On/Off Switch

#10

Dust compartment Diagram

Vacuum on/off switch

Part #4368653
?
Manufacturer substitution
This part replaces 4368653. Substitute parts can look different from the original.
This part replaces 4368653
This item is not returnable
$7.22

Back Order

Vacuum Crevice Tool

#5

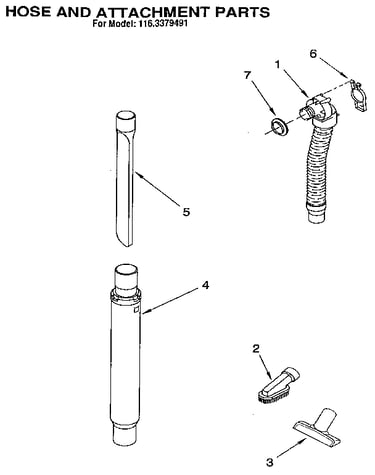

Hose and attachment Diagram

Vacuum crevice tool

Part #4368684
?
Manufacturer substitution
This part replaces 4368684. Substitute parts can look different from the original.
This part replaces 4368684
$11.09

In Stock

Flat Washer, 8-pack

#6

Dust compartment Diagram

Flat washer, 8-pack

Part #STD551031
?
Manufacturer substitution
This part replaces 681384. Substitute parts can look different from the original.
This part replaces 681384
This item is not returnable
$3.04

In Stock

Vacuum Screw

#9

Dust compartment Diagram

Vacuum screw

Part #4368563
?
Manufacturer substitution
This part replaces 4368563. Substitute parts can look different from the original.
This part replaces 4368563
This item is not returnable
$3.26

In Stock

Vacuum Inlet Cover

#6

Hose and attachment Diagram

Vacuum inlet cover

Part #4368676

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush

#2

Hose and attachment Diagram

Vacuum dust brush

Part #4368681

The manufacturer no longer makes this part, and there's no substitute part

Axle

#3

Nozzle and motor Diagram

Axle

Part #744505

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire

#21

Dust compartment Diagram

Lead wire

Part #4368662

The manufacturer no longer makes this part, and there's no substitute part
