Model # WWC8100FDL Official GE washer

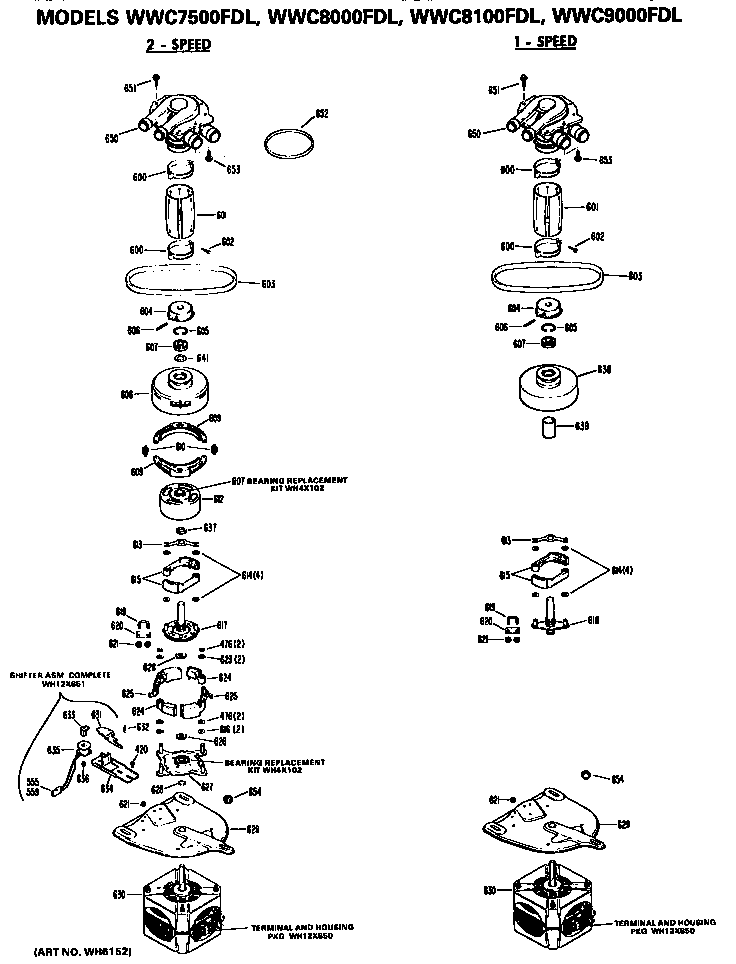

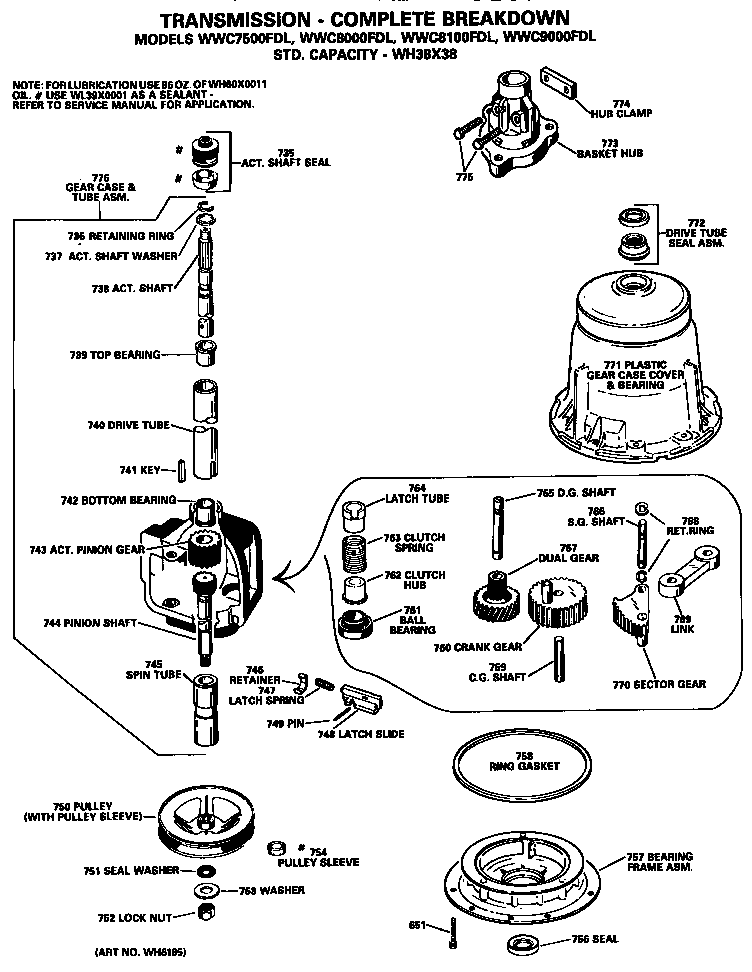

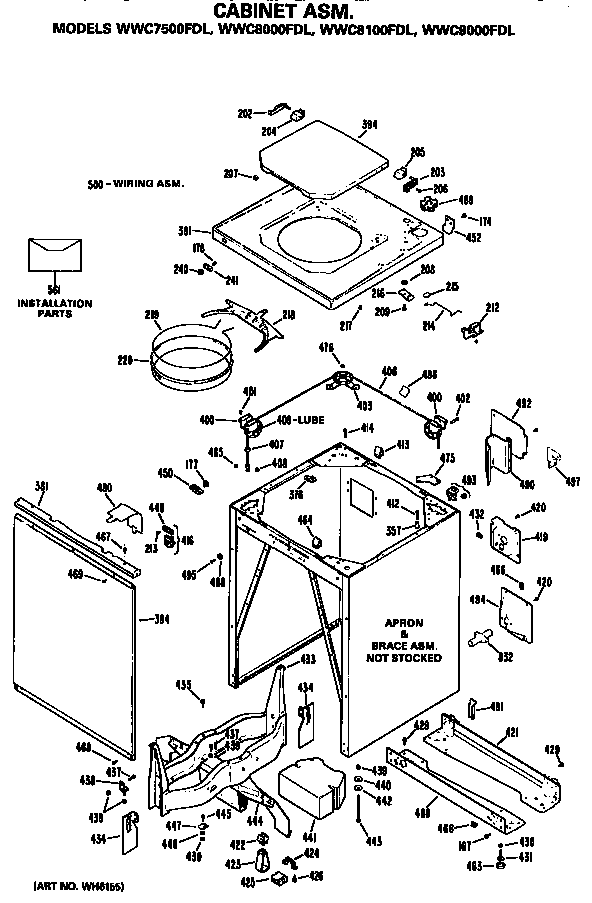

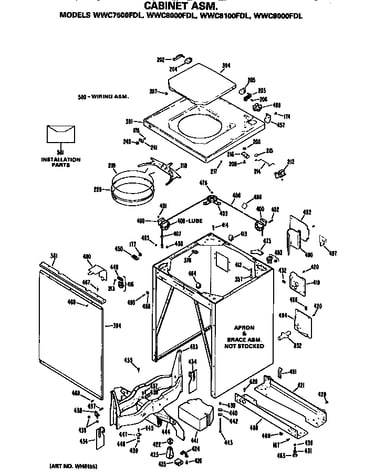

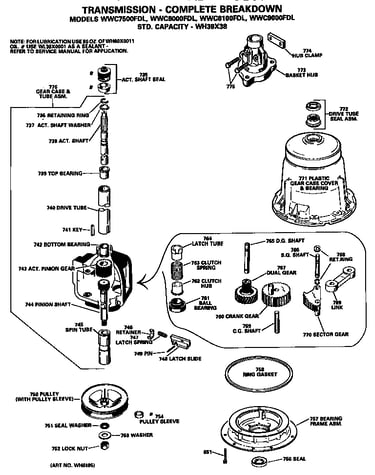

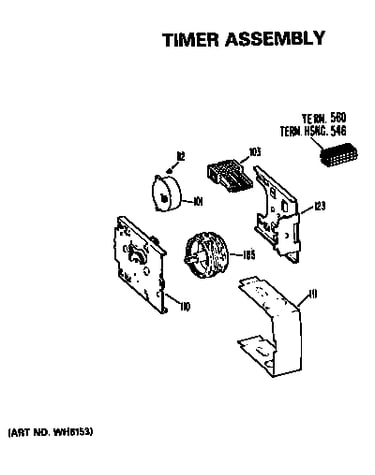

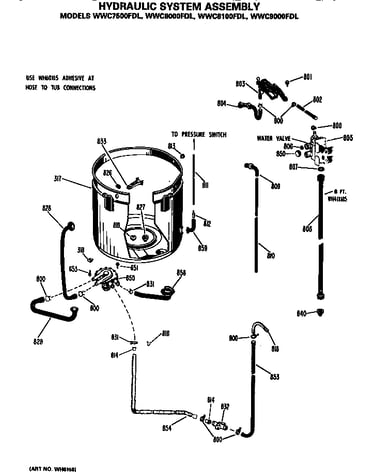

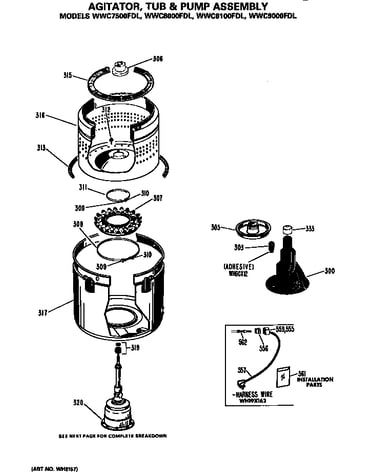

Here are the diagrams and repair parts for Official GE WWC8100FDL washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

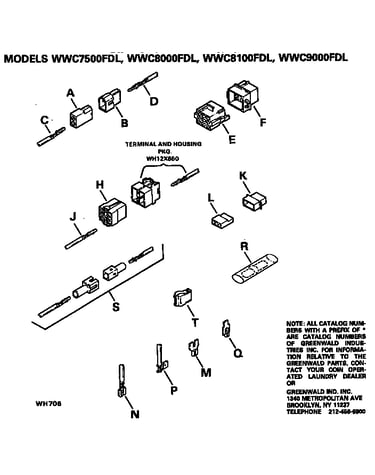

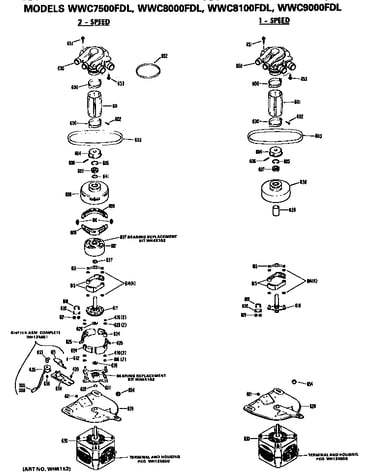

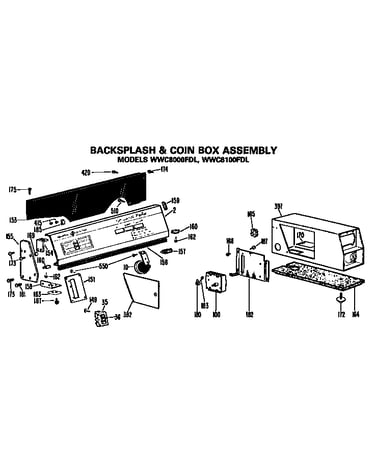

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 298 parts  |

Washer Drive Belt (replaces Wh01x2026, Wh1x1904) WH1X2026

#603

All parts diagram

Washer drive belt (replaces wh01x2026, wh1x1904)

Part #WH1X2026

$7.73
11% OFF Phone Price : $8.73
In Stock
Washer Leveling Leg Rubber Pad WH1X484

#463

All parts diagram

Washer leveling leg rubber pad

Part #WH1X484

$7.88
11% OFF Phone Price : $8.88
In Stock
Lid      Wht WH44X1107

#394

All parts diagram

Lid wht

Part #WH44X1107

In Stock

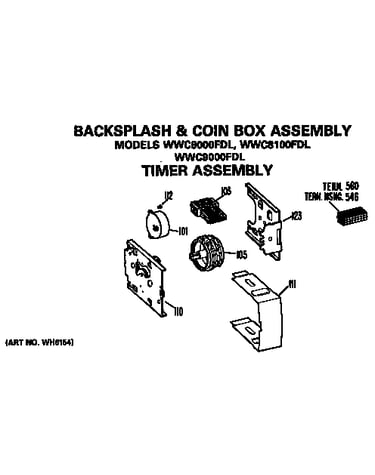

Cam WH11X130

#105

All parts diagram

Cam

Part #WH11X130

In Stock
Retainer WH1X2268

#241

All parts diagram

Retainer

Part #WH1X2268

In Stock
Button Plug WH1X2266

#240

All parts diagram

Button plug

Part #WH1X2266

In Stock
Lid      Ad WH44X1105

#394

All parts diagram

Lid ad

Part #WH44X1105

In Stock
Washer Hose Clamp Kit WH1X2036

#790

All parts diagram

Washer hose clamp kit

Part #WH1X2036

$11.59
15% OFF Phone Price : $13.59
In Stock
Washer Tub Gasket WH8X305

#313

All parts diagram

Washer tub gasket

Part #WH8X305

$39.59
11% OFF Phone Price : $44.59
In Stock
Screw WE2X263

#510

All parts diagram

Screw

Part #WE2X263

Replaced by #WE2X263D

?
Manufacturer substitution
This part replaces WE2X263. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
