Model # 50PB560B Official LG plasma television

Here are the diagrams and repair parts for Official LG 50PB560B plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Hand Insert Pcb Assembly EBR77287801
#204

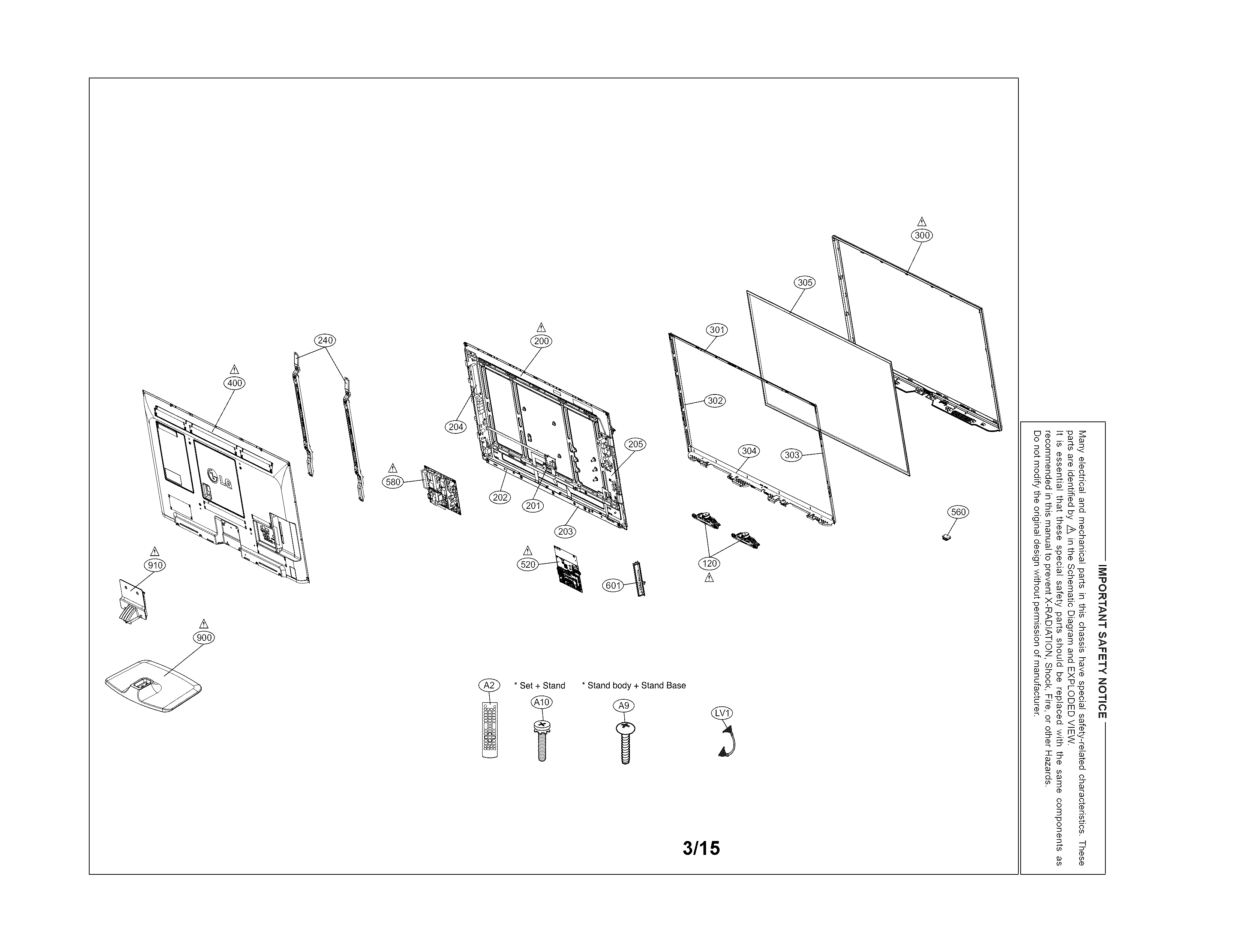

Exploded view parts diagram

Hand insert pcb assembly

Part #EBR77287801

$75.13
In Stock
Hand Insert Pcb Assembly EBR77287401
#205

Exploded view parts diagram

Hand insert pcb assembly

Part #EBR77287401

$64.42
In Stock
Television Stand Base Screw FAB30016124
#A10

Exploded view parts diagram

Television stand base screw

Part #FAB30016124

This item is not returnable
$2.73 |
27% OFF Phone Price : $3.73
In Stock
Switched-mode Power Supply Board EAY63168601
#580

Exploded view parts diagram

Switched-mode power supply board

Part #EAY63168601

$140.98
In Stock
Television Screw FAB31740201
#A9

Exploded view parts diagram

Television screw

Part #FAB31740201

This item is not returnable
$2.83
In Stock
Supporter Assembly AJJ73919602
#302

Exploded view parts diagram

Supporter assembly

Part #AJJ73919602

The manufacturer no longer makes this part, and there's no substitute part

Hand Insert Pcb Assembly EBR77100901
#202

Exploded view parts diagram

Hand insert pcb assembly

Part #EBR77100901

The manufacturer no longer makes this part, and there's no substitute part

Hand Insert Pcb Assembly EBR77141501
#201

Exploded view parts diagram

Hand insert pcb assembly

Part #EBR77141501

The manufacturer no longer makes this part, and there's no substitute part

Rear Cover Assembly ACQ86692904
#400

Exploded view parts diagram

Rear cover assembly

Part #ACQ86692904

The manufacturer no longer makes this part, and there's no substitute part

Filter MDJ63647801
#305

Exploded view parts diagram

Filter

Part #MDJ63647801

The manufacturer no longer makes this part, and there's no substitute part
