Electric Range

Model # CRE9800CCM Official Maytag electric freestanding range

Here are the diagrams and repair parts for Official Maytag CRE9800CCM electric freestanding range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

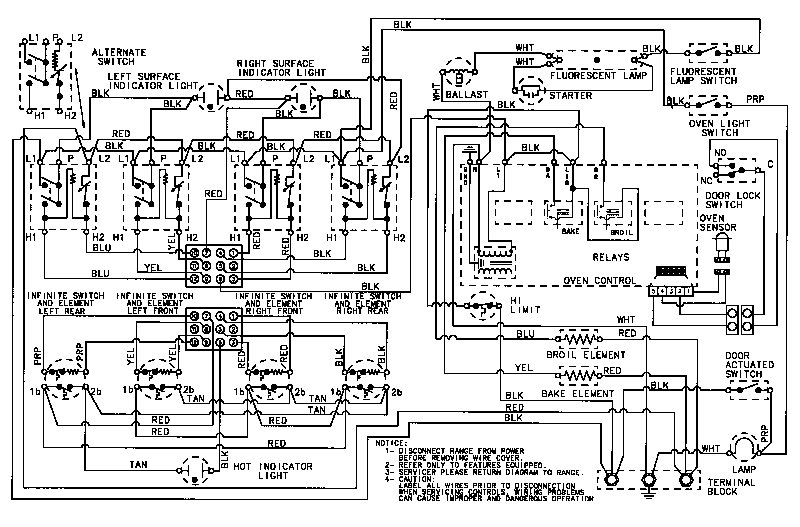

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forCRE9800CCM Ranges

  • "cleaner, Elc" 8308P002-60
    #8G

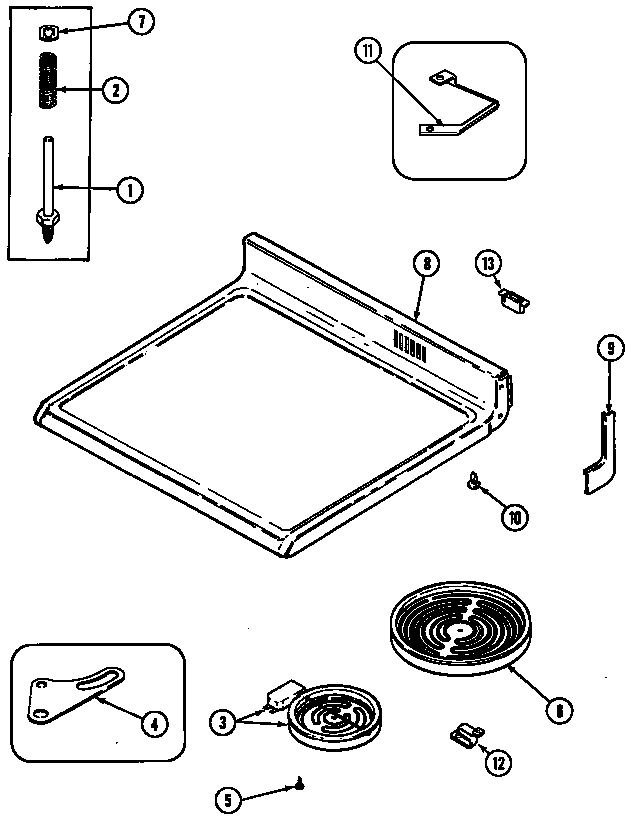

    Top assembly diagram

    "cleaner, elc"

    Part #8308P002-60

    Replaced by #W10355051

    ?
    Manufacturer substitution
    This part replaces 8308P002-60. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable

    Get free shipping with Automatic Reorder

    $10.88
    16% OFF Phone Price : $12.88
    In Stock
  • Range Surface Element Control Switch 7403P238-60
    #8

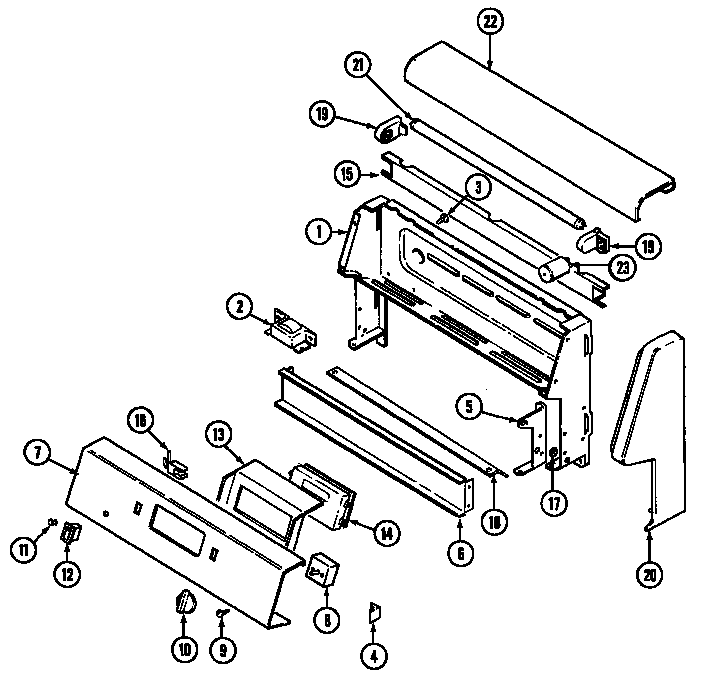

    Control panel diagram

    Range surface element control switch

    Part #7403P238-60

    Replaced by #WP7403P238-60

    ?
    Manufacturer substitution
    This part replaces 7403P238-60. Substitute parts can look different from the original.
    BEST SELLER
    $47.39
    11% OFF Phone Price : $53.39
    In Stock
  • Range Surface Element Control Switch 7403P239-60
    #8A

    Control panel diagram

    Range surface element control switch

    Part #7403P239-60

    Replaced by #WP7403P239-60

    ?
    Manufacturer substitution
    This part replaces 7403P239-60. Substitute parts can look different from the original.
    BEST SELLER
    $45.10
    12% OFF Phone Price : $51.10
    In Stock
  • Bake Element 04000058
    #3

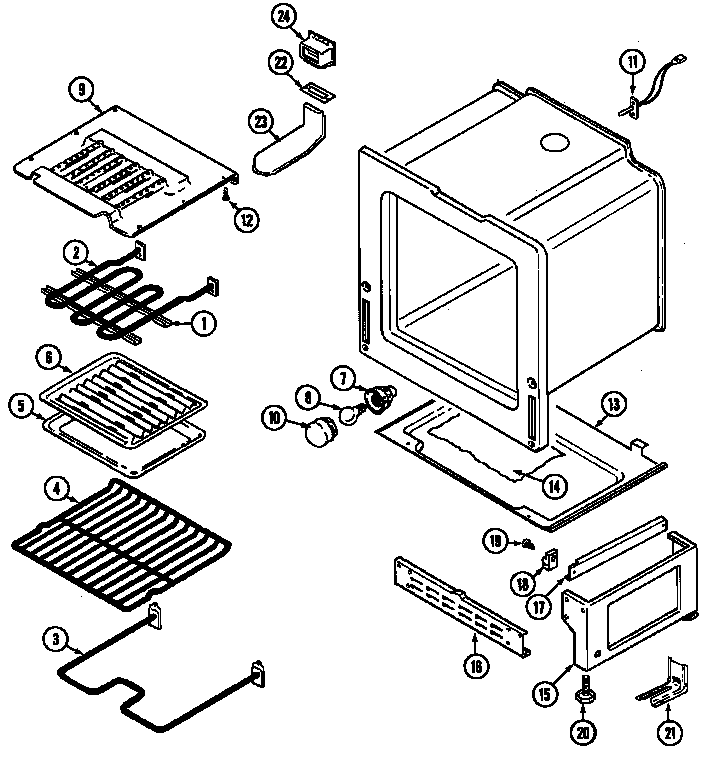

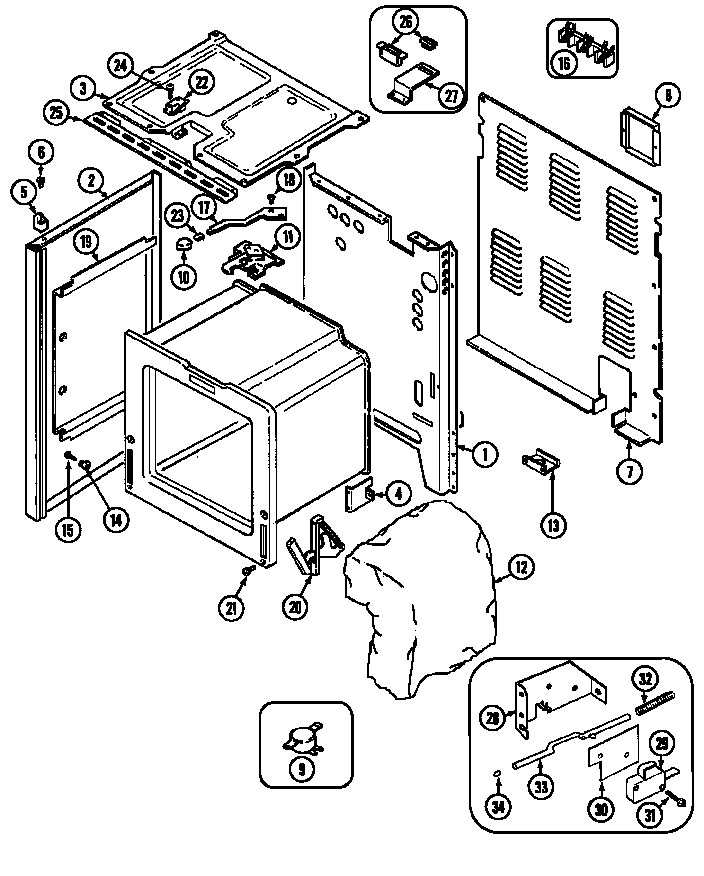

    Oven/base diagram

    Bake element

    Part #04000058

    Replaced by #WP74003019

    ?
    Manufacturer substitution
    This part replaces 04000058. Substitute parts can look different from the original.
    BEST SELLER
    $41.41
    13% OFF Phone Price : $47.41
    In Stock
  • Element W/li 74002649
    #6A

    Top assembly diagram

    Element w/li

    Part #74002649

    Replaced by #W10823707

    ?
    Manufacturer substitution
    This part replaces 74002649. Substitute parts can look different from the original.
    $111.11
    10% OFF Phone Price : $123.11
    In Stock
  • Element W/re 74001012
    #6

    Top assembly diagram

    Element w/re

    Part #74001012

    Replaced by #W10823707

    ?
    Manufacturer substitution
    This part replaces 74001012. Substitute parts can look different from the original.
    $111.11
    10% OFF Phone Price : $123.11
    In Stock
  • Door Gasket 7201P046-60
    #8

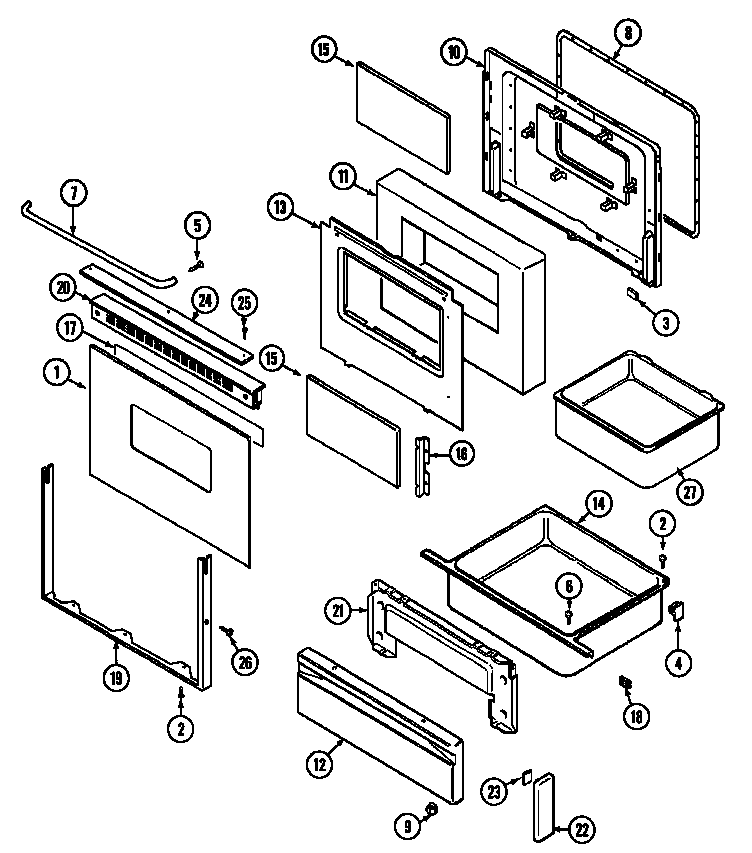

    Door/drawer diagram

    Door gasket

    Part #7201P046-60

    Replaced by #WPW10162384

    ?
    Manufacturer substitution
    This part replaces 7201P046-60. Substitute parts can look different from the original.
    $69.42
    8% OFF Phone Price : $75.42
    In Stock
  • Scraper, Raz 8312P001-60
    #8H

    Top assembly diagram

    Scraper, raz

    Part #8312P001-60

    Replaced by #WA906B

    ?
    Manufacturer substitution
    This part replaces 8312P001-60. Substitute parts can look different from the original.
    This item is not returnable

    Get free shipping with Automatic Reorder

    $6.29
    14% OFF Phone Price : $7.29
    In Stock
  • Bracket Screw 7101P040-60
    Bracket screw

    Part #7101P040-60

    Replaced by #WP98008545

    ?
    Manufacturer substitution
    This part replaces 7101P040-60. Substitute parts can look different from the original.
    This item is not returnable
    $4.67
    18% OFF Phone Price : $5.67
    In Stock
  • Oven Bulb 7407P103-60
    #8

    Oven/base diagram

    Oven bulb

    Part #7407P103-60

    Replaced by #8009

    ?
    Manufacturer substitution
    This part replaces 7407P103-60. Substitute parts can look different from the original.
    This item is not returnable
    $12.57
    14% OFF Phone Price : $14.57
    In Stock
