Kelvinator CFS53DMOW chest freezer - k1700-89 Parts
Here are the diagrams and repair parts for Kelvinator CFS53DMOW chest freezer - k1700-89, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for CFS53DMOW Freestanding Freezers

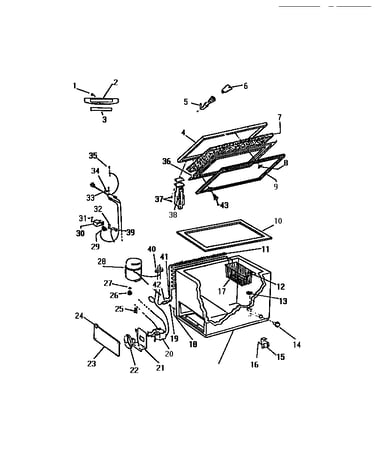

Door, cabinet, unit diagram
Filter Drier
Part #F59348Replaced by #5303305677
Manufacturer substitutionThis part replaces F59348. Substitute parts can look different from the original.In Stock$26.9018% OFF Phone Price : $32.90
Qty
Door, cabinet, unit diagram
Key
Part #F113978Replaced by #297147700
Manufacturer substitutionThis part replaces F113978. Substitute parts can look different from the original.In Stock$9.3110% OFF Phone Price : $10.31QtyDoor, cabinet, unit diagram
Condenser R1
Part #F120781Replaced by #5300120781
Manufacturer substitutionThis part replaces F120781. Substitute parts can look different from the original.In Stock$509.43QtyDoor, cabinet, unit diagram
Clip Kit
Part #F118834Replaced by #5303925353
Manufacturer substitutionThis part replaces F118834. Substitute parts can look different from the original.In Stock$29.95QtyDoor, cabinet, unit diagram
Lock
Part #F124916Replaced by #5303284902
Manufacturer substitutionThis part replaces F124916. Substitute parts can look different from the original.In Stock$110.11QtyDoor, cabinet, unit diagram
Panel
Part #F114265-1064Replaced by #5303912506
Manufacturer substitutionThis part replaces F114265-1064. Substitute parts can look different from the original.In Stock$134.04QtyDoor, cabinet, unit diagram
Catch
Part #F111498Replaced by #06599933
Manufacturer substitutionThis part replaces F111498. Substitute parts can look different from the original.In Stock$25.77QtyDoor, cabinet, unit diagram
Freezer Panel
Part #F128568-464Replaced by #5300129605
Manufacturer substitutionThis part replaces F128568-464. Substitute parts can look different from the original.In Stock$181.98QtyDoor, cabinet, unit diagram
Grommet
Part #F81376Replaced by #08016808
Manufacturer substitutionThis part replaces F81376. Substitute parts can look different from the original.In Stock$33.19QtyDoor, cabinet, unit diagram
Panel (almond)
Part #F121199-4Replaced by #5303925458
Manufacturer substitutionThis part replaces F121199-4. Substitute parts can look different from the original.In Stock$45.75Qty
