Whirlpool
Countertop Microwave

Model # MS2101XW0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MS2101XW0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

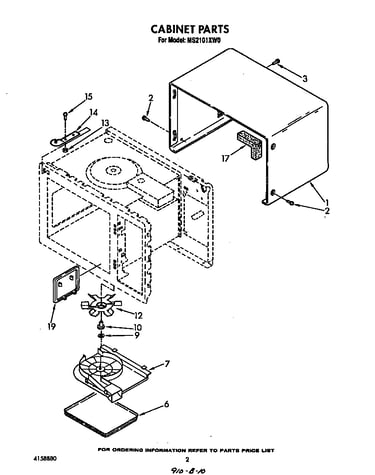

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |

Screw 4158076
Screw

Part #4158076

Replaced by #8169474

?
Manufacturer substitution
This part replaces 4158076. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 4158747
#3

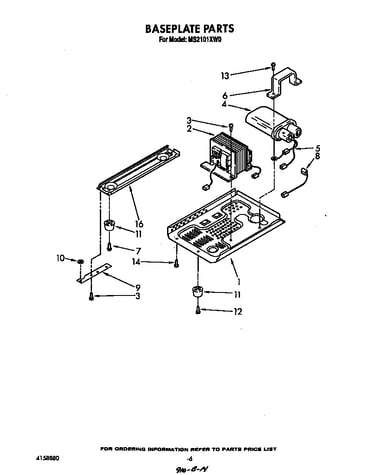

Baseplate diagram

Screw

Part #4158747

Replaced by #WP3400094

?
Manufacturer substitution
This part replaces 4158747. Substitute parts can look different from the original.
This item is not returnable
$3.95
20% OFF Phone Price : $4.95
In Stock
Spring 4158178
#5

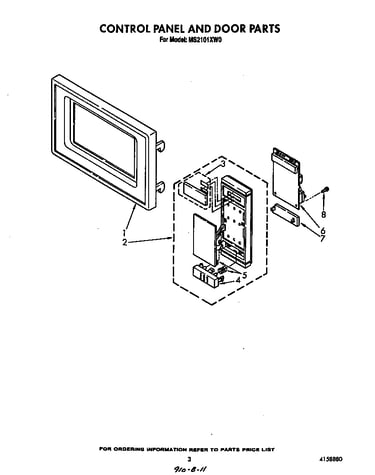

Control panel and door diagram

Spring

Part #4158178

Replaced by #WP4158178

?
Manufacturer substitution
This part replaces 4158178. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Switch 4158486
#27

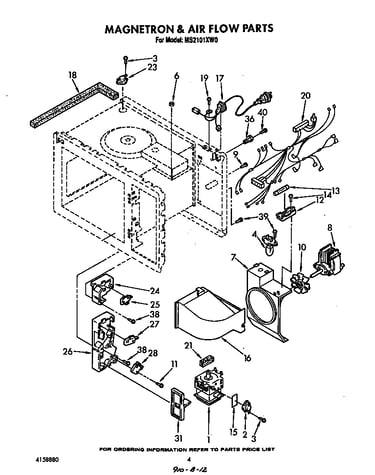

Magnetron and air flow diagram

Switch

Part #4158486

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158486. Substitute parts can look different from the original.
$69.11
20% OFF MSRP : $86.00
In Stock
Screw 4158071
Screw

Part #4158071

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4158071. Substitute parts can look different from the original.
This item is not returnable
$18.19
10% OFF Phone Price : $20.19
In Stock
Switch 4158195
#25

Magnetron and air flow diagram

Switch

Part #4158195

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158195. Substitute parts can look different from the original.
$69.11
20% OFF MSRP : $86.00
In Stock
Fan Blade 4158758
#10

Magnetron and air flow diagram

Fan blade

Part #4158758

Replaced by #8184292

?
Manufacturer substitution
This part replaces 4158758. Substitute parts can look different from the original.
In Stock
Capacitor 4158507
#4

Baseplate diagram

Capacitor

Part #4158507

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 4158474
#2

Magnetron and air flow diagram

Thermostat

Part #4158474

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb 4158586
#4

Magnetron and air flow diagram

Light bulb

Part #4158586

The manufacturer no longer makes this part, and there's no substitute part
