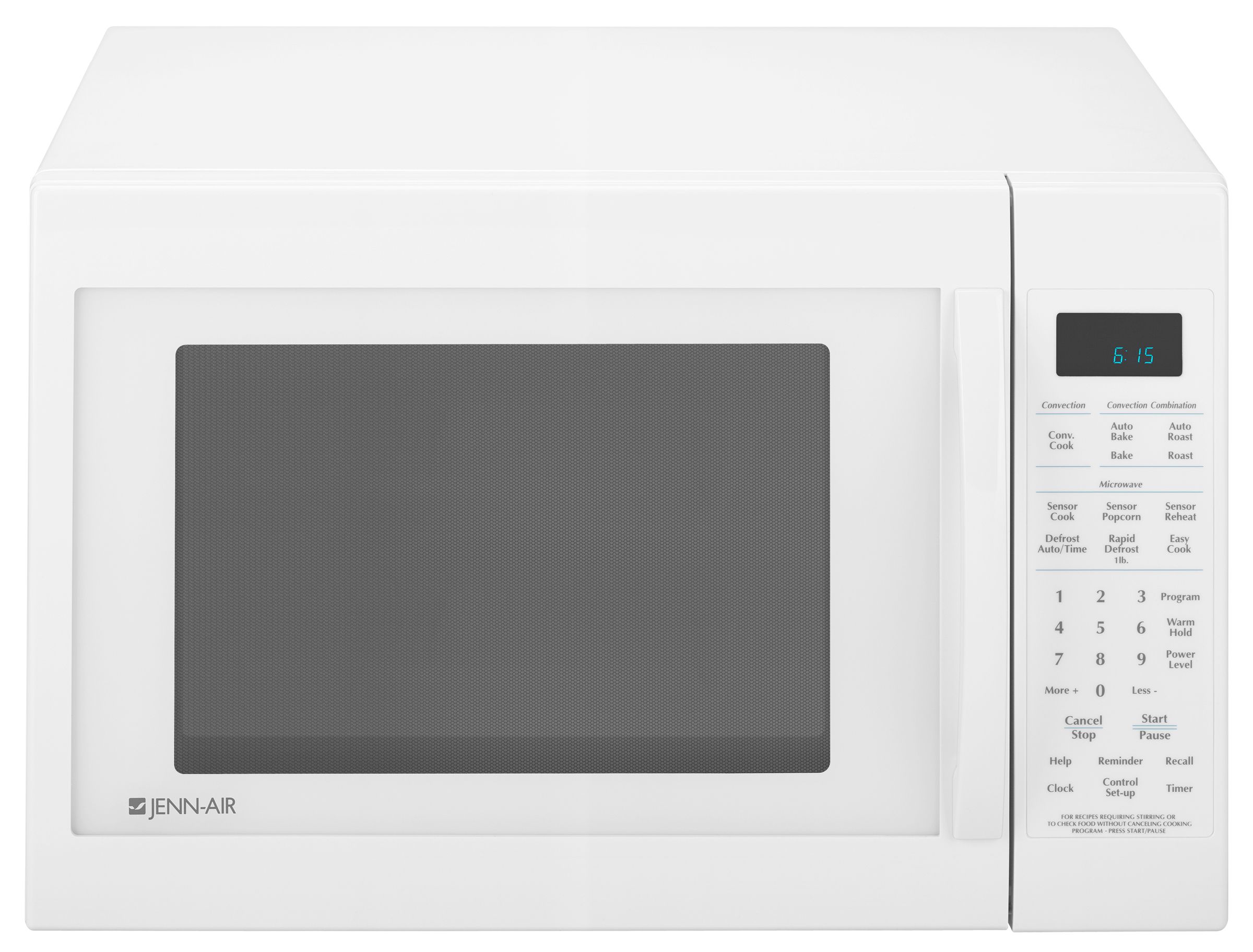

Jenn-Air JMC9158BAW microwave Parts
Here are the diagrams and repair parts for Jenn-Air JMC9158BAW microwave, as well as links to manuals and error code tables, if available.
Owner’s manual
By Schematic
SELECT DIAGRAM
Browse Parts for JMC9158BAW Microwaves

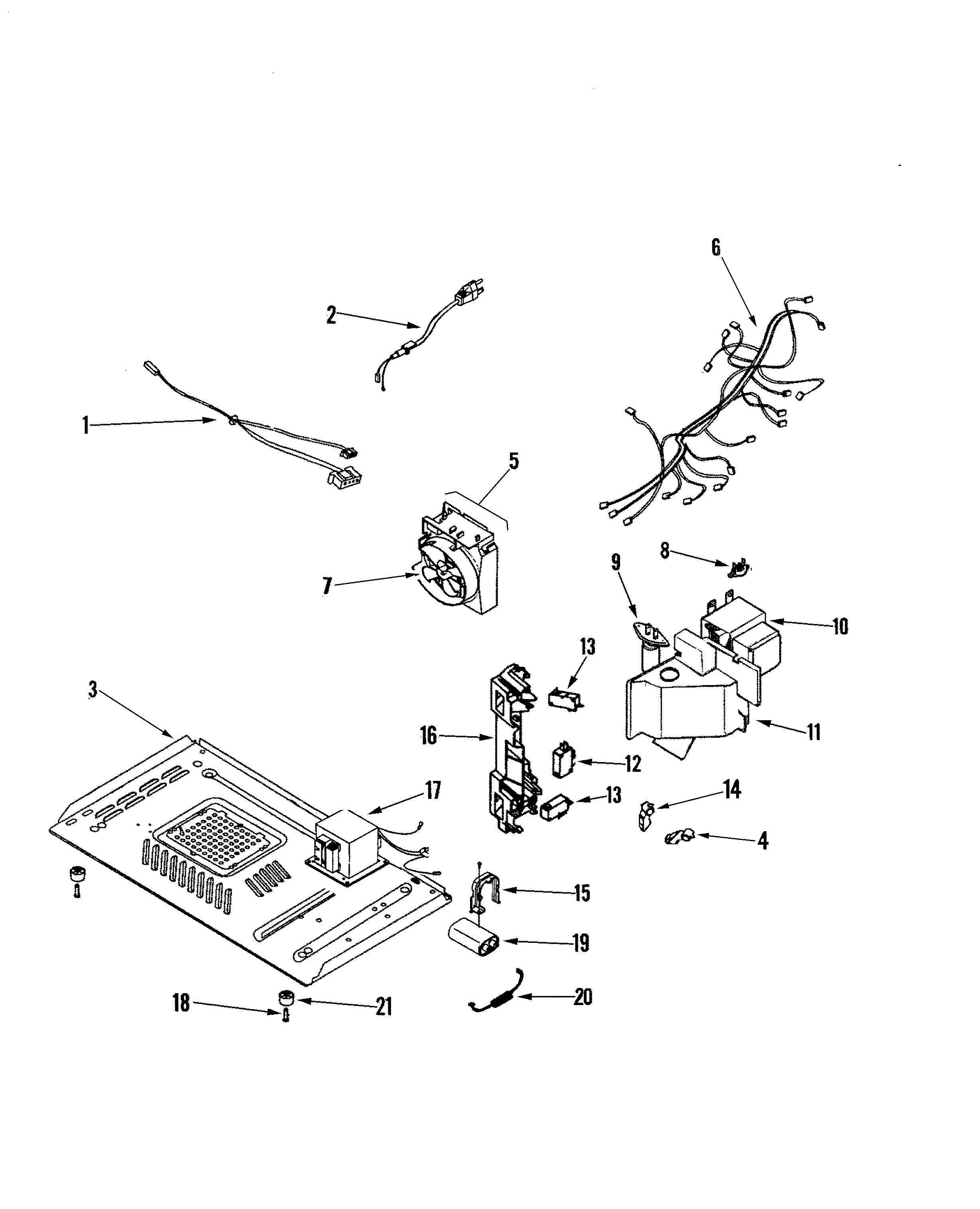

Base/internal controls diagram
Fan Motor
Part #DE31-10155T
The manufacturer no longer makes this part, and there's no substitute part

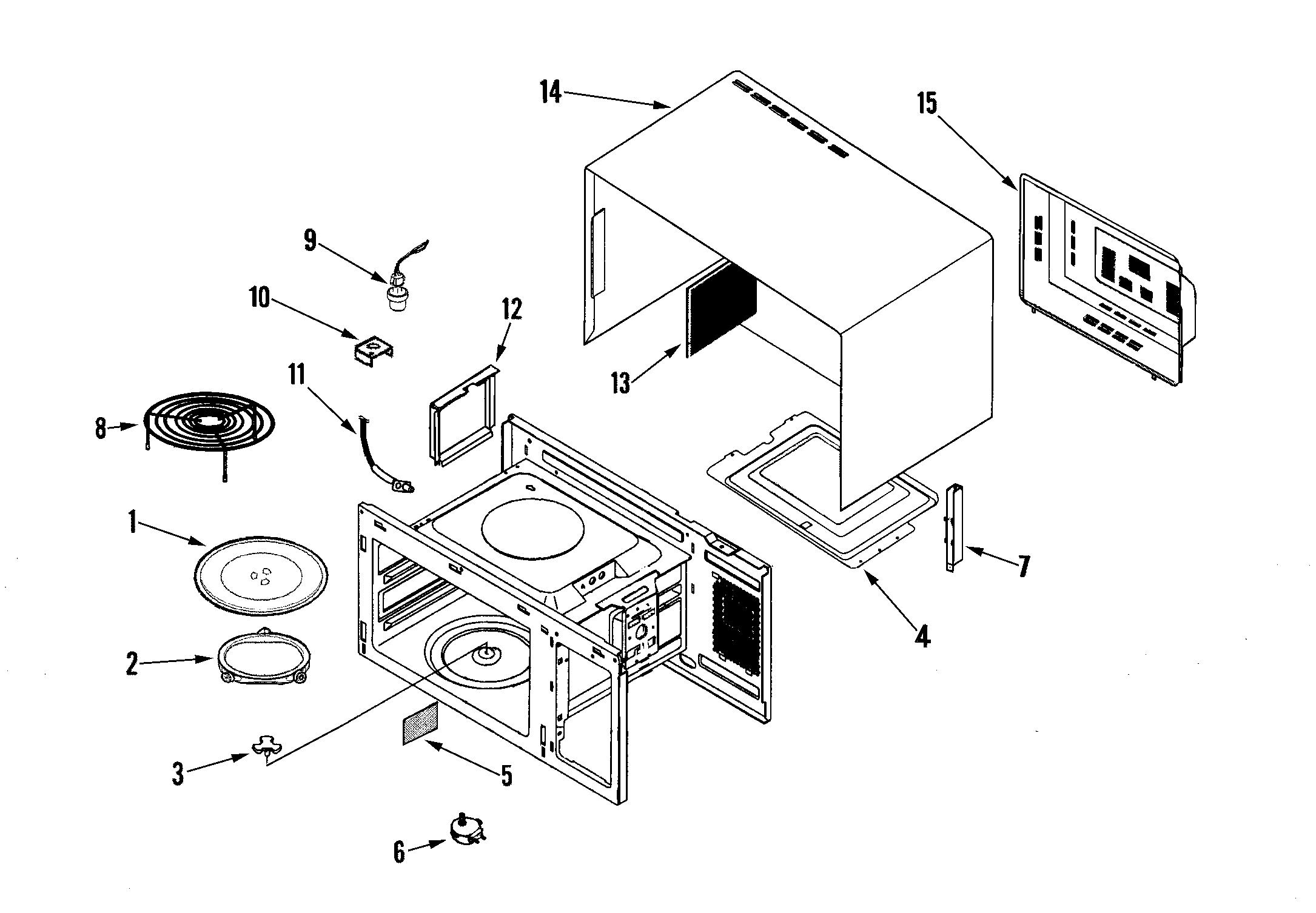

Body/cavity diagram
Coupler
Part #DE67-00206A
The manufacturer no longer makes this part, and there's no substitute part
Base/internal controls diagram
Wire Assembly
Part #DE96-00315B
The manufacturer no longer makes this part, and there's no substitute part

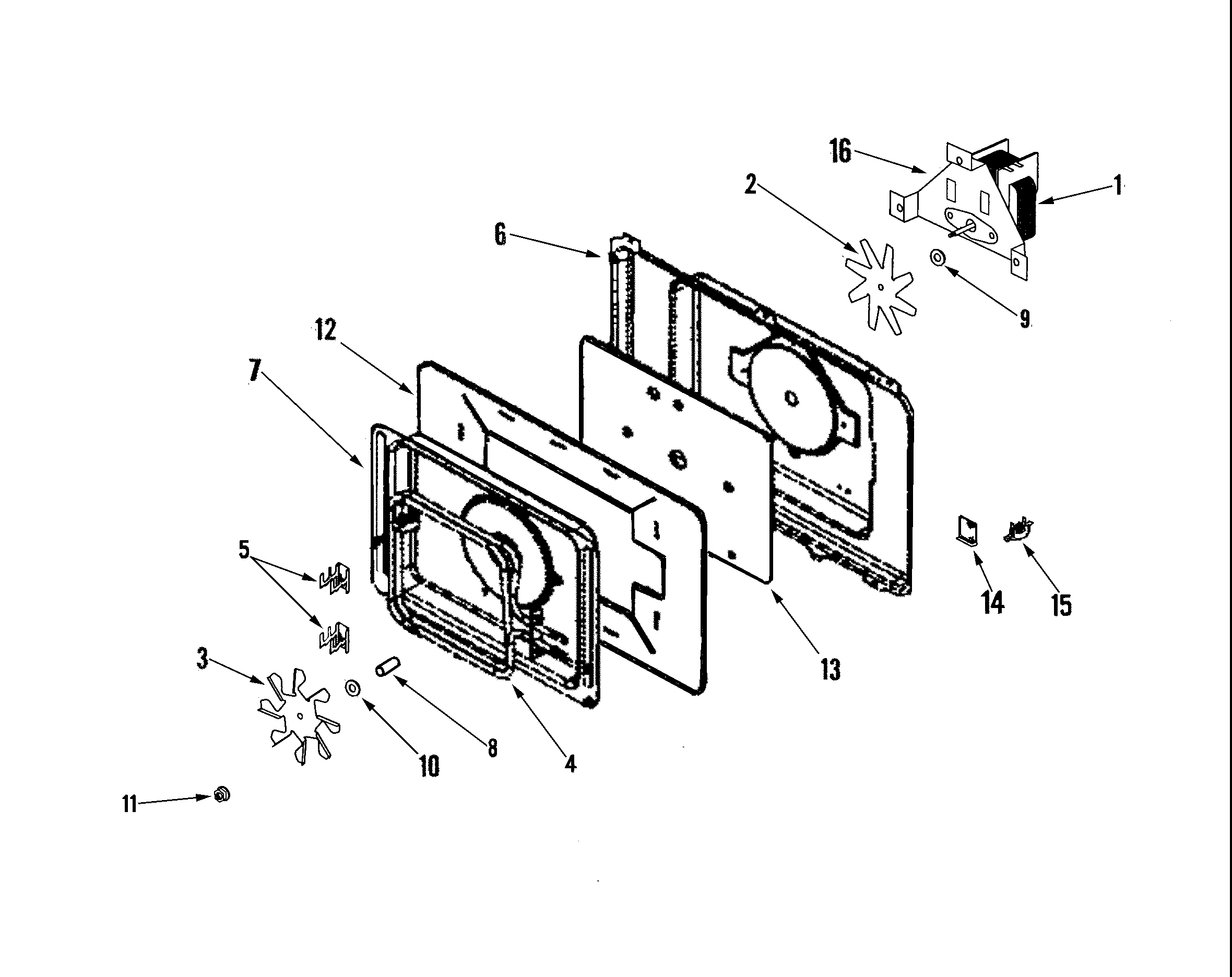

Convection motor diagram
Adiabatic-casing(b) (series 10)
Part #DE62-00055A
The manufacturer no longer makes this part, and there's no substitute part
Bracket-casing (qty 2) (series 10)
Part #DE61-00792A
The manufacturer no longer makes this part, and there's no substitute part

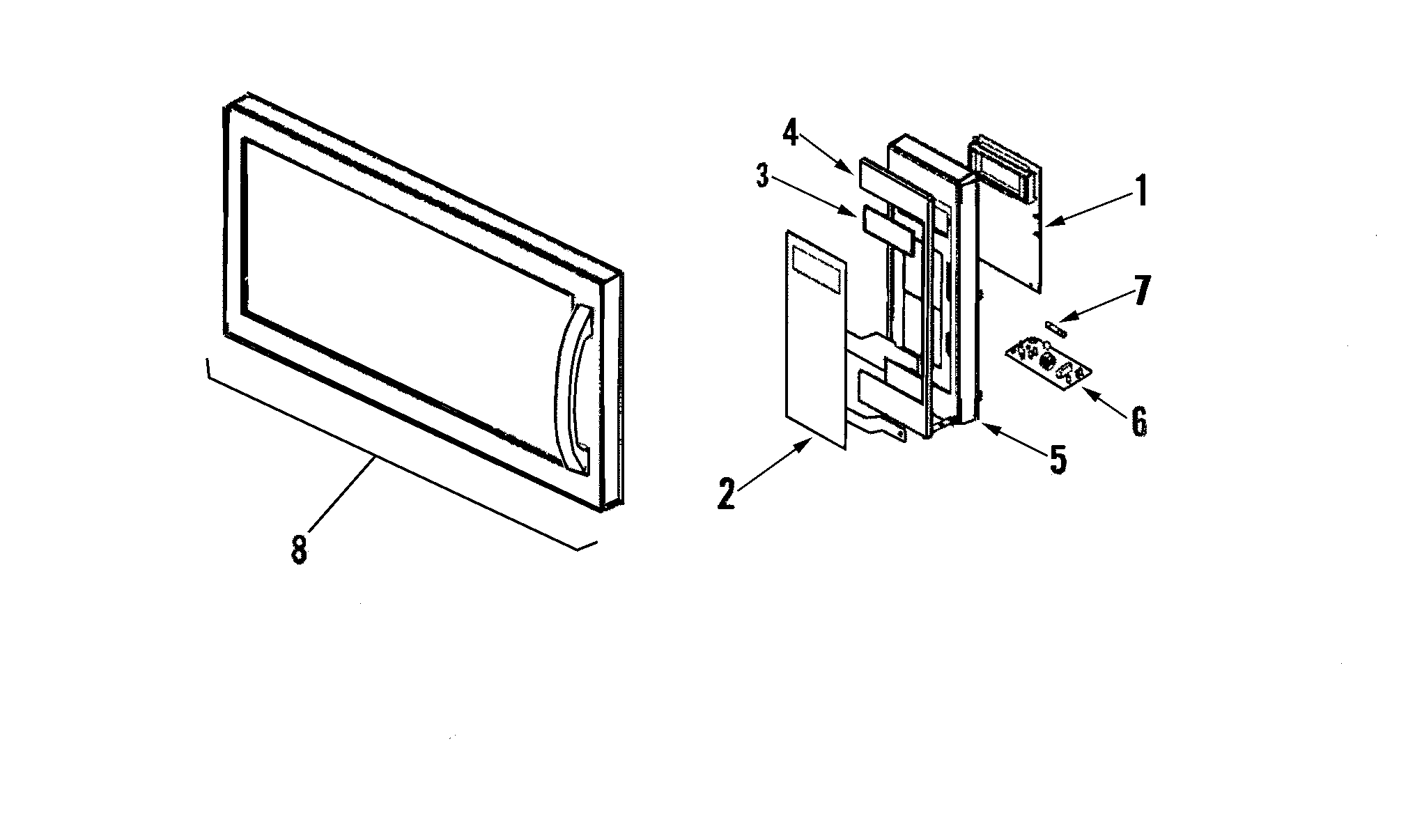

Control panel/door assembly diagram
Door Assembly
Part #DE94-01364D
The manufacturer no longer makes this part, and there's no substitute part
Base/internal controls diagram
Latch Body
Part #DE72-00137F
The manufacturer no longer makes this part, and there's no substitute part
Base/internal controls diagram
Film-lamp (series 10) (non-illus)
Part #DE01-00166A
The manufacturer no longer makes this part, and there's no substitute part
Control panel/door assembly diagram
Filter
Part #DE96-00399B
The manufacturer no longer makes this part, and there's no substitute part
Base/internal controls diagram
Incandescent Lamp
Part #DE07-00006A
The manufacturer no longer makes this part, and there's no substitute part
