Kenmore 867736349 gas-fired forced air wall furnace Parts

Here are the diagrams and repair parts for Kenmore 867736349 gas-fired forced air wall furnace, as well as links to manuals and error code tables, if available.

Kenmore 867736349 gas-fired forced air wall furnace
By Schematic

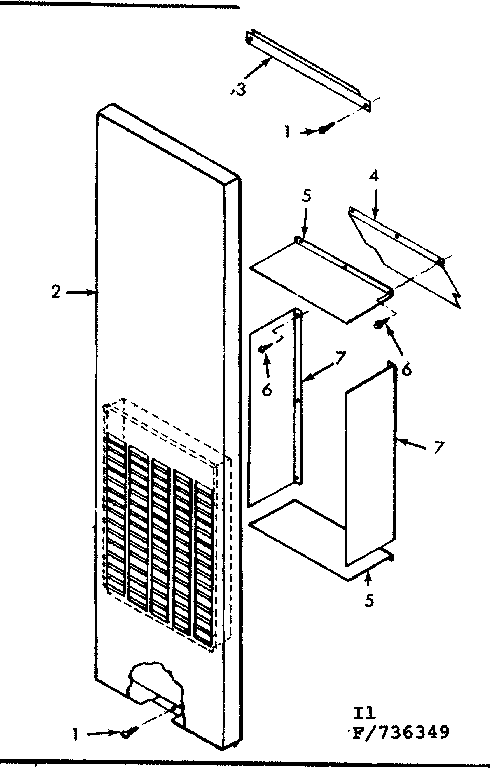

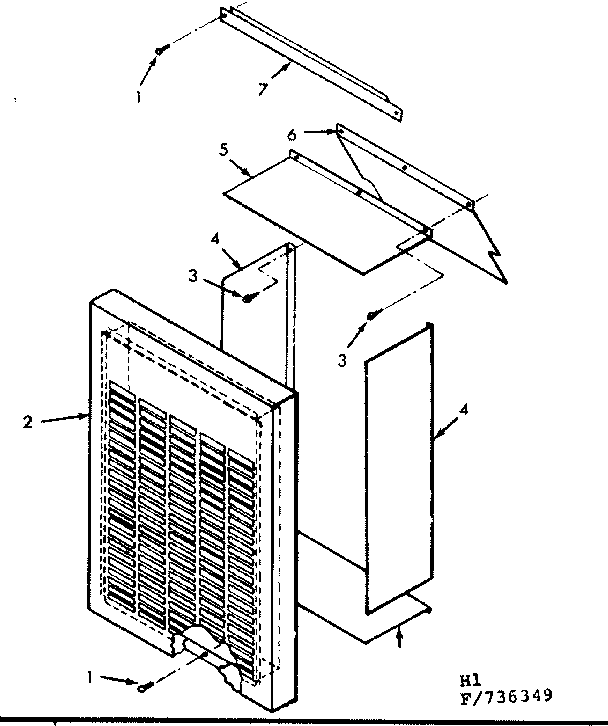

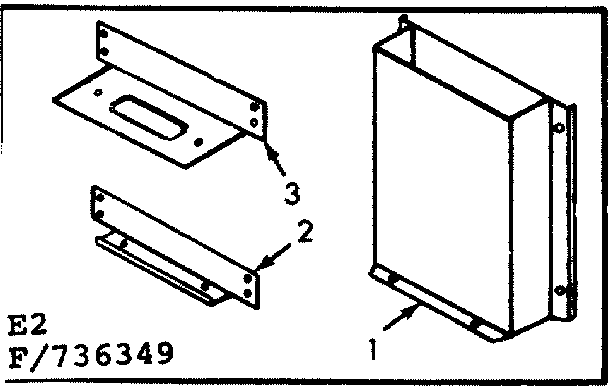

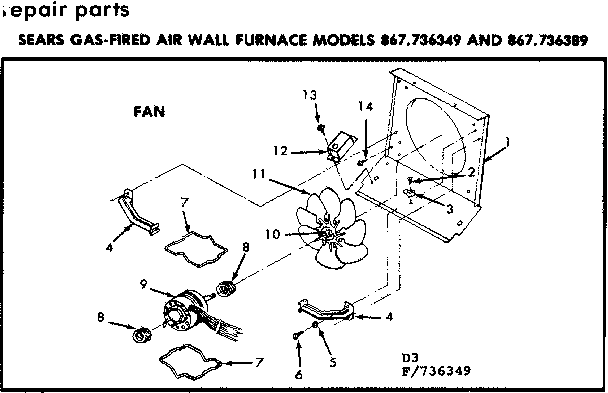

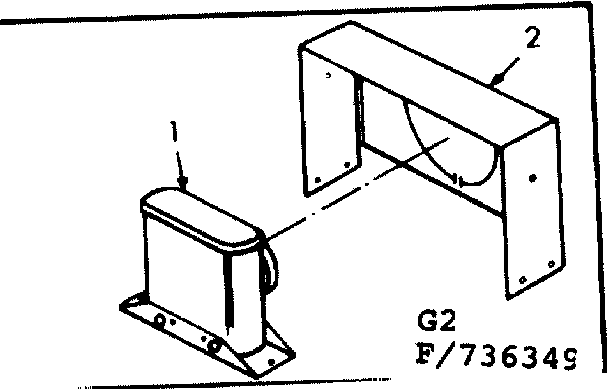

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for867736349 Gas-Fired Forced Air Wall Furnace

  • Screw for Kenmore 867736349 - Part 27207

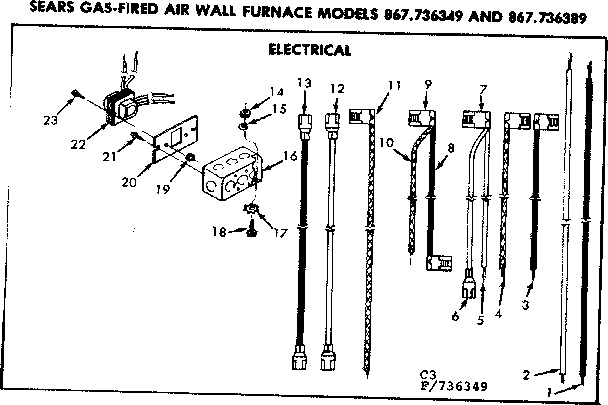

    Electrical diagram

    Screw

    Part #27207

    The manufacturer no longer makes this part, and there's no substitute part

  • #burner Pilot Gas Incl Key 19 for Kenmore 867736349 - Part N/P

    #burner Pilot Gas Incl Key 19

    Part #N/P

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire White for Kenmore 867736349 - Part 502191

    Electrical diagram

    Wire White

    Part #502191

    The manufacturer no longer makes this part, and there's no substitute part

  • Top for Kenmore 867736349 - Part 504106

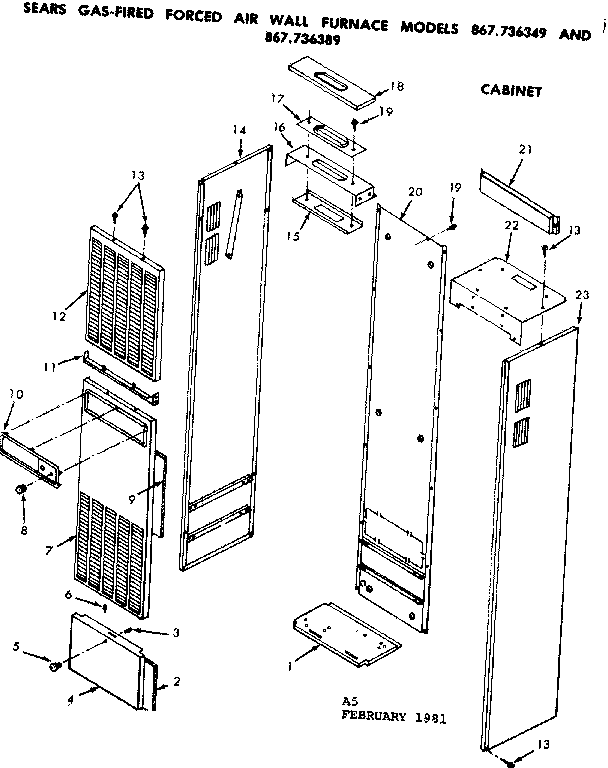

    Cabinet diagram

    Top

    Part #504106

    The manufacturer no longer makes this part, and there's no substitute part

  • Bracket for Kenmore 867736349 - Part 503961

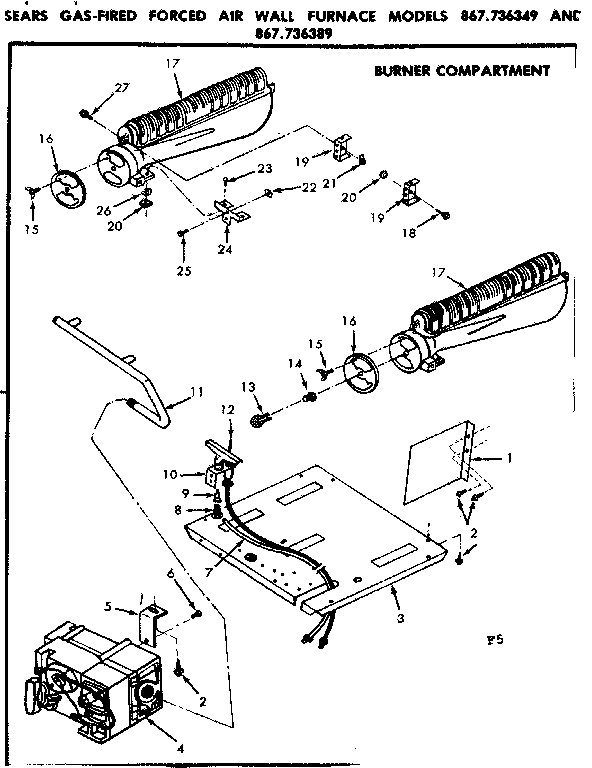

    Burner compartment diagram

    Bracket

    Part #503961

    The manufacturer no longer makes this part, and there's no substitute part

  • Limit Switch for Kenmore 867736349 - Part 507132

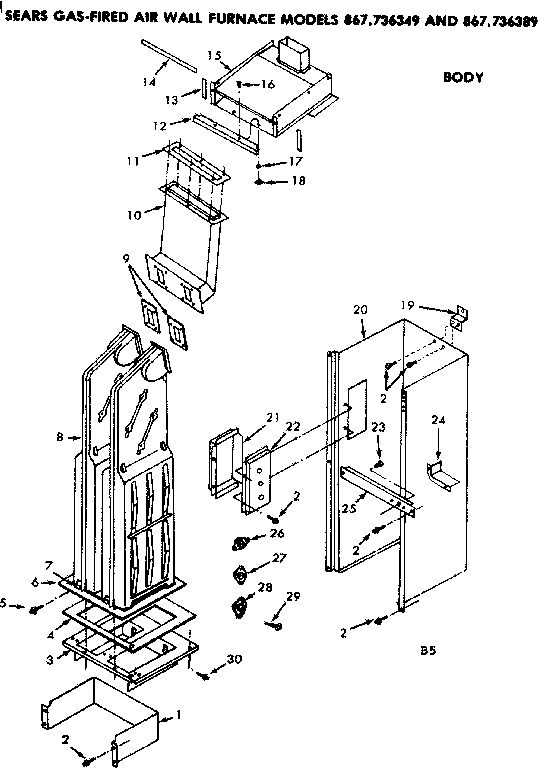

    Body diagram

    Limit Switch

    Part #507132

    The manufacturer no longer makes this part, and there's no substitute part

  • Trim for Kenmore 867736349 - Part 504239

    Cabinet diagram

    Trim

    Part #504239

    The manufacturer no longer makes this part, and there's no substitute part

  • Comb Chamber for Kenmore 867736349 - Part 504751

    Body diagram

    Comb Chamber

    Part #504751

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Knob for Kenmore 867736349 - Part 39238

    Cabinet diagram

    Door Knob

    Part #39238

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Kenmore 867736349 - Part STD510602

    Cabinet diagram

    Screw

    Part #STD510602

    The manufacturer no longer makes this part, and there's no substitute part
