Model # HF200A Official Canon camcorder

Here are the diagrams and repair parts for Official Canon HF200A camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

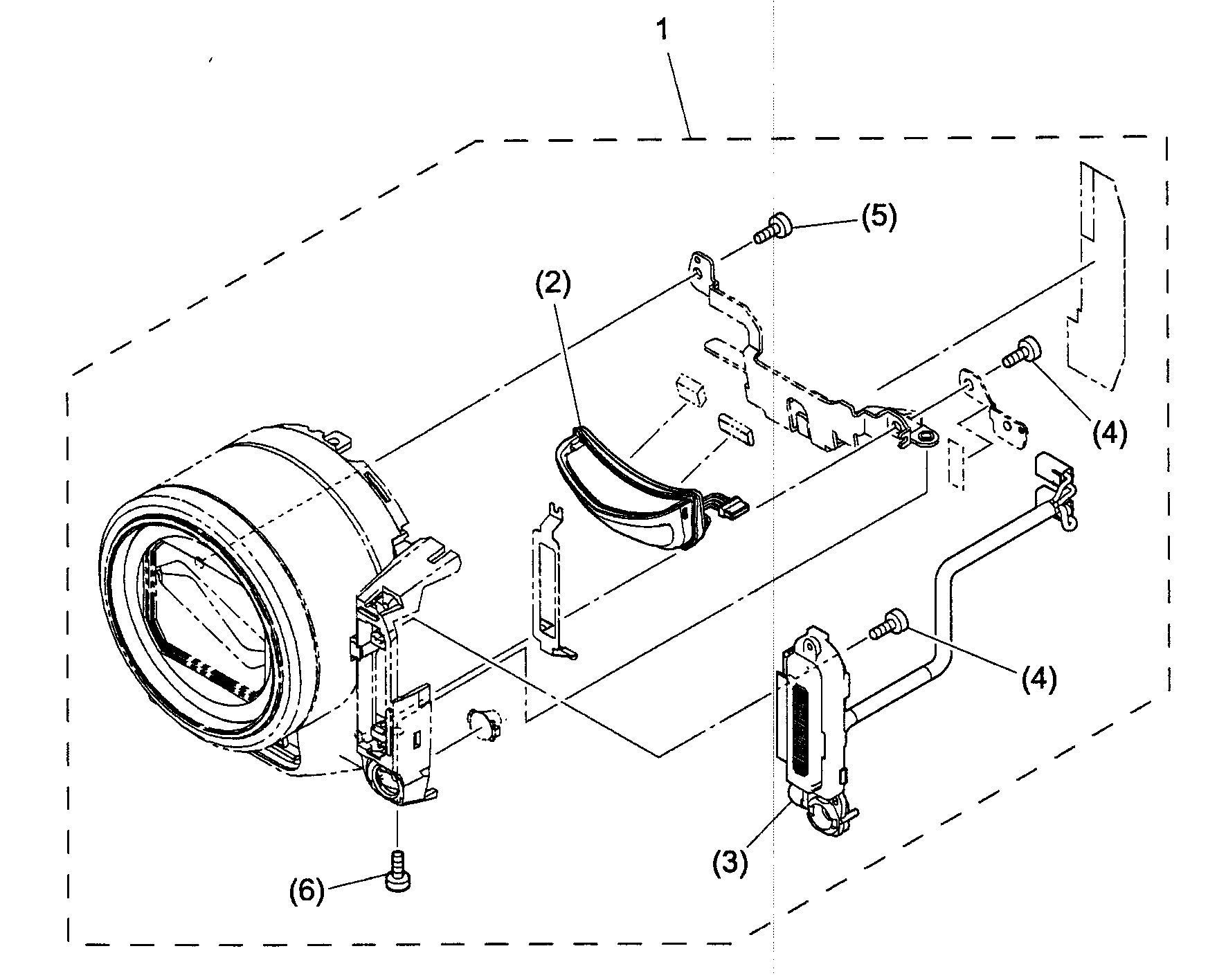

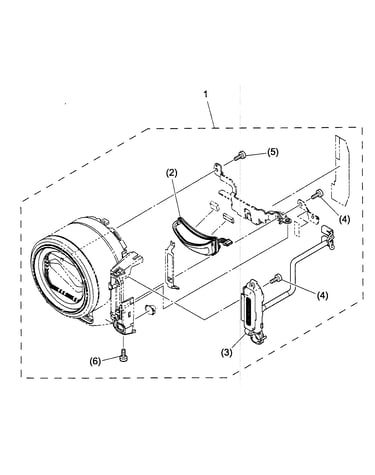

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Lens Cap,r DA3-5267-000
#NI

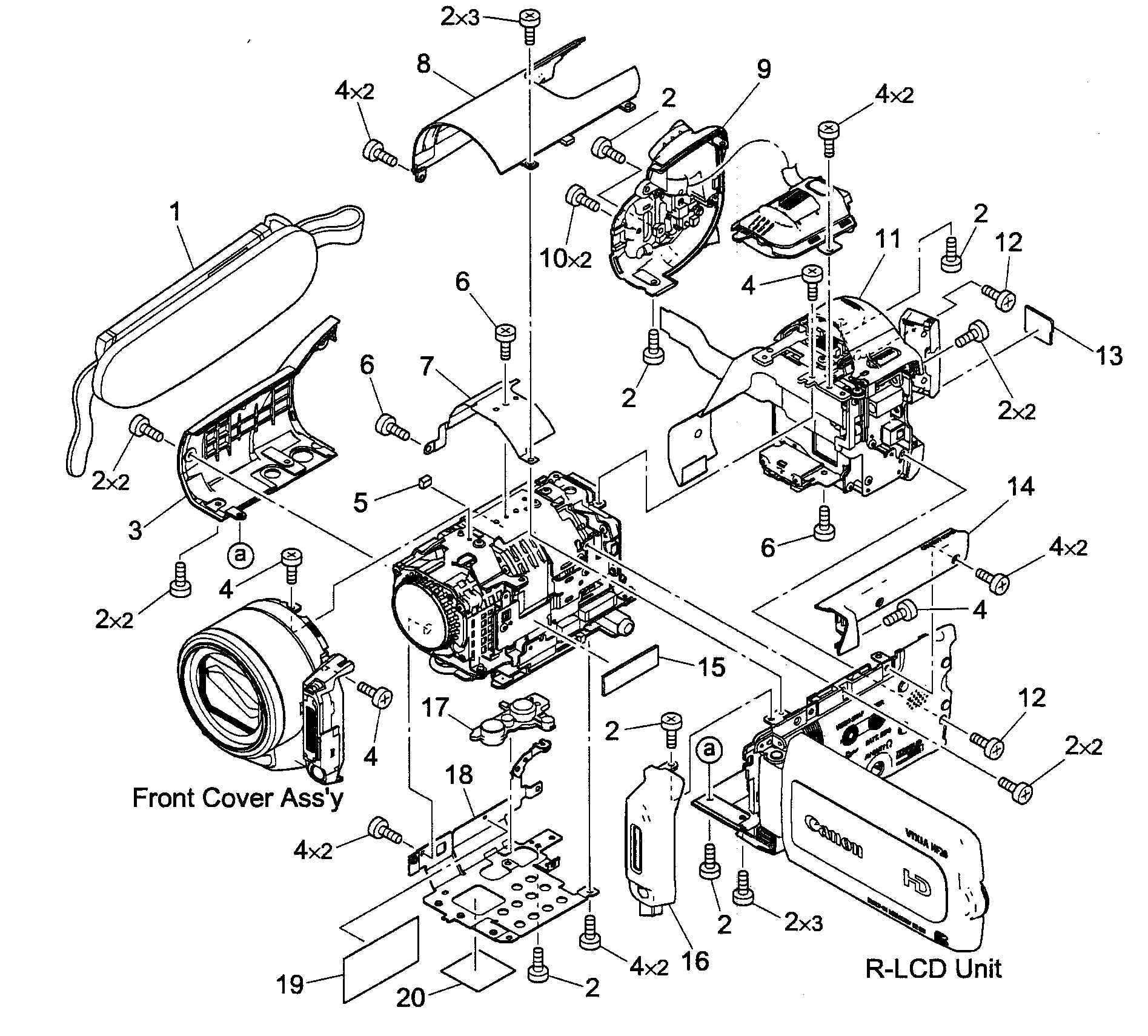

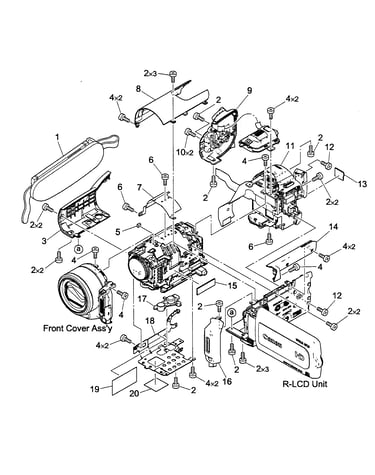

Cabinet parts 1 diagram

Lens cap,r

Part #DA3-5267-000

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord D82-0642-000
#NI

Cabinet parts 1 diagram

Ac cord

Part #D82-0642-000

The manufacturer no longer makes this part, and there's no substitute part

Charger Battery CG-800
#NI

Cabinet parts 1 diagram

Charger battery

Part #CG-800

The manufacturer no longer makes this part, and there's no substitute part

Screw XA1-7170-309
#1

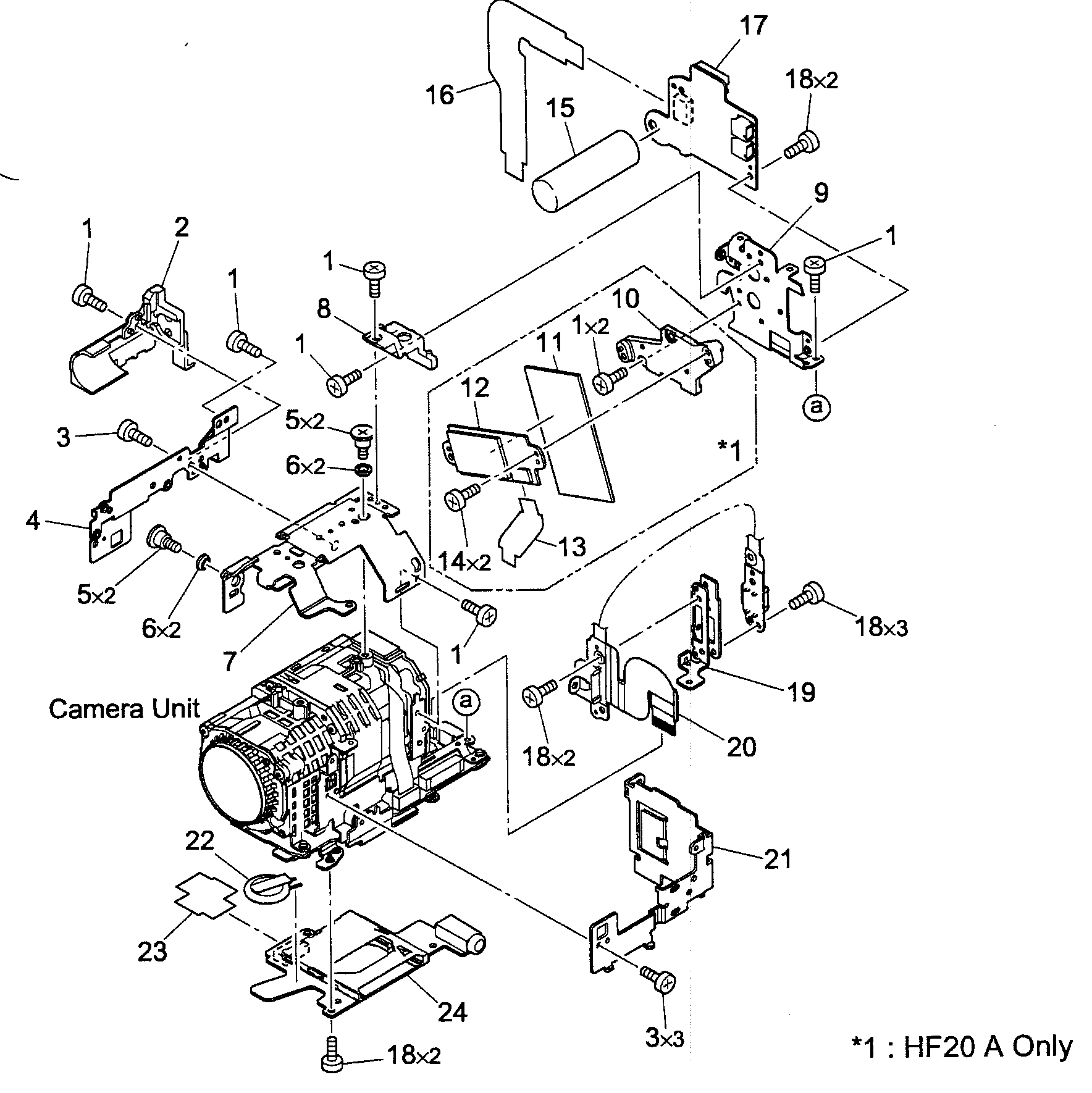

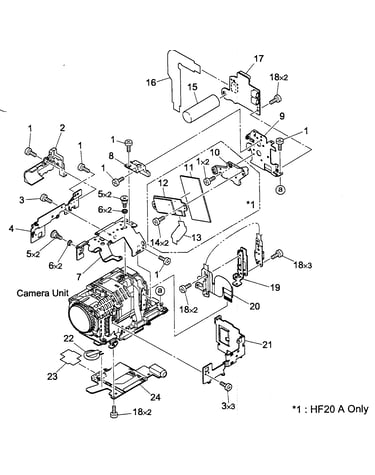

Cabinet parts 2 diagram

Screw

Part #XA1-7170-309

The manufacturer no longer makes this part, and there's no substitute part

Strap D81-1530-000
#NI

Cabinet parts 1 diagram

Strap

Part #D81-1530-000

The manufacturer no longer makes this part, and there's no substitute part

Battery WK1-5164-000
#22

Cabinet parts 2 diagram

Battery

Part #WK1-5164-000

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker WR1-5142-000
#7

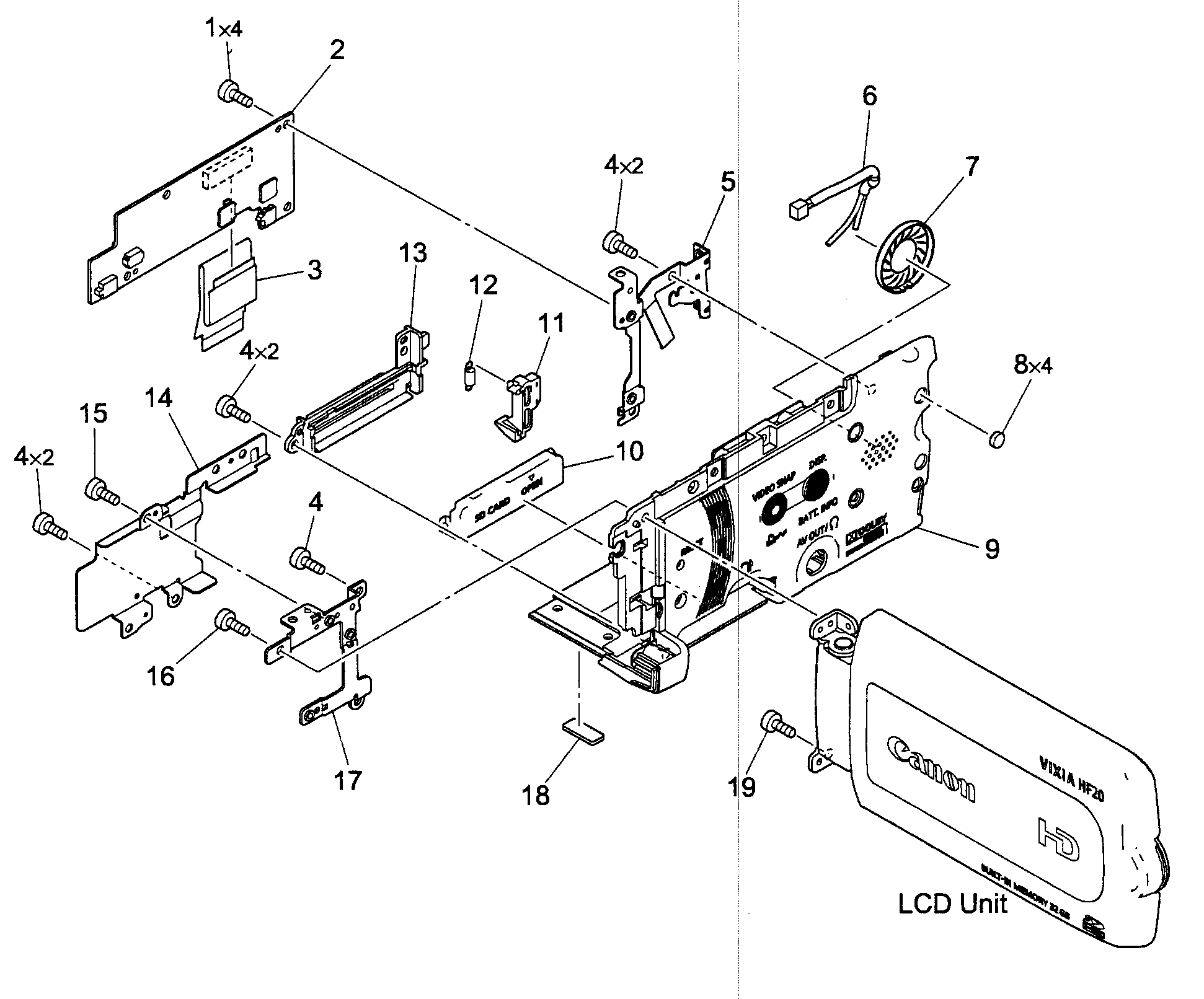

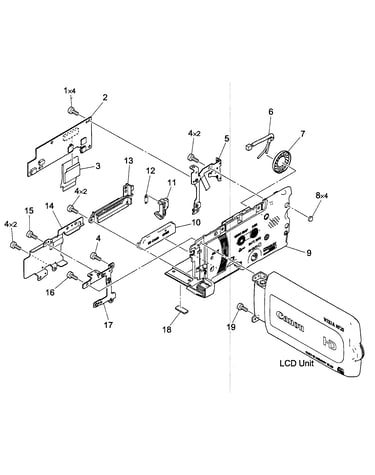

Right cabinet diagram

Camcorder speaker

Part #WR1-5142-000

The manufacturer no longer makes this part, and there's no substitute part

Sheet,connector DA3-9241-000
#13

Cabinet parts 1 diagram

Sheet,connector

Part #DA3-9241-000

The manufacturer no longer makes this part, and there's no substitute part

Holder,main DF1-5329-000
#18

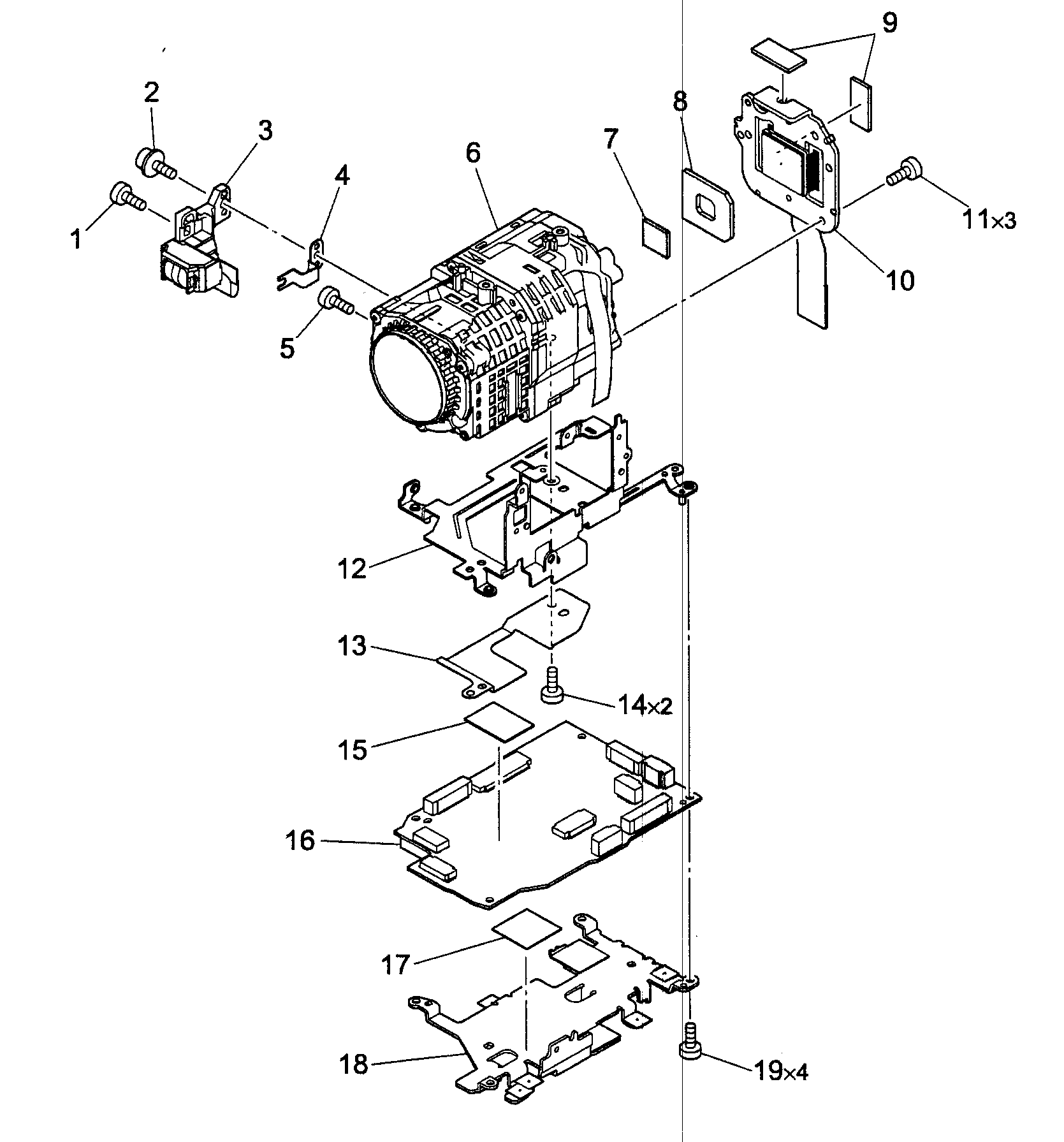

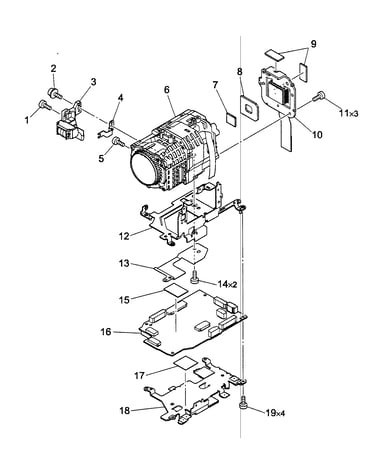

Lens assy diagram

Holder,main

Part #DF1-5329-000

The manufacturer no longer makes this part, and there's no substitute part

Hinge DY1-9318-000
#15

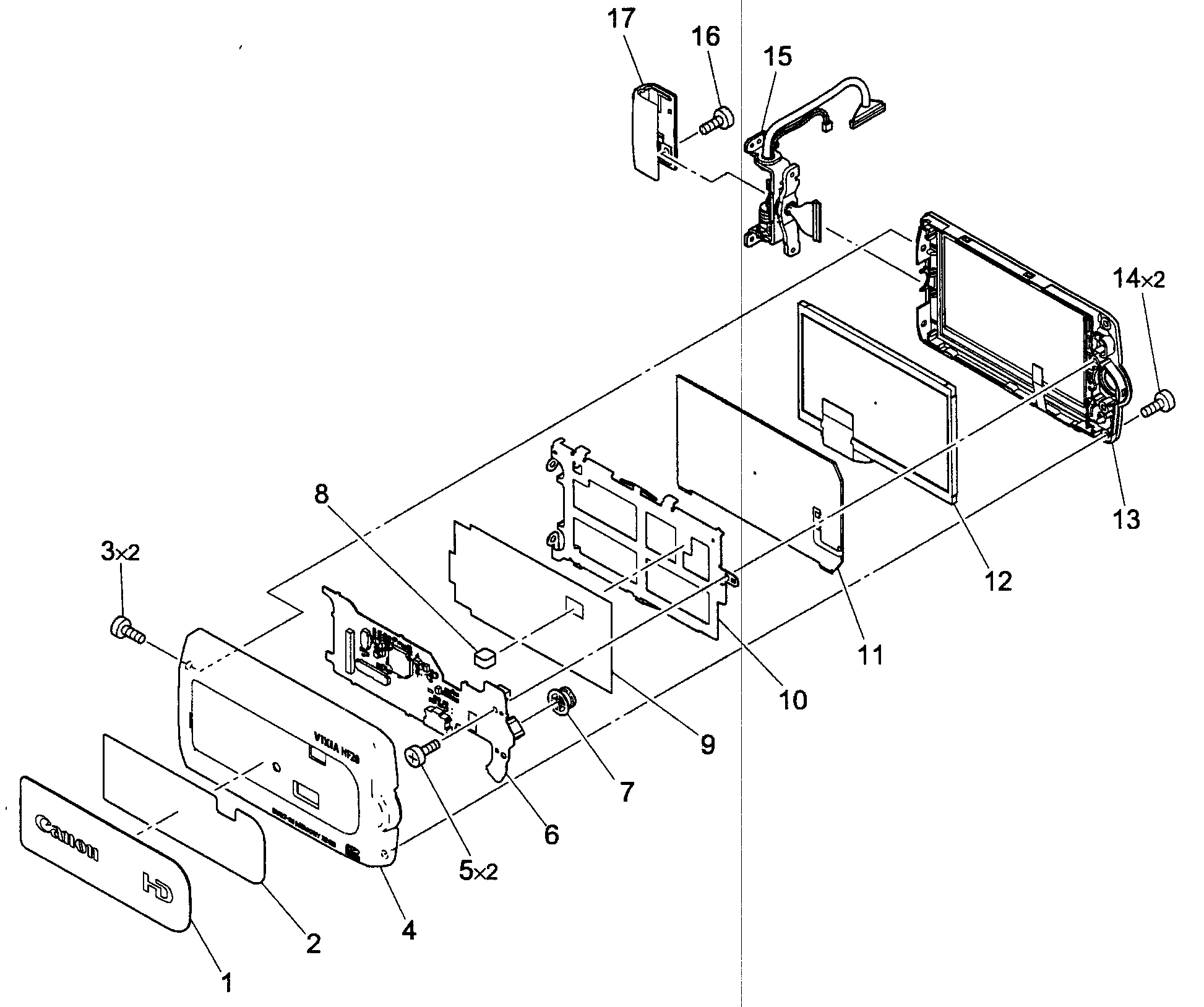

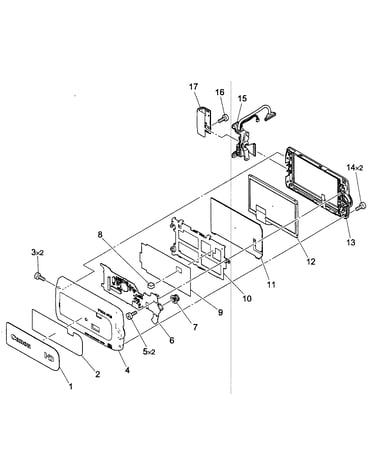

Lcd assy diagram

Hinge

Part #DY1-9318-000

The manufacturer no longer makes this part, and there's no substitute part
