DeWalt
Angle Grinder

Model # DWE4120 TYPE 1 Official DeWalt angle grinder

Here are the diagrams and repair parts for Official DeWalt DWE4120-TYPE-1 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Clamp 619328-00
#14

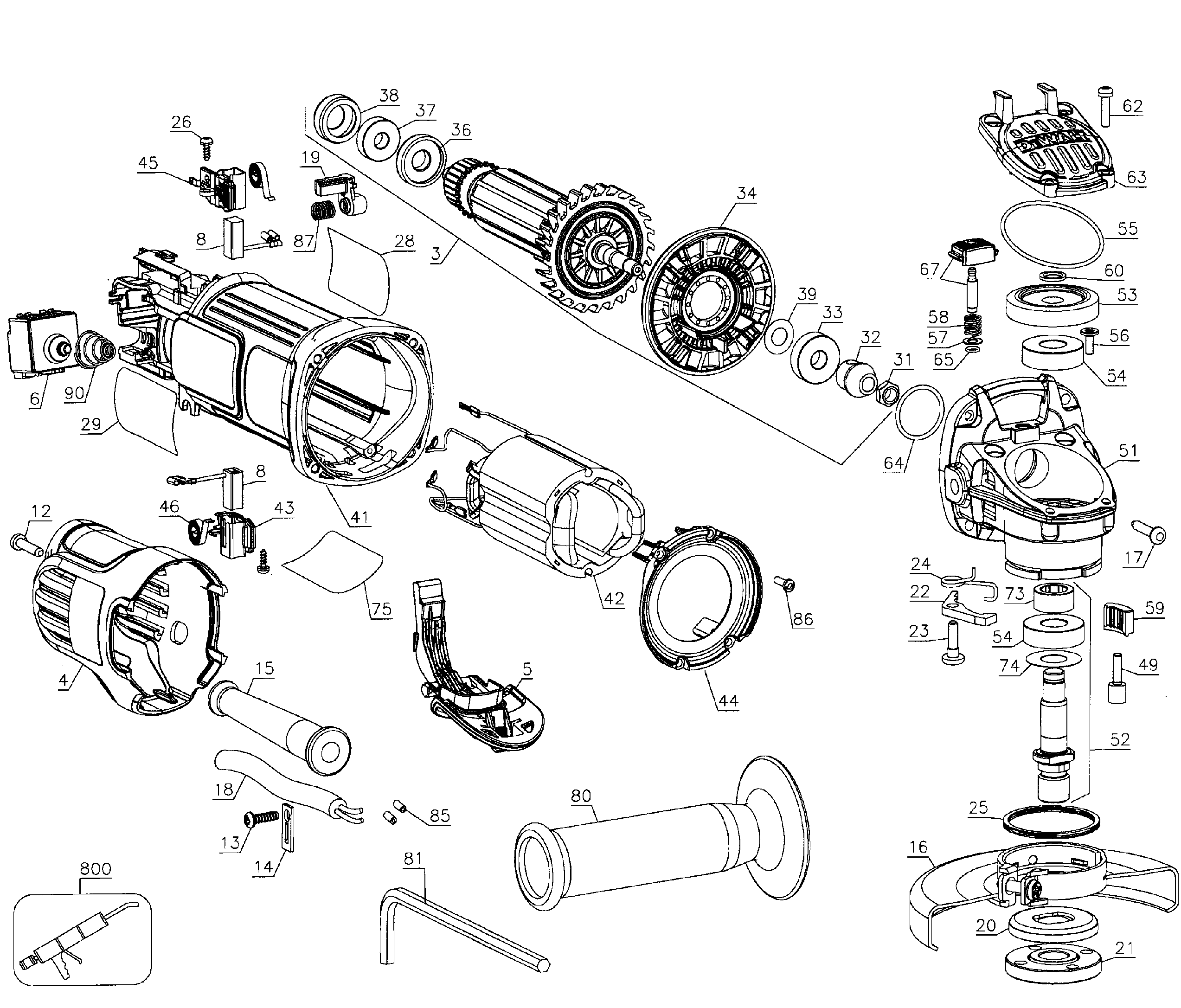

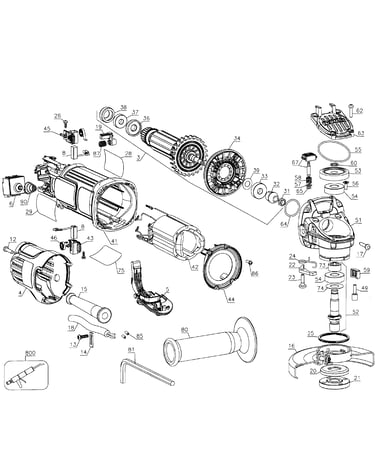

Grinder assy diagram

Clamp

Part #619328-00

The manufacturer no longer makes this part, and there's no substitute part

Spring N105579
#24

Grinder assy diagram

Spring

Part #N105579

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Washer N115381
#20

Grinder assy diagram

Angle grinder washer

Part #N115381

The manufacturer no longer makes this part, and there's no substitute part

Bearing 330003-64
#54

Grinder assy diagram

Bearing

Part #330003-64

The manufacturer no longer makes this part, and there's no substitute part

Terminal 444262-00
#85

Grinder assy diagram

Terminal

Part #444262-00

The manufacturer no longer makes this part, and there's no substitute part

Field N122019
#41

Grinder assy diagram

Field

Part #N122019

The manufacturer no longer makes this part, and there's no substitute part

Case N153391
#51

Grinder assy diagram

Case

Part #N153391

The manufacturer no longer makes this part, and there's no substitute part

Hex Wrench N107295
#81

Grinder assy diagram

Hex wrench

Part #N107295

The manufacturer no longer makes this part, and there's no substitute part

Grinder Motor Brush N097696
#8

Grinder assy diagram

Grinder motor brush

Part #N097696

The manufacturer no longer makes this part, and there's no substitute part

Washer N094651
#57

Grinder assy diagram

Washer

Part #N094651

The manufacturer no longer makes this part, and there's no substitute part
