Craftsman
Walk-Behind Mower

Model # 88989 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 88989 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Flat Washer 1708012
#41

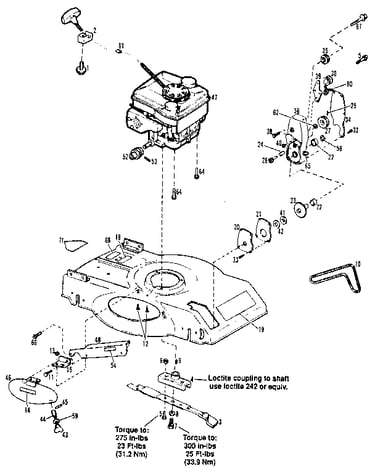

Engine diagram

Flat washer

Part #1708012

Replaced by #736-0188

?
Manufacturer substitution
This part replaces 1708012. Substitute parts can look different from the original.
$6.58 |
13% OFF Phone Price : $7.58
In Stock
Cable Tie 1763682
#27

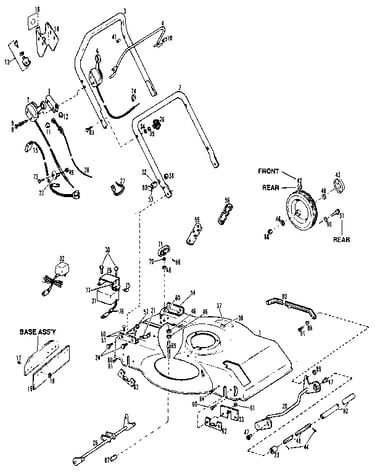

Handle assembly diagram

Cable tie

Part #1763682

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 1763682. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Push Cap 1724791
#40

Engine diagram

Push cap

Part #1724791

Replaced by #726-0100

?
Manufacturer substitution
This part replaces 1724791. Substitute parts can look different from the original.
This item is not returnable
$6.91
In Stock
Cap 1727342
Cap

Part #1727342

Replaced by #726-0135

?
Manufacturer substitution
This part replaces 1727342. Substitute parts can look different from the original.
This item is not returnable
$10.46 |
16% OFF Phone Price : $12.46
In Stock
Screw 1186347
#7

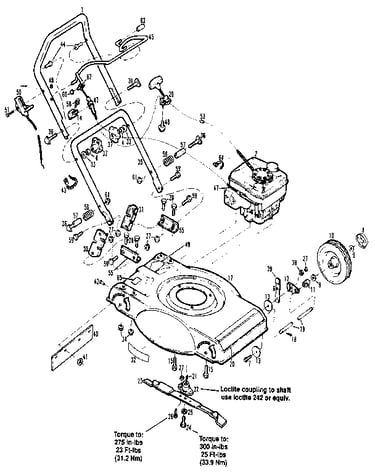

Mower housing diagram

Screw

Part #1186347

Replaced by #710-04042

?
Manufacturer substitution
This part replaces 1186347. Substitute parts can look different from the original.
This item is not returnable
$7.43
In Stock
Nut 1186389
#13

Engine diagram

Nut

Part #1186389

Replaced by #1186389

?
Manufacturer substitution
This part replaces 1186389. Substitute parts can look different from the original.
This item is not returnable
$4.51
In Stock
Screw 1100068
Screw

Part #1100068

The manufacturer no longer makes this part, and there's no substitute part

Nut 1186393
#88

Handle assembly diagram

Nut

Part #1186393

Replaced by #1186393

?
Manufacturer substitution
This part replaces 1186393. Substitute parts can look different from the original.
This item is not returnable
$4.86
In Stock
Screw 1731025
Screw

Part #1731025

Replaced by #710-1174

?
Manufacturer substitution
This part replaces 1731025. Substitute parts can look different from the original.
This item is not returnable
$10.97 |
15% OFF Phone Price : $12.97
In Stock
Flange 1186328
#28

Mower housing diagram

Flange

Part #1186328

Replaced by #710-04049

?
Manufacturer substitution
This part replaces 1186328. Substitute parts can look different from the original.
$7.60
In Stock
