Model # 41AD179A034 Official Ryobi trimmer

Here are the diagrams and repair parts for Official Ryobi 41AD179A034 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 146 parts |

#12

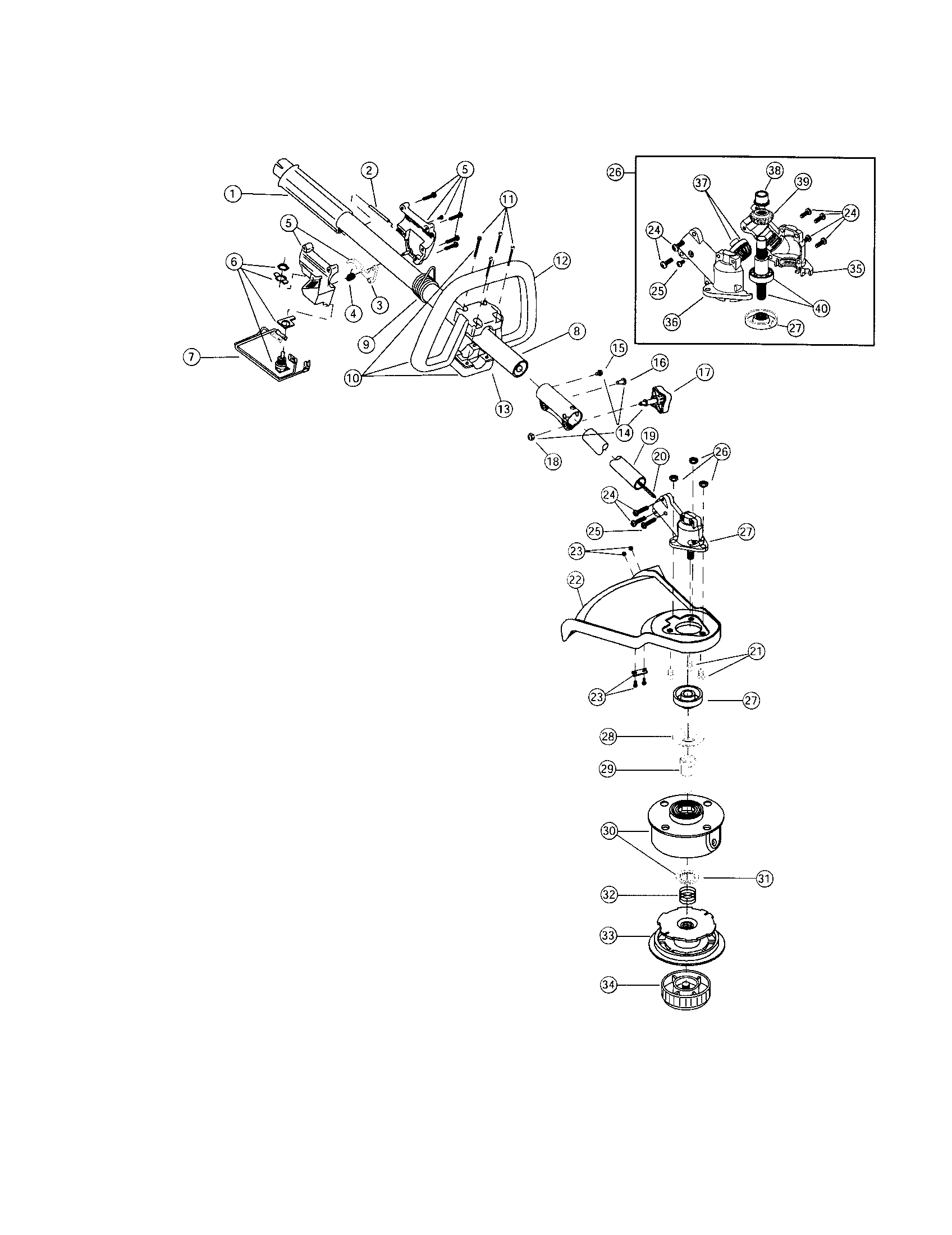

Boom and trimmer diagram

Line trimmer handle

Part #791-182167

$102.80

In Stock

Qty

#84

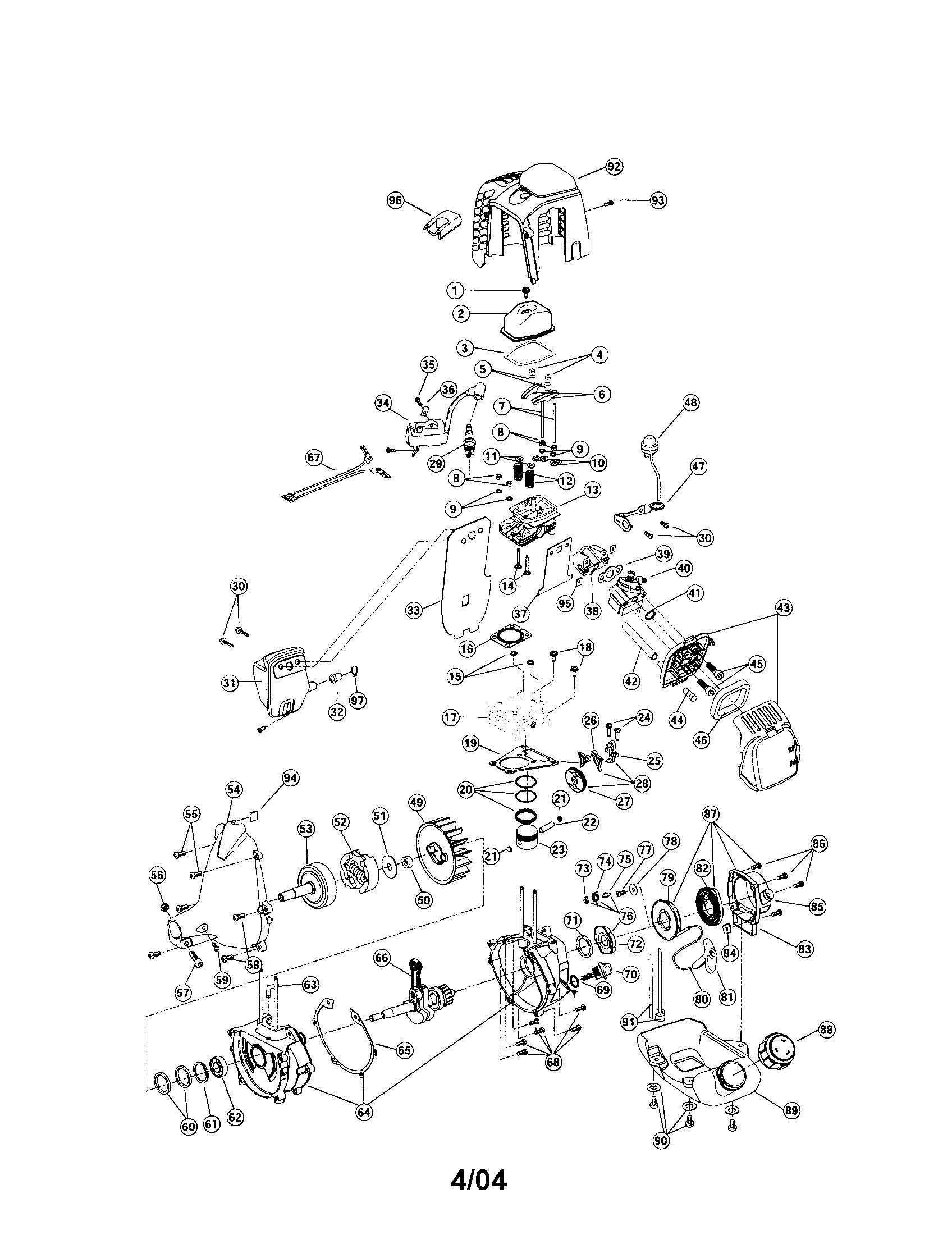

Engine diagram

Nut, m5 x 0.

Part #791-182121

The manufacturer no longer makes this part, and there's no substitute part

#NI05

All parts diagram

Line

Part #791-180120

The manufacturer no longer makes this part, and there's no substitute part

#29

Engine diagram

Spark plug

Part #791-180852

The manufacturer no longer makes this part, and there's no substitute part

#13

Boom and trimmer diagram

D-hndl base

Part #791-182168

The manufacturer no longer makes this part, and there's no substitute part

#28

Boom and trimmer diagram

Washer

Part #791-147490

The manufacturer no longer makes this part, and there's no substitute part

#31

Boom and trimmer diagram

Retainer

Part #791-612026

The manufacturer no longer makes this part, and there's no substitute part

#83

Engine diagram

Recoil case

Part #791-182120

The manufacturer no longer makes this part, and there's no substitute part

#26

Engine diagram

Cam

Part #791-182123

The manufacturer no longer makes this part, and there's no substitute part

#13

Engine diagram

Cylinder head assembly

Part #791-182306

The manufacturer no longer makes this part, and there's no substitute part
