Jenn-Air CVEX4270B19 43" electric downdraft cooktop

Jenn-Air CVEX4270B19 43" electric downdraft cooktop Parts

Here are the diagrams and repair parts for Jenn-Air CVEX4270B19 43" electric downdraft cooktop, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for CVEX4270B19 Cooktops

  • Range Surface Element Control Switch for Jenn-Air CVEX4270B19 - Part W11120791

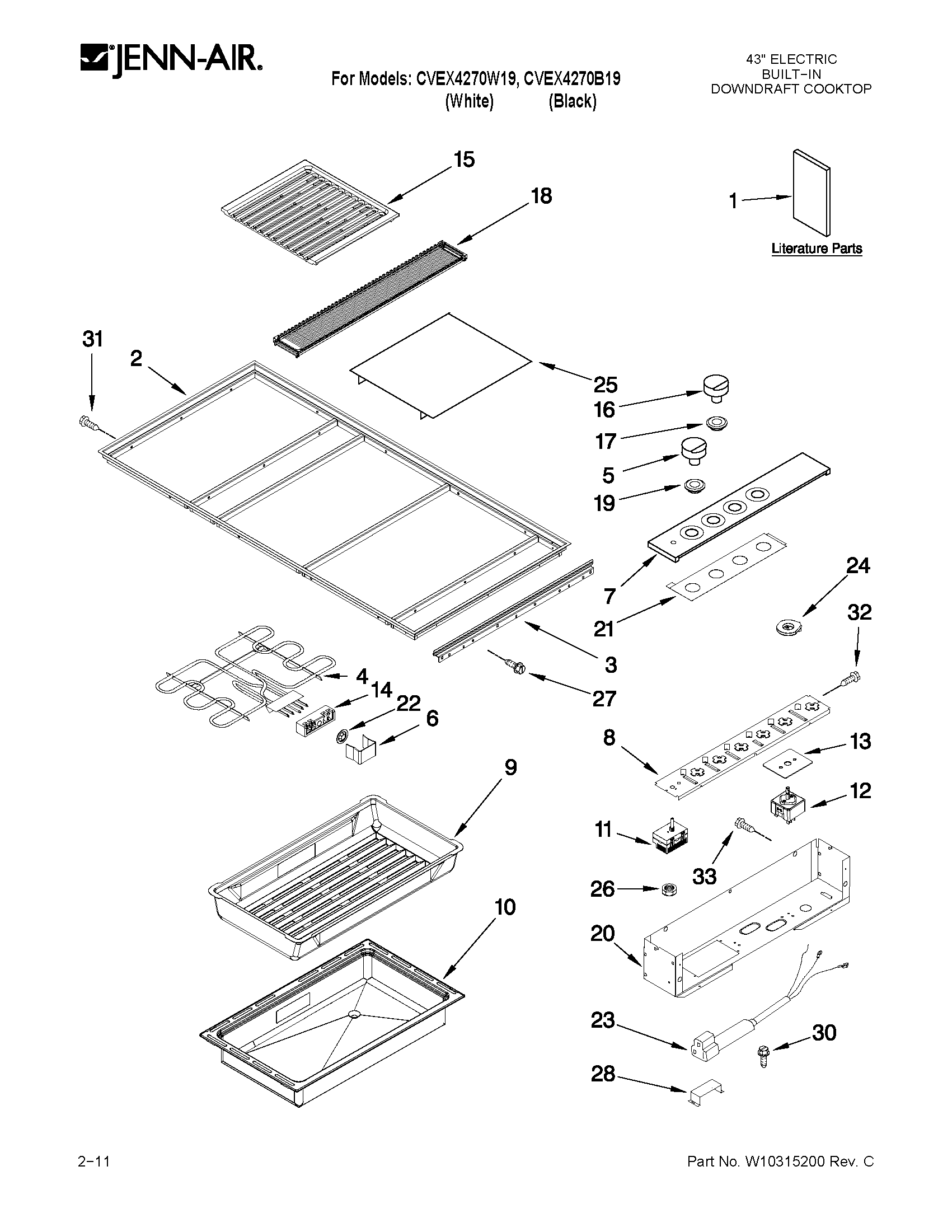

    Cooktop parts diagram

    Cooktop Burner Control Switch

    Part #7403P402-60

    Replaced by #W11120791

    Info Icon
    Manufacturer substitution
    This part replaces 7403P402-60. Substitute parts can look different from the original.
    In Stock
    $75.64
    7% OFF Phone Price : $81.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Jenn-Air CVEX4270B19 - Part WPY706189

    Cooktop parts diagram

    Screw

    Part #7101P427-60

    Replaced by #WPY706189

    Info Icon
    Manufacturer substitution
    This part replaces 7101P427-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.21
    16% OFF Phone Price : $6.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Fan Control Knob (black) for Jenn-Air CVEX4270B19 - Part W11715914

    Cooktop parts diagram

    Knob, Fan (black)

    Part #7739P062-60

    Replaced by #W11715914

    Info Icon
    Manufacturer substitution
    This part replaces 7739P062-60. Substitute parts can look different from the original.
    In Stock
    $65.39
    Minus Item
    Qty
    Plus Item
  • Cooktop Blower Motor for Jenn-Air CVEX4270B19 - Part 5700D511-60

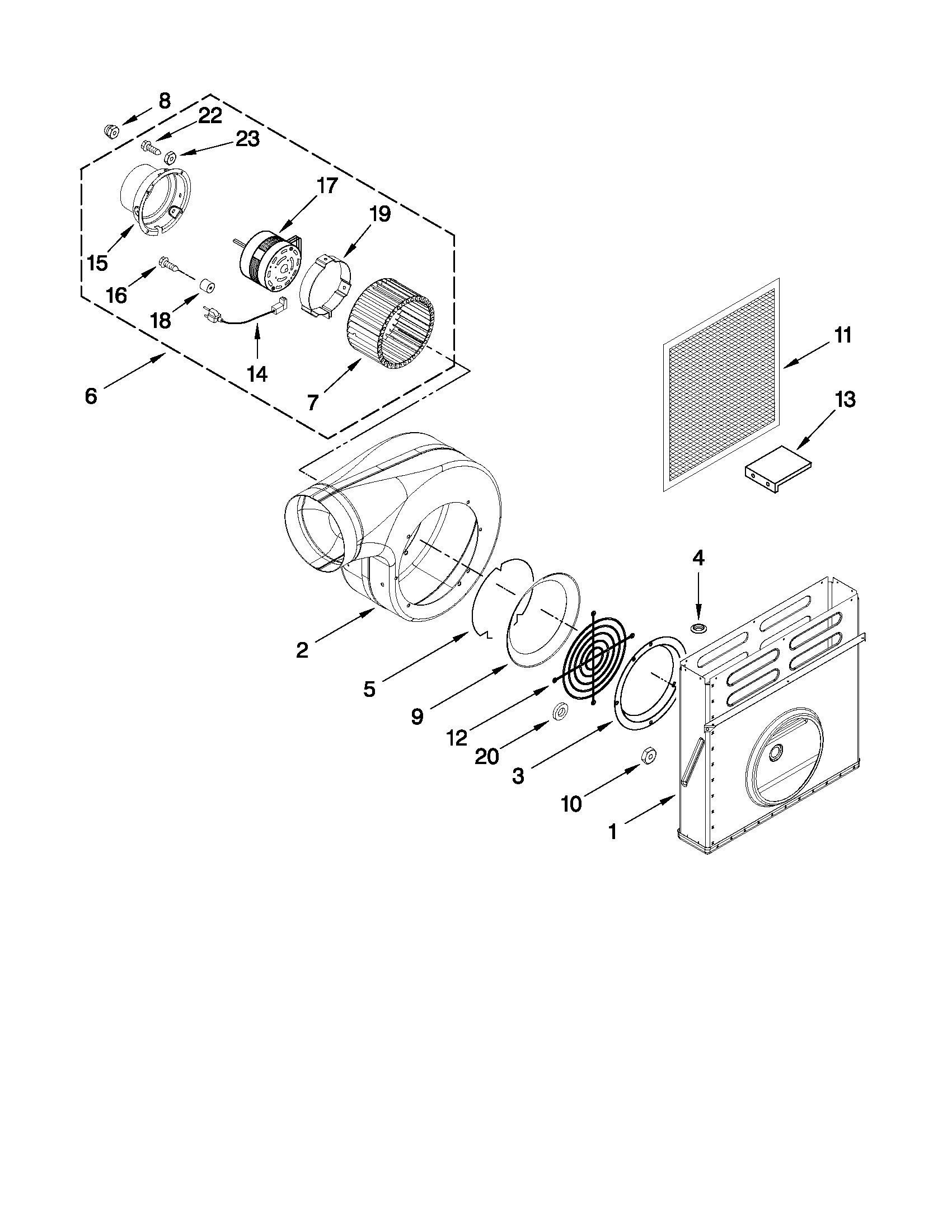

    Blower unit parts diagram

    Cooktop Blower Motor

    Part #5700D511-60
    In Stock
    $340.54
    Minus Item
    Qty
    Plus Item
  • Cooktop Grill Element for Jenn-Air CVEX4270B19 - Part 7406P228-60

    Cooktop parts diagram

    Cooktop Grill Element

    Part #7406P228-60
    In Stock
    $244.68
    Minus Item
    Qty
    Plus Item
  • Block- Ter for Jenn-Air CVEX4270B19 - Part 7401P061-60

    Cooktop parts diagram

    Block- Ter

    Part #7401P061-60
    In Stock
    $57.90
    Minus Item
    Qty
    Plus Item
  • Cooktop Downdraft Vent Blower Wheel for Jenn-Air CVEX4270B19 - Part WPY707985

    Blower unit parts diagram

    Wheel- Blo

    Part #7114P005-60

    Replaced by #WPY707985

    Info Icon
    Manufacturer substitution
    This part replaces 7114P005-60. Substitute parts can look different from the original.
    In Stock
    $107.06
    10% OFF Phone Price : $119.06Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Jenn-Air CVEX4270B19 - Part WP71001171

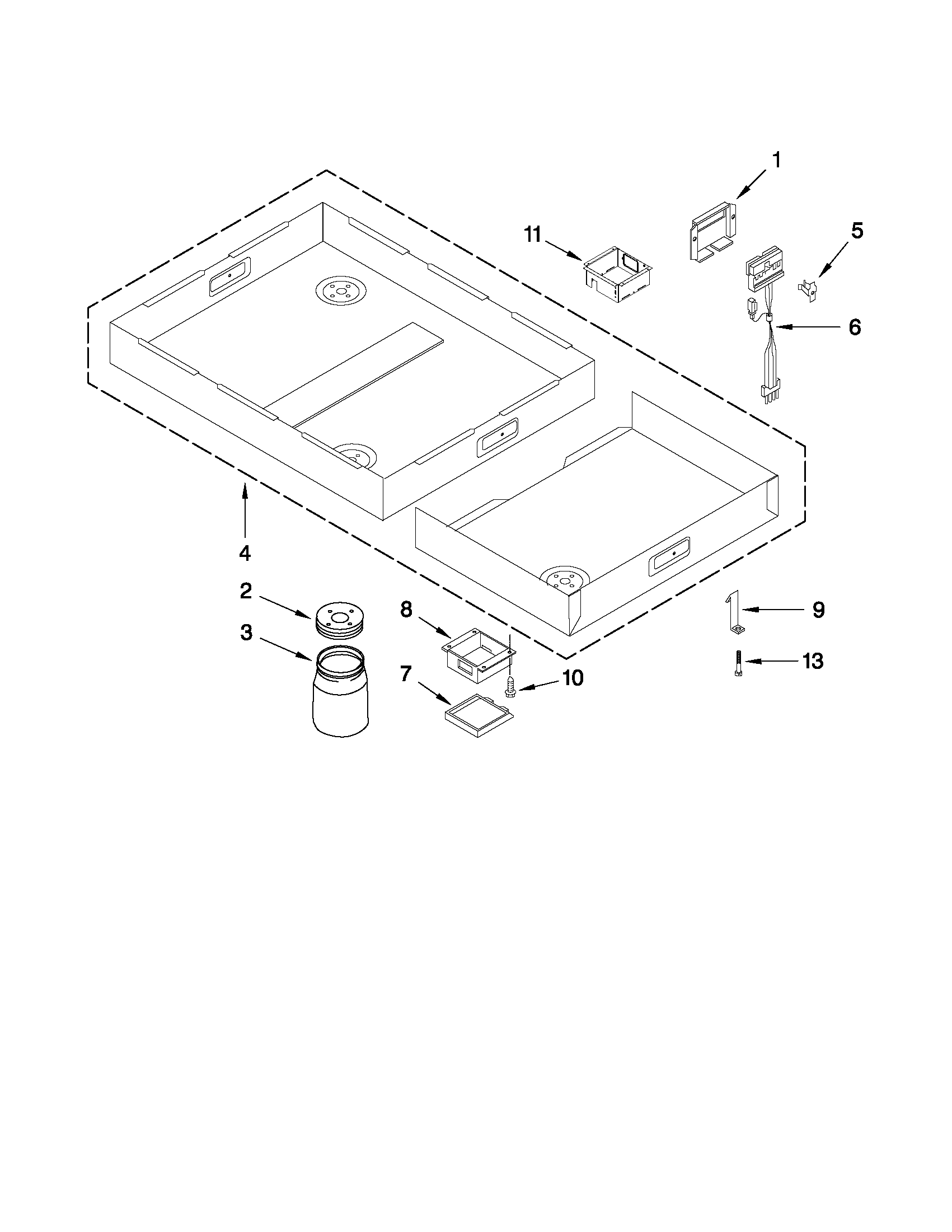

    Burner box assembly diagram

    Screw- Gro

    Part #7101P460-60

    Replaced by #WP71001171

    Info Icon
    Manufacturer substitution
    This part replaces 7101P460-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator for Jenn-Air CVEX4270B19 - Part W11233072

    Cooktop parts diagram

    Screw

    Part #7101P428-60

    Replaced by #W11233072

    Info Icon
    Manufacturer substitution
    This part replaces 7101P428-60. Substitute parts can look different from the original.
    In Stock
    $17.63
    Minus Item
    Qty
    Plus Item
  • Gasket for Jenn-Air CVEX4270B19 - Part WP71002569

    Cooktop parts diagram

    Gasket- In

    Part #7201P077-60

    Replaced by #WP71002569

    Info Icon
    Manufacturer substitution
    This part replaces 7201P077-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.25
    11% OFF Phone Price : $9.25Info Icon
    Minus Item
    Qty
    Plus Item
