Black & Decker
Electric Leaf Blower

Model # BV2500 TYPE 6 Official Black & Decker blower

Here are the diagrams and repair parts for Official Black & Decker BV2500-TYPE-6 blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |

Clamp 370020-00
#10

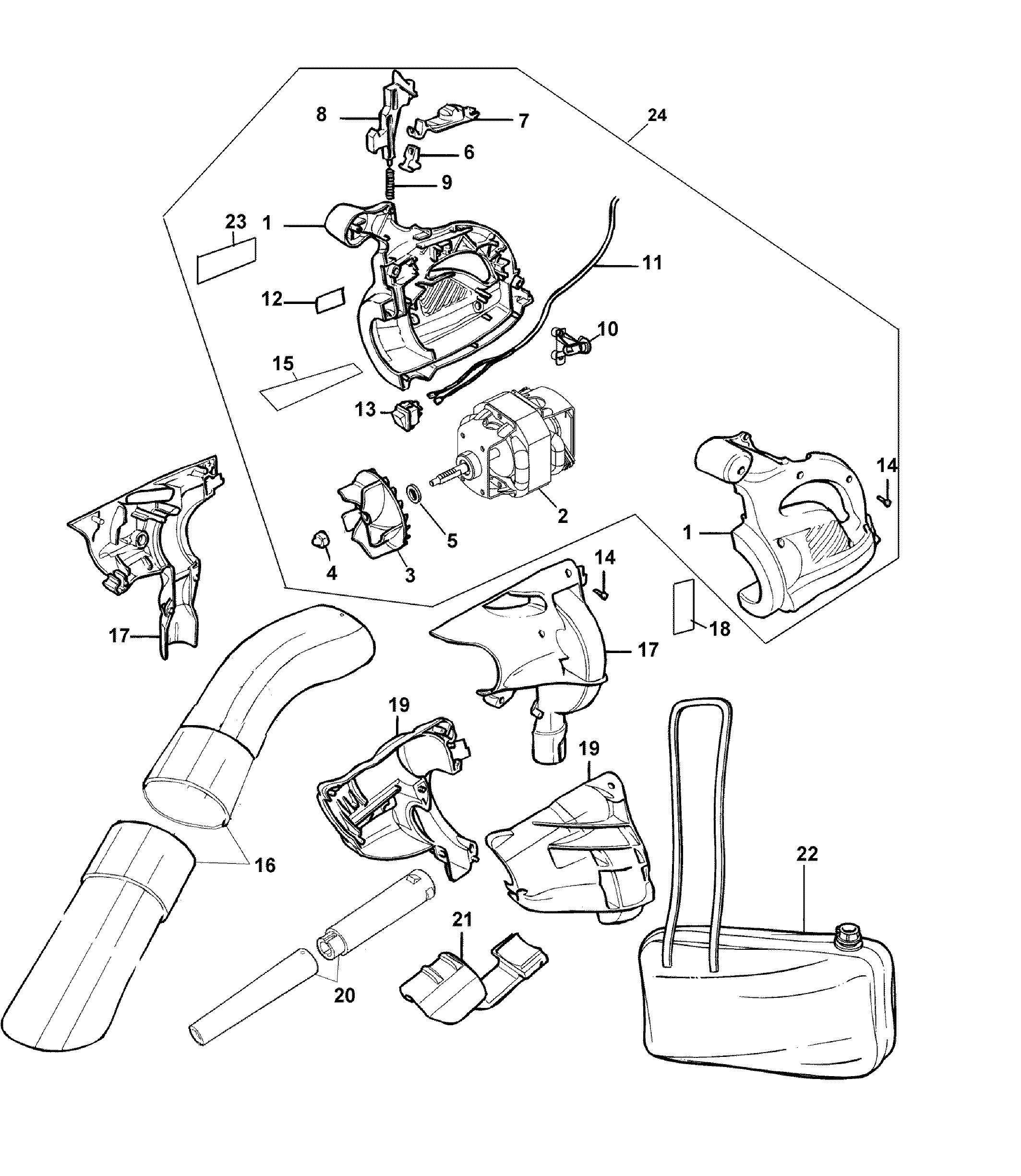

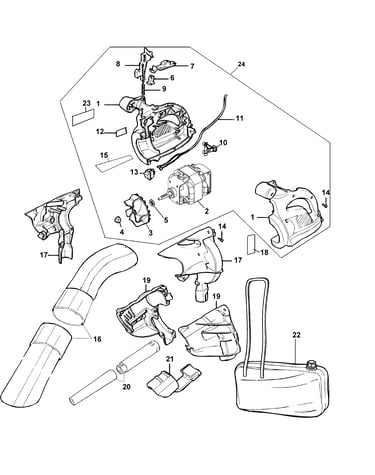

Blower assy diagram

Clamp

Part #370020-00

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Motor Housing Catch 370012
#8

Blower assy diagram

Leaf blower motor housing catch

Part #370012

The manufacturer no longer makes this part, and there's no substitute part

Spring 607693-00
#9

Blower assy diagram

Spring

Part #607693-00

The manufacturer no longer makes this part, and there's no substitute part

Clamshell 613574-00
#1

Blower assy diagram

Clamshell

Part #613574-00

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Tube 572267-03
#16

Blower assy diagram

Vacuum tube

Part #572267-03

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Vacuum Bag Assembly 610004-01
#22

Blower assy diagram

Leaf blower vacuum bag assembly

Part #610004-01

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Fan 607016-00
#3

Blower assy diagram

Leaf blower fan

Part #607016-00

The manufacturer no longer makes this part, and there's no substitute part

Label 607694-00
#23

Blower assy diagram

Label

Part #607694-00

The manufacturer no longer makes this part, and there's no substitute part

Slinger 375001-01
#7

Blower assy diagram

Slinger

Part #375001-01

The manufacturer no longer makes this part, and there's no substitute part

Plate Washer 148902-00
#5

Blower assy diagram

Plate washer

Part #148902-00

The manufacturer no longer makes this part, and there's no substitute part
