Model # HE2950T Official Maytag electric water heater

Here are the diagrams and repair parts for Official Maytag HE2950T electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Access Panel 9000452
#15

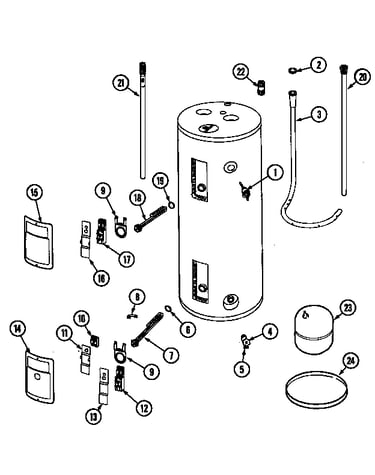

Body diagram

Access panel

Part #9000452

$16.49
In Stock
Temperature And Pressure Valve 66001010
#1

Body diagram

Temperature and pressure valve

Part #66001010

The manufacturer no longer makes this part, and there's no substitute part

Elem Htg 380 66001106
Elem htg 380

Part #66001106

The manufacturer no longer makes this part, and there's no substitute part

Lower Thermostat 66001007
#10

Body diagram

Lower thermostat

Part #66001007

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Heating Element Gasket 66001053
Water heater heating element gasket

Part #66001053

The manufacturer no longer makes this part, and there's no substitute part

Tank, Expans 66001014
#23

Body diagram

Tank, expans

Part #66001014

The manufacturer no longer makes this part, and there's no substitute part

Boss Bak Kit 9001591
#8

Body diagram

Boss bak kit

Part #9001591

The manufacturer no longer makes this part, and there's no substitute part

Drain Valve 66001075
#4A

Body diagram

Drain valve

Part #66001075

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 9002303
#13

Body diagram

Terminal cover

Part #9002303

The manufacturer no longer makes this part, and there's no substitute part

Lower Thermostat 66001008
#12

Body diagram

Lower thermostat

Part #66001008

The manufacturer no longer makes this part, and there's no substitute part
