Makita
Miter Saw

Model # LS1400 Official Makita 14" miter saw

Here are the diagrams and repair parts for Official Makita LS1400 14" miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

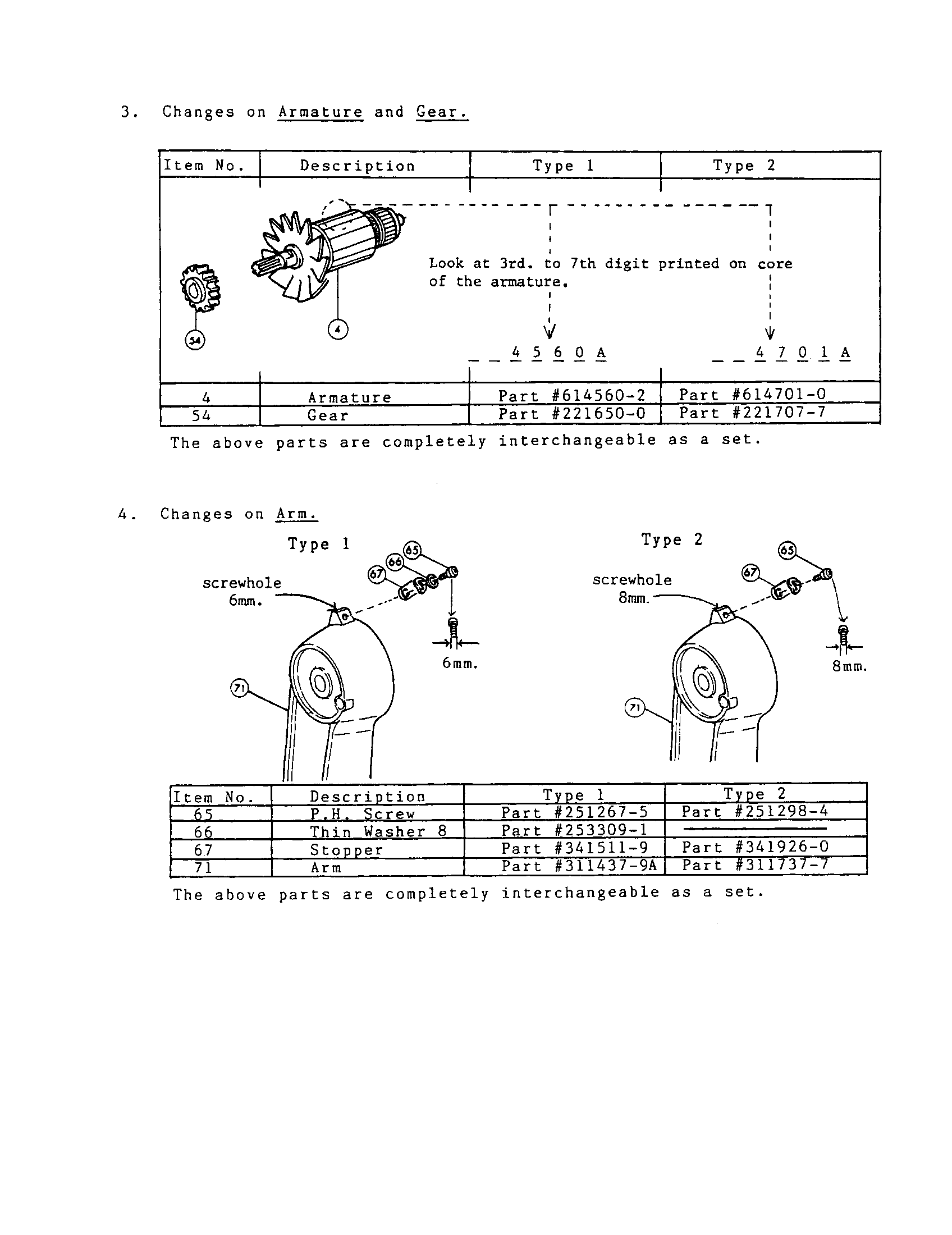

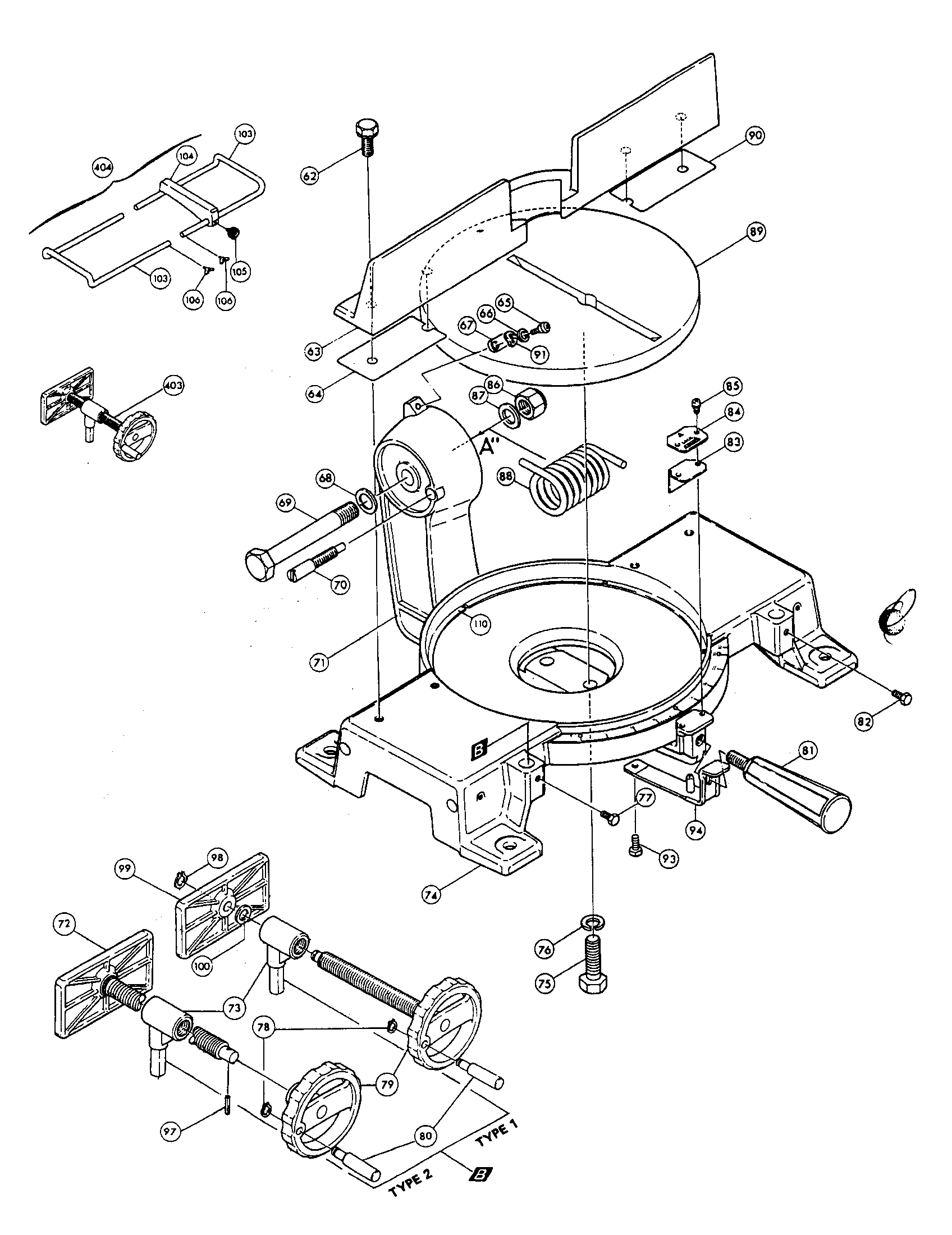

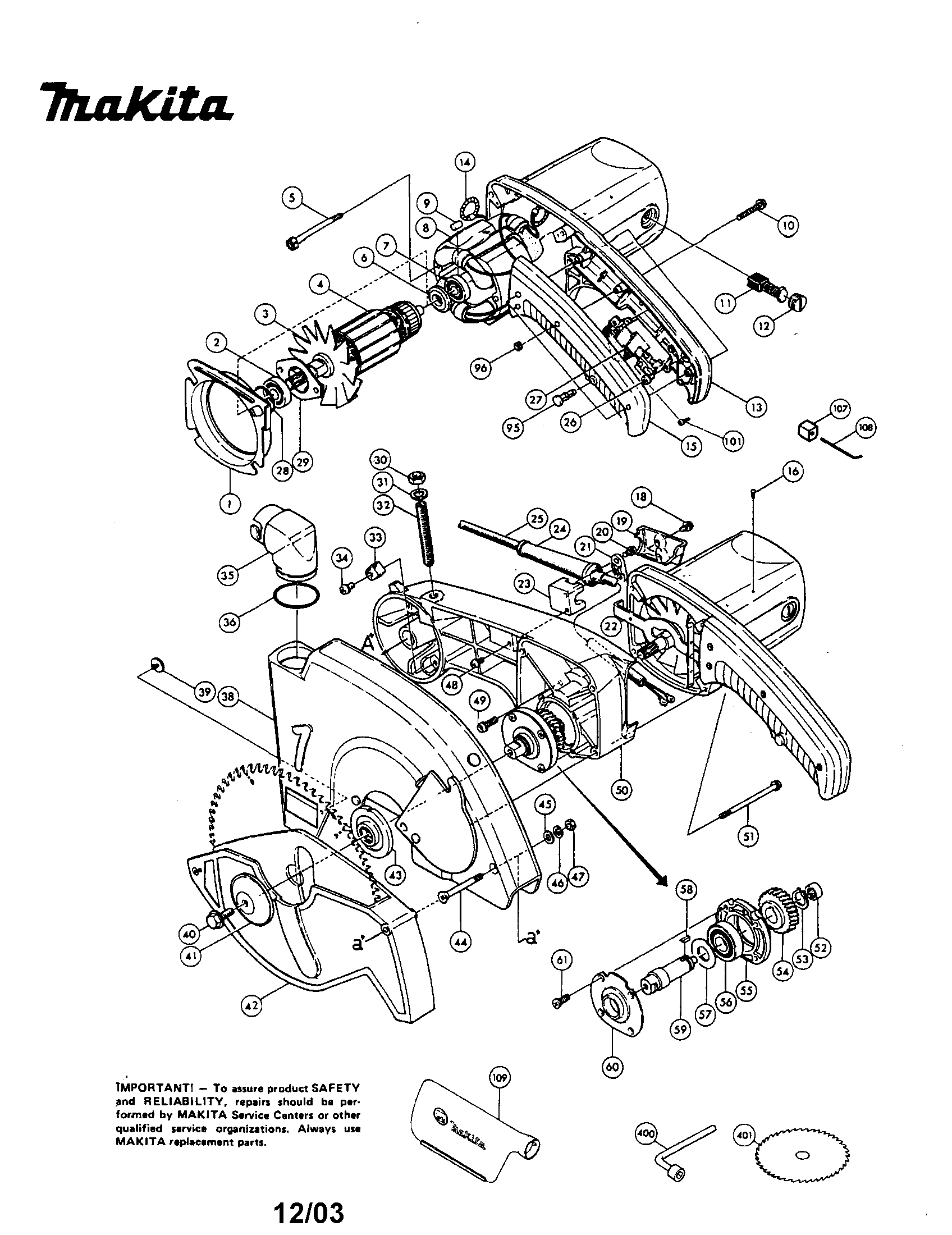

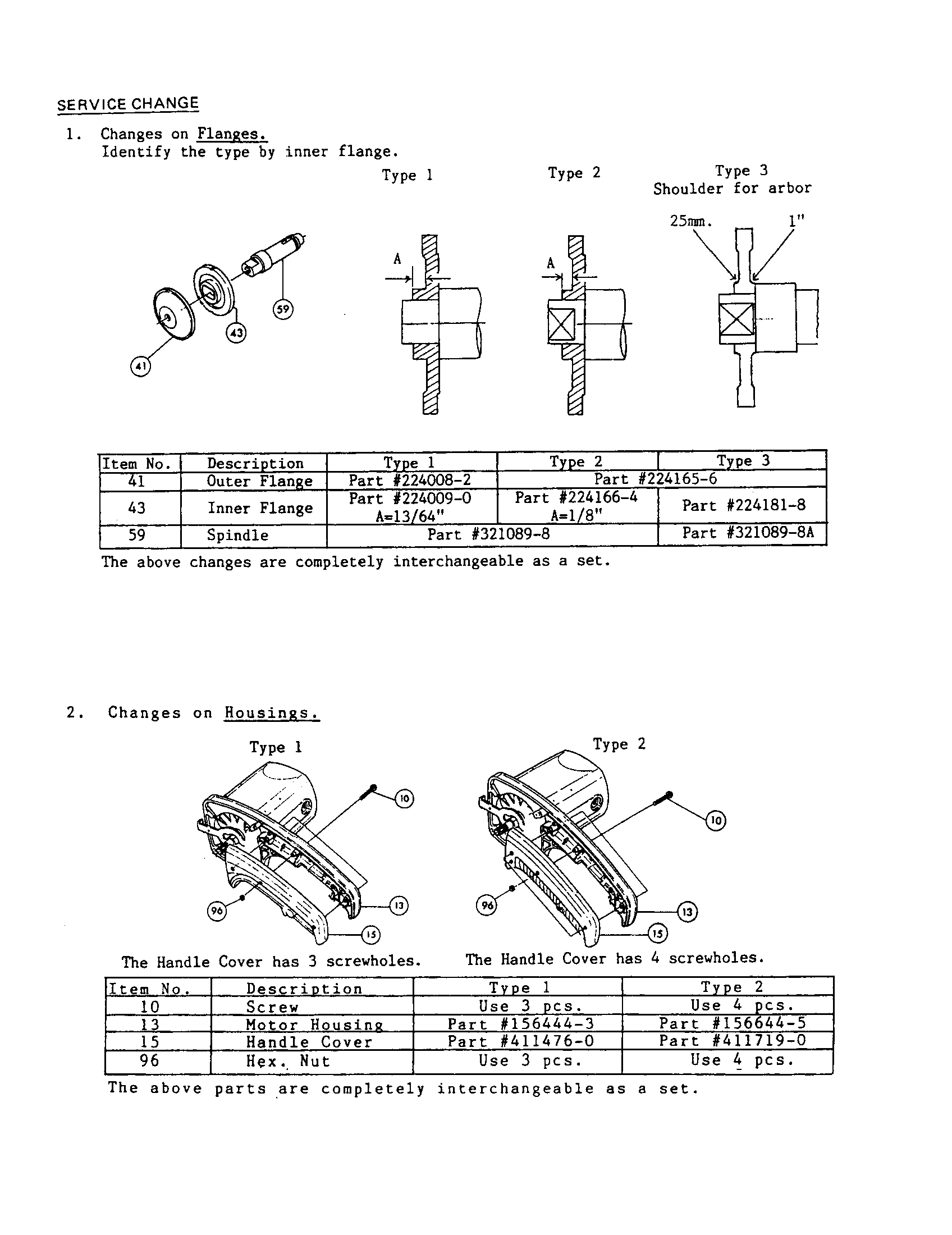

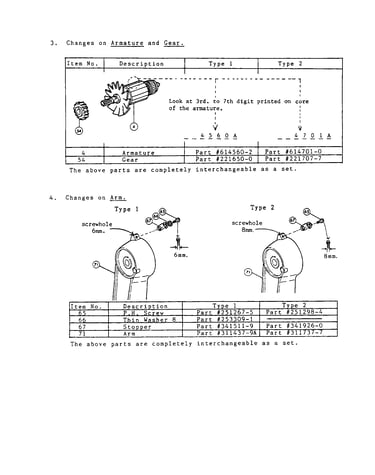

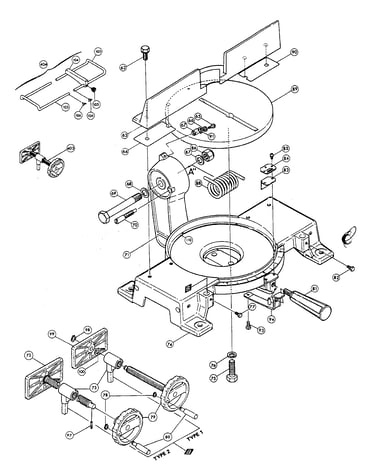

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Screw 911158-9

#10

All parts diagram

Screw

Part #911158-9

The manufacturer no longer makes this part, and there's no substitute part

Screw 911136-9

#49

All parts diagram

Screw

Part #911136-9

The manufacturer no longer makes this part, and there's no substitute part

Screw 911128-8

#18

All parts diagram

Screw

Part #911128-8

The manufacturer no longer makes this part, and there's no substitute part

Relief 687001-1

#21

All parts diagram

Relief

Part #687001-1

The manufacturer no longer makes this part, and there's no substitute part

Garter Sprin 654020-2

#14

All parts diagram

Garter sprin

Part #654020-2

The manufacturer no longer makes this part, and there's no substitute part

Shaft Lock 163100-8

#22

All parts diagram

Shaft lock

Part #163100-8

The manufacturer no longer makes this part, and there's no substitute part

Ring 961060-6

#53

All parts diagram

Ring

Part #961060-6

The manufacturer no longer makes this part, and there's no substitute part

Ring 961052-5

#98

All parts diagram

Ring

Part #961052-5

The manufacturer no longer makes this part, and there's no substitute part

Rivet 953106-2

#16

All parts diagram

Rivet

Part #953106-2

The manufacturer no longer makes this part, and there's no substitute part

Brush Cap 643650-4

#12

All parts diagram

Brush cap

Part #643650-4

The manufacturer no longer makes this part, and there's no substitute part
