Troybilt
Chipper/Shredder

Model #47298 Official Troybilt chipper/vacuum

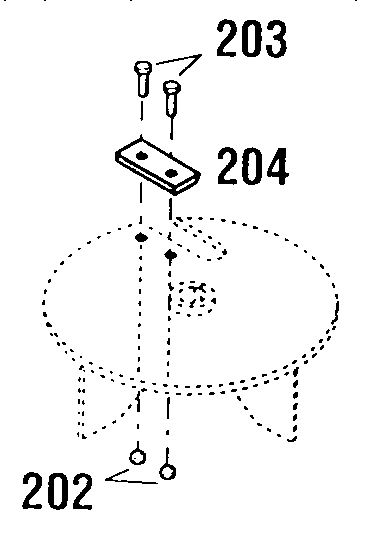

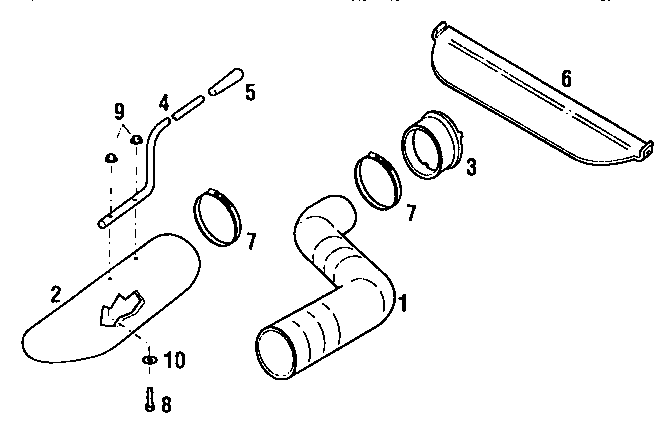

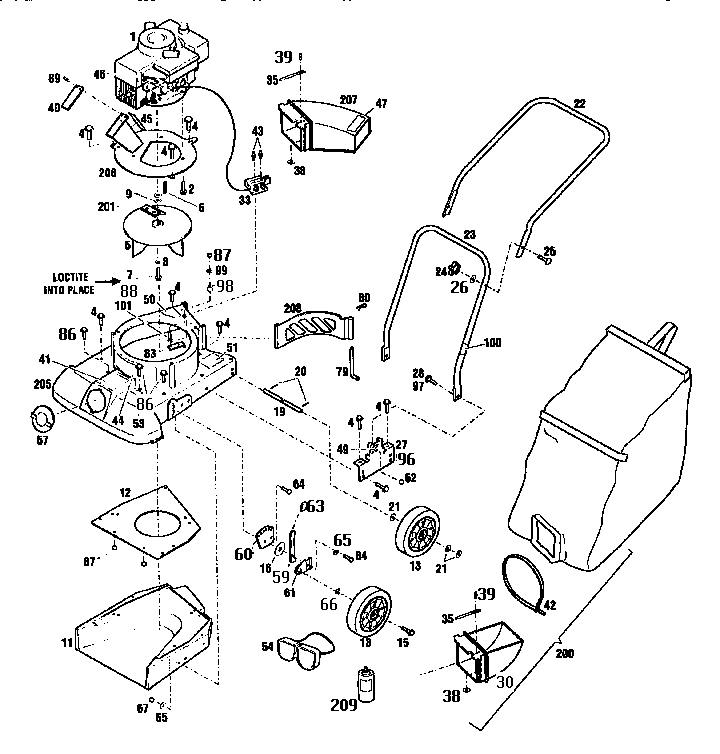

Here are the diagrams and repair parts for Troybilt 47298 chipper/vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 235 parts

Spark Plug#135

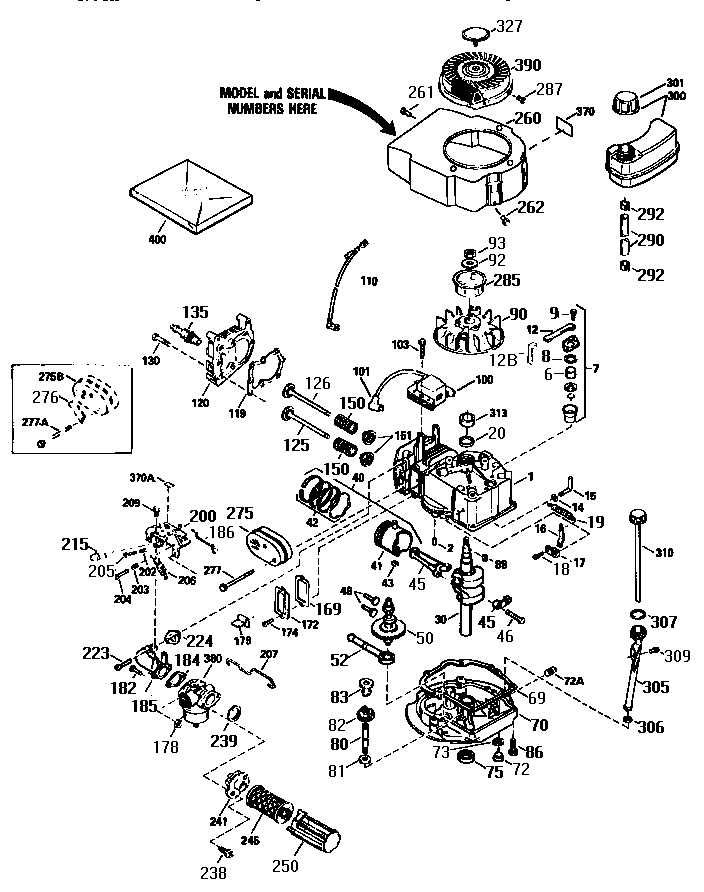

4-cycle engine Diagram

Spark plug

Part #35395

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Air Filter#245

4-cycle engine Diagram

Lawn & garden equipment engine air filter

Part #35066
BEST SELLER
This item is not returnable
In Stock
$5.68 |
15% OFF
Phone Price: $6.68

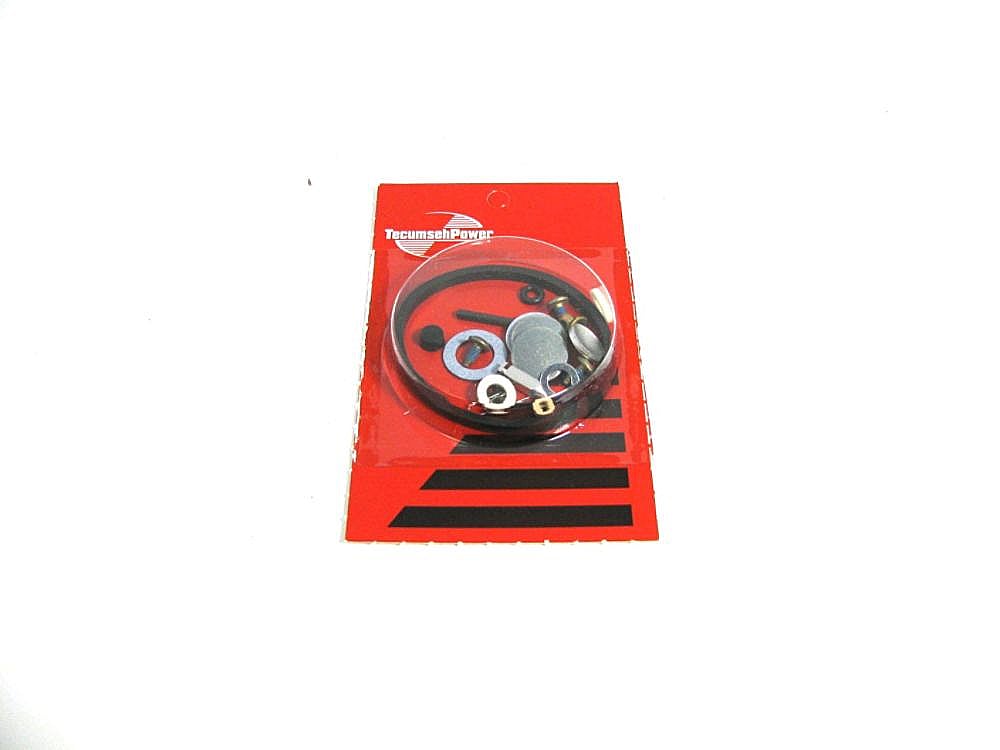

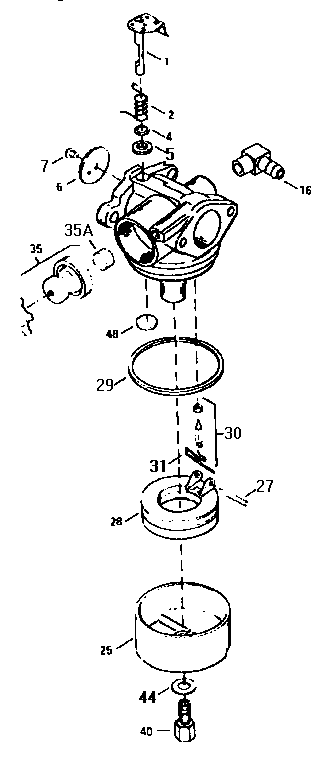

Lawn & Garden Equipment Engine Carburetor Rebuild Kit (replaces 632760A, 632809)

#NI

All parts Diagram

In Stock
$18.33 |
20% OFF
Was: $22.91

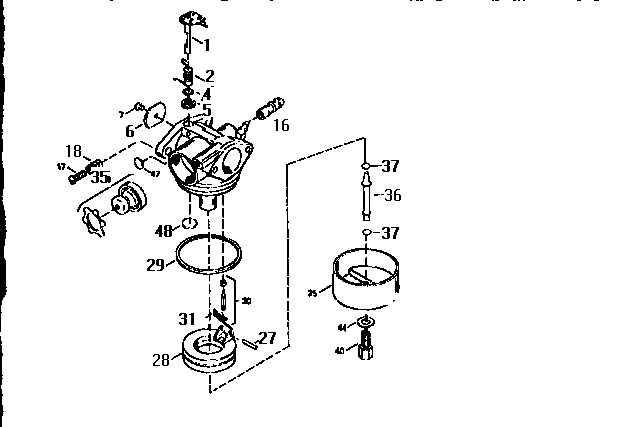

Lawn & Garden Equipment Engine Carburetor Needle Valve Kit

See All Related Diagrams

Needle seat

Part #631021
Replaced by #631021B
?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$5.83 |
20% OFF
Was: $7.29
Lawn & Garden Equipment Engine Carburetor Gasket#184

4-cycle engine Diagram

Lawn & garden equipment engine carburetor gasket

Part #26756
BEST SELLER
This item is not returnable
In Stock
$3.03 |
25% OFF
Phone Price: $4.03
Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in#12

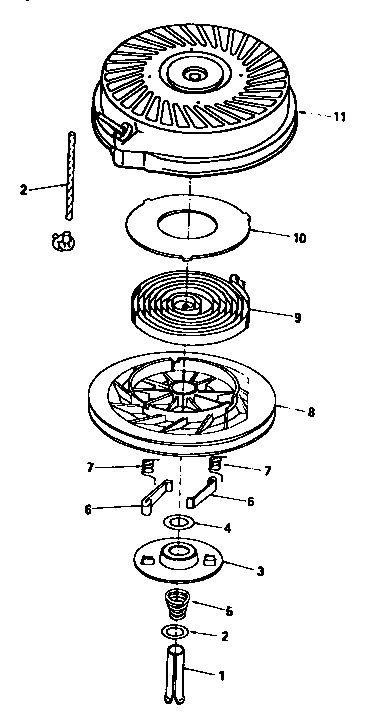

Rewind starter Diagram
