Signature DY-824-1 snow thrower Parts
Here are the diagrams and repair parts for Signature DY-824-1 snow thrower, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for DY-824-1 Snowblowers

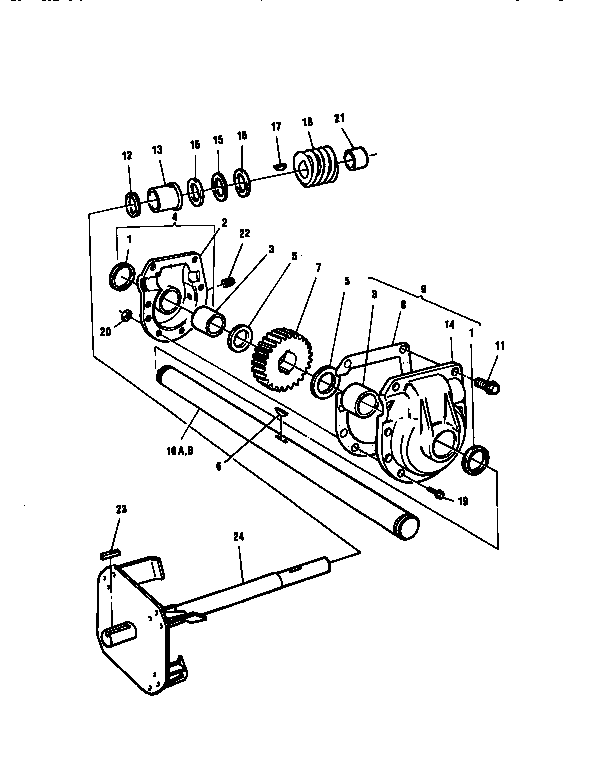

Gear box assembly diagram
Woodruff Key
Part #73905Replaced by #704280
Manufacturer substitutionThis part replaces 73905. Substitute parts can look different from the original.In Stock$9.54
Qty

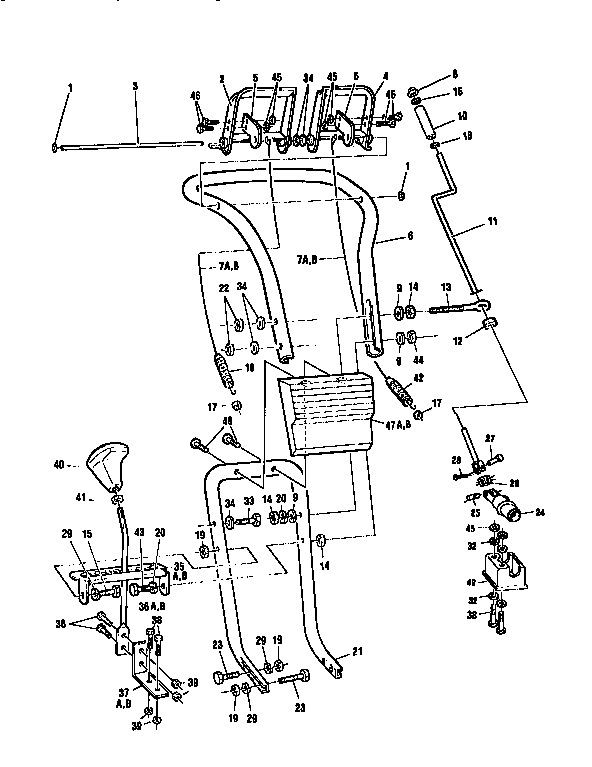

Upper handle assembly diagram
Lever Handle
Part #302557Replaced by #302557MA

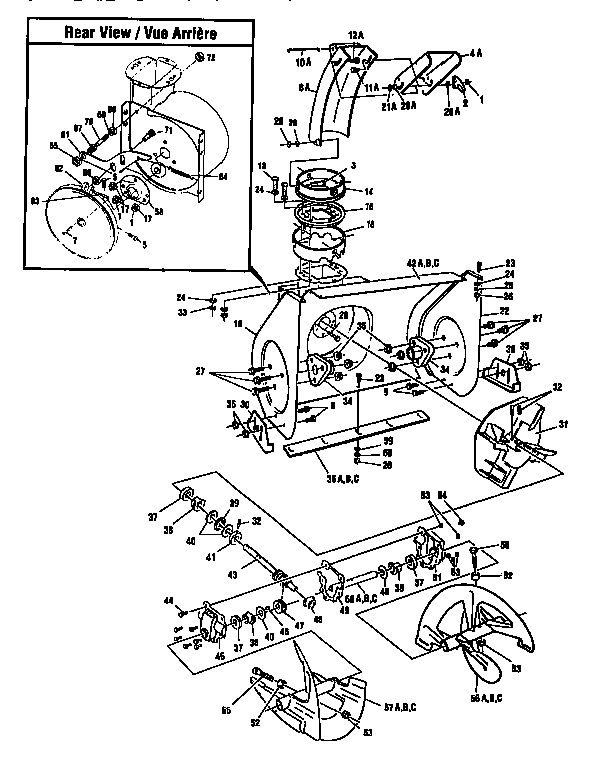

Manufacturer substitutionThis part replaces 302557. Substitute parts can look different from the original.In Stock$32.93Qty4 and 5 h.p. auger housing assy. diagram
Snowblower Gear Case Cover, Left
Part #10576Replaced by #10576MA
Manufacturer substitutionThis part replaces 10576. Substitute parts can look different from the original.In Stock$35.04Qty4 and 5 h.p. auger housing assy. diagram
Gasket
Part #9353Replaced by #51279MA

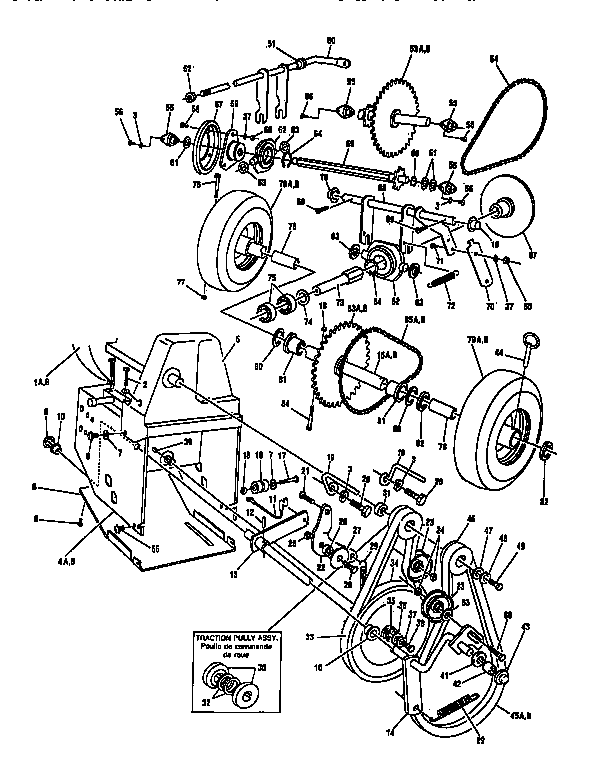

Manufacturer substitutionThis part replaces 9353. Substitute parts can look different from the original.In Stock$25.97Qty8 and 10 h.p. motor mount assy. diagram
Axle
Part #583017Replaced by #583017MA
Manufacturer substitutionThis part replaces 583017. Substitute parts can look different from the original.In Stock$109.96QtySpool
Part #579860Replaced by #579860MA
Manufacturer substitutionThis part replaces 579860. Substitute parts can look different from the original.In Stock$11.51QtyShaft
Part #583155Replaced by #583155MA
Manufacturer substitutionThis part replaces 583155. Substitute parts can look different from the original.In Stock$96.27QtyKey
Part #580970Replaced by #703888
Manufacturer substitutionThis part replaces 580970. Substitute parts can look different from the original.In Stock$8.06QtyUpper handle assembly diagram
Nut
Part #71046Replaced by #703117
Manufacturer substitutionThis part replaces 71046. Substitute parts can look different from the original.This item is not returnableIn Stock$6.86QtyGear box assembly diagram
Worm Gear
Part #53732Replaced by #53732MA
Manufacturer substitutionThis part replaces 53732. Substitute parts can look different from the original.In Stock$74.96Qty
