Model # 536292510 Official Craftsman cultivator

Here are the diagrams and repair parts for Official Craftsman 536292510 cultivator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

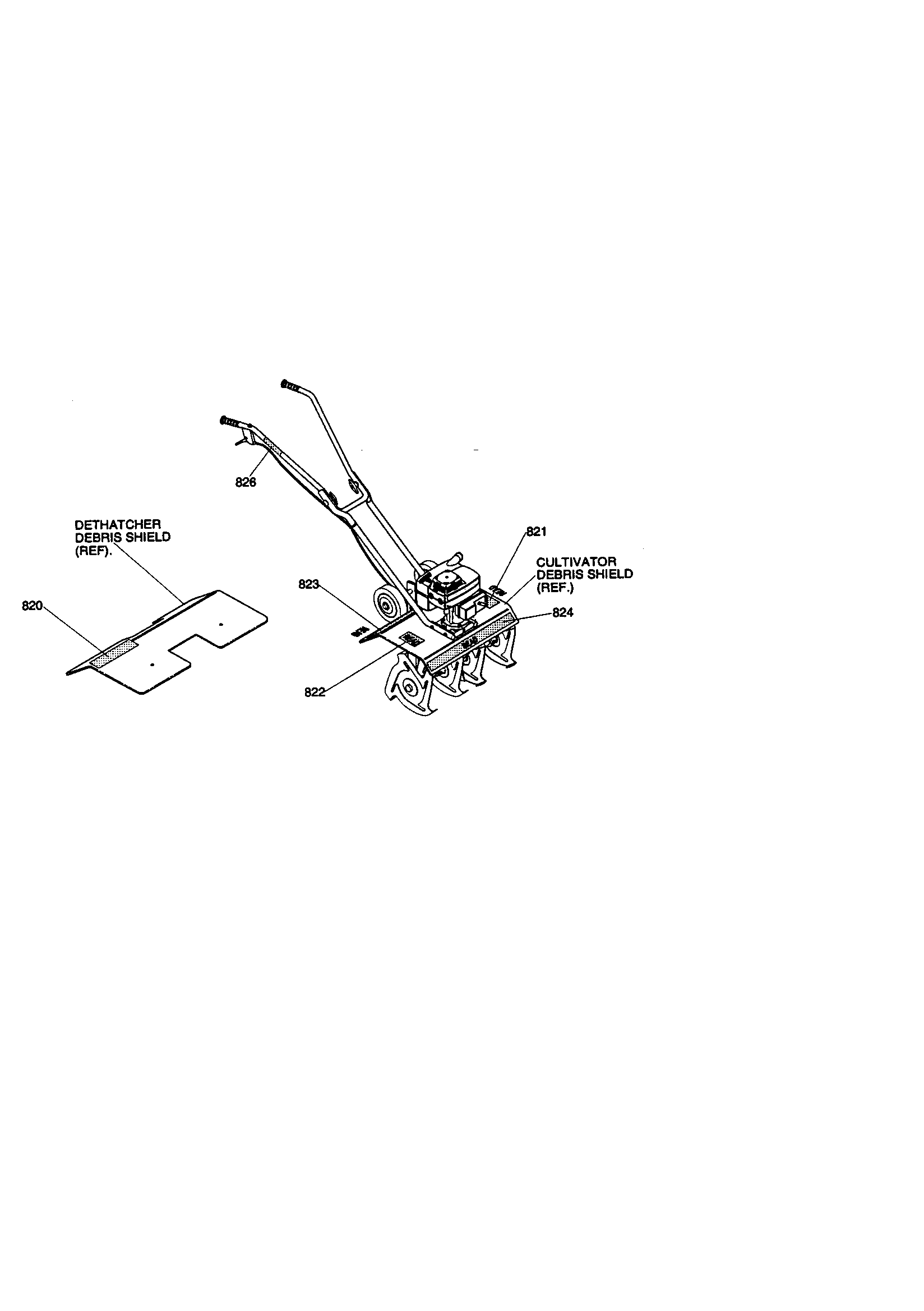

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Nut, 1/4-20 782585
#312

Transmission assembly diagram

Nut, 1/4-20

Part #782585

Replaced by #703251

?
Manufacturer substitution
This part replaces 782585. Substitute parts can look different from the original.
$8.07 |
11% OFF Phone Price : $9.07
In Stock

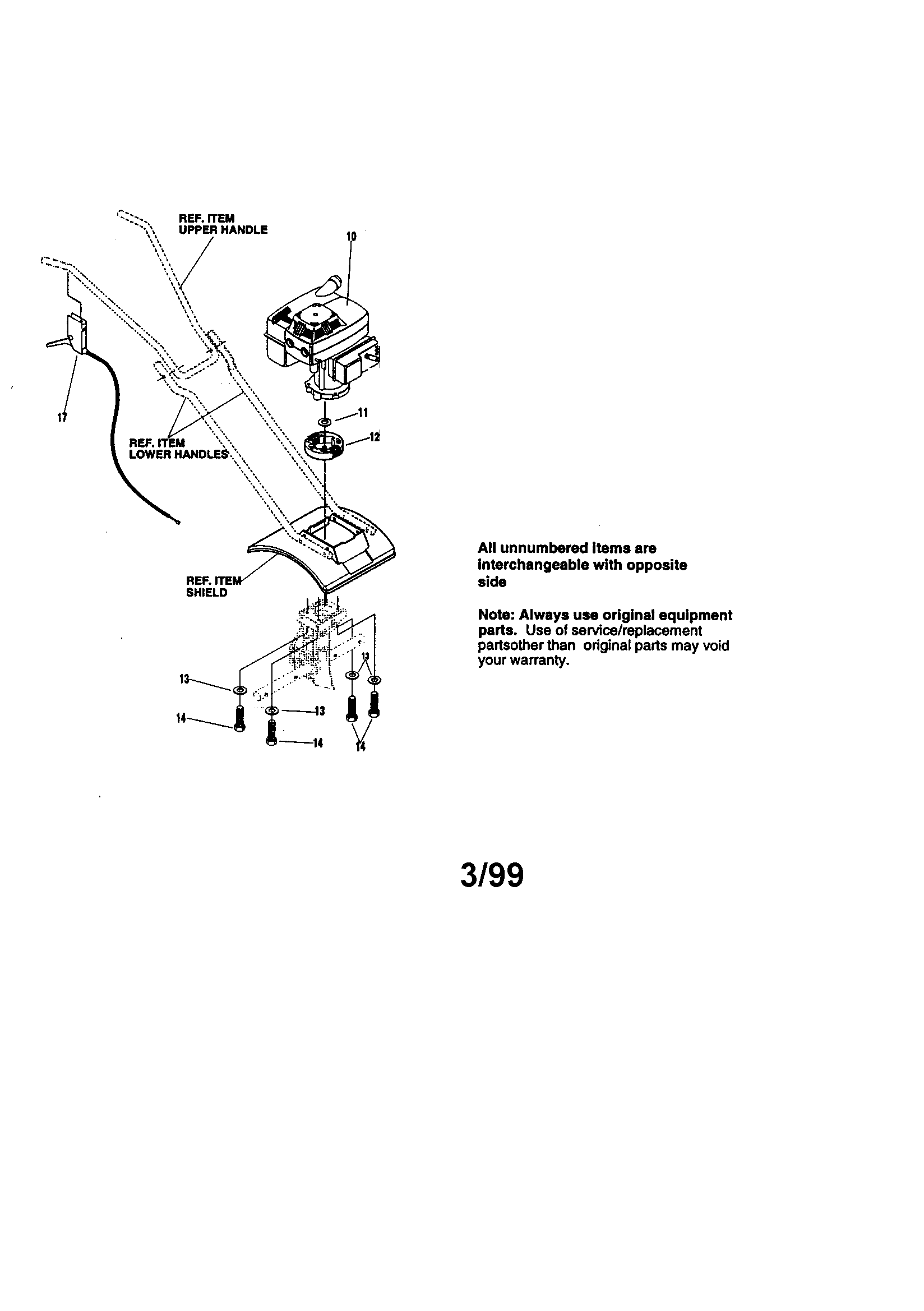

Cable 319306
#17

Engine assembly diagram

Cable

Part #319306

Replaced by #319306MA

?
Manufacturer substitution
This part replaces 319306. Substitute parts can look different from the original.
This item is not returnable
$34.89 |
13% OFF Phone Price : $39.89
In Stock

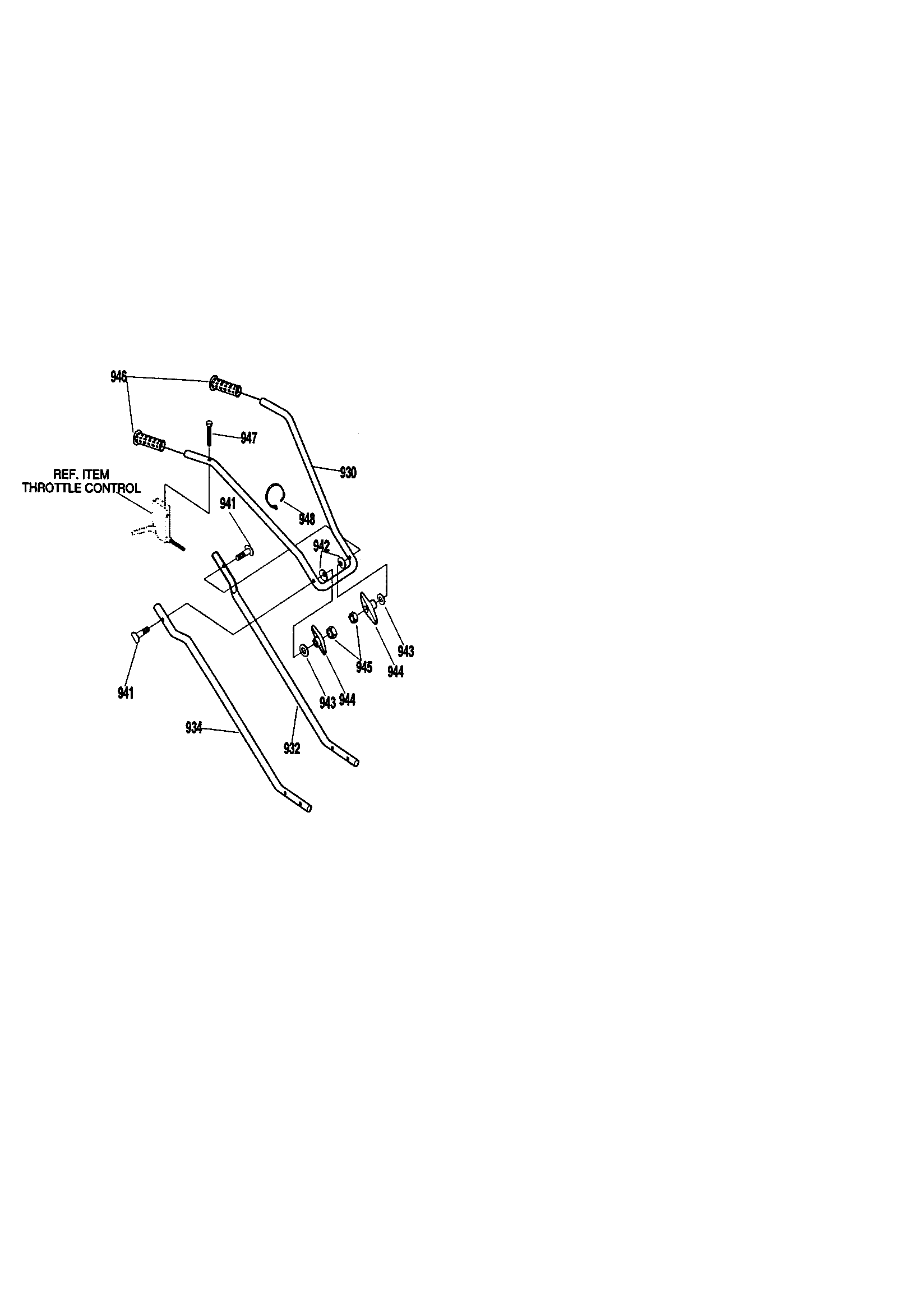

Screw 426635
#947

Handle assembly diagram

Screw

Part #426635

Replaced by #426635MA

?
Manufacturer substitution
This part replaces 426635. Substitute parts can look different from the original.
This item is not returnable
$6.23
In Stock
Tire And Rim 339277
Tire and rim

Part #339277

Replaced by #339277MA

?
Manufacturer substitution
This part replaces 339277. Substitute parts can look different from the original.
This item is not returnable
$15.20
In Stock
Hairpin 56180
Hairpin

Part #56180

Replaced by #56180MA

?
Manufacturer substitution
This part replaces 56180. Substitute parts can look different from the original.
This item is not returnable
$14.29
In Stock
Tie,cable Bl 712267
#948

Handle assembly diagram

Tie,cable bl

Part #712267

The manufacturer no longer makes this part, and there's no substitute part

Retainer Cap 73664
Retainer cap

Part #73664

Replaced by #73664MA

?
Manufacturer substitution
This part replaces 73664. Substitute parts can look different from the original.
This item is not returnable
$8.49 |
11% OFF Phone Price : $9.49
In Stock

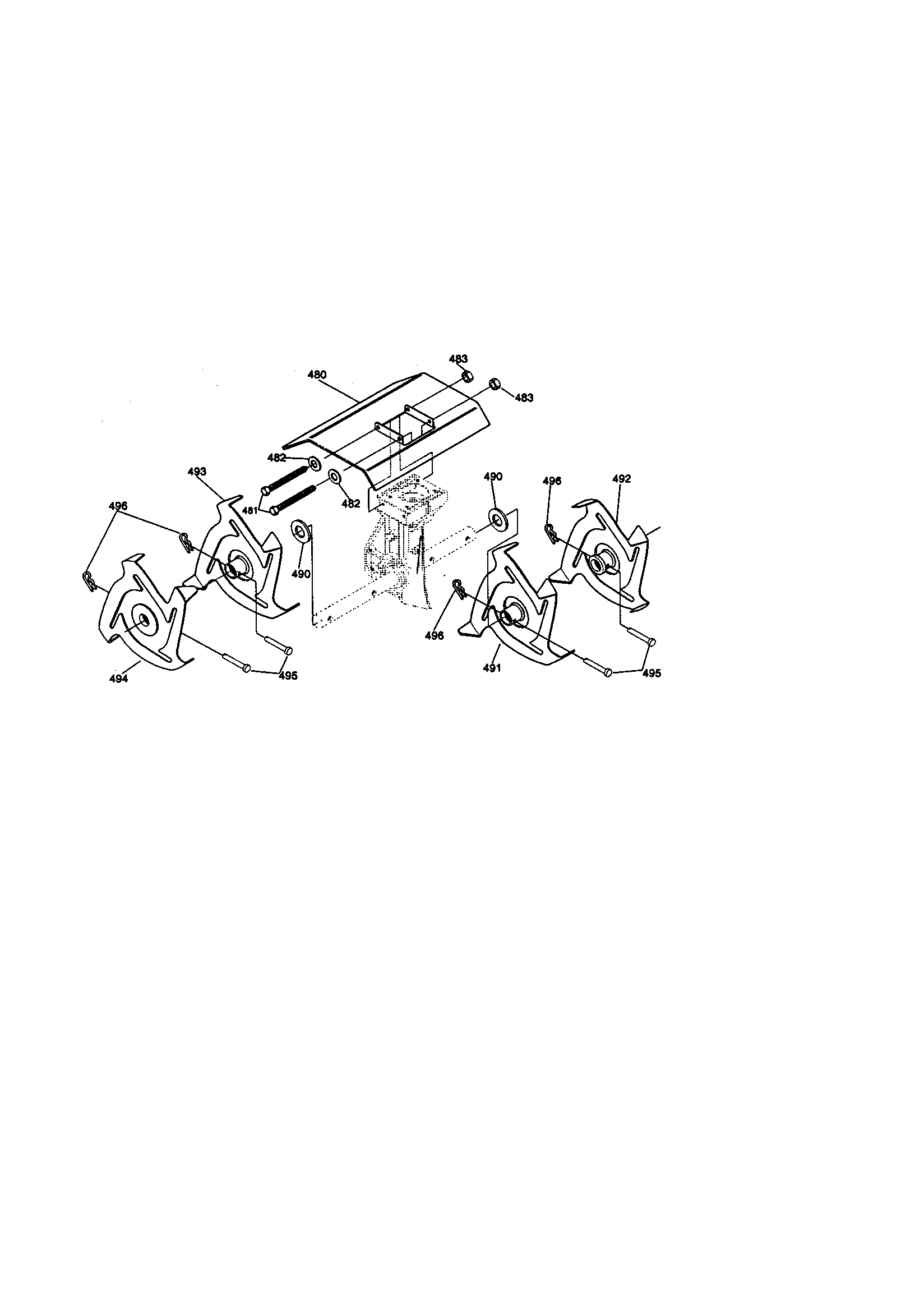

Inner Tine 56157-853
#491

Tine shield assembly diagram

Inner tine

Part #56157-853

Replaced by #56157E701MA

?
Manufacturer substitution
This part replaces 56157-853. Substitute parts can look different from the original.
$52.69 |
9% OFF Phone Price : $57.69
In Stock
Lock Nut 46931
#483

Tine shield assembly diagram

Lock nut

Part #46931

Replaced by #15X89MA

?
Manufacturer substitution
This part replaces 46931. Substitute parts can look different from the original.
This item is not returnable
$7.34
In Stock
Knob Kit 13527
#944

Handle assembly diagram

Knob kit

Part #13527

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 13527. Substitute parts can look different from the original.
$10.93 |
15% OFF Phone Price : $12.93
In Stock
